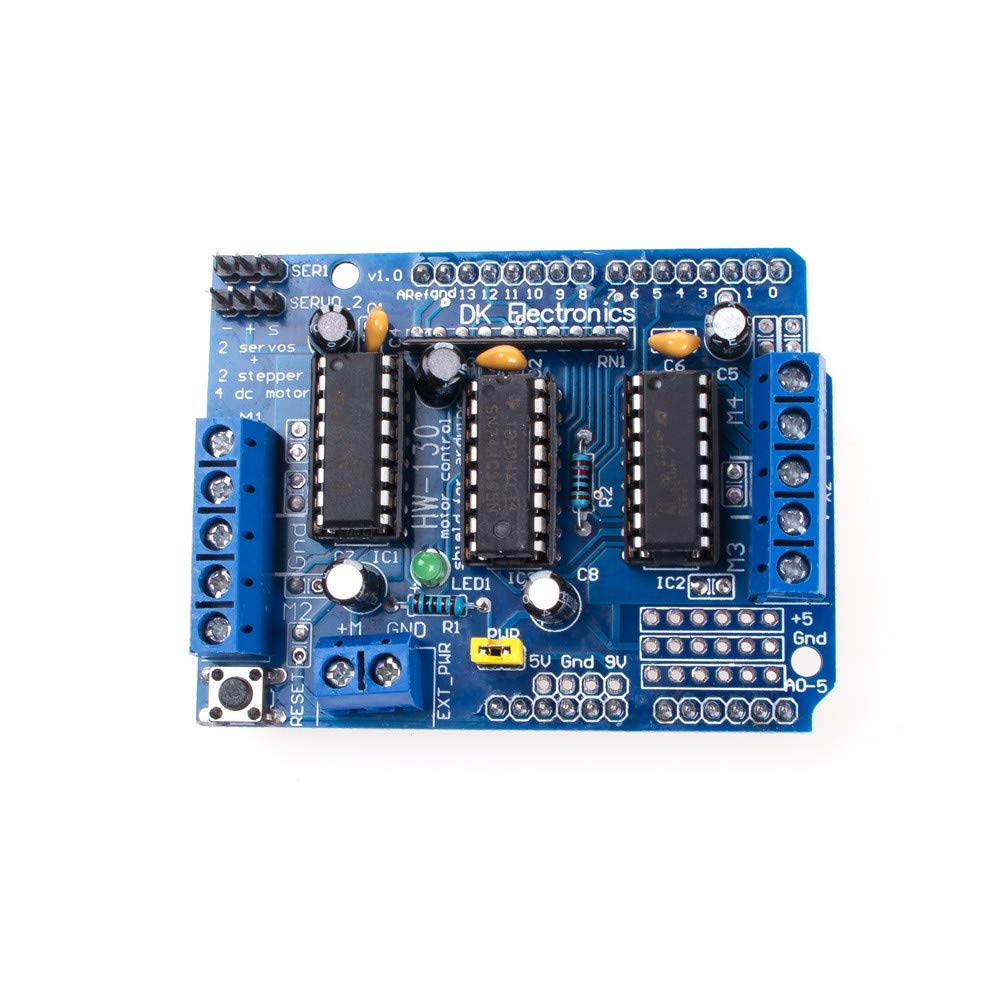

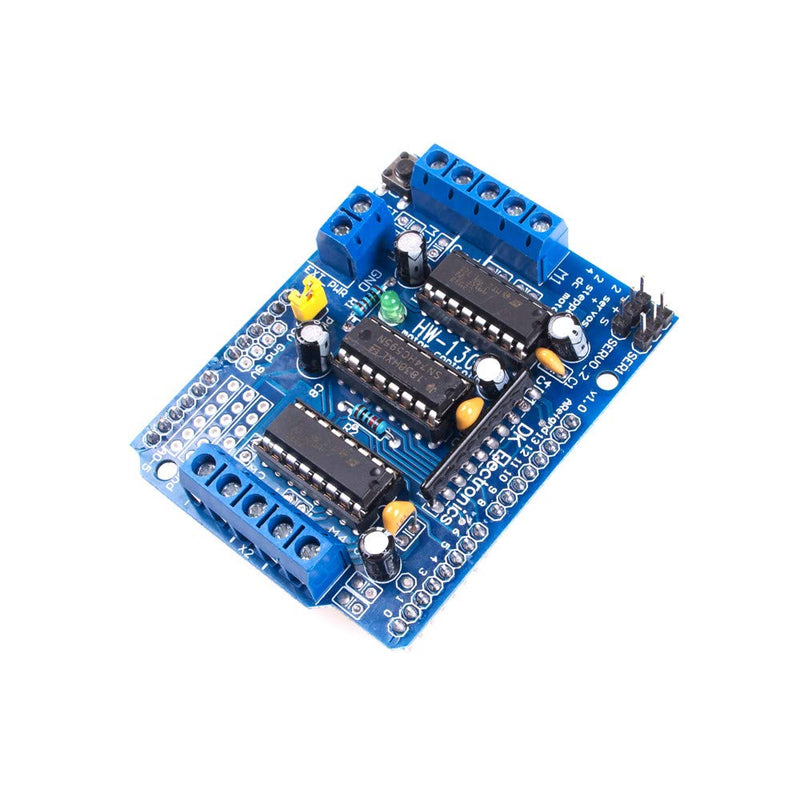

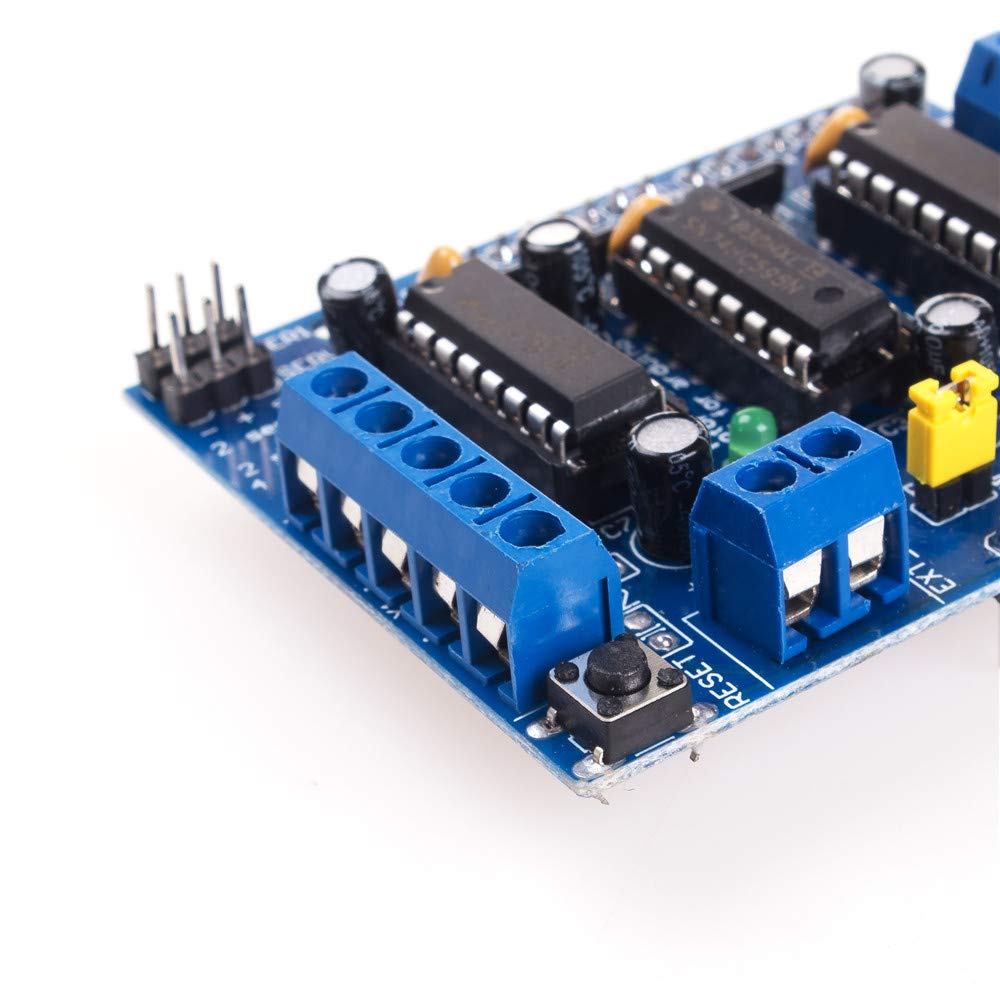

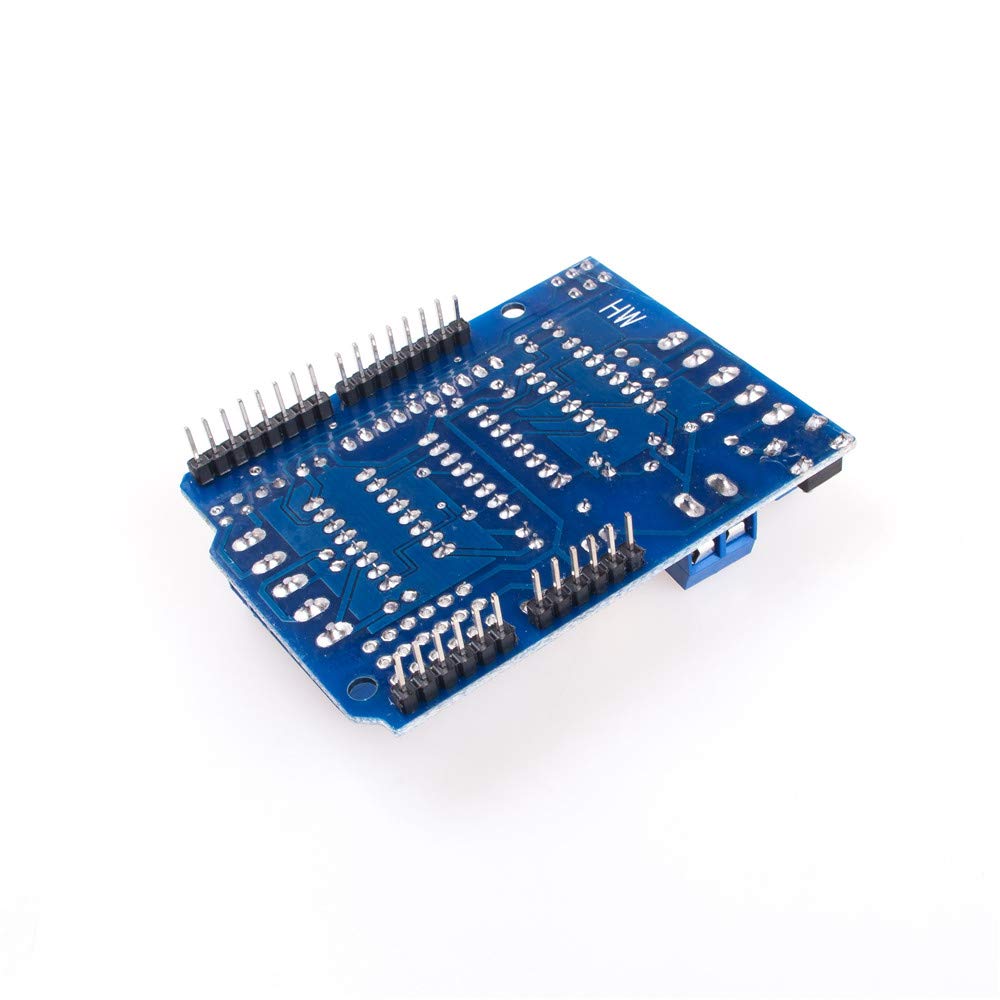

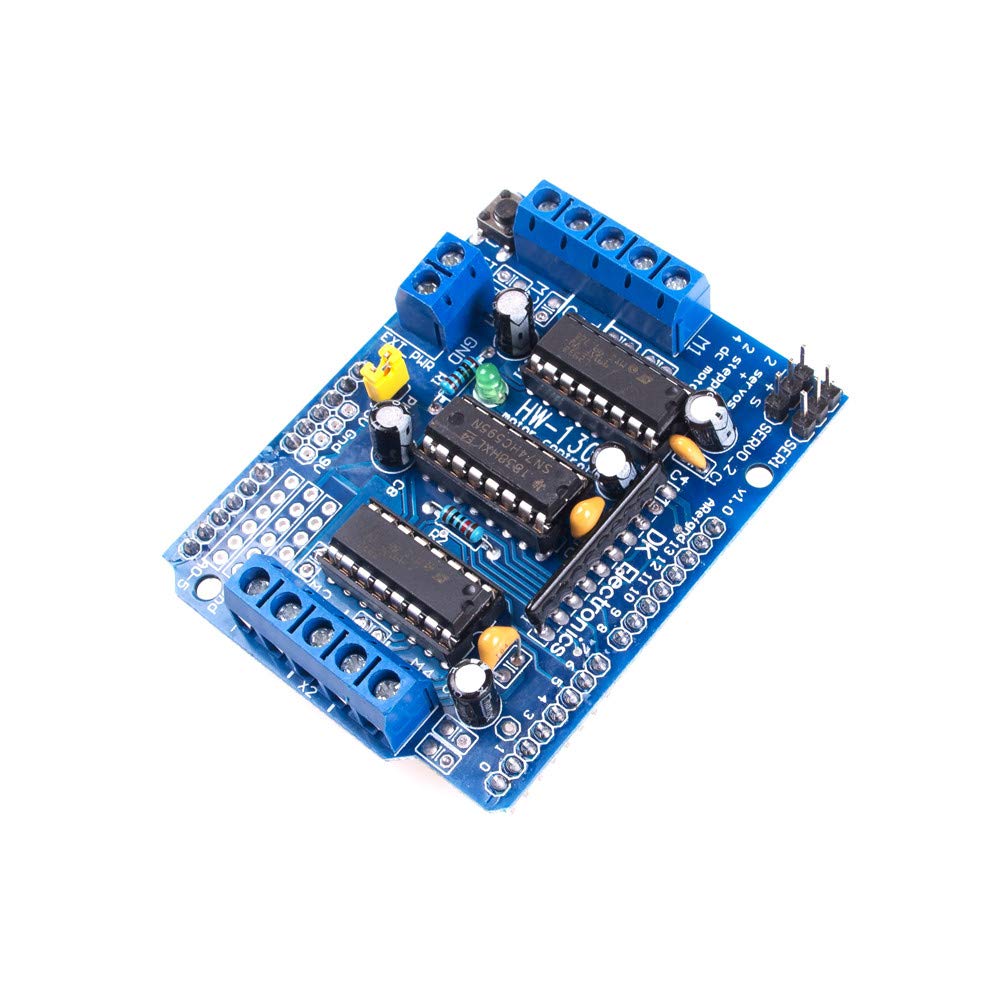

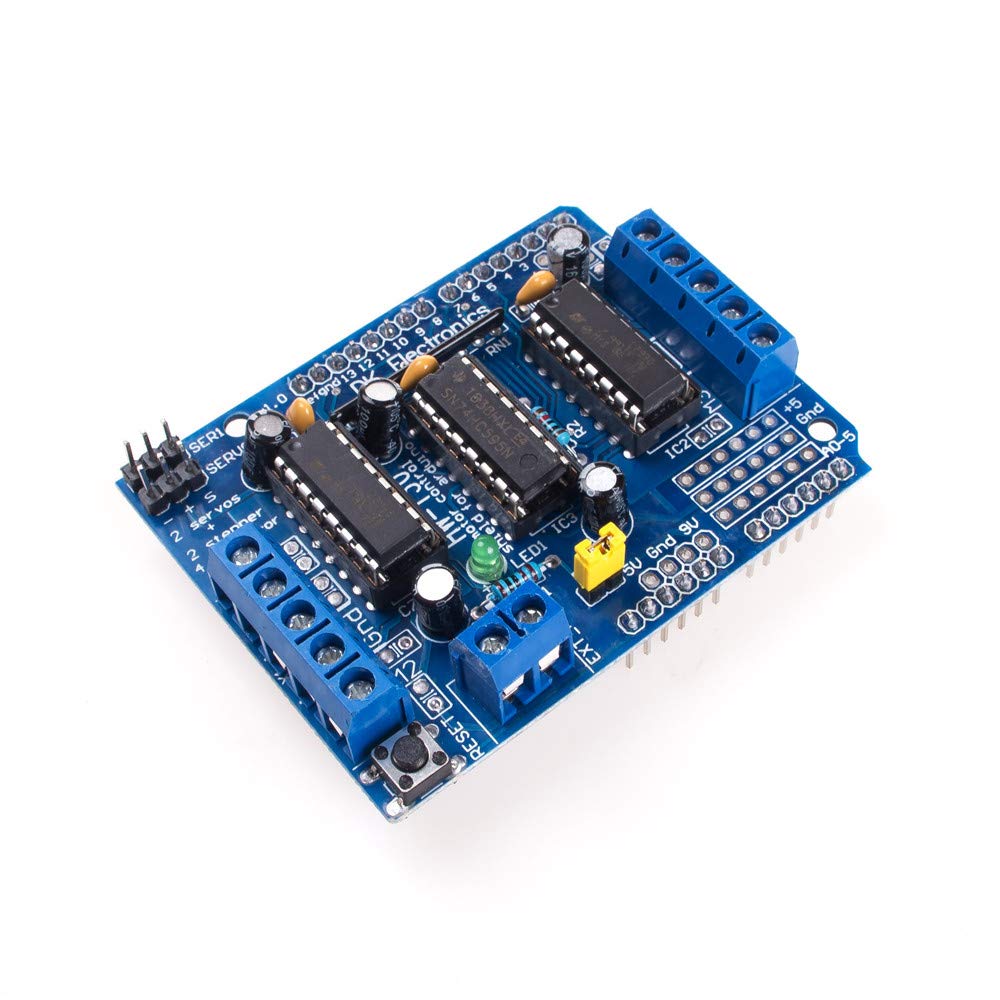

{"id":8115207438516,"title":"L293D Motor Driver Shield Stepper Motor Driver for Arduino Duemilanove Mega UNO R3 AVR ATMEL","handle":"l293d-motor-driver-shield-stepper-motor-driver-for-arduino-duemilanove-mega-uno-r3-avr-atmel","description":"\u003ch3\u003eL293D Motor Driver Shield Stepper Motor Driver for Arduino Duemilanove Mega UNO R3 AVR ATMEL\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis shield simply attaches to an Arduino board and allows you to control up\nto 4 DC motors, 2 stepper motors or 2 servo motors. The high performance and\nreliable L293D chip that distributes the load serves as an H-bridge. This\nallows you to easily use DC motors and power supplies up to 36 V.\nSpecification: 1. Up to 4 bi-directional DC motors with individual 8-bit speed\nselection. 2. Up to 2 stepper motors (unipolar or bipolar) with single coil,\ndouble coil or interleaved stepping. 3.4 H bridges: per bridge provides 0.6A\n(1.2A peak current) with thermal protection, can run motors on 4.5V to 12V DC.\n4. Pull off the resistors to disable the motors while switching on. 5.2\nexternal terminal strips, for separate logic\/motor supply. Tested compatible\nwith Arduino Mega, Diecimila and Duemilanove. Package includes: 1 x L293D\nmotor drive plate.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eL293D is a monolithic integrated high voltage high current driver with 4 channels\u003c\/li\u003e\n \u003cli\u003eBasically, this means that with this chip you can use DC motors and power supplies of up to 12 volts\u003c\/li\u003e\n \u003cli\u003eThe H bridge is typically an electrical circuit that allows a voltage to be applied to an output via a load in any direction, e.g. motor.\u003c\/li\u003e\n \u003cli\u003eThese are some fairly large motors and the chip can provide a maximum current of 600mA per channel, the L293D chip is also what is known as a kind of H bridge.\u003c\/li\u003e\n \u003cli\u003eCan drive 4 DC motors or 2 stepper motors or 2 servos.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T11:43:35+10:00","created_at":"2026-09-01T23:19:57+10:00","vendor":"ANGEEK","type":"Motor Drivers","tags":["industrial_DE_Aug2026"],"price":10600,"price_min":10600,"price_max":10600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374927016116,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07Q82852G","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"L293D Motor Driver Shield Stepper Motor Driver for Arduino Duemilanove Mega UNO R3 AVR ATMEL","public_title":null,"options":["Default Title"],"price":10600,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"704529985632","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B07Q82852G.jpg?v=1788268800","\/\/auspowers.com\/cdn\/shop\/files\/61jMMtnxGKL.jpg?v=1788268800","\/\/auspowers.com\/cdn\/shop\/files\/61wqTo9dNIL.jpg?v=1788268799","\/\/auspowers.com\/cdn\/shop\/files\/61TVRnfC1_L.jpg?v=1788268800","\/\/auspowers.com\/cdn\/shop\/files\/617W0Ig_AGL.jpg?v=1788268800"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07Q82852G.jpg?v=1788268800","options":["Title"],"media":[{"alt":null,"id":33272743002292,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07Q82852G.jpg?v=1788268800"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07Q82852G.jpg?v=1788268800","width":1000},{"alt":null,"id":33272743035060,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61jMMtnxGKL.jpg?v=1788268800"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61jMMtnxGKL.jpg?v=1788268800","width":1000},{"alt":null,"id":33272743067828,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61wqTo9dNIL.jpg?v=1788268799"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61wqTo9dNIL.jpg?v=1788268799","width":1000},{"alt":null,"id":33272743100596,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61TVRnfC1_L.jpg?v=1788268800"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61TVRnfC1_L.jpg?v=1788268800","width":1000},{"alt":null,"id":33272743133364,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/617W0Ig_AGL.jpg?v=1788268800"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/617W0Ig_AGL.jpg?v=1788268800","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eL293D Motor Driver Shield Stepper Motor Driver for Arduino Duemilanove Mega UNO R3 AVR ATMEL\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis shield simply attaches to an Arduino board and allows you to control up\nto 4 DC motors, 2 stepper motors or 2 servo motors. The high performance and\nreliable L293D chip that distributes the load serves as an H-bridge. This\nallows you to easily use DC motors and power supplies up to 36 V.\nSpecification: 1. Up to 4 bi-directional DC motors with individual 8-bit speed\nselection. 2. Up to 2 stepper motors (unipolar or bipolar) with single coil,\ndouble coil or interleaved stepping. 3.4 H bridges: per bridge provides 0.6A\n(1.2A peak current) with thermal protection, can run motors on 4.5V to 12V DC.\n4. Pull off the resistors to disable the motors while switching on. 5.2\nexternal terminal strips, for separate logic\/motor supply. Tested compatible\nwith Arduino Mega, Diecimila and Duemilanove. Package includes: 1 x L293D\nmotor drive plate.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eL293D is a monolithic integrated high voltage high current driver with 4 channels\u003c\/li\u003e\n \u003cli\u003eBasically, this means that with this chip you can use DC motors and power supplies of up to 12 volts\u003c\/li\u003e\n \u003cli\u003eThe H bridge is typically an electrical circuit that allows a voltage to be applied to an output via a load in any direction, e.g. motor.\u003c\/li\u003e\n \u003cli\u003eThese are some fairly large motors and the chip can provide a maximum current of 600mA per channel, the L293D chip is also what is known as a kind of H bridge.\u003c\/li\u003e\n \u003cli\u003eCan drive 4 DC motors or 2 stepper motors or 2 servos.\u003c\/li\u003e\n \u003c\/ul\u003e"}
