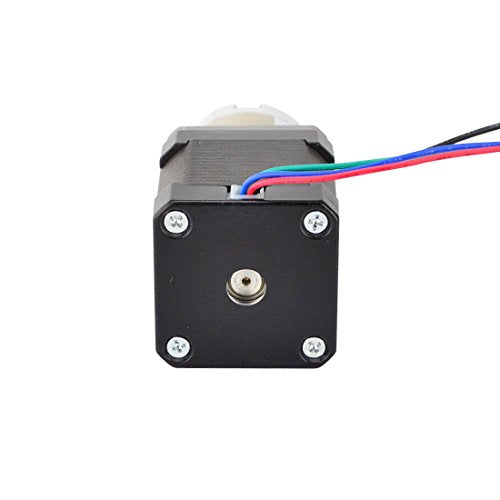

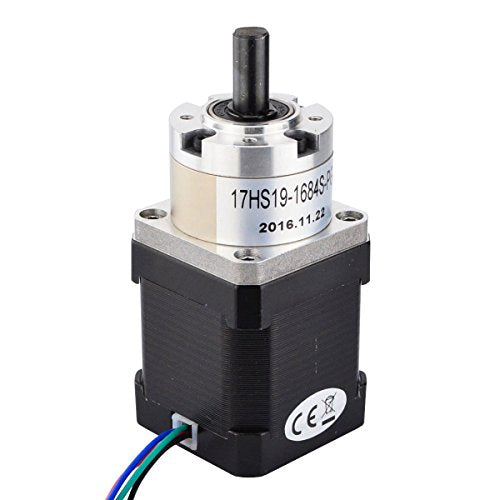

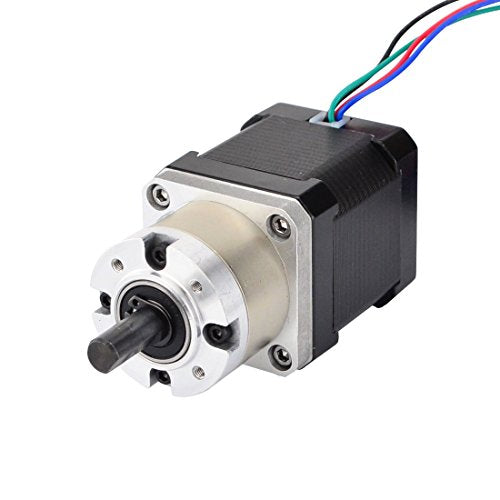

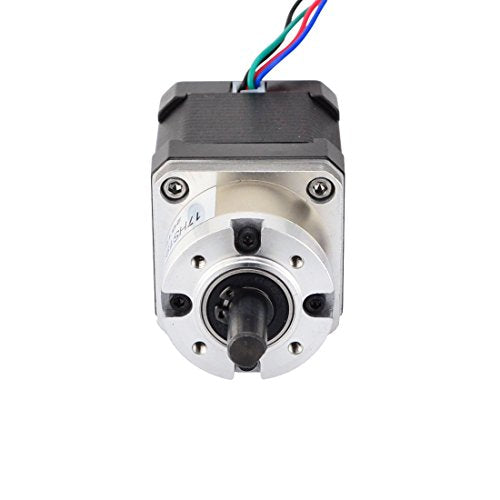

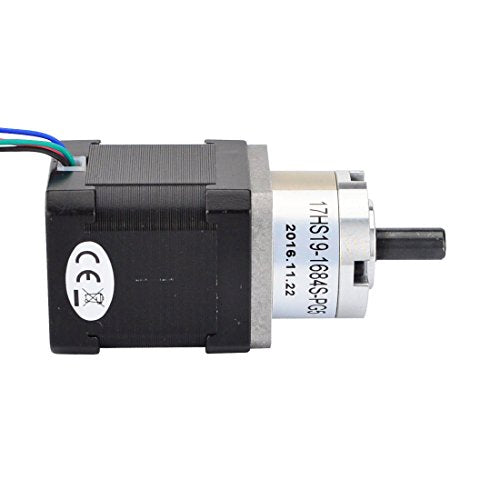

{"id":8115622314164,"title":"STEPPERONLINE Nema 17 Gearbox Stepper Motor L = 48 mm Planetary Gear 5:1","handle":"stepperonline-nema-17-gearbox-stepper-motor-l-48-mm-planetary-gear-5-1","description":"\u003ch3\u003eSTEPPERONLINE Nema 17 Gearbox Stepper Motor L = 48 mm Planetary Gear 5:1\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis NEMA 17 stepper motor has an integrated planetary gear with a 5.18:1 gear\nratio reaches the resolution 0.35° step angle. It is a good solution in\napplications that require low speeds and\/or large torque. Please note, the\nplanetary gear is not high-precision transmission, we can promise the flank\nplay \u0026lt;= 1 degree. Electrical specification: Manufacturer Part Number:\n17HS19-1684S-PG5 Motor type: bipolar Step Angle: 0.35 degree Holding\ntorque without transmission: 44Ncm (62.31oz.in) Rated current\/phase: 1.68A \nPhase resistance: 1.65 ohms Inductance: 2.8mH±20%(1KHz) Gear specification:\n Transmission type: planets Gear Ratio: 5.18:1 Efficiency: 90%. Reverse\nreaction in idle: \u0026lt;= 1°. Max. permissible torque: 2Nm (283oz-in) Momentary\npermitted torque: 4Nm (566oz-in) Maximum Axial Wave Load: 50N Maximum\nradial wave load: 100N Physical specification: Frame size: 42 x 42 mm. \nBody length: 48 mm. Transmission length: 27.3 mm. Shaft diameter: 8 mm. \nShaft length: 20 mm. D-cut length: 15 mm. Number of leads: 4. Lead\nrotation: 500 mm. Weight: 520g Connection: Black (A +), Green (A-), Red (B\n+), Blue (B-). Warning: As a stepper motor, it should be connected to a\nconstant current or chopper driver. If you connect the motor directly to a\npower supply, the motor will be destroyed. Please pay attention to order\nfour wire coils when you connect to the driver, or it will damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eGood torque, good speed\u003c\/li\u003e\n \u003cli\u003e0.35 deg. Step angle\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003ePlanetary gear ratio 5.18:1\u003c\/li\u003e\n \u003cli\u003eRated current 1.68 A and resistance 1.65 ohms\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:30:47+10:00","created_at":"2026-09-02T20:25:40+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":32400,"price_min":32400,"price_max":32400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375713611956,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B07R299RL6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Nema 17 Gearbox Stepper Motor L = 48 mm Planetary Gear 5:1","public_title":null,"options":["Default Title"],"price":32400,"weight":520,"compare_at_price":null,"inventory_management":"shopify","barcode":"DE-17HS19-1684S-PG5","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B07R299RL6.jpg?v=1788344742","\/\/auspowers.com\/cdn\/shop\/files\/417Jrg1I0yL.jpg?v=1788344742","\/\/auspowers.com\/cdn\/shop\/files\/41h7cNTF9WL.jpg?v=1788344742","\/\/auspowers.com\/cdn\/shop\/files\/41Mi9ceFrmL.jpg?v=1788344742","\/\/auspowers.com\/cdn\/shop\/files\/31sbnnNffHL.jpg?v=1788344743"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07R299RL6.jpg?v=1788344742","options":["Title"],"media":[{"alt":null,"id":33276707537076,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07R299RL6.jpg?v=1788344742"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07R299RL6.jpg?v=1788344742","width":500},{"alt":null,"id":33276707569844,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/417Jrg1I0yL.jpg?v=1788344742"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/417Jrg1I0yL.jpg?v=1788344742","width":500},{"alt":null,"id":33276707602612,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41h7cNTF9WL.jpg?v=1788344742"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41h7cNTF9WL.jpg?v=1788344742","width":500},{"alt":null,"id":33276707635380,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41Mi9ceFrmL.jpg?v=1788344742"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41Mi9ceFrmL.jpg?v=1788344742","width":500},{"alt":null,"id":33276707668148,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31sbnnNffHL.jpg?v=1788344743"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31sbnnNffHL.jpg?v=1788344743","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Nema 17 Gearbox Stepper Motor L = 48 mm Planetary Gear 5:1\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis NEMA 17 stepper motor has an integrated planetary gear with a 5.18:1 gear\nratio reaches the resolution 0.35° step angle. It is a good solution in\napplications that require low speeds and\/or large torque. Please note, the\nplanetary gear is not high-precision transmission, we can promise the flank\nplay \u0026lt;= 1 degree. Electrical specification: Manufacturer Part Number:\n17HS19-1684S-PG5 Motor type: bipolar Step Angle: 0.35 degree Holding\ntorque without transmission: 44Ncm (62.31oz.in) Rated current\/phase: 1.68A \nPhase resistance: 1.65 ohms Inductance: 2.8mH±20%(1KHz) Gear specification:\n Transmission type: planets Gear Ratio: 5.18:1 Efficiency: 90%. Reverse\nreaction in idle: \u0026lt;= 1°. Max. permissible torque: 2Nm (283oz-in) Momentary\npermitted torque: 4Nm (566oz-in) Maximum Axial Wave Load: 50N Maximum\nradial wave load: 100N Physical specification: Frame size: 42 x 42 mm. \nBody length: 48 mm. Transmission length: 27.3 mm. Shaft diameter: 8 mm. \nShaft length: 20 mm. D-cut length: 15 mm. Number of leads: 4. Lead\nrotation: 500 mm. Weight: 520g Connection: Black (A +), Green (A-), Red (B\n+), Blue (B-). Warning: As a stepper motor, it should be connected to a\nconstant current or chopper driver. If you connect the motor directly to a\npower supply, the motor will be destroyed. Please pay attention to order\nfour wire coils when you connect to the driver, or it will damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eGood torque, good speed\u003c\/li\u003e\n \u003cli\u003e0.35 deg. Step angle\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003ePlanetary gear ratio 5.18:1\u003c\/li\u003e\n \u003cli\u003eRated current 1.68 A and resistance 1.65 ohms\u003c\/li\u003e\n \u003c\/ul\u003e"}
