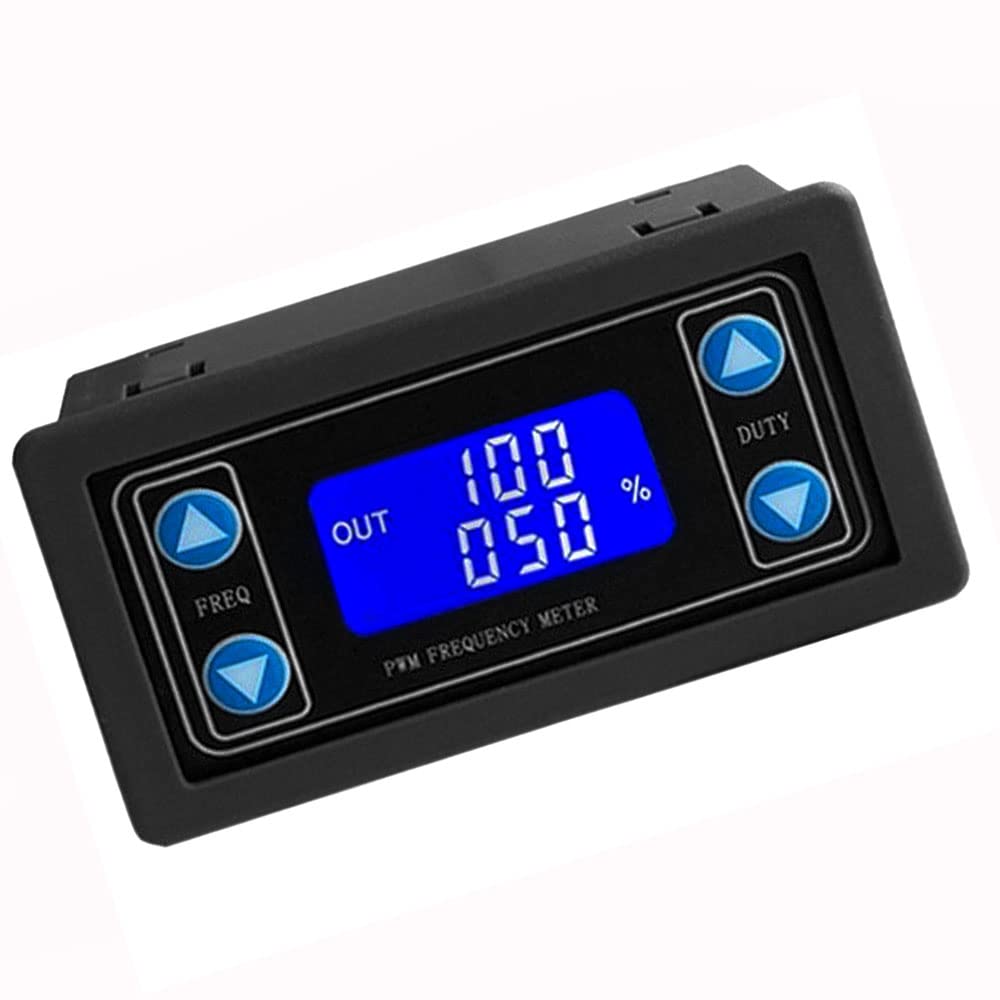

{"id":7992781832372,"title":"ZkeeShop Adjustable Signal Generator 1-Channel PWM Pulse Frequency DC 3.3V-30V 5-30mA 1Hz-150KHz LCD Display Module","handle":"zkeeshop-adjustable-signal-generator-1-channel-pwm-pulse-frequency-dc-3-3v-30v-5-30ma-1hz-150khz-lcd-display-module","description":"\u003ch3\u003eZkeeShop Adjustable Signal Generator 1-Channel PWM Pulse Frequency DC 3.3V-30V 5-30mA 1Hz-150KHz LCD Display Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWork voltage: DC 3.3V-30V. Frequency range: 1Hz~150KHz. Frequency accuracy:\n2%. Duty cycle range: 0.00%-100%. Output current: about 5-30 mA. Output\namplitude: Same to input voltage. Size: 79 x 43 x 27 mm. Operating\ntemperature: -20°C ~ 70°C. Four Frequency Range: Enter the setting interface\nafter press any button 'FREQ+' or 'FREQ-' in the normal running status to\nselect frequency range Pay attention to the position where the decimal point\nmoves after the button is pressed. Display 'XXX'.No decimal point,The minimum\nfrequency is 1Hz.The frequency range is 1Hz ~ 999Hz Display 'X.XX'.The decimal\npoint is the penultimate, The minimum frequency is 0.01KHz.The frequency range\nis 1.00KHz ~ 9.99KHz Display 'XX.X'.The decimal point is the third last,The\nminimum frequency is 0.1KHz.The frequency range is 10.0KHz ~ 99.9KHz Display\n'X.X.X'.The decimal point is fully lit,The minimum frequency is 1KHz.The\nfrequency range is 1KHz ~ 150KHz For example: Display '100' means PWM output\nfrequency is 100Hz Display '1.01' means PWM output frequency is 1.01KHz\nDisplay '54.1' means PWM output frequency is 54.1KHz Display '1.2.4' means PWM\noutput frequency is 124KHz\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAdjustable Frequency Range: from 1Hz to 150KHz\u003c\/li\u003e\n \u003cli\u003eShell protection and clear LCD display: display both frequency and duty cycle in more clear status\u003c\/li\u003e\n \u003cli\u003eSupport power-down memory function: no need to set the data after power-off\u003c\/li\u003e\n \u003cli\u003eSupport UART, DC 3.3V-30V voltage, 5-30mA output current\u003c\/li\u003e\n \u003cli\u003eWider Application: Square wave signal generator, generating square wave signal for experimental development;generating square wave signal that controls the motor driver; Generating adjustable pulses for MCU and so on\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T01:51:43+10:00","created_at":"2025-09-27T01:51:39+10:00","vendor":"ZkeeShop","type":"Function Generators","tags":["industryDE_Sep2025"],"price":12800,"price_min":12800,"price_max":12800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44053721612468,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09XZZVMFJ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZkeeShop Adjustable Signal Generator 1-Channel PWM Pulse Frequency DC 3.3V-30V 5-30mA 1Hz-150KHz LCD Display Module","public_title":null,"options":["Default Title"],"price":12800,"weight":38,"compare_at_price":null,"inventory_management":"shopify","barcode":"58cd40b8-2988-43ce-b9b2-00f5b00edfb1","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/51PCzDhnNlL.jpg?v=1758901904","\/\/auspowers.com\/cdn\/shop\/files\/51uH0xuARPL.jpg?v=1758901904","\/\/auspowers.com\/cdn\/shop\/files\/61dJFBUA2gL.jpg?v=1758901902","\/\/auspowers.com\/cdn\/shop\/files\/51c6otrH_BL.jpg?v=1758901905"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/51PCzDhnNlL.jpg?v=1758901904","options":["Title"],"media":[{"alt":"[Australia - AusPower] - ZkeeShop Adjustable Signal Generator 1-Channel PWM Pulse Frequency DC 3.3V-30V 5-30mA 1Hz-150KHz LCD Display Module ","id":32206545125556,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51PCzDhnNlL.jpg?v=1758901904"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51PCzDhnNlL.jpg?v=1758901904","width":1000},{"alt":"[Australia - AusPower] - ZkeeShop Adjustable Signal Generator 1-Channel PWM Pulse Frequency DC 3.3V-30V 5-30mA 1Hz-150KHz LCD Display Module ","id":32206545158324,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51uH0xuARPL.jpg?v=1758901904"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51uH0xuARPL.jpg?v=1758901904","width":1000},{"alt":"[Australia - AusPower] - ZkeeShop Adjustable Signal Generator 1-Channel PWM Pulse Frequency DC 3.3V-30V 5-30mA 1Hz-150KHz LCD Display Module ","id":32206545191092,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61dJFBUA2gL.jpg?v=1758901902"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61dJFBUA2gL.jpg?v=1758901902","width":1000},{"alt":"[Australia - AusPower] - ZkeeShop Adjustable Signal Generator 1-Channel PWM Pulse Frequency DC 3.3V-30V 5-30mA 1Hz-150KHz LCD Display Module ","id":32206545223860,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51c6otrH_BL.jpg?v=1758901905"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51c6otrH_BL.jpg?v=1758901905","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eZkeeShop Adjustable Signal Generator 1-Channel PWM Pulse Frequency DC 3.3V-30V 5-30mA 1Hz-150KHz LCD Display Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWork voltage: DC 3.3V-30V. Frequency range: 1Hz~150KHz. Frequency accuracy:\n2%. Duty cycle range: 0.00%-100%. Output current: about 5-30 mA. Output\namplitude: Same to input voltage. Size: 79 x 43 x 27 mm. Operating\ntemperature: -20°C ~ 70°C. Four Frequency Range: Enter the setting interface\nafter press any button 'FREQ+' or 'FREQ-' in the normal running status to\nselect frequency range Pay attention to the position where the decimal point\nmoves after the button is pressed. Display 'XXX'.No decimal point,The minimum\nfrequency is 1Hz.The frequency range is 1Hz ~ 999Hz Display 'X.XX'.The decimal\npoint is the penultimate, The minimum frequency is 0.01KHz.The frequency range\nis 1.00KHz ~ 9.99KHz Display 'XX.X'.The decimal point is the third last,The\nminimum frequency is 0.1KHz.The frequency range is 10.0KHz ~ 99.9KHz Display\n'X.X.X'.The decimal point is fully lit,The minimum frequency is 1KHz.The\nfrequency range is 1KHz ~ 150KHz For example: Display '100' means PWM output\nfrequency is 100Hz Display '1.01' means PWM output frequency is 1.01KHz\nDisplay '54.1' means PWM output frequency is 54.1KHz Display '1.2.4' means PWM\noutput frequency is 124KHz\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAdjustable Frequency Range: from 1Hz to 150KHz\u003c\/li\u003e\n \u003cli\u003eShell protection and clear LCD display: display both frequency and duty cycle in more clear status\u003c\/li\u003e\n \u003cli\u003eSupport power-down memory function: no need to set the data after power-off\u003c\/li\u003e\n \u003cli\u003eSupport UART, DC 3.3V-30V voltage, 5-30mA output current\u003c\/li\u003e\n \u003cli\u003eWider Application: Square wave signal generator, generating square wave signal for experimental development;generating square wave signal that controls the motor driver; Generating adjustable pulses for MCU and so on\u003c\/li\u003e\n \u003c\/ul\u003e"}
