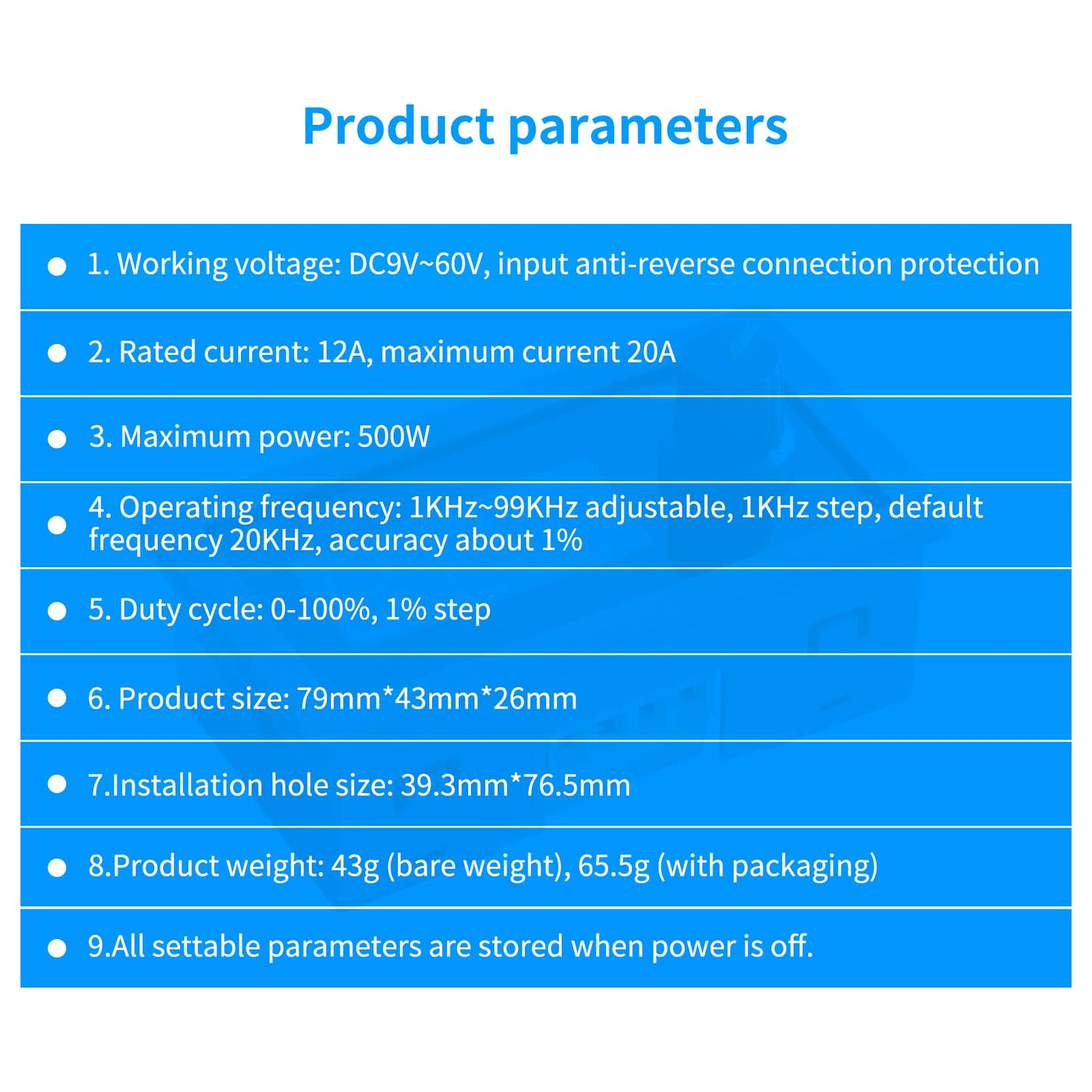

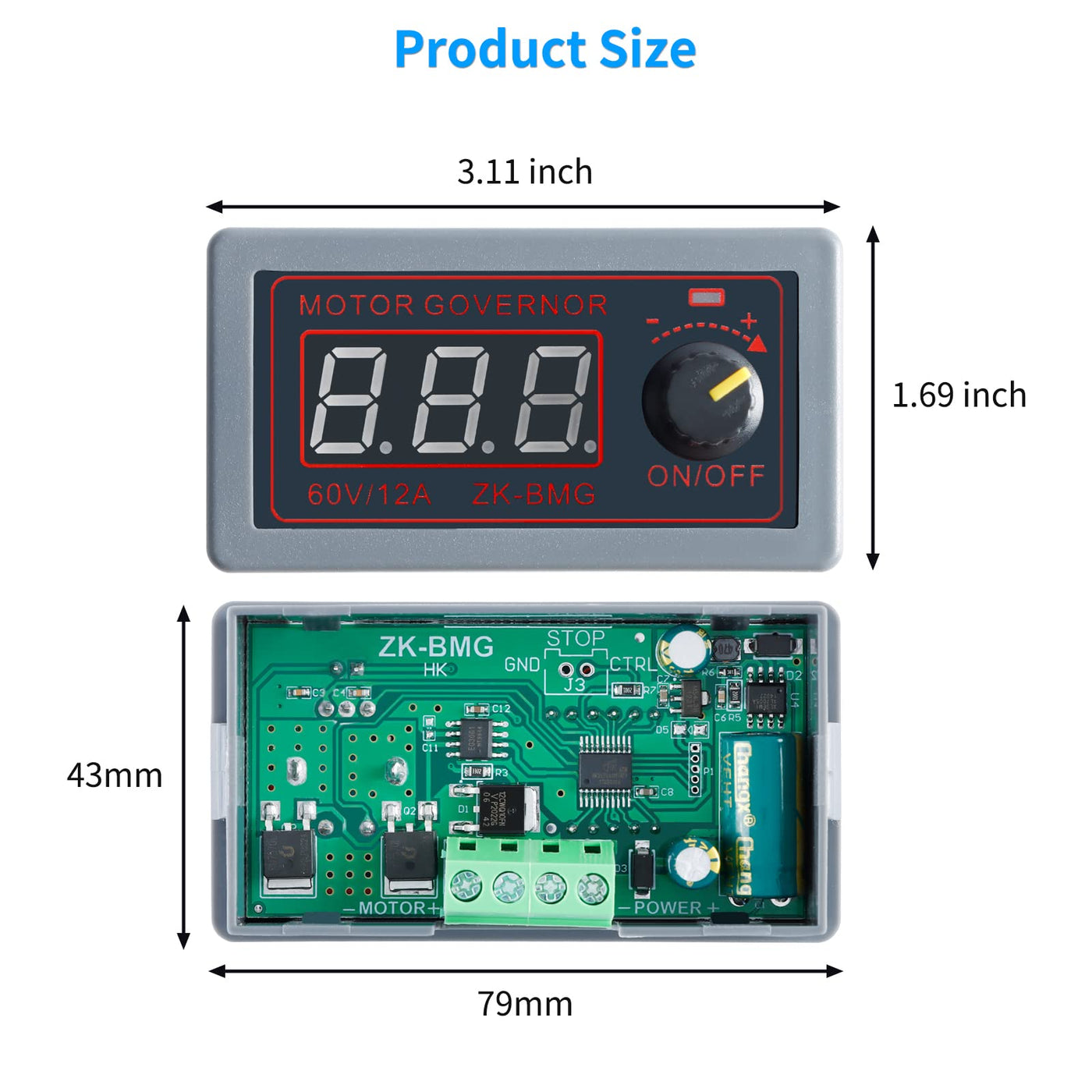

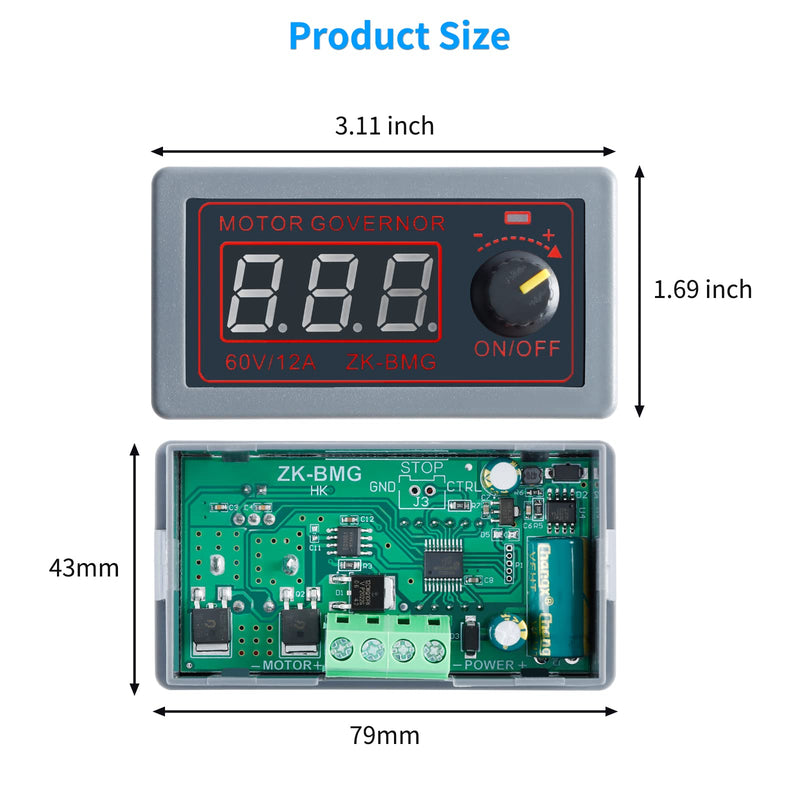

{"id":7861673164980,"title":"ZK-BMG DC Motor Speed Controller, DC Motor Controller 9V-60V\/12A\/500W DC Encoder, PWM Control Adjustable Speed Variable Rotary Switch PWM Signal Generator Module","handle":"zk-bmg-dc-motor-speed-controller-dc-motor-controller-9v-60v-12a-500w-dc-encoder-pwm-control-adjustable-speed-variable-rotary-switch-pwm-signal-generator-module","description":"\u003ch3\u003eZK-BMG DC Motor Speed Controller, DC Motor Controller 9V-60V\/12A\/500W DC Encoder, PWM Control Adjustable Speed Variable Rotary Switch PWM Signal Generator Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct parameters: 1. Working voltage: DC9V~60V, input anti-reverse connection protection 2. Rated current: 12A, maximum current 20A 3. Maximum power: 500W 4. Operating frequency: 1KHz~99KHz adjustable, 1KHz step, default frequency 20KHz, accuracy about 1% 5. Duty cycle: 0-100%, 1% step 6. Product size: 79mm*43mm*26mm Installation hole size: 39.3mm*76.5mm 7. Product weight: 43g (bare weight), 65.5g (with packaging) 8. All settable parameters are stored when power is off.\u003c\/li\u003e\n \u003cli\u003eWiring Instructions: 1 Motor start and stop indicator: start light on, stop light off 2Digital tube: display the duty cycle of motor adjustment, upper and lower limit of duty cycle and frequency 3Digital tube: Display the motor adjustment duty cycle, upper and lower limit of duty cycle and frequency\" 4It can be connected to switch signal or 3.3V level signal to control the start and stop of the motor 5 Motor output positive and negative poles Power input positive and negative\u003c\/li\u003e\n \u003cli\u003eDigital encoder knob operation: 1In the default interface: (the default display is the duty cycle) Short press: switch the motor on and off. Press and hold for 10 seconds: enter the setting interface. Counterclockwise rotation: the duty cycle decreases. Clockwise rotation: increased duty cycle.\u003c\/li\u003e\n \u003cli\u003e2Setting interface: Short press: select the setting parameter, the setting parameter can be switched between ON-OFF, duty cycle lower limit, duty cycle upper limit, and operating frequency. ON-OFF is the default module power-on normally open or normally closed, the lower limit of the duty cycle is displayed in the form of \"L\" + two digits, and the upper limit of the duty cycle is displayed in the form of \"H\" + two digits or \"100\", the operating frequency Displayed in the form of \"+two digits\".\u003c\/li\u003e\n \u003cli\u003eSTOP port on the back: It can be connected to external switch buttons or a 3.3V level. Do not use it in complex electromagnetic environments, and there is no relevant protection inside the circuit. (Note that the external switch should use a self-reset button or key, press it once to turn it on, and press it again to turn it off; it cannot realize the function of always closing the output to open, and not closing the output to close).\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-10-14T15:51:20+11:00","created_at":"2024-10-14T03:51:37+11:00","vendor":"EC Buying","type":"Motor Speed Controllers","tags":["industrial_Aug2024_update"],"price":11100,"price_min":11100,"price_max":11100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43650286452916,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B393M4PS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZK-BMG DC Motor Speed Controller, DC Motor Controller 9V-60V\/12A\/500W DC Encoder, PWM Control Adjustable Speed Variable Rotary Switch PWM Signal Generator Module","public_title":null,"options":["Default Title"],"price":11100,"weight":59,"compare_at_price":null,"inventory_management":"shopify","barcode":"EC Buying PWM","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0B393M4PS.jpg?v=1728890023","\/\/auspowers.com\/cdn\/shop\/files\/81whkwhTYpL.jpg?v=1728838301","\/\/auspowers.com\/cdn\/shop\/files\/71E8chkwYUL.jpg?v=1728838301","\/\/auspowers.com\/cdn\/shop\/files\/71lw9yJluLL.jpg?v=1728838300","\/\/auspowers.com\/cdn\/shop\/files\/71PwG_HEyPL.jpg?v=1728838300","\/\/auspowers.com\/cdn\/shop\/files\/71ousS6fmXL.jpg?v=1728838301","\/\/auspowers.com\/cdn\/shop\/files\/71yJ7f6ssaL.jpg?v=1728838300"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0B393M4PS.jpg?v=1728890023","options":["Title"],"media":[{"alt":"[Australia - AusPower] - ZK-BMG DC Motor Speed Controller, DC Motor Controller 9V-60V\/12A\/500W DC Encoder, PWM Control Adjustable Speed Variable Rotary Switch PWM Signal Generator Module ","id":30859777245364,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0B393M4PS.jpg?v=1728890023"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0B393M4PS.jpg?v=1728890023","width":1600},{"alt":"[Australia - AusPower] - ZK-BMG DC Motor Speed Controller, DC Motor Controller 9V-60V\/12A\/500W DC Encoder, PWM Control Adjustable Speed Variable Rotary Switch PWM Signal Generator Module ","id":30857852682420,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81whkwhTYpL.jpg?v=1728838301"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81whkwhTYpL.jpg?v=1728838301","width":1600},{"alt":"[Australia - AusPower] - ZK-BMG DC Motor Speed Controller, DC Motor Controller 9V-60V\/12A\/500W DC Encoder, PWM Control Adjustable Speed Variable Rotary Switch PWM Signal Generator Module ","id":30857852715188,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71E8chkwYUL.jpg?v=1728838301"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71E8chkwYUL.jpg?v=1728838301","width":1600},{"alt":"[Australia - AusPower] - ZK-BMG DC Motor Speed Controller, DC Motor Controller 9V-60V\/12A\/500W DC Encoder, PWM Control Adjustable Speed Variable Rotary Switch PWM Signal Generator Module ","id":30857852747956,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71lw9yJluLL.jpg?v=1728838300"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71lw9yJluLL.jpg?v=1728838300","width":1600},{"alt":"[Australia - AusPower] - ZK-BMG DC Motor Speed Controller, DC Motor Controller 9V-60V\/12A\/500W DC Encoder, PWM Control Adjustable Speed Variable Rotary Switch PWM Signal Generator Module ","id":30857852780724,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71PwG_HEyPL.jpg?v=1728838300"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71PwG_HEyPL.jpg?v=1728838300","width":1600},{"alt":"[Australia - AusPower] - ZK-BMG DC Motor Speed Controller, DC Motor Controller 9V-60V\/12A\/500W DC Encoder, PWM Control Adjustable Speed Variable Rotary Switch PWM Signal Generator Module ","id":30857852813492,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71ousS6fmXL.jpg?v=1728838301"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71ousS6fmXL.jpg?v=1728838301","width":1600},{"alt":"[Australia - AusPower] - ZK-BMG DC Motor Speed Controller, DC Motor Controller 9V-60V\/12A\/500W DC Encoder, PWM Control Adjustable Speed Variable Rotary Switch PWM Signal Generator Module ","id":30857852846260,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71yJ7f6ssaL.jpg?v=1728838300"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71yJ7f6ssaL.jpg?v=1728838300","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eZK-BMG DC Motor Speed Controller, DC Motor Controller 9V-60V\/12A\/500W DC Encoder, PWM Control Adjustable Speed Variable Rotary Switch PWM Signal Generator Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct parameters: 1. Working voltage: DC9V~60V, input anti-reverse connection protection 2. Rated current: 12A, maximum current 20A 3. Maximum power: 500W 4. Operating frequency: 1KHz~99KHz adjustable, 1KHz step, default frequency 20KHz, accuracy about 1% 5. Duty cycle: 0-100%, 1% step 6. Product size: 79mm*43mm*26mm Installation hole size: 39.3mm*76.5mm 7. Product weight: 43g (bare weight), 65.5g (with packaging) 8. All settable parameters are stored when power is off.\u003c\/li\u003e\n \u003cli\u003eWiring Instructions: 1 Motor start and stop indicator: start light on, stop light off 2Digital tube: display the duty cycle of motor adjustment, upper and lower limit of duty cycle and frequency 3Digital tube: Display the motor adjustment duty cycle, upper and lower limit of duty cycle and frequency\" 4It can be connected to switch signal or 3.3V level signal to control the start and stop of the motor 5 Motor output positive and negative poles Power input positive and negative\u003c\/li\u003e\n \u003cli\u003eDigital encoder knob operation: 1In the default interface: (the default display is the duty cycle) Short press: switch the motor on and off. Press and hold for 10 seconds: enter the setting interface. Counterclockwise rotation: the duty cycle decreases. Clockwise rotation: increased duty cycle.\u003c\/li\u003e\n \u003cli\u003e2Setting interface: Short press: select the setting parameter, the setting parameter can be switched between ON-OFF, duty cycle lower limit, duty cycle upper limit, and operating frequency. ON-OFF is the default module power-on normally open or normally closed, the lower limit of the duty cycle is displayed in the form of \"L\" + two digits, and the upper limit of the duty cycle is displayed in the form of \"H\" + two digits or \"100\", the operating frequency Displayed in the form of \"+two digits\".\u003c\/li\u003e\n \u003cli\u003eSTOP port on the back: It can be connected to external switch buttons or a 3.3V level. Do not use it in complex electromagnetic environments, and there is no relevant protection inside the circuit. (Note that the external switch should use a self-reset button or key, press it once to turn it on, and press it again to turn it off; it cannot realize the function of always closing the output to open, and not closing the output to close).\u003c\/li\u003e\n \u003c\/ul\u003e"}
