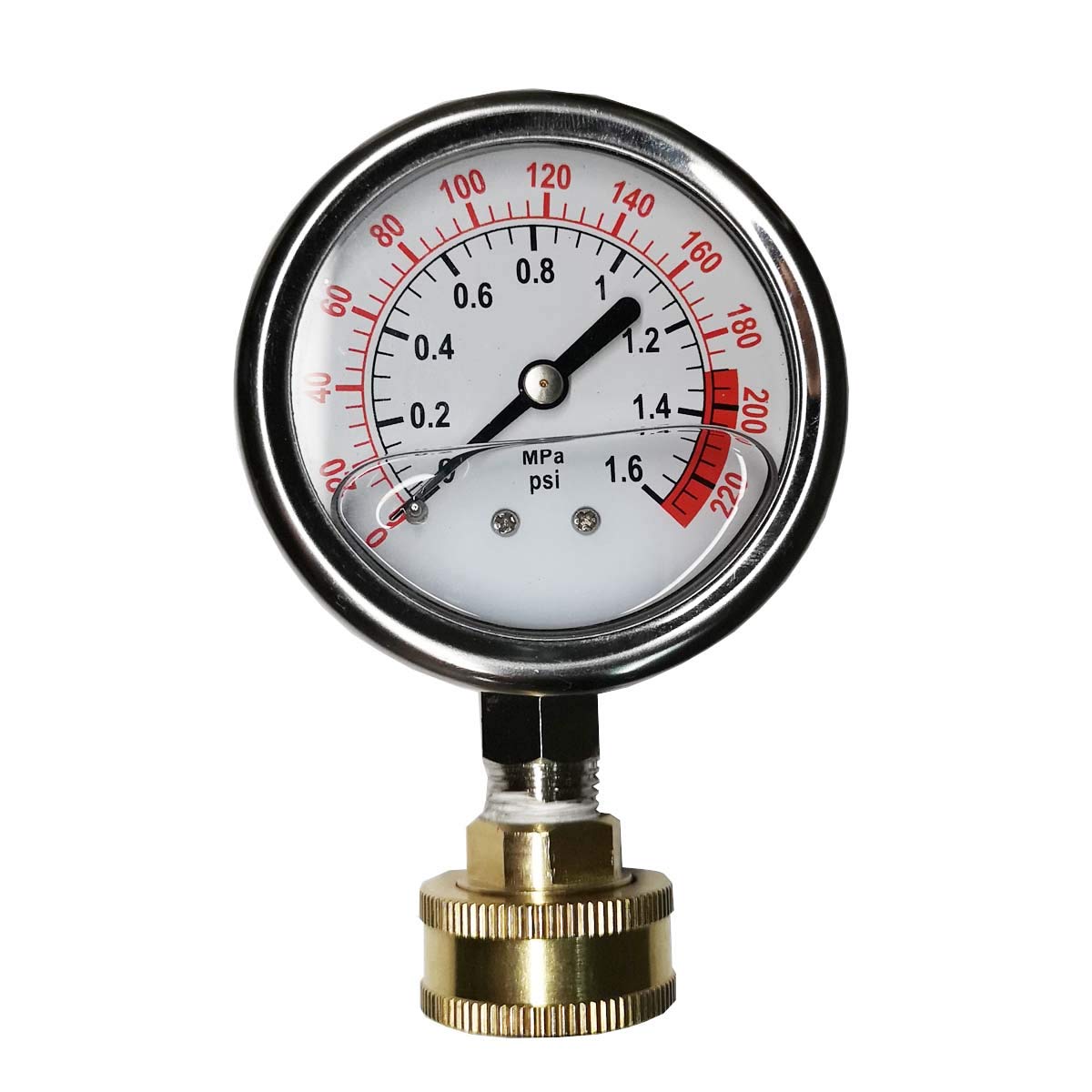

YZM Stainless Steel 304 Liquid Filled Water Pressure Test Gauge ,0-220psi, 2-1/2" Dial Display,Oil Filled Pressure Gauge,Water Pressure Gauge.Female 3/4" GHT Garden Hose Thread.
YZM Stainless Steel 304 Liquid Filled Water Pressure Test Gauge ,0-220psi, 2-1/2" Dial Display,Oil Filled Pressure Gauge,Water Pressure Gauge.Female 3/4" GHT Garden Hose Thread.
Application: Water, Oil, Air & Hydraulic Application Dial Size: 2-1/2" Dial Size (Crimped Casing) Accuracy: +/- 3/2/3% Scale: Dual Scale - PSI / Bar Movement: Copper Alloy Bourdon Tube: Copper Alloy Window: Polycarbonate Case: Stainless Steel case for protection in harsh environments Connection: Copper Alloy Lower Mount; 1/4" NPT (for 2-1/2" dial) Normal Ambient Temp.: -4F to +140F (-20C to +60C) Liquid Filling: Glycerin oil filled to enhance the reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
Product Features
- Bottom Mount Pressure range:0-1.6MPa or 0-220 PSI,3/4" NPT,Diameter of gauge: 2-1/2"
- LIQUID/GLYCERIN FILLED PRESSURE GAUGE,2.5" FACE/DIAL 3/4" FEMALE NPT CONNECTION
- Stainless steel case, Copper alloy wetted parts
- broad applications - water, oil, air and more
- Monitor the post R.O. water pressure and vital to the functionality of your RO system!
