YXQ 75mm Stainless Steel Float Switch Tank Water Level Sensor Monitor Liquid Vertical Fish Mini M10x1.5mm

In Stock. Leaves warehouse within 2 - 3 business days

$94.00 AUD
Maximum quantity available reached.
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

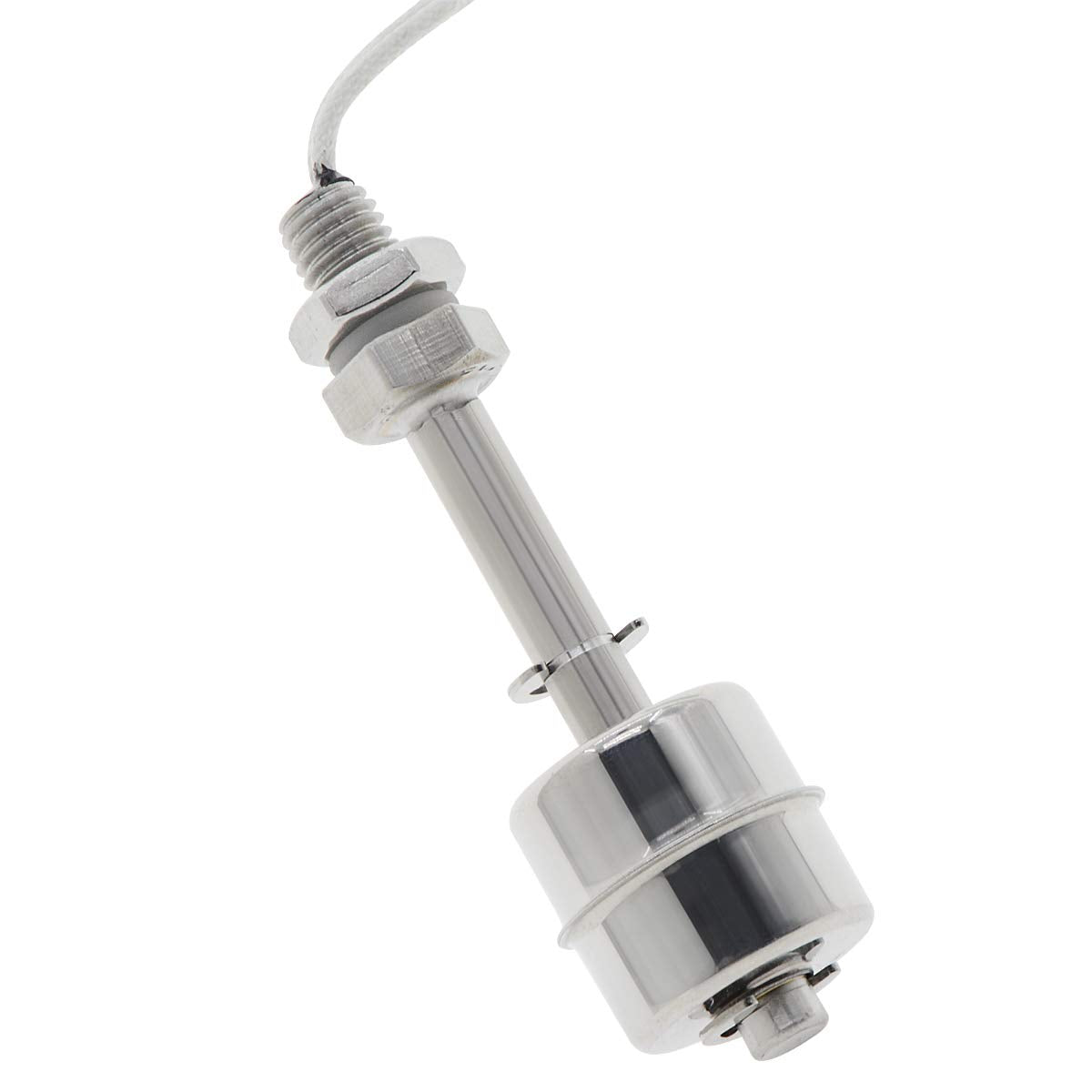

YXQ 75mm Stainless Steel Float Switch Tank Water Level Sensor Monitor Liquid Vertical Fish Mini M10x1.5mm

Mini stainless steel float switch,contains no mercury Float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.It can be easily converted from normally open to normally close by inverting the float. Specification: ◎Product Name : Floating Switch ◎NO/NC Adjustable,Use circlip plier to remove the e-clip and easily exchange normally close to normally open. ◎Suit Liquid Proportion: Over 0.8 ◎Max Contact Rating: 10W ◎Max Switching Voltage : 100VDC ◎Max Switching Current : 0.5A ◎Max Breakdown Voltage : 220VDC ◎Carry current(Max):1.5A ◎Max Contact Resistance : 100mΩ ◎Temperature Rating : 0℃ +80℃ ◎Float Ball Material : 316 Stainless Steel ◎Float Body Material : 304 Stainless Steel ◎Thread Dia:M10 ◎Thread Pitch: 1.5mm ◎Float Ball Size: 26 x 26mm/1" x 1"(LD) ◎ Cable Length : 35cm / 14" ◎Body Length: 75mm ◎Color : Silver Tone ◎Net Weight : 74g ◎Package Content : 1 Set Floating Switch Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.Due to product batch is different, cable color may be different, we will random shipment.

Product Features

  • 75mm NO/NC Adjustable Stainless Steel Float Switch Water Level Sensor, DC100V 10W,0.5A
  • Miniature liquid level monitor switch with 304 stainless stem and 316 stainless float ball
  • Body Total Length: 75mm ; Float Ball Size: 26 x 26mm/1" x 1"(L*D);Thread Size : M10 x 1.5mm;Cable Length 35cm
  • Float sensor switch is often used in high-low level alarm triggers, overflow or spill prevention,pump protection,reed switch inside,high sensitivity
  • Tip:because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here
