YXQ 5 Digits Mechanical Resettable Rotary Type Clockwise Increase Stroke Counter 75-I 0-99999
YXQ 5 Digits Mechanical Resettable Rotary Type Clockwise Increase Stroke Counter 75-I 0-99999
Mechanical Rotary Type counter is a recorder specializing in measuring the length or the various machinery revolving. ● Count range: 0-99999 ● The highest count speed of 350 times / min Usage: Counting method: while the clockwise turn can progressively increase the digit, the counter-clockwise turn decrease it. Reciprocal press once, the display number is all "0", It is commonly used in measuring and recording cable length range, and turning number or winder, etc. Widely used in machine tool, printing, spinnery, pharmacy, food industrial, packing machinery and other automatic control equipments.
Product Features
- Product Name :Revolution Counter;Digit Display : 5;Range : 0-99999
- Rotary type Counter working principle:Clockwise Increase,counter-clockwise decrease

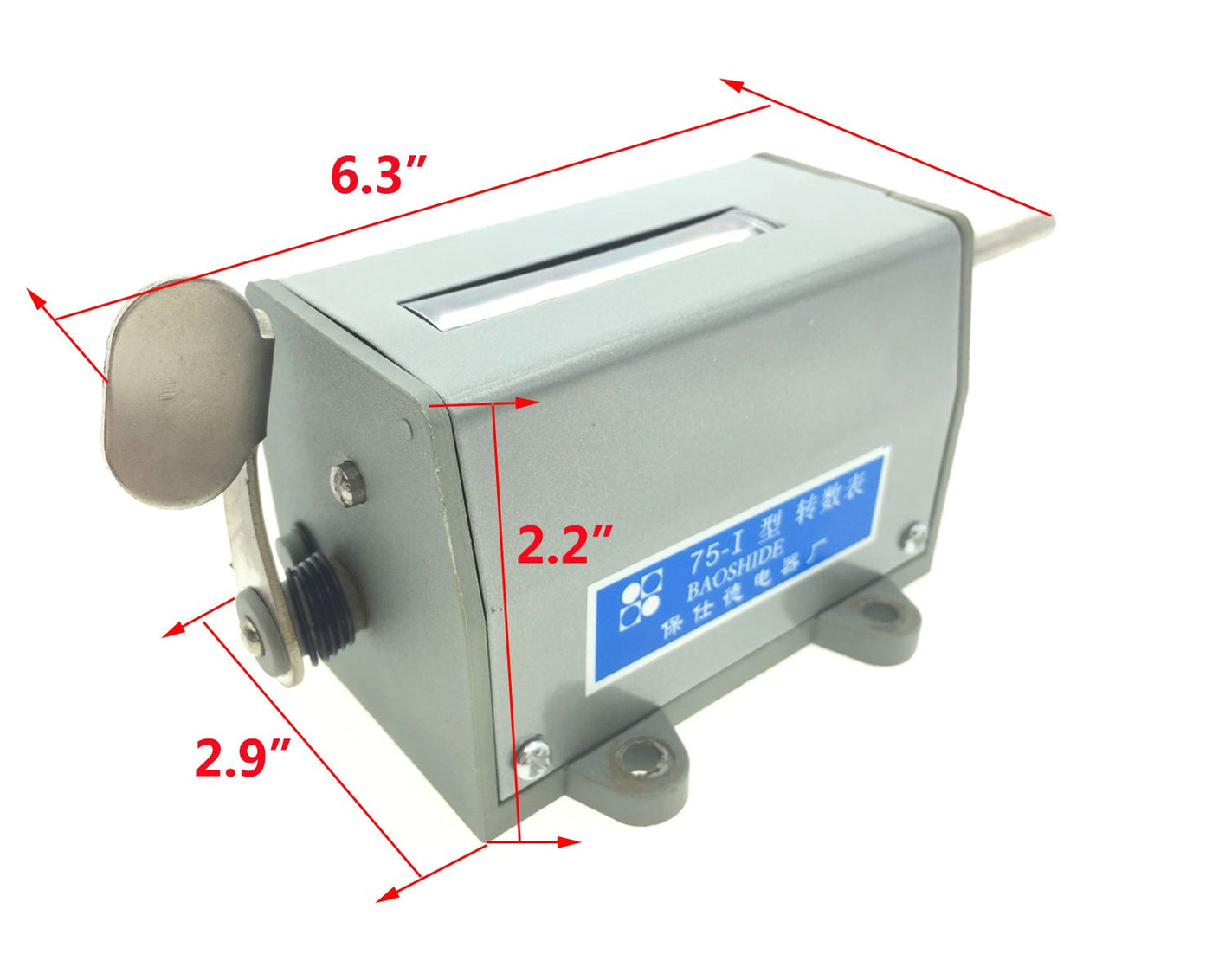

- Maximum rotational speed: 350 per minute;Total Size : 160 x 73 x 57mm/ 6.3"x 2.9"x 2.2"(L*W*T)

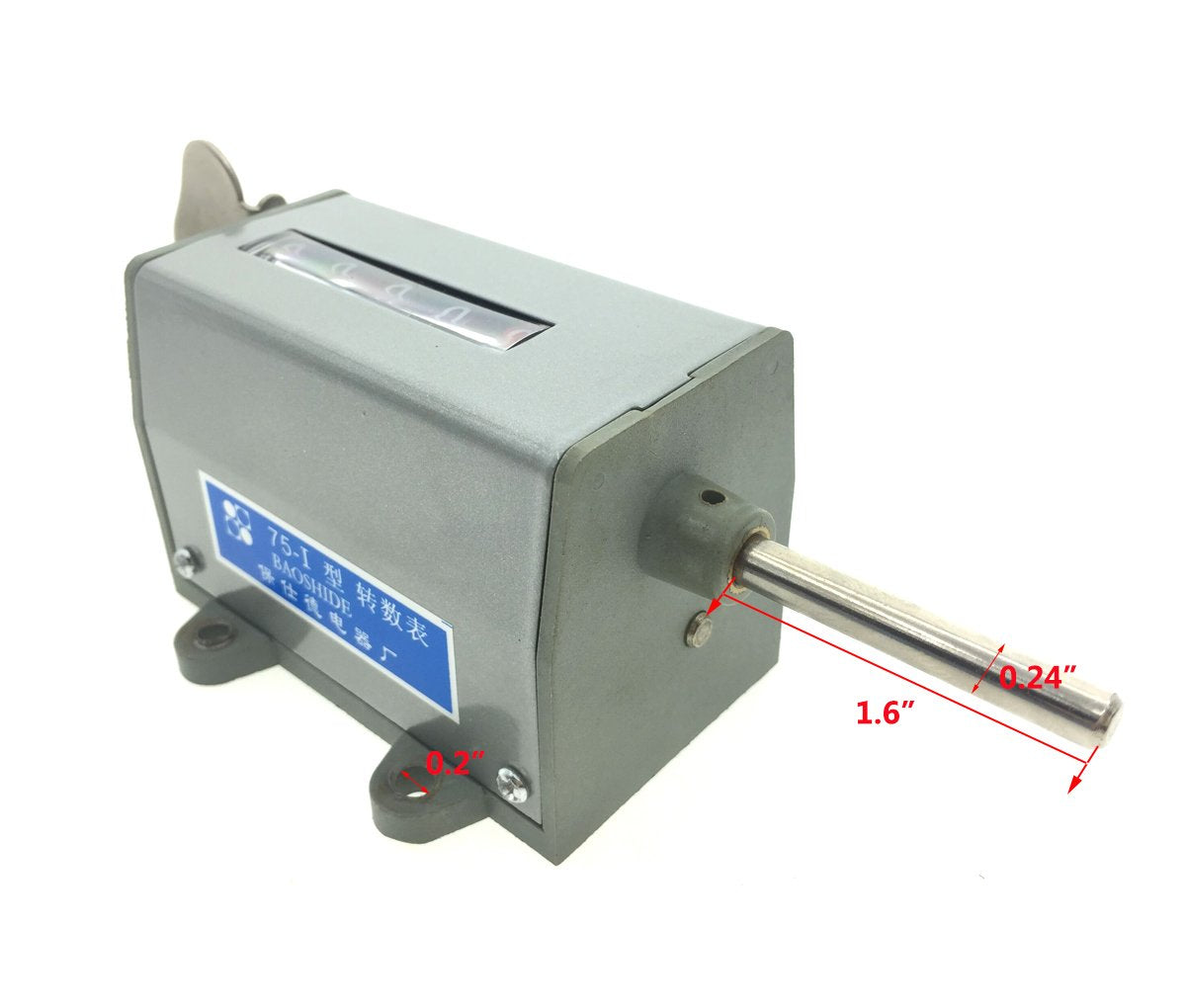

- Screw Dia : 5.0mm/0.2";Shaft Size : 40 x 6.0mm/1.6" x 0.24"(L*D)
- Net Weight : 194g;Package Content : 1 x Rotary Counter
