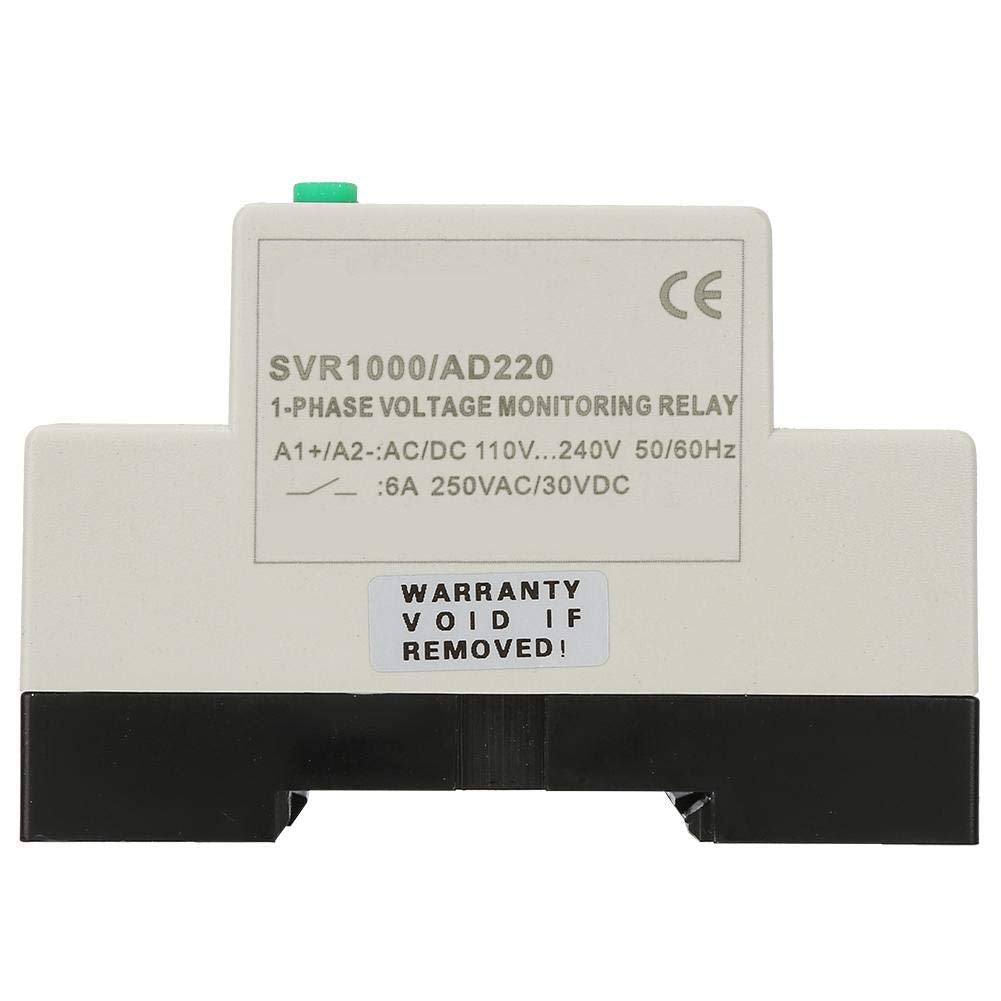

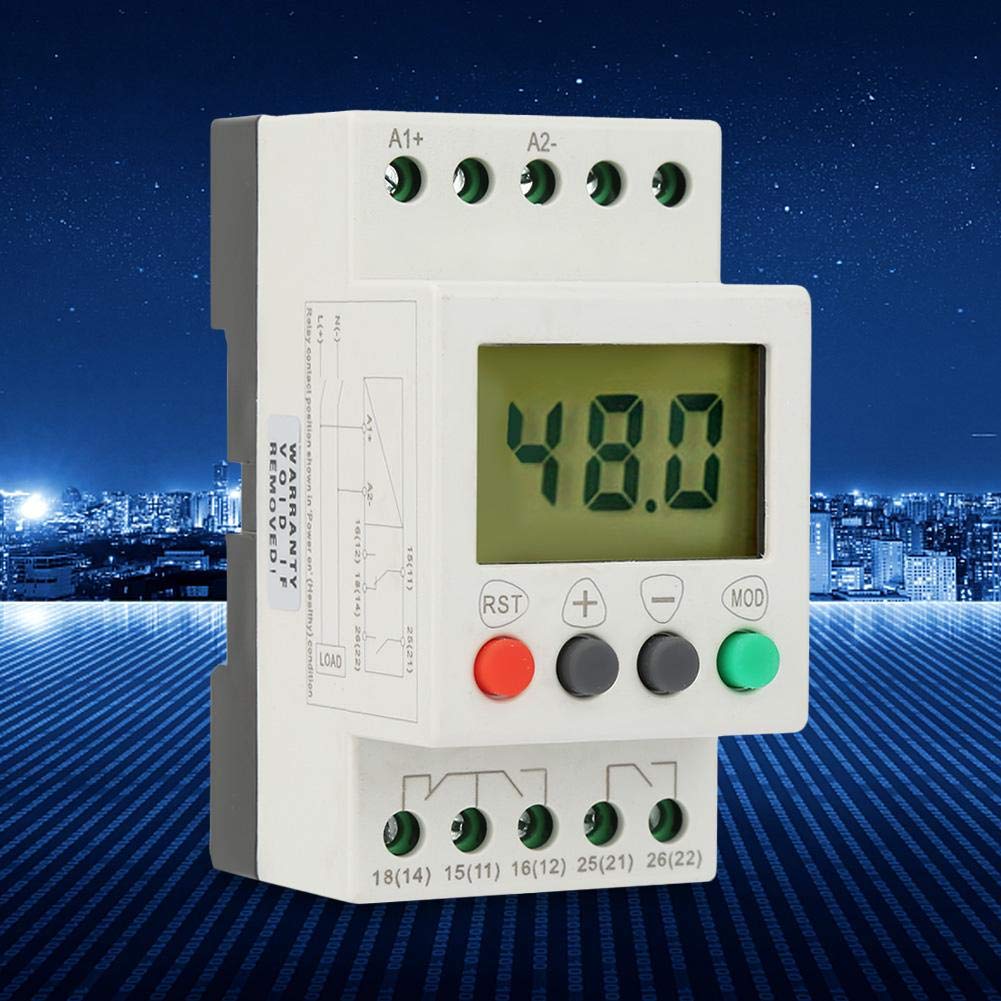

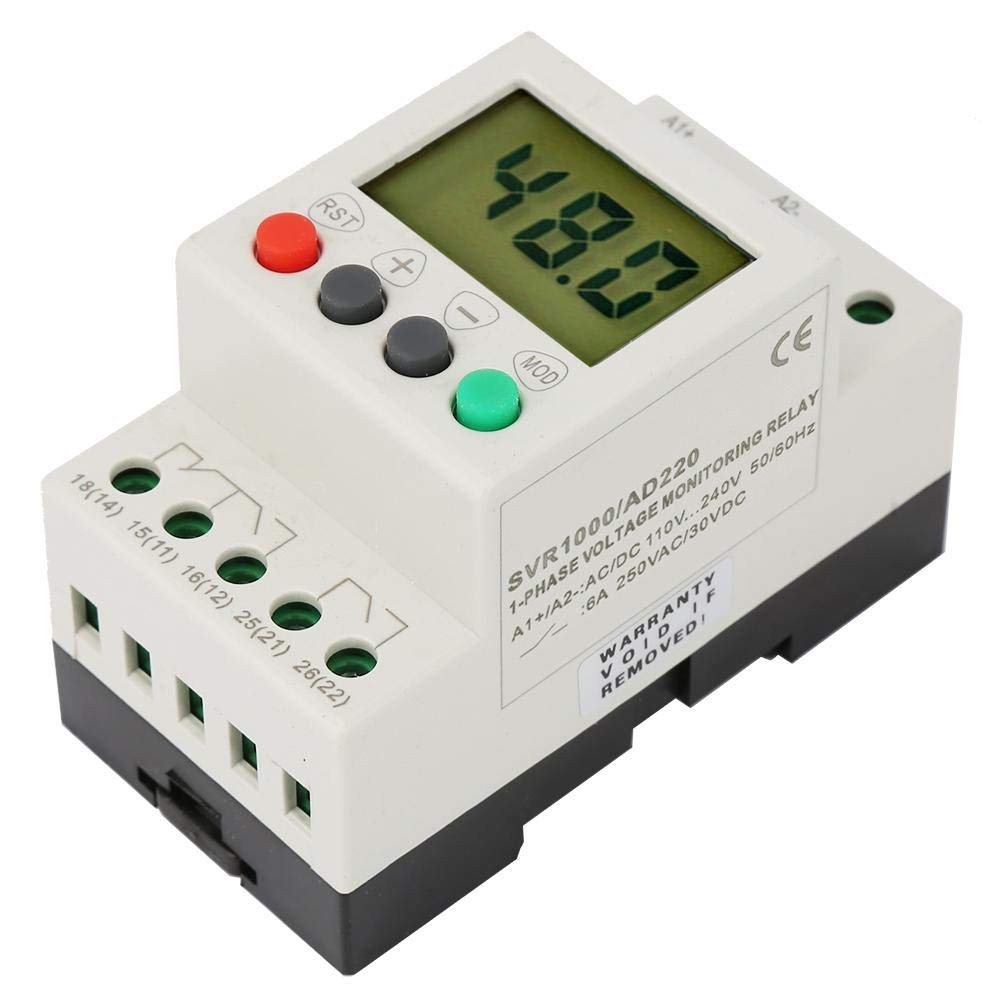

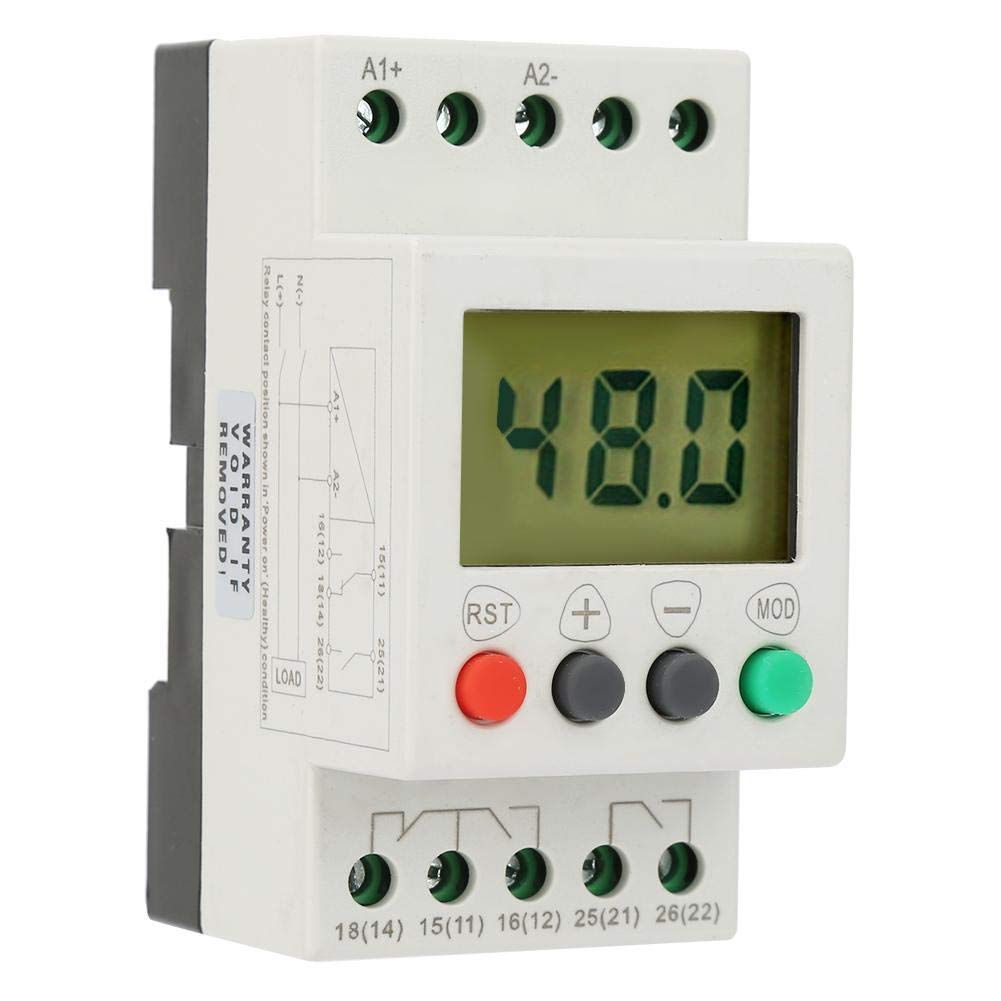

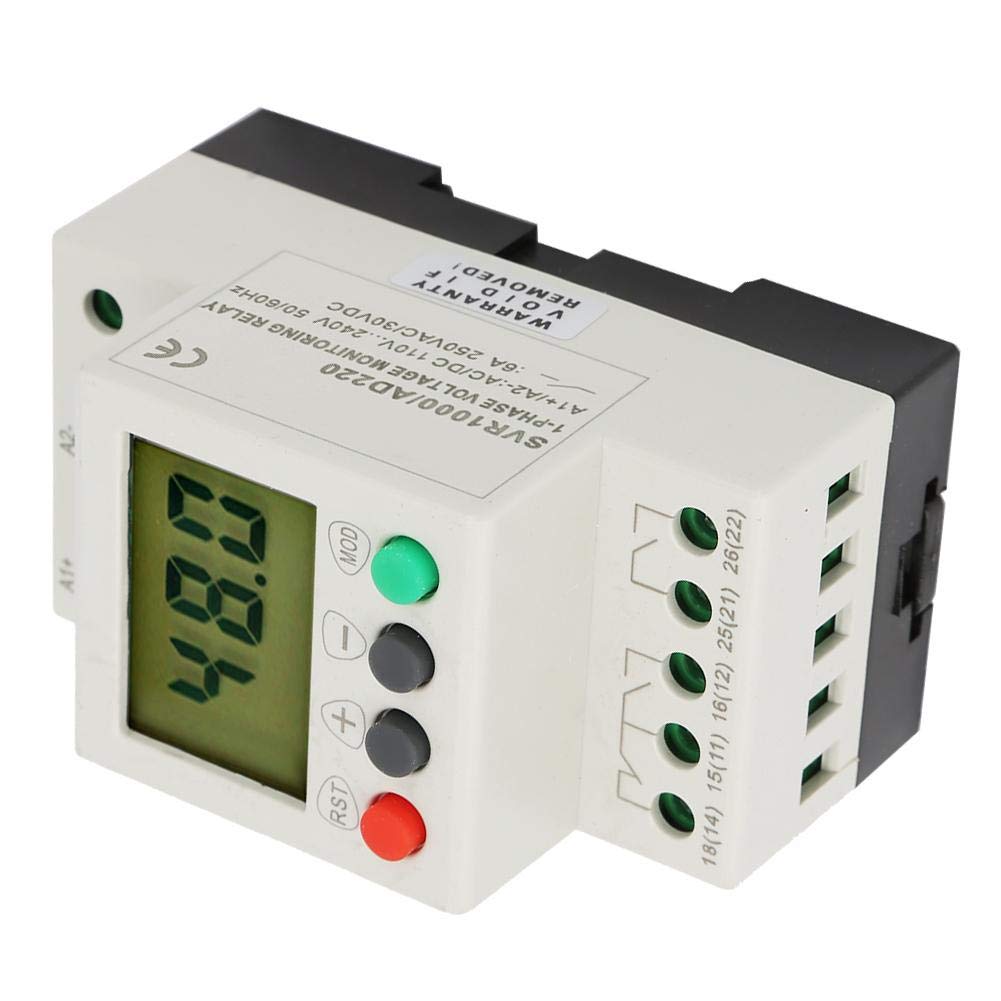

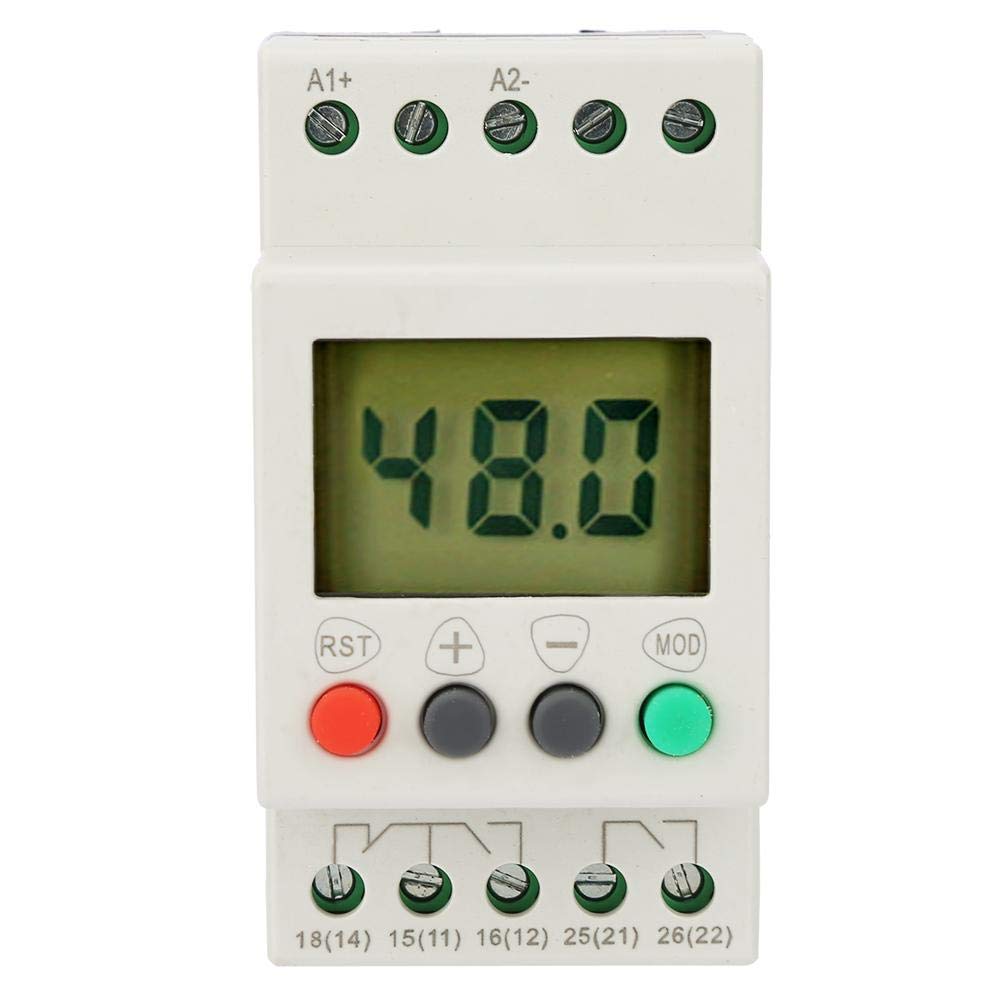

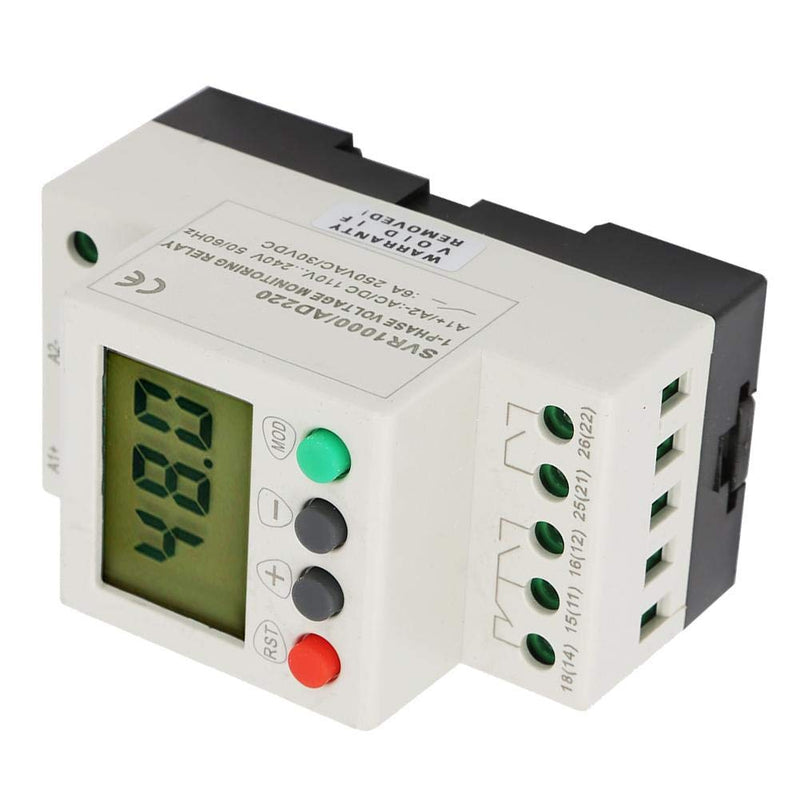

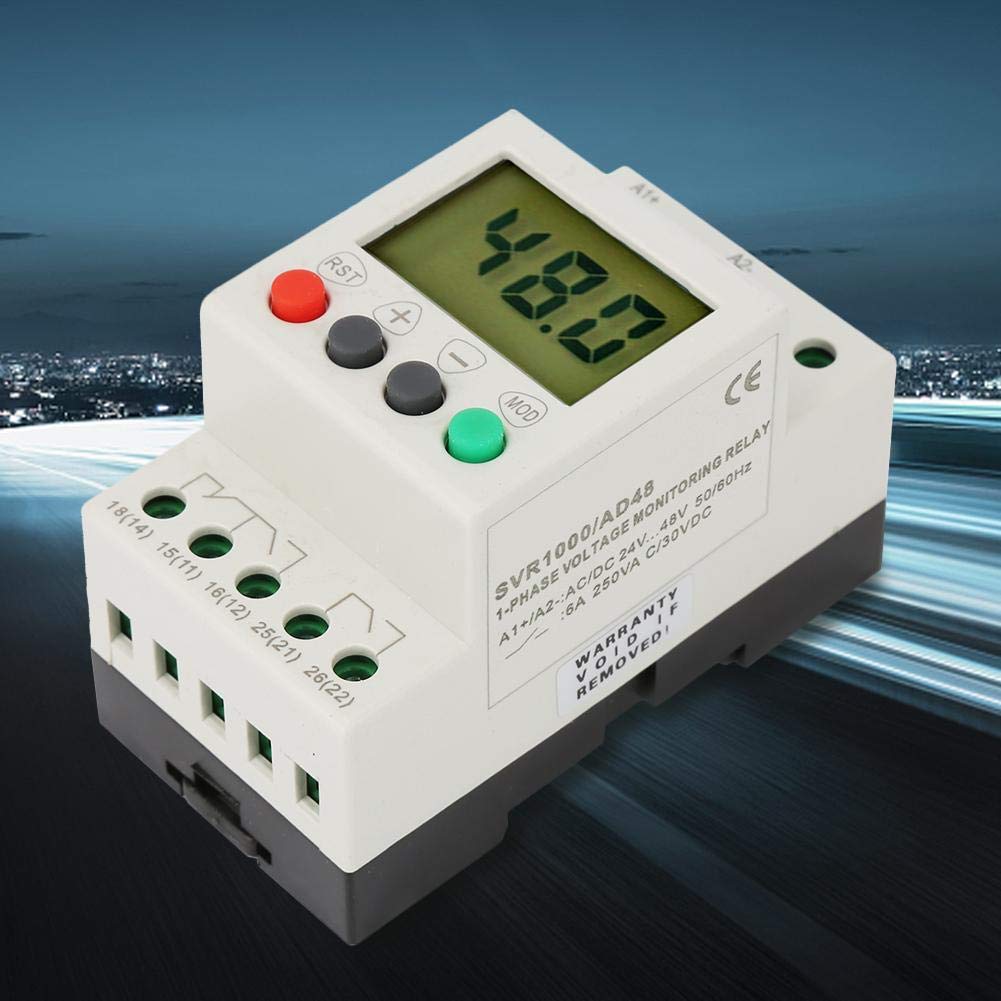

{"id":7169177026740,"title":"YWBL-WH SVR1000 Single Phase Protection Relay Over-Voltage 50V-300V Under-Voltage 1V-90V AC\/DC(AD220) AD220","handle":"ywbl-wh-svr1000-single-phase-protection-relay-over-voltage-50v-300v-under-voltage-1v-90v-ac-dcad220-ad220","description":"\u003ch3\u003eYWBL-WH SVR1000 Single Phase Protection Relay Over-Voltage 50V-300V Under-Voltage 1V-90V AC\/DC(AD220)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOver-voltage value and action time can be adjusted. 3 Reset modes: manual,\nautomatic, automatic with power-on delay. Fault recording function. Output\ntest function. 1 CO \u0026amp; 1NC contacts, over-voltage and under-voltage protection.\nSpecification: Model: SVR1000\/AD48 Optional Type: D12, AD48, AD220 Monitoring\nCircuit: L(+),N(-) Rated Voltage: AC\/DC 110V-240V 50\/60Hz Protection Function:\nOver-voltage, Under-voltage Over-voltage Adjustment Range: AC\/DC 50V-300V,OFF\nUnder-voltage Adjustment Range: AC\/DC 1V-90V Over-voltage \/ Under-voltage\nAction Range: 0.1-999s Reset Mode: manual, automatic, automatic with power-on\ndelay Reset Time: 0.1-999s Display: Chinese LCD Contact Form: 1 CO \u0026amp; 1NC\nContact Capacity: 6A 250VAC Size: Approx. 804354mm\/3.11.72.1in\nInstallation: 35mm Guide Rail Typical Application Scope: electric motor,\nblower, water pump, air compressor, crane, travelling crane, lifter, elevator,\nmachine tool, central air-conditioning, refrigeration equipment, laser\nequipment, industrial control system Package List: 1 Over-voltage Under-\nvoltage Relay\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStandard modular structure, guide rail type installation.\u003c\/li\u003e\n \u003cli\u003eAc\/dc voltage universal, automatic identification of ac\/dc voltage, no need to switch.\u003c\/li\u003e\n \u003cli\u003eBuilt-in LCD Chinese display voltage value, fault status, setting parameters.\u003c\/li\u003e\n \u003cli\u003eReal-time monitoring of single phase over-voltage and under-voltage fault.\u003c\/li\u003e\n \u003cli\u003eNo additional auxiliary power supply is required.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-25T20:14:50+10:00","created_at":"2022-06-25T20:14:57+10:00","vendor":"YWBL-WH","type":"Phase Monitoring Relays","tags":["industrial"],"price":19700,"price_min":19700,"price_max":19700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41607882735796,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07PZD9WSL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"YWBL-WH SVR1000 Single Phase Protection Relay Over-Voltage 50V-300V Under-Voltage 1V-90V AC\/DC(AD220) AD220","public_title":null,"options":["Default Title"],"price":19700,"weight":113,"compare_at_price":null,"inventory_management":null,"barcode":"0703633820945","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07PZD9WSL.jpg?v=1656228828","\/\/auspowers.com\/cdn\/shop\/products\/51YuMMTxVdL.jpg?v=1656152097","\/\/auspowers.com\/cdn\/shop\/products\/51pJoMX17iL.jpg?v=1656152097","\/\/auspowers.com\/cdn\/shop\/products\/51oiyD75hXL.jpg?v=1656152097","\/\/auspowers.com\/cdn\/shop\/products\/613WqsPLLxL.jpg?v=1656152097","\/\/auspowers.com\/cdn\/shop\/products\/617eFX75dnL.jpg?v=1656152097","\/\/auspowers.com\/cdn\/shop\/products\/51O0YdfVAoL.jpg?v=1656152097"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07PZD9WSL.jpg?v=1656228828","options":["Title"],"media":[{"alt":"[Australia - AusPower] - YWBL-WH SVR1000 Single Phase Protection Relay Over-Voltage 50V-300V Under-Voltage 1V-90V AC\/DC(AD220) AD220 ","id":26293335425204,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07PZD9WSL.jpg?v=1656228828"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07PZD9WSL.jpg?v=1656228828","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH SVR1000 Single Phase Protection Relay Over-Voltage 50V-300V Under-Voltage 1V-90V AC\/DC(AD220) AD220 ","id":26282721935540,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51YuMMTxVdL.jpg?v=1656152097"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51YuMMTxVdL.jpg?v=1656152097","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH SVR1000 Single Phase Protection Relay Over-Voltage 50V-300V Under-Voltage 1V-90V AC\/DC(AD220) AD220 ","id":26282721968308,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51pJoMX17iL.jpg?v=1656152097"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51pJoMX17iL.jpg?v=1656152097","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH SVR1000 Single Phase Protection Relay Over-Voltage 50V-300V Under-Voltage 1V-90V AC\/DC(AD220) AD220 ","id":26282722001076,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51oiyD75hXL.jpg?v=1656152097"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51oiyD75hXL.jpg?v=1656152097","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH SVR1000 Single Phase Protection Relay Over-Voltage 50V-300V Under-Voltage 1V-90V AC\/DC(AD220) AD220 ","id":26282722033844,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/613WqsPLLxL.jpg?v=1656152097"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/613WqsPLLxL.jpg?v=1656152097","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH SVR1000 Single Phase Protection Relay Over-Voltage 50V-300V Under-Voltage 1V-90V AC\/DC(AD220) AD220 ","id":26282722066612,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/617eFX75dnL.jpg?v=1656152097"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/617eFX75dnL.jpg?v=1656152097","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH SVR1000 Single Phase Protection Relay Over-Voltage 50V-300V Under-Voltage 1V-90V AC\/DC(AD220) AD220 ","id":26282722099380,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51O0YdfVAoL.jpg?v=1656152097"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51O0YdfVAoL.jpg?v=1656152097","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eYWBL-WH SVR1000 Single Phase Protection Relay Over-Voltage 50V-300V Under-Voltage 1V-90V AC\/DC(AD220)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOver-voltage value and action time can be adjusted. 3 Reset modes: manual,\nautomatic, automatic with power-on delay. Fault recording function. Output\ntest function. 1 CO \u0026amp; 1NC contacts, over-voltage and under-voltage protection.\nSpecification: Model: SVR1000\/AD48 Optional Type: D12, AD48, AD220 Monitoring\nCircuit: L(+),N(-) Rated Voltage: AC\/DC 110V-240V 50\/60Hz Protection Function:\nOver-voltage, Under-voltage Over-voltage Adjustment Range: AC\/DC 50V-300V,OFF\nUnder-voltage Adjustment Range: AC\/DC 1V-90V Over-voltage \/ Under-voltage\nAction Range: 0.1-999s Reset Mode: manual, automatic, automatic with power-on\ndelay Reset Time: 0.1-999s Display: Chinese LCD Contact Form: 1 CO \u0026amp; 1NC\nContact Capacity: 6A 250VAC Size: Approx. 804354mm\/3.11.72.1in\nInstallation: 35mm Guide Rail Typical Application Scope: electric motor,\nblower, water pump, air compressor, crane, travelling crane, lifter, elevator,\nmachine tool, central air-conditioning, refrigeration equipment, laser\nequipment, industrial control system Package List: 1 Over-voltage Under-\nvoltage Relay\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStandard modular structure, guide rail type installation.\u003c\/li\u003e\n \u003cli\u003eAc\/dc voltage universal, automatic identification of ac\/dc voltage, no need to switch.\u003c\/li\u003e\n \u003cli\u003eBuilt-in LCD Chinese display voltage value, fault status, setting parameters.\u003c\/li\u003e\n \u003cli\u003eReal-time monitoring of single phase over-voltage and under-voltage fault.\u003c\/li\u003e\n \u003cli\u003eNo additional auxiliary power supply is required.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
