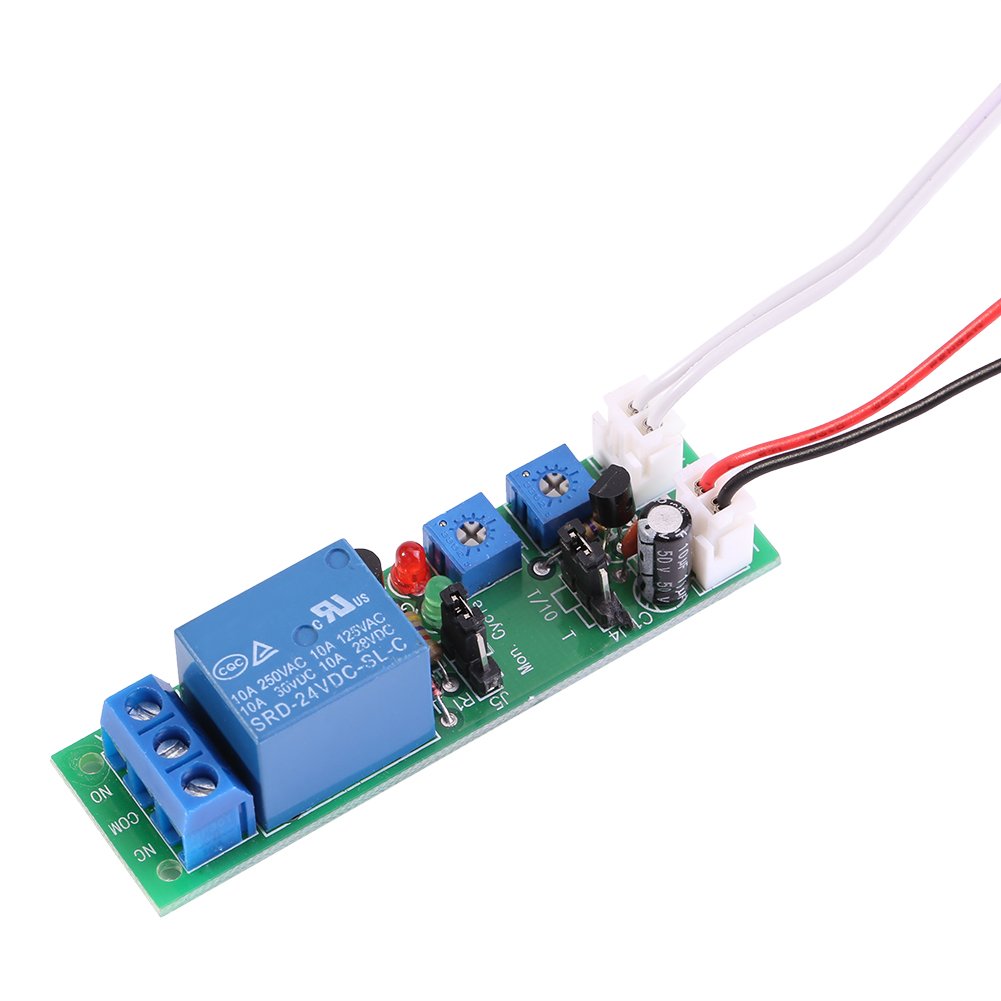

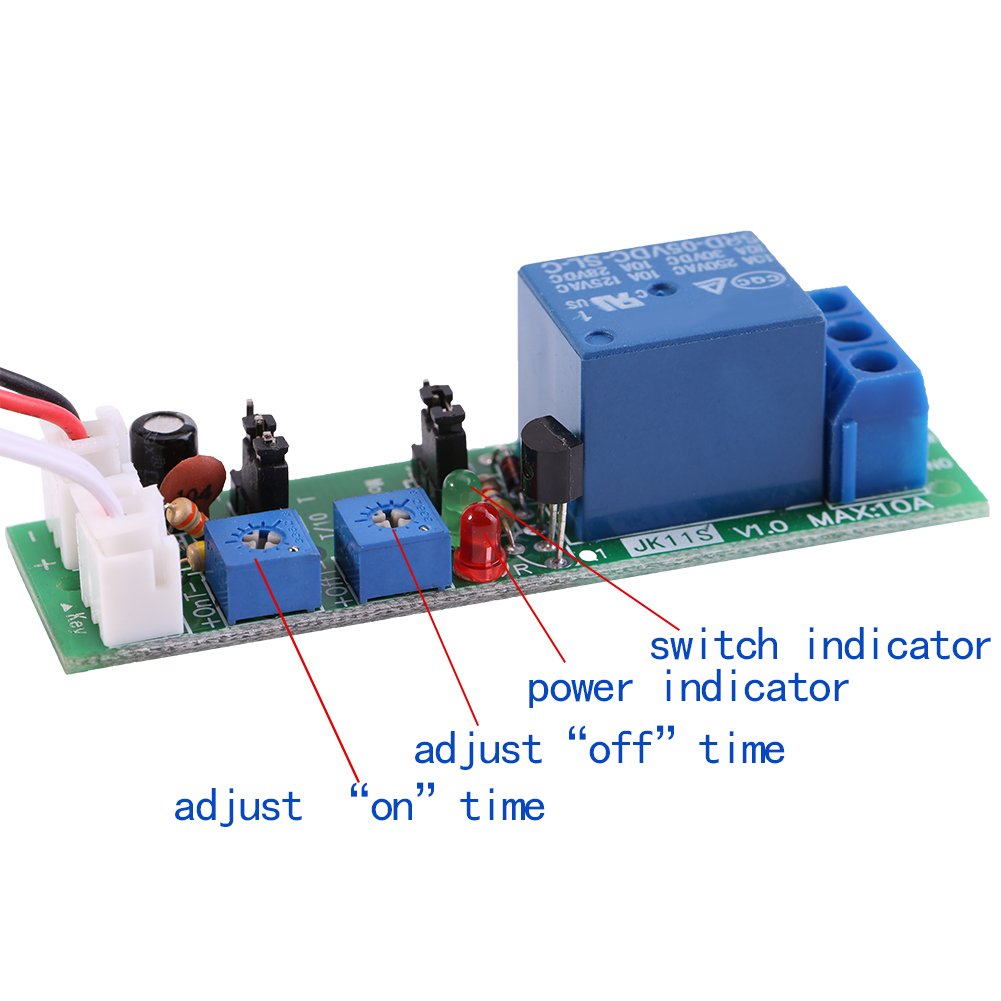

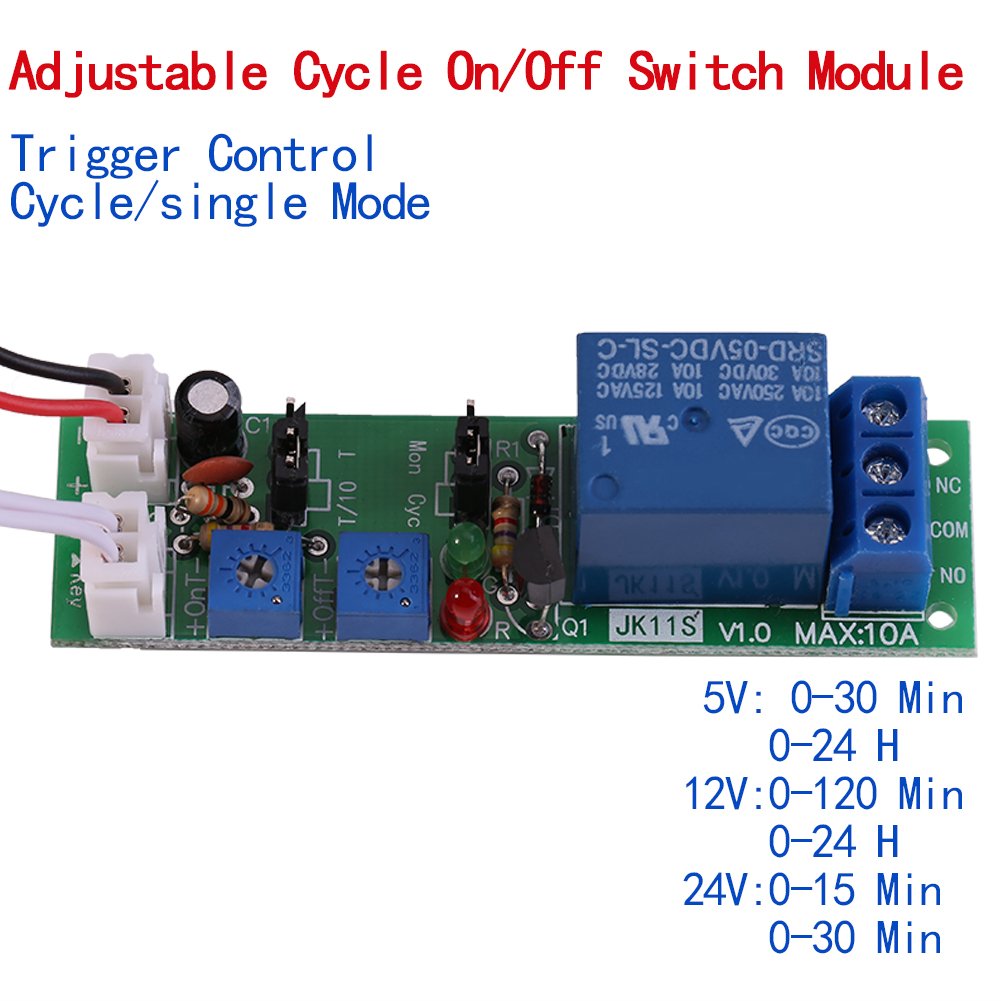

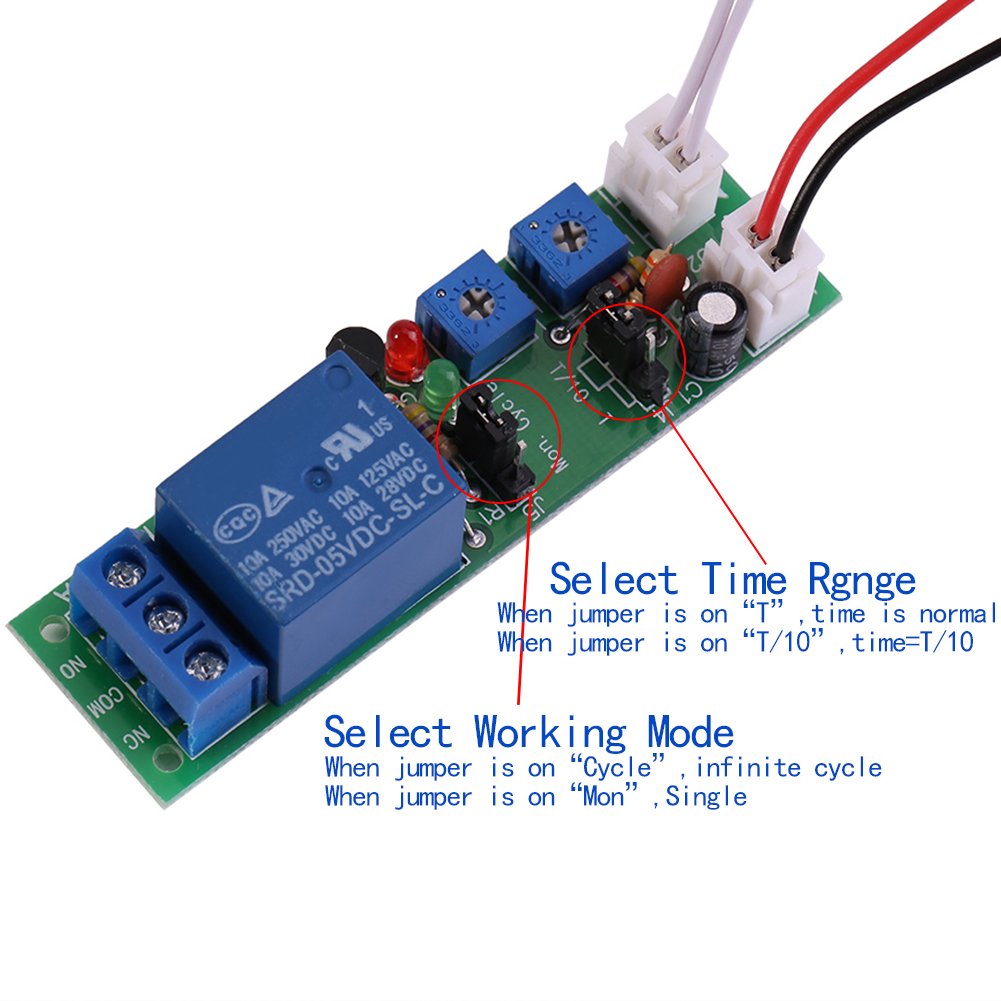

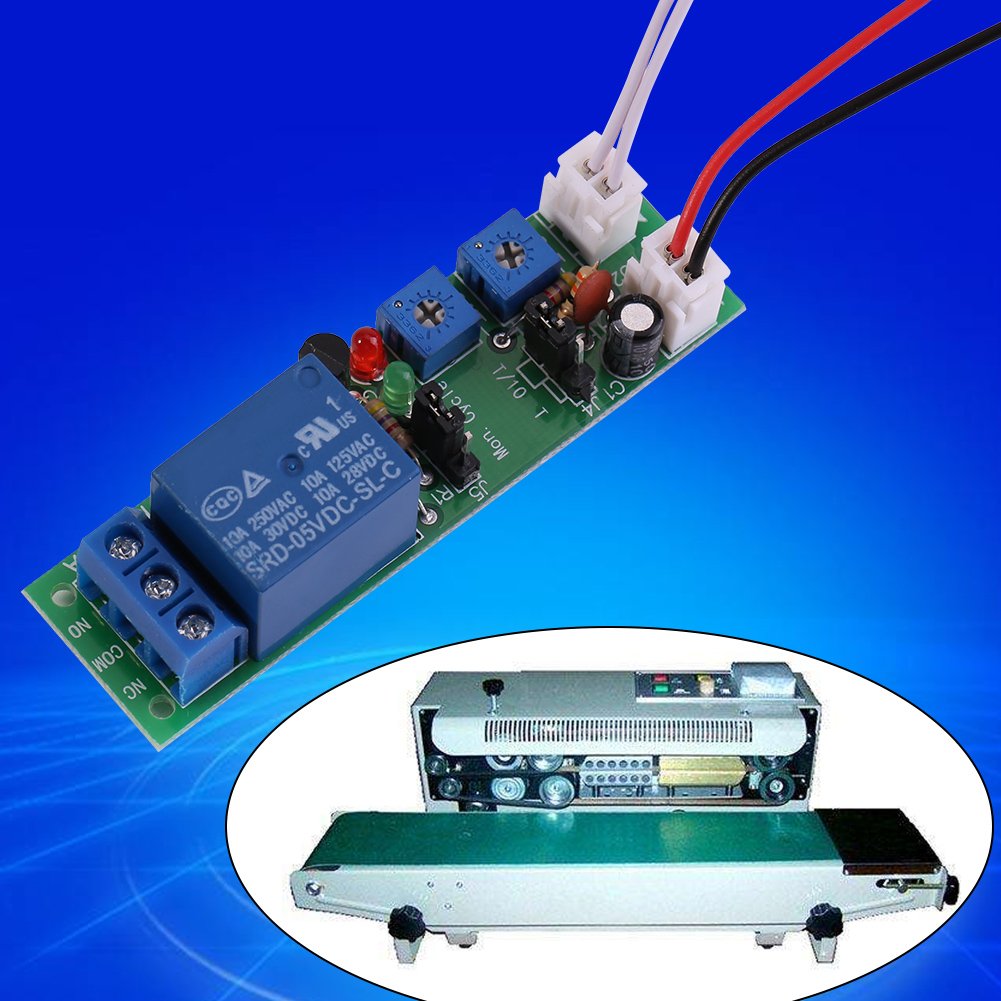

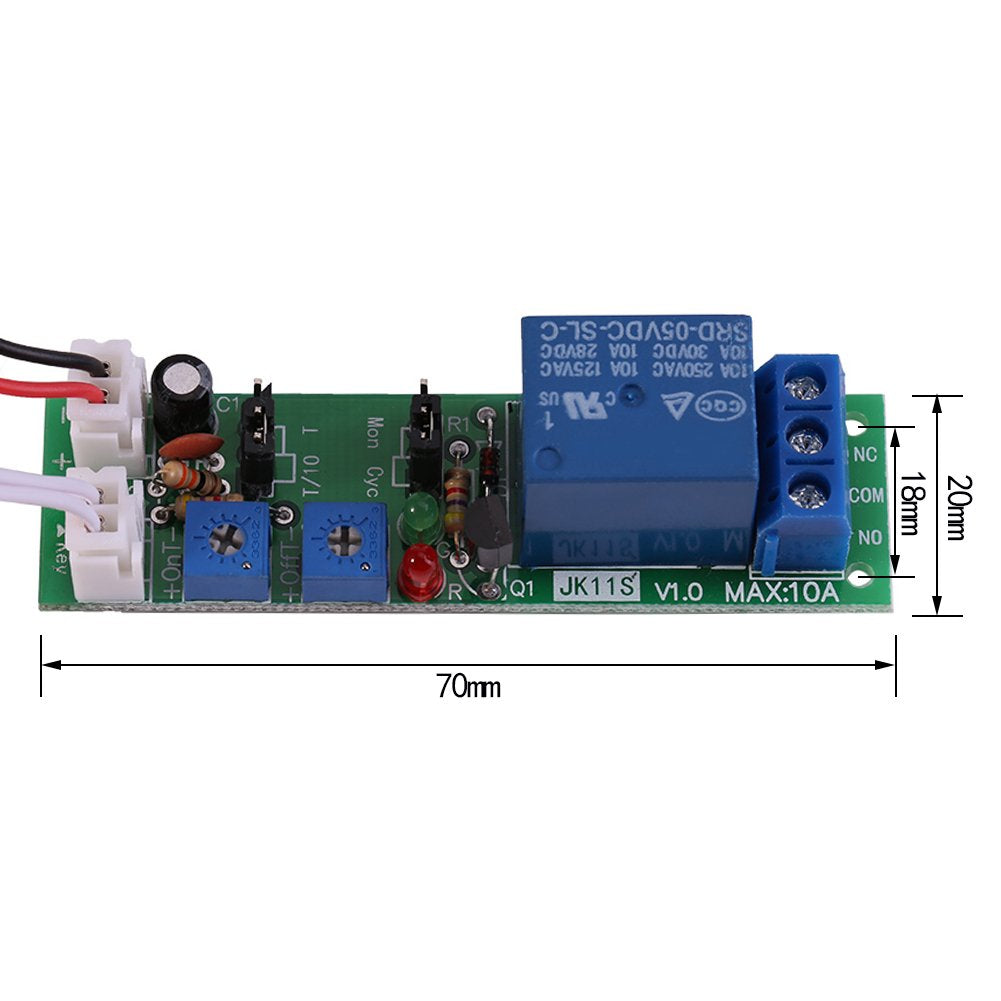

{"id":7177695264948,"title":"YWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test","handle":"ywbl-wh-adjustable-cycle-timer-delay-module-dc-5v-12v-24v-on-off-switch-relay-module-for-machine-repetitive-test","description":"\u003ch3\u003eYWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Type: DC5V,0-30min\/DC5V,0-24hr\/DC12V,0-120min\/DC12V,0-24hr\/DC2\n4V,0-15min\/DC24V,0-30min (Optional) Quiescent Current: \u0026lt;10mA Dynamic Current:\n45mA@12V; 90mA@5V; 30mA@24V Contact: 1 group NO+NC Load Capacity:\n10A(AC0-250V, DC0-30V Size: 70×20×18mm \/ 2.75×0.78×0.7\" Time Accuracy: Max\nvalue0.001 Mon. Mode: 1. The module Power-on, When triggered the relay is\nswitched on, timer delay off. 2. When triggered on the delay process, again\ntriggered, it will immediately interrupt the delay. Cycle Mode: 1. The module\nPower-on, When triggered the relay is switched on, (T1) timer delay off. (T2)\ntimer delay on. Such cycle. T1 and T2 are set by two adjustable resistors,\nrespectively. 2. When triggered on the delay process, again triggered, it will\nimmediately interrupt the delay. Package Includes: 1 × Timer Relay Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eIt is a timer relay module with high precision, stable and reliable performance.\u003c\/li\u003e\n \u003cli\u003eTimer module is widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc.\u003c\/li\u003e\n \u003cli\u003eTimer switch module Supports 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper.\u003c\/li\u003e\n \u003cli\u003eConnect 2 wires of \"Key\" if you need module to work recurrently after power on.\u003c\/li\u003e\n \u003cli\u003eThere are many voltage and time range for your choice, both \"on\" time and \"off\" time are adjustable.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-07-02T04:21:47+10:00","created_at":"2022-07-02T04:21:58+10:00","vendor":"YWBL-WH","type":"Relays","tags":["industrial"],"price":11300,"price_min":11300,"price_max":11300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41625826164916,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07SPM17PK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"YWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test","public_title":null,"options":["Default Title"],"price":11300,"weight":9,"compare_at_price":null,"inventory_management":null,"barcode":"0712979481864","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07SPM17PK.jpg?v=1656744092","\/\/auspowers.com\/cdn\/shop\/products\/613VrougbKL.jpg?v=1656699718","\/\/auspowers.com\/cdn\/shop\/products\/61_hDs2bAmL.jpg?v=1656699718","\/\/auspowers.com\/cdn\/shop\/products\/71EV80s4qeL.jpg?v=1656699718","\/\/auspowers.com\/cdn\/shop\/products\/61Oyln5nORL.jpg?v=1656699718","\/\/auspowers.com\/cdn\/shop\/products\/61wk0pNnT4L.jpg?v=1656699718","\/\/auspowers.com\/cdn\/shop\/products\/61I6BHMv9aL.jpg?v=1656699718","\/\/auspowers.com\/cdn\/shop\/products\/61ib1mMAN4L.jpg?v=1656699718","\/\/auspowers.com\/cdn\/shop\/products\/61kcJFCKwDL_8578dc68-893f-426f-a298-71f4ac0b4781.jpg?v=1656699718"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07SPM17PK.jpg?v=1656744092","options":["Title"],"media":[{"alt":"[Australia - AusPower] - YWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test ","id":26375918682292,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07SPM17PK.jpg?v=1656744092"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07SPM17PK.jpg?v=1656744092","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test ","id":26370985099444,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/613VrougbKL.jpg?v=1656699718"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/613VrougbKL.jpg?v=1656699718","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test ","id":26370985132212,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61_hDs2bAmL.jpg?v=1656699718"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61_hDs2bAmL.jpg?v=1656699718","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test ","id":26370985164980,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71EV80s4qeL.jpg?v=1656699718"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71EV80s4qeL.jpg?v=1656699718","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test ","id":26370985197748,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61Oyln5nORL.jpg?v=1656699718"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61Oyln5nORL.jpg?v=1656699718","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test ","id":26370985230516,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61wk0pNnT4L.jpg?v=1656699718"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61wk0pNnT4L.jpg?v=1656699718","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test ","id":26370985263284,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61I6BHMv9aL.jpg?v=1656699718"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61I6BHMv9aL.jpg?v=1656699718","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test ","id":26370985296052,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61ib1mMAN4L.jpg?v=1656699718"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61ib1mMAN4L.jpg?v=1656699718","width":1001},{"alt":"[Australia - AusPower] - YWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test ","id":26370985328820,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61kcJFCKwDL_8578dc68-893f-426f-a298-71f4ac0b4781.jpg?v=1656699718"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61kcJFCKwDL_8578dc68-893f-426f-a298-71f4ac0b4781.jpg?v=1656699718","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eYWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On\/Off Switch Relay Module for Machine Repetitive Test\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Type: DC5V,0-30min\/DC5V,0-24hr\/DC12V,0-120min\/DC12V,0-24hr\/DC2\n4V,0-15min\/DC24V,0-30min (Optional) Quiescent Current: \u0026lt;10mA Dynamic Current:\n45mA@12V; 90mA@5V; 30mA@24V Contact: 1 group NO+NC Load Capacity:\n10A(AC0-250V, DC0-30V Size: 70×20×18mm \/ 2.75×0.78×0.7\" Time Accuracy: Max\nvalue0.001 Mon. Mode: 1. The module Power-on, When triggered the relay is\nswitched on, timer delay off. 2. When triggered on the delay process, again\ntriggered, it will immediately interrupt the delay. Cycle Mode: 1. The module\nPower-on, When triggered the relay is switched on, (T1) timer delay off. (T2)\ntimer delay on. Such cycle. T1 and T2 are set by two adjustable resistors,\nrespectively. 2. When triggered on the delay process, again triggered, it will\nimmediately interrupt the delay. Package Includes: 1 × Timer Relay Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eIt is a timer relay module with high precision, stable and reliable performance.\u003c\/li\u003e\n \u003cli\u003eTimer module is widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc.\u003c\/li\u003e\n \u003cli\u003eTimer switch module Supports 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper.\u003c\/li\u003e\n \u003cli\u003eConnect 2 wires of \"Key\" if you need module to work recurrently after power on.\u003c\/li\u003e\n \u003cli\u003eThere are many voltage and time range for your choice, both \"on\" time and \"off\" time are adjustable.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
