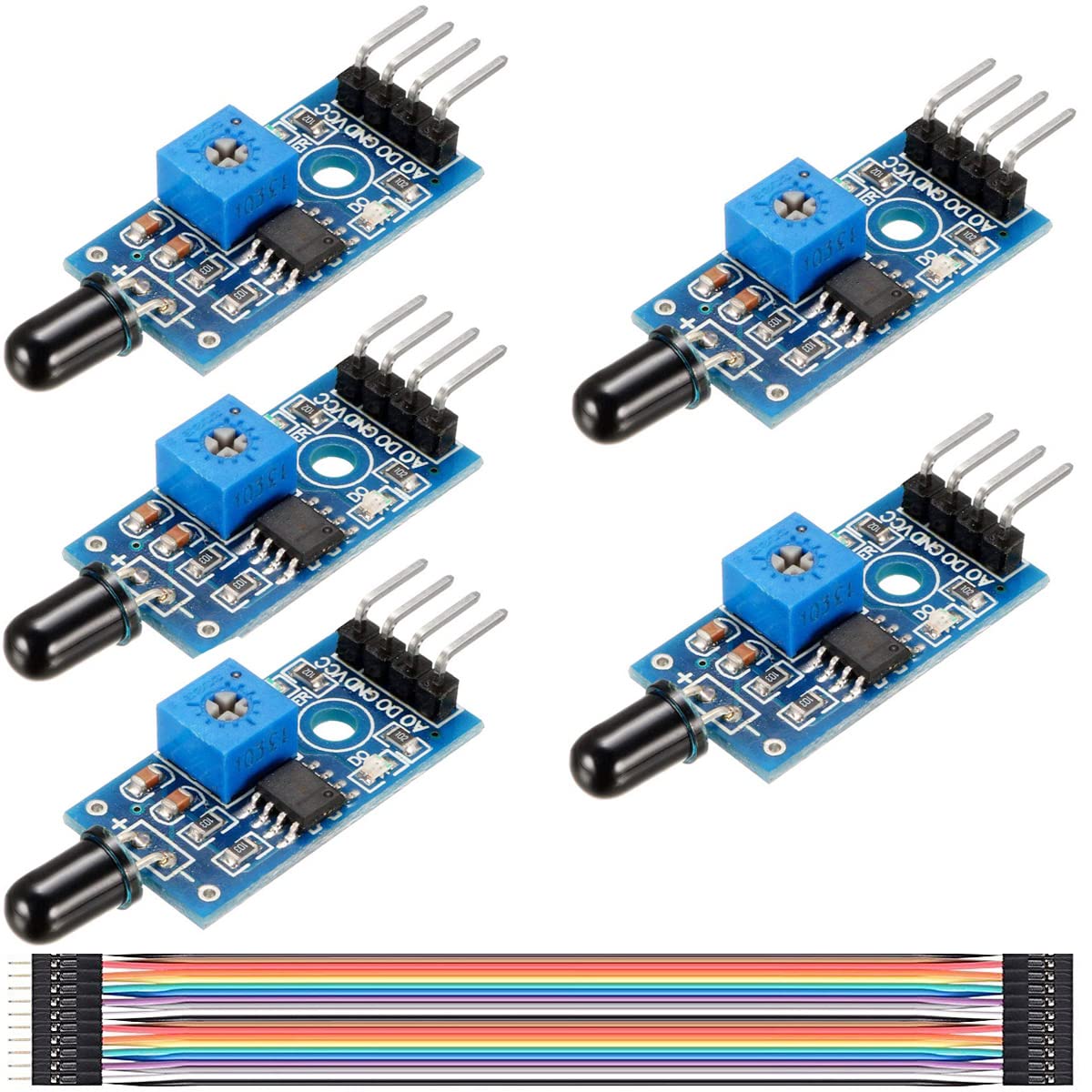

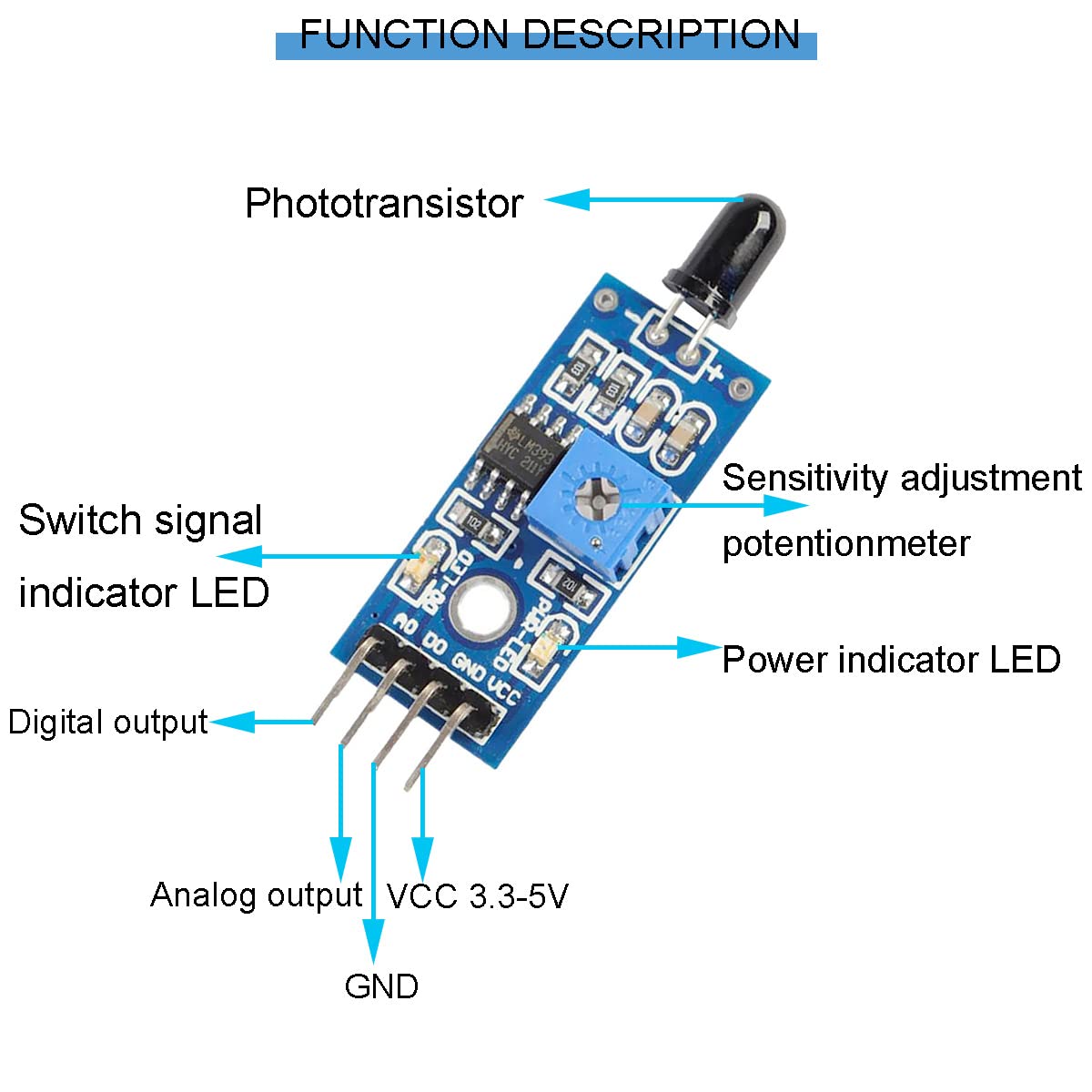

{"id":7993423265972,"title":"Youmile 5pcs 3.3V-5V IR Infrared Flame Sensor Module 4 Pin Infrared Detection Module Detection Distance 80cm with DuPont Cable for Arduino 4 Wire","handle":"youmile-5pcs-3-3v-5v-ir-infrared-flame-sensor-module-4-pin-infrared-detection-module-detection-distance-80cm-with-dupont-cable-for-arduino-4-wire","description":"\u003ch3\u003eYoumile 5pcs 3.3V-5V IR Infrared Flame Sensor Module 4 Pin Infrared Detection Module Detection Distance 80cm with DuPont Cable for Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct description: Feature: 1. It can detect flame or light source with in\nthe range of 760 nm to 1100 nm. The flame distance of the lighter is 80 cm.\nThe larger the flame, the farther the test distance is. 2, the detection angle\nis about 60 degrees, which is particularly sensitive to the flame 3. The\nsensitivity is adjustable (blue digital potentiometer adjustment in the\nfigure). 4, the comparator output, the signal is clean, the driving ability is\nstrong, more than 15mA 5. With adjustable precision potentiometer to adjust\nsensitivity. 6, working voltage 3.3V-5V. 7, output form: digital switch output\n(0 and 1) and voltage output 8, with fixed bolt holes for easy installation 9,\nsmall board PCB size: 1.26inchx0.56inch\/3.2cm x 1.4cm 10. Use a wide voltage\nLM393 comparator Product wiring description: VCC: 3.3-5V power supply \"+\".\nGND: power supply \"-\" DO: TTL switch signal output. AO: analogue signal output\n(voltage signal). Module instructions: 1. The flame sensor is most sensitive\nto flame and is also active to ordinary light. It is generally used for flame\nalarms and other purposes. 2, the small board output interface can be directly\nconnected to the port of the microcontroller 3. The sensor and the flame\nshould be kept at a certain distance to avoid damage to the sensor at high\ntemperature. The flame distance of the lighter is 80cm. The larger the flame,\nthe farther the test distance is. 4, small board output mode can achieve\nhigher precision Package includes: 5 x IR infrared flame detection sensor\nmodules. 1 x 20-pin male and female DuPont cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAdvantages: comparator output, signal clean, good waveform, strong driving ability, more than 15 mA\u003c\/li\u003e\n \u003cli\u003ePotentiometer: with adjustable precision potentiometer for sensitivity adjustment\u003c\/li\u003e\n \u003cli\u003eDetection angle: the detection angle is about 60 degrees, especially sensitive to the flame spectrum\u003c\/li\u003e\n \u003cli\u003eTest distance: with the flame sensor to maintain a certain distance, so as not to damage the sensor temperature, the flame of a lighter test distance 80 cm, for the larger flame, the farther the distance test\u003c\/li\u003e\n \u003cli\u003eVoltage and connection: the working voltage of 3.3V-5V; a small plate output interface can be directly connected to the microcontroller IO port\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-30T15:47:50+10:00","created_at":"2025-09-30T15:47:46+10:00","vendor":"Youmile","type":"Proximity Sensors","tags":["industryDE_Sep2025"],"price":10800,"price_min":10800,"price_max":10800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44055741726900,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B2RTMTY9","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Youmile 5pcs 3.3V-5V IR Infrared Flame Sensor Module 4 Pin Infrared Detection Module Detection Distance 80cm with DuPont Cable for Arduino 4 Wire","public_title":null,"options":["Default Title"],"price":10800,"weight":50,"compare_at_price":null,"inventory_management":"shopify","barcode":"JK-YM-487A","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0B2RTMTY9.jpg?v=1775773171","\/\/auspowers.com\/cdn\/shop\/files\/61qRt9zI0CL.jpg?v=1759211269","\/\/auspowers.com\/cdn\/shop\/files\/61sRZG9CVOL.jpg?v=1759211269","\/\/auspowers.com\/cdn\/shop\/files\/610IRDpD5TL.jpg?v=1759211269","\/\/auspowers.com\/cdn\/shop\/files\/510yYbEgLWL.jpg?v=1759211269","\/\/auspowers.com\/cdn\/shop\/files\/61jN9gnrU-L.jpg?v=1759211269","\/\/auspowers.com\/cdn\/shop\/files\/61i-qQrtFeL.jpg?v=1759211269"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0B2RTMTY9.jpg?v=1775773171","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Youmile 5pcs 3.3V-5V IR Infrared Flame Sensor Module 4 Pin Infrared Detection Module Detection Distance 80cm with DuPont Cable for Arduino 4 Wire ","id":32222956847284,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0B2RTMTY9.jpg?v=1775773171"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0B2RTMTY9.jpg?v=1775773171","width":1200},{"alt":"[Australia - AusPower] - Youmile 5pcs 3.3V-5V IR Infrared Flame Sensor Module 4 Pin Infrared Detection Module Detection Distance 80cm with DuPont Cable for Arduino 4 Wire ","id":32222956880052,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61qRt9zI0CL.jpg?v=1759211269"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61qRt9zI0CL.jpg?v=1759211269","width":1200},{"alt":"[Australia - AusPower] - Youmile 5pcs 3.3V-5V IR Infrared Flame Sensor Module 4 Pin Infrared Detection Module Detection Distance 80cm with DuPont Cable for Arduino 4 Wire ","id":32222956912820,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61sRZG9CVOL.jpg?v=1759211269"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61sRZG9CVOL.jpg?v=1759211269","width":1200},{"alt":"[Australia - AusPower] - Youmile 5pcs 3.3V-5V IR Infrared Flame Sensor Module 4 Pin Infrared Detection Module Detection Distance 80cm with DuPont Cable for Arduino 4 Wire ","id":32222956945588,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/610IRDpD5TL.jpg?v=1759211269"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/610IRDpD5TL.jpg?v=1759211269","width":1200},{"alt":"[Australia - AusPower] - Youmile 5pcs 3.3V-5V IR Infrared Flame Sensor Module 4 Pin Infrared Detection Module Detection Distance 80cm with DuPont Cable for Arduino 4 Wire ","id":32222956978356,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/510yYbEgLWL.jpg?v=1759211269"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/510yYbEgLWL.jpg?v=1759211269","width":1200},{"alt":"[Australia - AusPower] - Youmile 5pcs 3.3V-5V IR Infrared Flame Sensor Module 4 Pin Infrared Detection Module Detection Distance 80cm with DuPont Cable for Arduino 4 Wire ","id":32222957011124,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61jN9gnrU-L.jpg?v=1759211269"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61jN9gnrU-L.jpg?v=1759211269","width":1200},{"alt":"[Australia - AusPower] - Youmile 5pcs 3.3V-5V IR Infrared Flame Sensor Module 4 Pin Infrared Detection Module Detection Distance 80cm with DuPont Cable for Arduino 4 Wire ","id":32222957043892,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61i-qQrtFeL.jpg?v=1759211269"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61i-qQrtFeL.jpg?v=1759211269","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eYoumile 5pcs 3.3V-5V IR Infrared Flame Sensor Module 4 Pin Infrared Detection Module Detection Distance 80cm with DuPont Cable for Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct description: Feature: 1. It can detect flame or light source with in\nthe range of 760 nm to 1100 nm. The flame distance of the lighter is 80 cm.\nThe larger the flame, the farther the test distance is. 2, the detection angle\nis about 60 degrees, which is particularly sensitive to the flame 3. The\nsensitivity is adjustable (blue digital potentiometer adjustment in the\nfigure). 4, the comparator output, the signal is clean, the driving ability is\nstrong, more than 15mA 5. With adjustable precision potentiometer to adjust\nsensitivity. 6, working voltage 3.3V-5V. 7, output form: digital switch output\n(0 and 1) and voltage output 8, with fixed bolt holes for easy installation 9,\nsmall board PCB size: 1.26inchx0.56inch\/3.2cm x 1.4cm 10. Use a wide voltage\nLM393 comparator Product wiring description: VCC: 3.3-5V power supply \"+\".\nGND: power supply \"-\" DO: TTL switch signal output. AO: analogue signal output\n(voltage signal). Module instructions: 1. The flame sensor is most sensitive\nto flame and is also active to ordinary light. It is generally used for flame\nalarms and other purposes. 2, the small board output interface can be directly\nconnected to the port of the microcontroller 3. The sensor and the flame\nshould be kept at a certain distance to avoid damage to the sensor at high\ntemperature. The flame distance of the lighter is 80cm. The larger the flame,\nthe farther the test distance is. 4, small board output mode can achieve\nhigher precision Package includes: 5 x IR infrared flame detection sensor\nmodules. 1 x 20-pin male and female DuPont cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAdvantages: comparator output, signal clean, good waveform, strong driving ability, more than 15 mA\u003c\/li\u003e\n \u003cli\u003ePotentiometer: with adjustable precision potentiometer for sensitivity adjustment\u003c\/li\u003e\n \u003cli\u003eDetection angle: the detection angle is about 60 degrees, especially sensitive to the flame spectrum\u003c\/li\u003e\n \u003cli\u003eTest distance: with the flame sensor to maintain a certain distance, so as not to damage the sensor temperature, the flame of a lighter test distance 80 cm, for the larger flame, the farther the distance test\u003c\/li\u003e\n \u003cli\u003eVoltage and connection: the working voltage of 3.3V-5V; a small plate output interface can be directly connected to the microcontroller IO port\u003c\/li\u003e\n \u003c\/ul\u003e"}
