WMYCONGCONG 18 Pcs 4mm Stackable Shrouded Banana Plugs Safety Fully Insulated Banana Jack Adapters, 4mm Female Banana Plug Jack Socket Solder DIY Cable Connectors Adapters
WMYCONGCONG 18 Pcs 4mm Stackable Shrouded Banana Plugs Safety Fully Insulated Banana Jack Adapters, 4mm Female Banana Plug Jack Socket Solder DIY Cable Connectors Adapters
Specification: Material:PA + Brass Nickel Plated Color: Red and Black Way of Connecting: Solder (max cable outer diameter 4mm) Rated voltage/current: CATII1000V/Max.32A. (4mm Banana Plugs Adapters) Rated voltage/current: CATII 600V /MAX 19A (4mm Banana Female Jack Socket) Rated voltage/current: CATIII 600V/Max.32A (4mm Banana Plugs Male Stackable Connectors) Using steps: Step 1: Put the Cable through the rear housing to the plug Step 2: Solder the cable to the plug Step 3: Push the plug into the shell until the shell holds the plug What You Get: 3 Sets Red Insulated Shrouded 4mm Banana Female Jack Connector 3 Sets Black Insulated Shrouded 4mm Banana Female Jack Connector 3 Sets Red 4mm Banana Plug Connector Wire Solder DIY Multimeter Test Leads Banana Plug 3 Sets Black 4mm Banana Plug Connector Wire Solder DIY Multimeter Test Leads Banana Plug 3 Sets Red 4mm Banana Plug Male Stackable Connectors Multimeter Test Leads Banana Plug Adapter 3 Sets Black 4mm Banana Plug Male Stackable Connectors Multimeter Test Leads Banana Plug Adapter Total Quantity: 18 Sets
Product Features

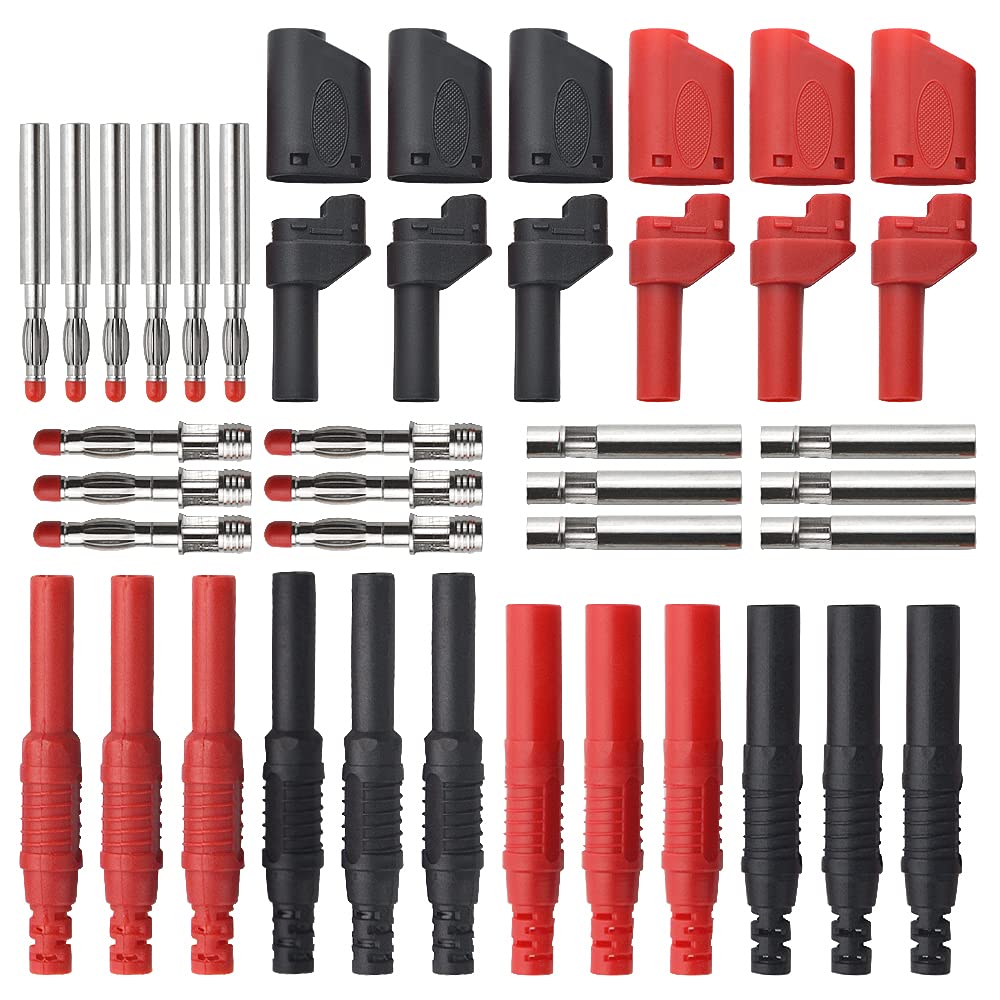

- Package Content: 18 Sets in total, 6 sets 4mm banana plugs male stackable connectors with banana jack adapters (3 sets red + 3 sets black); 6 sets 4mm female banana plug jack socket (3 sets red + 3 sets black); 6 sets 4mm Banana Plugs Solder DIY Banana Plug Connectors (3 sets red + 3 sets black).
- Material: Made of Brass Nickel Plated material. And the shell is made of PA Nylon material.
- Connect method: Solder (Max Cable Outer Diameter is 4mm).
- Rating Voltage & Current: 4mm Banana Female Jack Socket: CATII 600V /MAX 19A; Shrouded 4mm Banana Plugs Adapters: CATII 1000V /MAX 32A. 4mm Stackable Banana Plugs male connectors: CATIII 600V/Max.32A.
- Specification Type: 1> 4mm banana plugs are for multimeter test leads ends probes adapters, they can fit most meters. 2> 4mm banana female jack connector can be easy to connect to all standard 4mm banana male plugs. 3> Soldering Seal Protection Shrouded 4mm Banana Plug Male Stackable Connector Multimeter Test Leads Banana Plug Adapter can connect all standard 4mm banana plug adapter ( shrouded , non shrouded , retractable plug ).
