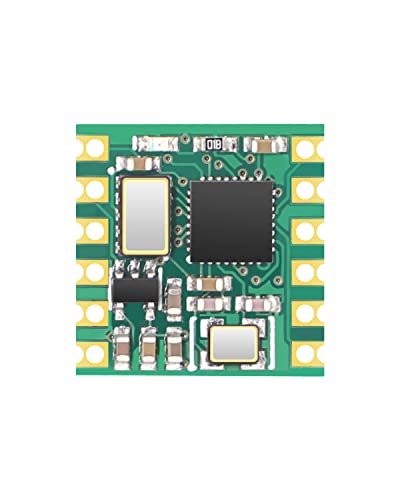

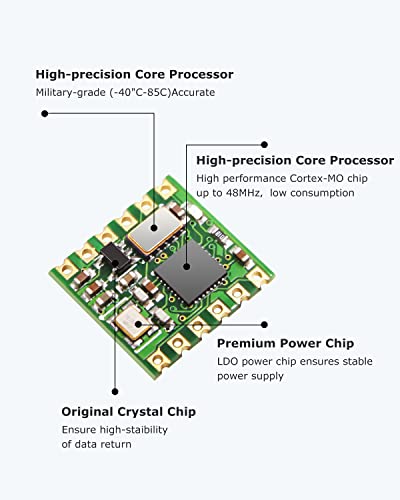

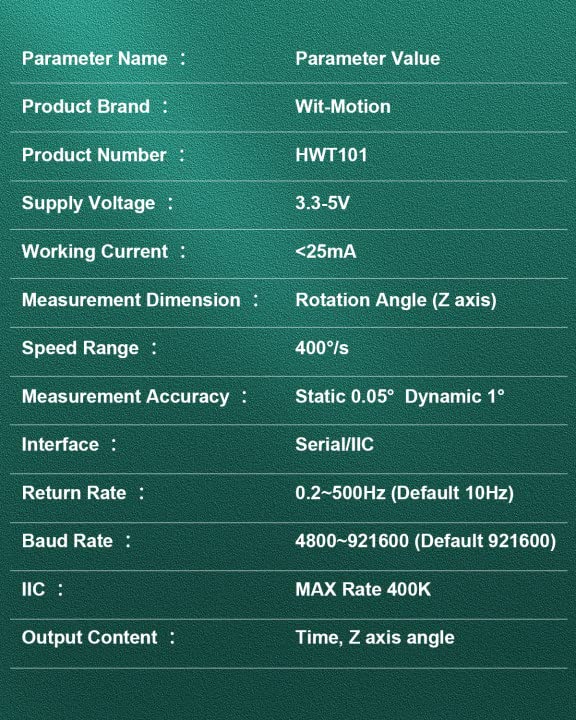

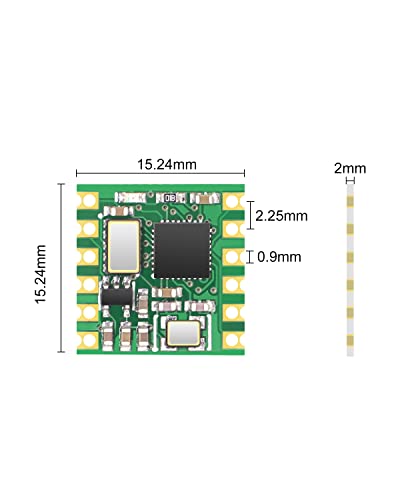

{"id":8115337724084,"title":"WitMotion HWT101 MEMS Tilt Angle Module, Integrated Crystal Gyroscope, Measurement Z Axis Angle Only","handle":"witmotion-hwt101-mems-tilt-angle-module-integrated-crystal-gyroscope-measurement-z-axis-angle-only","description":"\u003ch3\u003eWitMotion HWT101 MEMS Tilt Angle Module, Integrated Crystal Gyroscope, Measurement Z Axis Angle Only\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eKey Features: (1) HWT101 gyroscope is a good solution for Z axis angle\nmeasurement, with built-in crystal gyroscope and 32-bit core processor, which\nallows accuracy of 0.05° in static and 0.1° in dynamic dynamics. (2) The\nbuilt-in Kalman filter combines the gyro for precise angle measurement. (3)\nThe module can get accurate setting in a dynamic environment. The measurement\naccuracy is 0.05 degrees. (4) Using advanced digital filter technology, reduce\nthe measurement noise and improve measurement accuracy. (5) Supports\nconnection with NMEA-0183 GPS to form a GPS IMU unit. Specifications: 1. Input\nvoltage: 3.3-5V (cannot exceed 5V, otherwise the module will burn) 2. Current\nConsumption: 10mA 3. Dimensions: 15.24 x 15.24 x 2.54 mm. 4. Measurement:\nZ-axis angular velocity and Z axis angle. 5. Weight: 0.32g 6. The data output\nfrequency can reach a maximum of 500 Hz. 7. Data interface: Serial (TTL level)\n8. Baud rate (baud rate 2400-921600 kps). 9. Pad Reach: up\/down, 2.54mm,\nleft\/right, 15.24mm Package includes: (1) WT101 module 1 piece\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e(1) High precision military grade Z axis angle data\u003c\/li\u003e\n \u003cli\u003e(2) WitMotion advantage: integrated Kalman filter algorithm ensures high stability of angle data output even in high dynamics\u003c\/li\u003e\n \u003cli\u003e(3) Designed with advanced crystal gyroscope and 32-bit processor, which enable its high stability and precision of 0.1-500Hz data output, dynamic angle measurement accuracy at 0.05 degrees\u003c\/li\u003e\n \u003cli\u003e(4) What You Get: 1 x HWT101 Crystal Gyrscope Sensor for Z-axis Meausirng only, 1 x Instruction with tutorial website.\u003c\/li\u003e\n \u003cli\u003e(5) BUY WITH CONFIDENCE: R\u0026amp;D by WitMotion Team (6 years Professional Attitude Measuring Solution Provider), Lifetime Technical Support: (Email: , Mob\/Whatsapp: +86 13652339539), Provision of PC software, Andriod APP and 51 Serial, STM3. 2, Arduino and 2, Matlab sample code\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T10:53:58+10:00","created_at":"2026-09-02T00:08:35+10:00","vendor":"WITMOTION","type":"Tilt Sensors","tags":["industrial_DE_Aug2026"],"price":29900,"price_min":29900,"price_max":29900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375064936628,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07VD5Z5WH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WitMotion HWT101 MEMS Tilt Angle Module, Integrated Crystal Gyroscope, Measurement Z Axis Angle Only","public_title":null,"options":["Default Title"],"price":29900,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"Crystal Gyroscope","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B07VD5Z5WH.jpg?v=1788271717","\/\/auspowers.com\/cdn\/shop\/files\/41eIBQhmR_L.jpg?v=1788271718","\/\/auspowers.com\/cdn\/shop\/files\/41tmN_aZ9qL.jpg?v=1788271718","\/\/auspowers.com\/cdn\/shop\/files\/61RlwQZFCVL.jpg?v=1788271718","\/\/auspowers.com\/cdn\/shop\/files\/31tVoRKyTzL.jpg?v=1788271718","\/\/auspowers.com\/cdn\/shop\/files\/51U4SIlgGGL.jpg?v=1788271718"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07VD5Z5WH.jpg?v=1788271717","options":["Title"],"media":[{"alt":null,"id":33273562464436,"position":1,"preview_image":{"aspect_ratio":0.8,"height":500,"width":400,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07VD5Z5WH.jpg?v=1788271717"},"aspect_ratio":0.8,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07VD5Z5WH.jpg?v=1788271717","width":400},{"alt":null,"id":33273562497204,"position":2,"preview_image":{"aspect_ratio":0.8,"height":500,"width":400,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41eIBQhmR_L.jpg?v=1788271718"},"aspect_ratio":0.8,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41eIBQhmR_L.jpg?v=1788271718","width":400},{"alt":null,"id":33273562529972,"position":3,"preview_image":{"aspect_ratio":0.8,"height":500,"width":400,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41tmN_aZ9qL.jpg?v=1788271718"},"aspect_ratio":0.8,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41tmN_aZ9qL.jpg?v=1788271718","width":400},{"alt":null,"id":33273562562740,"position":4,"preview_image":{"aspect_ratio":0.8,"height":720,"width":576,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61RlwQZFCVL.jpg?v=1788271718"},"aspect_ratio":0.8,"height":720,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61RlwQZFCVL.jpg?v=1788271718","width":576},{"alt":null,"id":33273562595508,"position":5,"preview_image":{"aspect_ratio":0.8,"height":500,"width":400,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31tVoRKyTzL.jpg?v=1788271718"},"aspect_ratio":0.8,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31tVoRKyTzL.jpg?v=1788271718","width":400},{"alt":null,"id":33273562628276,"position":6,"preview_image":{"aspect_ratio":0.8,"height":500,"width":400,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51U4SIlgGGL.jpg?v=1788271718"},"aspect_ratio":0.8,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51U4SIlgGGL.jpg?v=1788271718","width":400}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eWitMotion HWT101 MEMS Tilt Angle Module, Integrated Crystal Gyroscope, Measurement Z Axis Angle Only\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eKey Features: (1) HWT101 gyroscope is a good solution for Z axis angle\nmeasurement, with built-in crystal gyroscope and 32-bit core processor, which\nallows accuracy of 0.05° in static and 0.1° in dynamic dynamics. (2) The\nbuilt-in Kalman filter combines the gyro for precise angle measurement. (3)\nThe module can get accurate setting in a dynamic environment. The measurement\naccuracy is 0.05 degrees. (4) Using advanced digital filter technology, reduce\nthe measurement noise and improve measurement accuracy. (5) Supports\nconnection with NMEA-0183 GPS to form a GPS IMU unit. Specifications: 1. Input\nvoltage: 3.3-5V (cannot exceed 5V, otherwise the module will burn) 2. Current\nConsumption: 10mA 3. Dimensions: 15.24 x 15.24 x 2.54 mm. 4. Measurement:\nZ-axis angular velocity and Z axis angle. 5. Weight: 0.32g 6. The data output\nfrequency can reach a maximum of 500 Hz. 7. Data interface: Serial (TTL level)\n8. Baud rate (baud rate 2400-921600 kps). 9. Pad Reach: up\/down, 2.54mm,\nleft\/right, 15.24mm Package includes: (1) WT101 module 1 piece\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e(1) High precision military grade Z axis angle data\u003c\/li\u003e\n \u003cli\u003e(2) WitMotion advantage: integrated Kalman filter algorithm ensures high stability of angle data output even in high dynamics\u003c\/li\u003e\n \u003cli\u003e(3) Designed with advanced crystal gyroscope and 32-bit processor, which enable its high stability and precision of 0.1-500Hz data output, dynamic angle measurement accuracy at 0.05 degrees\u003c\/li\u003e\n \u003cli\u003e(4) What You Get: 1 x HWT101 Crystal Gyrscope Sensor for Z-axis Meausirng only, 1 x Instruction with tutorial website.\u003c\/li\u003e\n \u003cli\u003e(5) BUY WITH CONFIDENCE: R\u0026amp;D by WitMotion Team (6 years Professional Attitude Measuring Solution Provider), Lifetime Technical Support: (Email: , Mob\/Whatsapp: +86 13652339539), Provision of PC software, Andriod APP and 51 Serial, STM3. 2, Arduino and 2, Matlab sample code\u003c\/li\u003e\n \u003c\/ul\u003e"}
