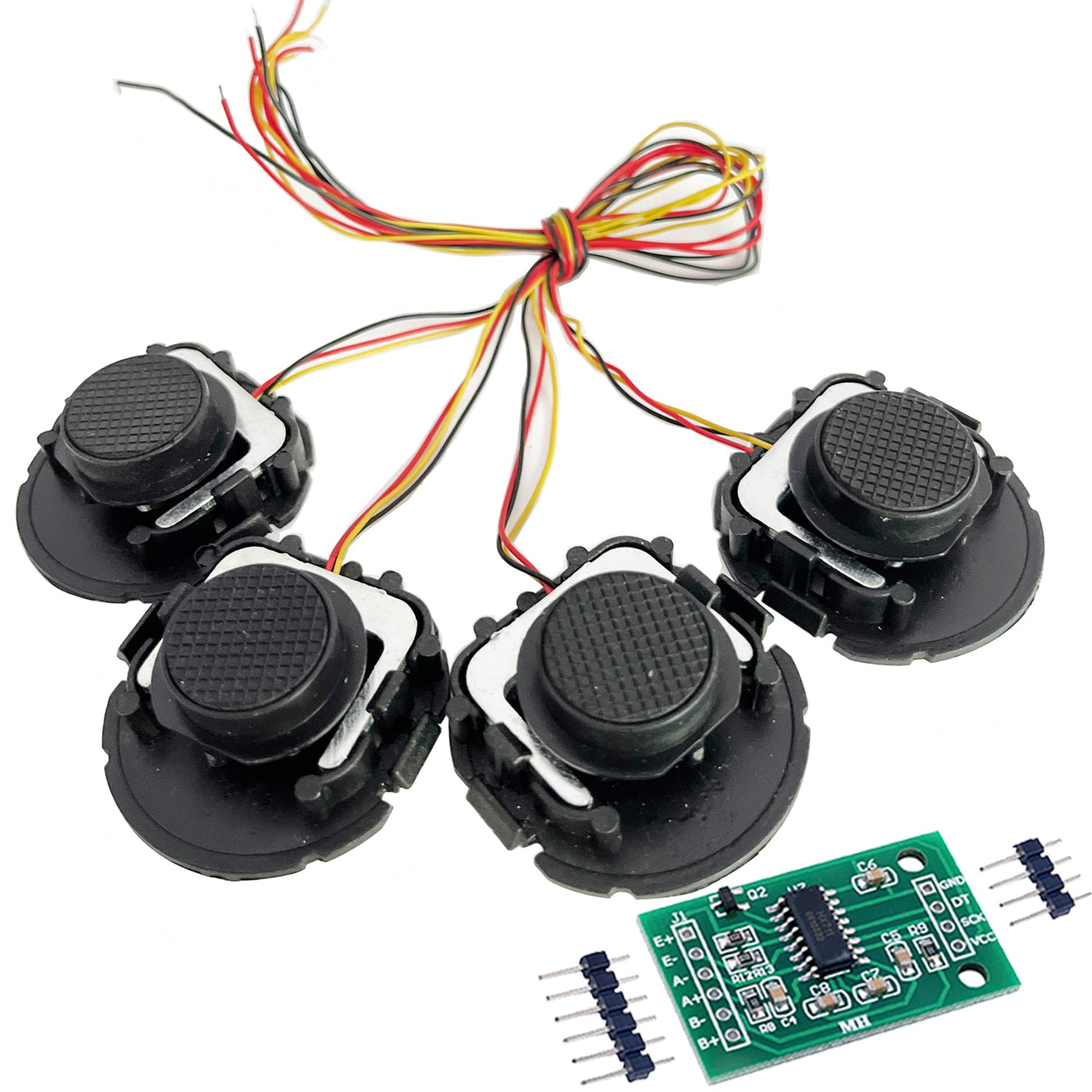

{"id":7992757452980,"title":"Wishiot Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale with Bracket + HX711 Amplifier AD Module Pack of 4 50 kg","handle":"wishiot-load-cell-weighing-sensor-half-bridge-strain-gauge-human-body-scale-with-bracket-hx711-amplifier-ad-module-pack-of-4-50-kg","description":"\u003ch3\u003eWishiot Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale with Bracket + HX711 Amplifier AD Module Pack of 4 50 kg\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct parameters: Range: 50 kg. Zero output: ±0.3mV\/V. Output sensitivity:\n1.0±0.15mV\/V. Linearity: 0.2%F.S. Hysteresis: 0.2%F.S. Repeatability: 0.1%\nF.S. Creep: 0.1%F.S(3min) Output (input) impedance: 1000±10Ω. Operating\ntemperature: -10 °C ~ +40 °C. Quadrature error: 0.15%F.S. Zero temperature\ndrift: 0.3%F.S\/10°C. Temperature sensitivity drift: 0.3%F.S\/10°C. Insulation\nresistance: ≥2000MΩ. Excitation voltage: 5-10V DC. Limit overload: 150%F.S.\nOverall Accuracy: 0.3%F.S Wire length parameters: 26 cm. HX711 Ad Module Load\nCell Amplifier Green PCB for Arduino Description: This module uses 24 high\nprecision A\/D converter chip hx711. It is a specially designed for the high\nprecision electronic scale design with two analog input channel the internal\nintegration of 128 times the programmable gain amplifier. The input circuit\ncan be configured to provide a bridge type pressure bridge (such as\npressureweighing sensor mode)is of high precisionlow cost is an ideal sampling\nfront-end module. Features: Two selectable differential input channels. On-\nchip active low noise PGA with selectable gain of 3264 and 128. On-chip power\nsupply regulator for load-cell and ADC analogue power supply. On-chip\noscillator requiring no external component with optional external crystal On-\nchip power-on-reset. Simple digital control and serial interface: pin-driven\ncontrolsno programming needed. ● Simultaneous 50 and 60Hz supply rejection.\nCurrent consumption including on-chip analogue power supply regulator: normal\noperation \u0026lt;1.5 mApower down \u0026lt;1uA. Operation supply voltage range: 2.6 ~ 5.5 V.\nOperating temperature range: -20 degrees ~ +85 degrees. Package includes: 4 X\n50kg load cell with mounting bracket 1 x HX711 AD module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1. New 50 kg load cell with feet and mounting bracket for direct mounting to increase friction and prevent slipping due to measurement errors\u003c\/li\u003e\n \u003cli\u003e2.30*25*13mm, small size, easy to install in various scenes\u003c\/li\u003e\n \u003cli\u003e3. Variable use, can be combined to 50kg\/100kg\/200kg\u003c\/li\u003e\n \u003cli\u003e4. Comprehensive accuracy: 0.3% F.S, output (in) impedance: 1000 +- 10\u003c\/li\u003e\n \u003cli\u003ePlease feel free to ask us any questions and we will do our best to help you solve the problem\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T01:14:13+10:00","created_at":"2025-09-27T01:14:09+10:00","vendor":"Wishiot","type":"Balance Accessories","tags":["industryDE_Sep2025"],"price":14000,"price_min":14000,"price_max":14000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44053669773492,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DCK48BSK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Wishiot Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale with Bracket + HX711 Amplifier AD Module Pack of 4 50 kg","public_title":null,"options":["Default Title"],"price":14000,"weight":68,"compare_at_price":null,"inventory_management":"shopify","barcode":"WS6096+WS6633AX4+WS0728","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0DCK48BSK.jpg?v=1775771770","\/\/auspowers.com\/cdn\/shop\/files\/71Y4vpo8t4L.jpg?v=1758899803","\/\/auspowers.com\/cdn\/shop\/files\/61jxTQMmkSL.jpg?v=1758899845","\/\/auspowers.com\/cdn\/shop\/files\/71tBliNaaHL.jpg?v=1758899844","\/\/auspowers.com\/cdn\/shop\/files\/71NRtcD42dL.jpg?v=1758899804","\/\/auspowers.com\/cdn\/shop\/files\/71zuJFRsWsL.jpg?v=1758899805"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DCK48BSK.jpg?v=1775771770","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Wishiot Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale with Bracket + HX711 Amplifier AD Module Pack of 4 50 kg ","id":32206302412980,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DCK48BSK.jpg?v=1775771770"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DCK48BSK.jpg?v=1775771770","width":2000},{"alt":"[Australia - AusPower] - Wishiot Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale with Bracket + HX711 Amplifier AD Module Pack of 4 50 kg ","id":32206302445748,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Y4vpo8t4L.jpg?v=1758899803"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Y4vpo8t4L.jpg?v=1758899803","width":1600},{"alt":"[Australia - AusPower] - Wishiot Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale with Bracket + HX711 Amplifier AD Module Pack of 4 50 kg ","id":32206302478516,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61jxTQMmkSL.jpg?v=1758899845"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61jxTQMmkSL.jpg?v=1758899845","width":1600},{"alt":"[Australia - AusPower] - Wishiot Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale with Bracket + HX711 Amplifier AD Module Pack of 4 50 kg ","id":32206302511284,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71tBliNaaHL.jpg?v=1758899844"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71tBliNaaHL.jpg?v=1758899844","width":1600},{"alt":"[Australia - AusPower] - Wishiot Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale with Bracket + HX711 Amplifier AD Module Pack of 4 50 kg ","id":32206302544052,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71NRtcD42dL.jpg?v=1758899804"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71NRtcD42dL.jpg?v=1758899804","width":1600},{"alt":"[Australia - AusPower] - Wishiot Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale with Bracket + HX711 Amplifier AD Module Pack of 4 50 kg ","id":32206302576820,"position":6,"preview_image":{"aspect_ratio":1.0,"height":2175,"width":2175,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71zuJFRsWsL.jpg?v=1758899805"},"aspect_ratio":1.0,"height":2175,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71zuJFRsWsL.jpg?v=1758899805","width":2175}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eWishiot Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale with Bracket + HX711 Amplifier AD Module Pack of 4 50 kg\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct parameters: Range: 50 kg. Zero output: ±0.3mV\/V. Output sensitivity:\n1.0±0.15mV\/V. Linearity: 0.2%F.S. Hysteresis: 0.2%F.S. Repeatability: 0.1%\nF.S. Creep: 0.1%F.S(3min) Output (input) impedance: 1000±10Ω. Operating\ntemperature: -10 °C ~ +40 °C. Quadrature error: 0.15%F.S. Zero temperature\ndrift: 0.3%F.S\/10°C. Temperature sensitivity drift: 0.3%F.S\/10°C. Insulation\nresistance: ≥2000MΩ. Excitation voltage: 5-10V DC. Limit overload: 150%F.S.\nOverall Accuracy: 0.3%F.S Wire length parameters: 26 cm. HX711 Ad Module Load\nCell Amplifier Green PCB for Arduino Description: This module uses 24 high\nprecision A\/D converter chip hx711. It is a specially designed for the high\nprecision electronic scale design with two analog input channel the internal\nintegration of 128 times the programmable gain amplifier. The input circuit\ncan be configured to provide a bridge type pressure bridge (such as\npressureweighing sensor mode)is of high precisionlow cost is an ideal sampling\nfront-end module. Features: Two selectable differential input channels. On-\nchip active low noise PGA with selectable gain of 3264 and 128. On-chip power\nsupply regulator for load-cell and ADC analogue power supply. On-chip\noscillator requiring no external component with optional external crystal On-\nchip power-on-reset. Simple digital control and serial interface: pin-driven\ncontrolsno programming needed. ● Simultaneous 50 and 60Hz supply rejection.\nCurrent consumption including on-chip analogue power supply regulator: normal\noperation \u0026lt;1.5 mApower down \u0026lt;1uA. Operation supply voltage range: 2.6 ~ 5.5 V.\nOperating temperature range: -20 degrees ~ +85 degrees. Package includes: 4 X\n50kg load cell with mounting bracket 1 x HX711 AD module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1. New 50 kg load cell with feet and mounting bracket for direct mounting to increase friction and prevent slipping due to measurement errors\u003c\/li\u003e\n \u003cli\u003e2.30*25*13mm, small size, easy to install in various scenes\u003c\/li\u003e\n \u003cli\u003e3. Variable use, can be combined to 50kg\/100kg\/200kg\u003c\/li\u003e\n \u003cli\u003e4. Comprehensive accuracy: 0.3% F.S, output (in) impedance: 1000 +- 10\u003c\/li\u003e\n \u003cli\u003ePlease feel free to ask us any questions and we will do our best to help you solve the problem\u003c\/li\u003e\n \u003c\/ul\u003e"}
