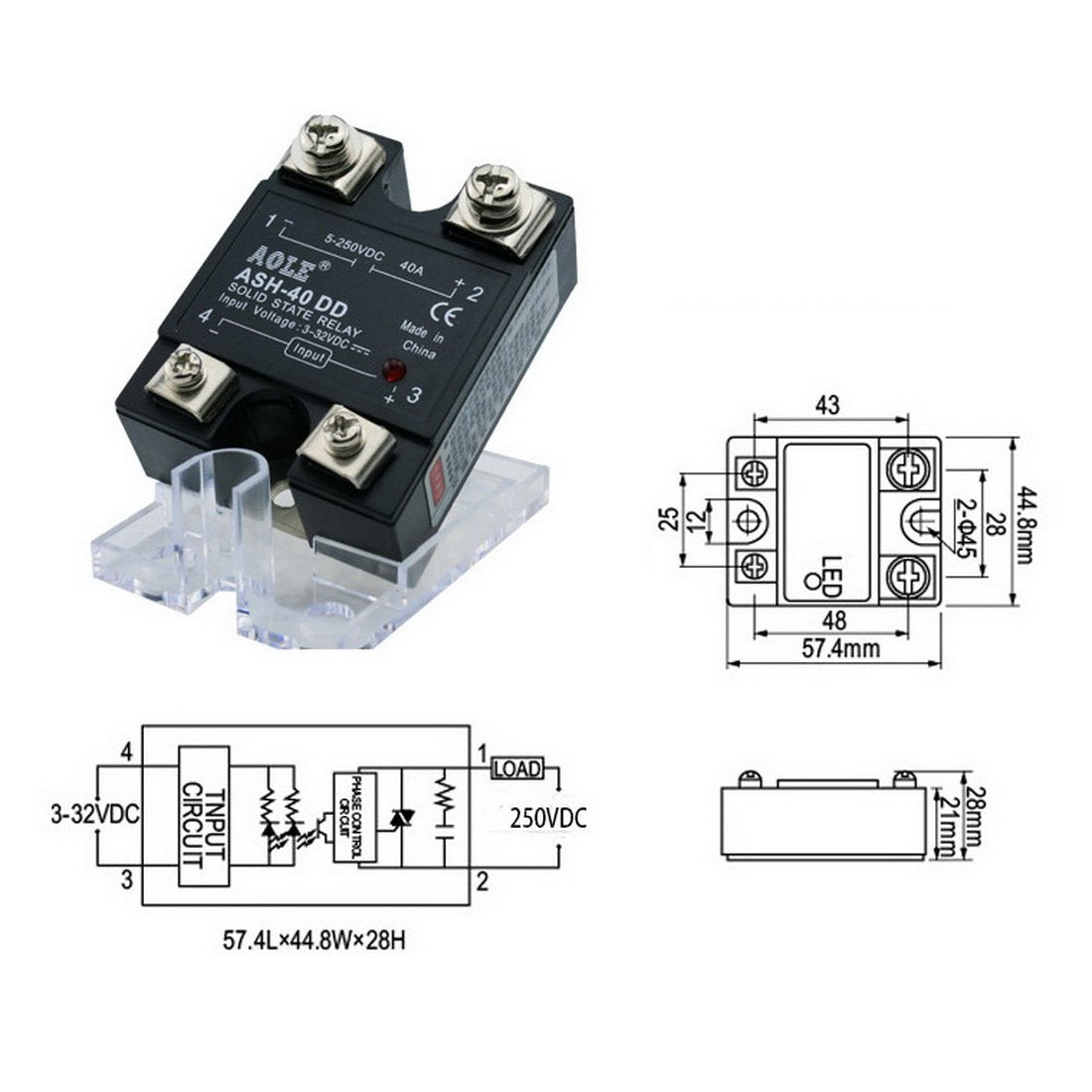

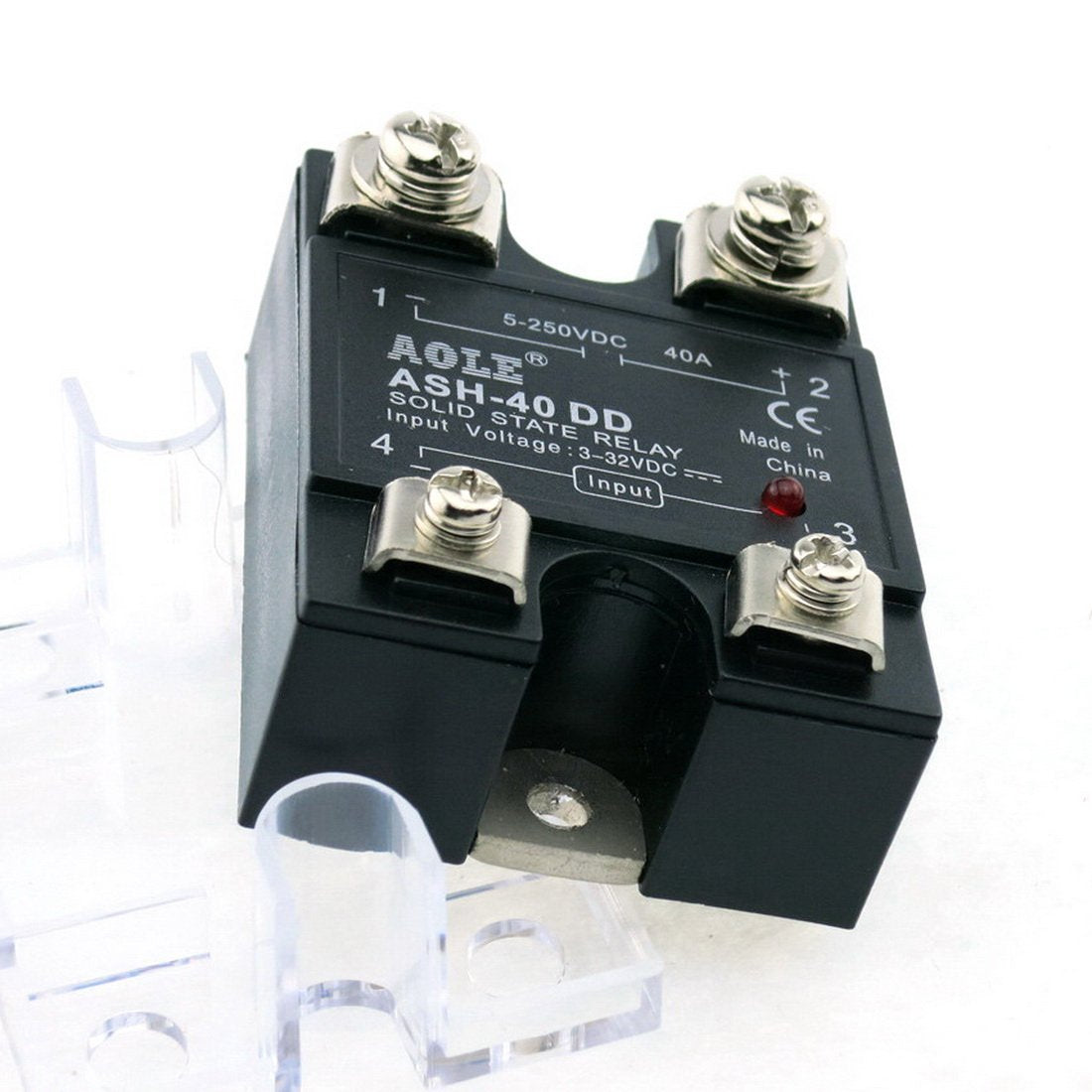

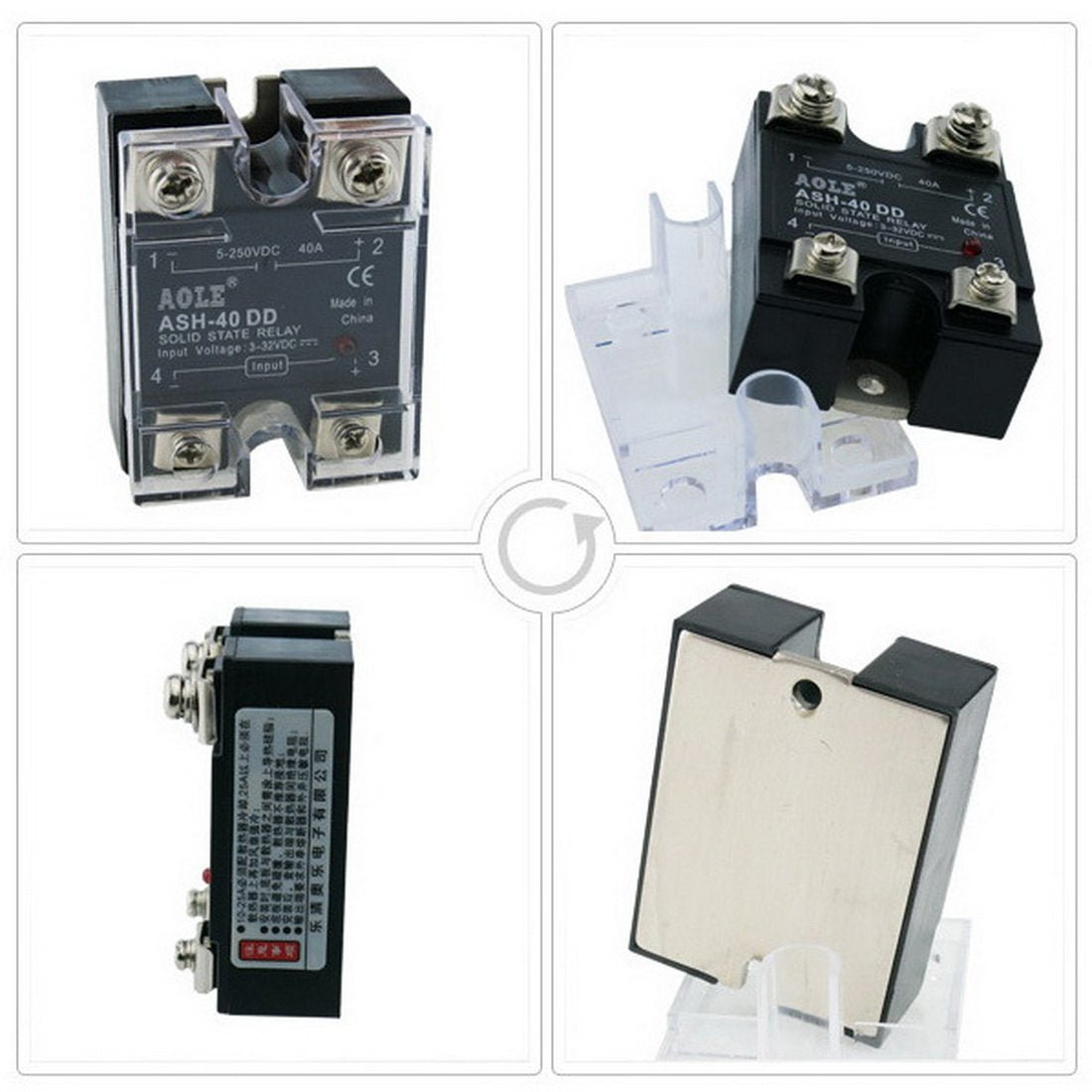

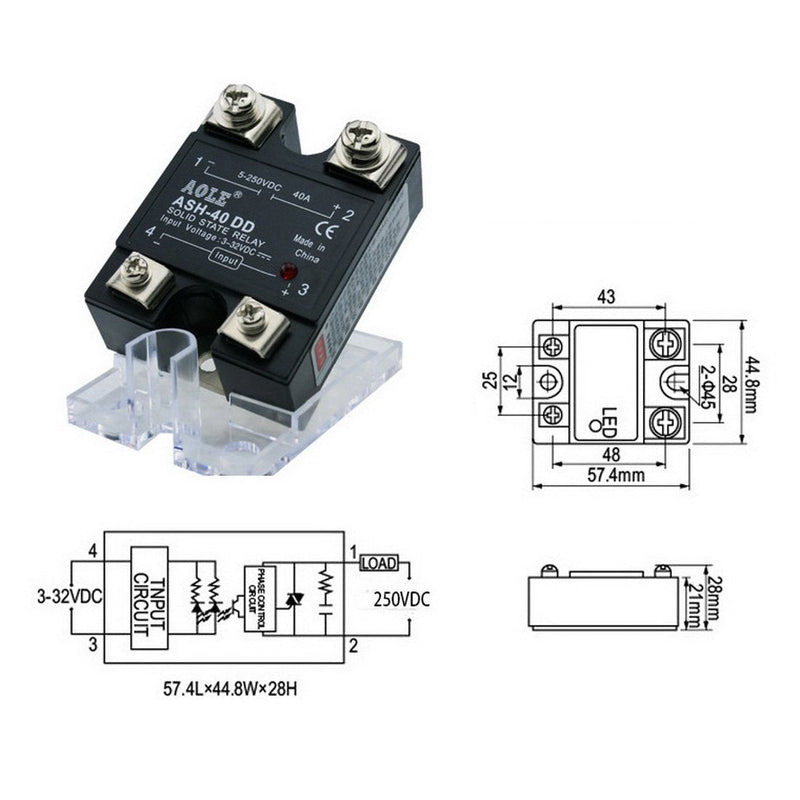

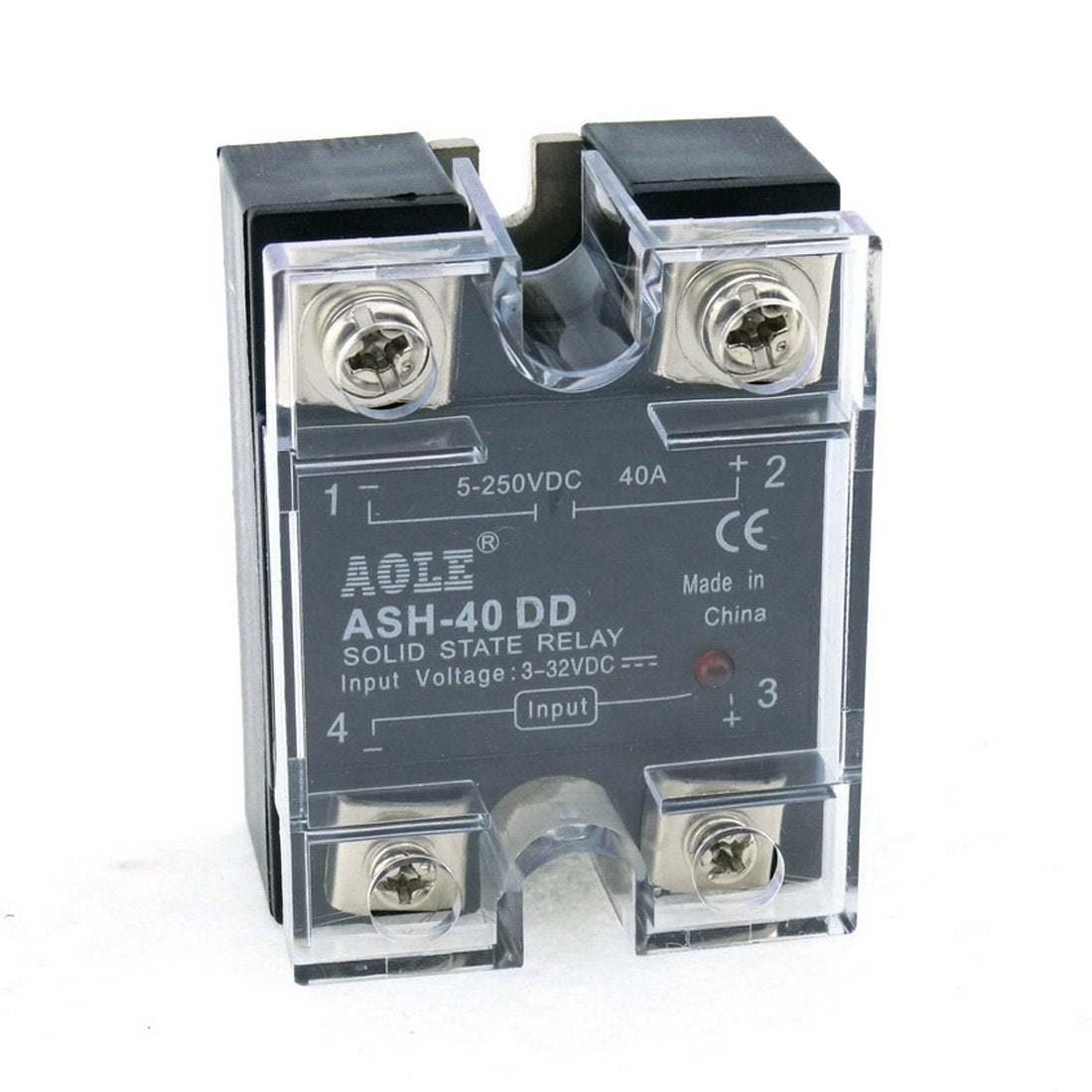

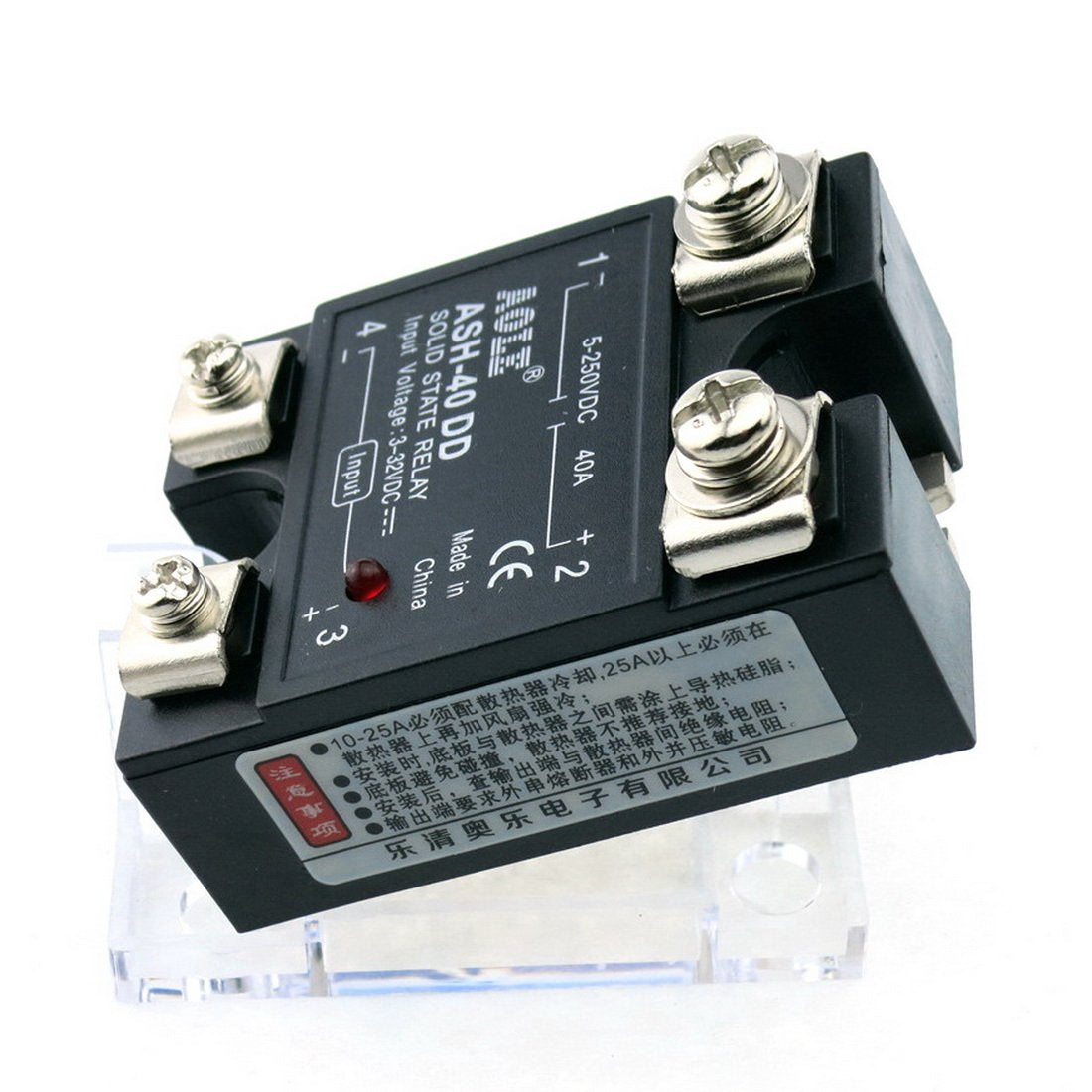

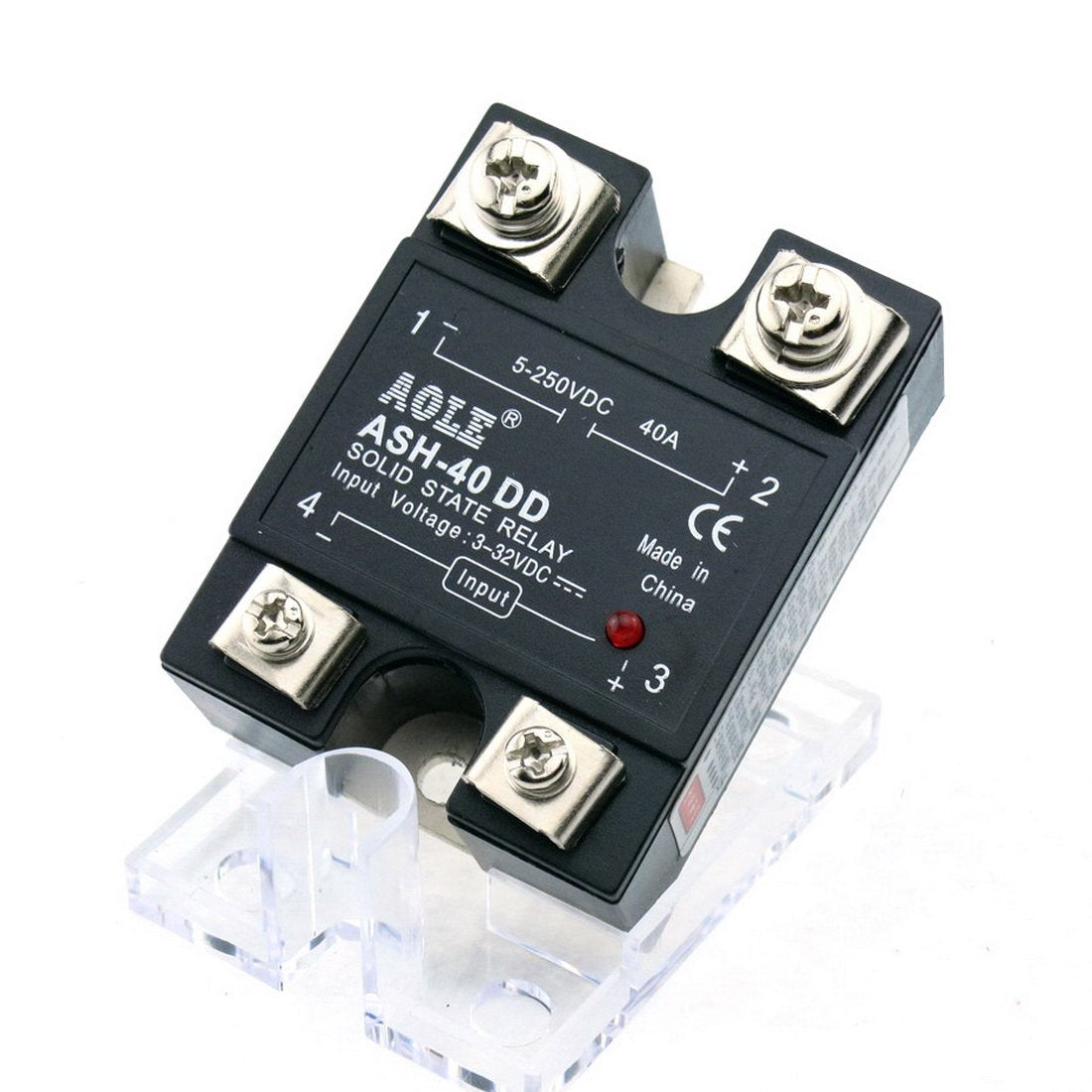

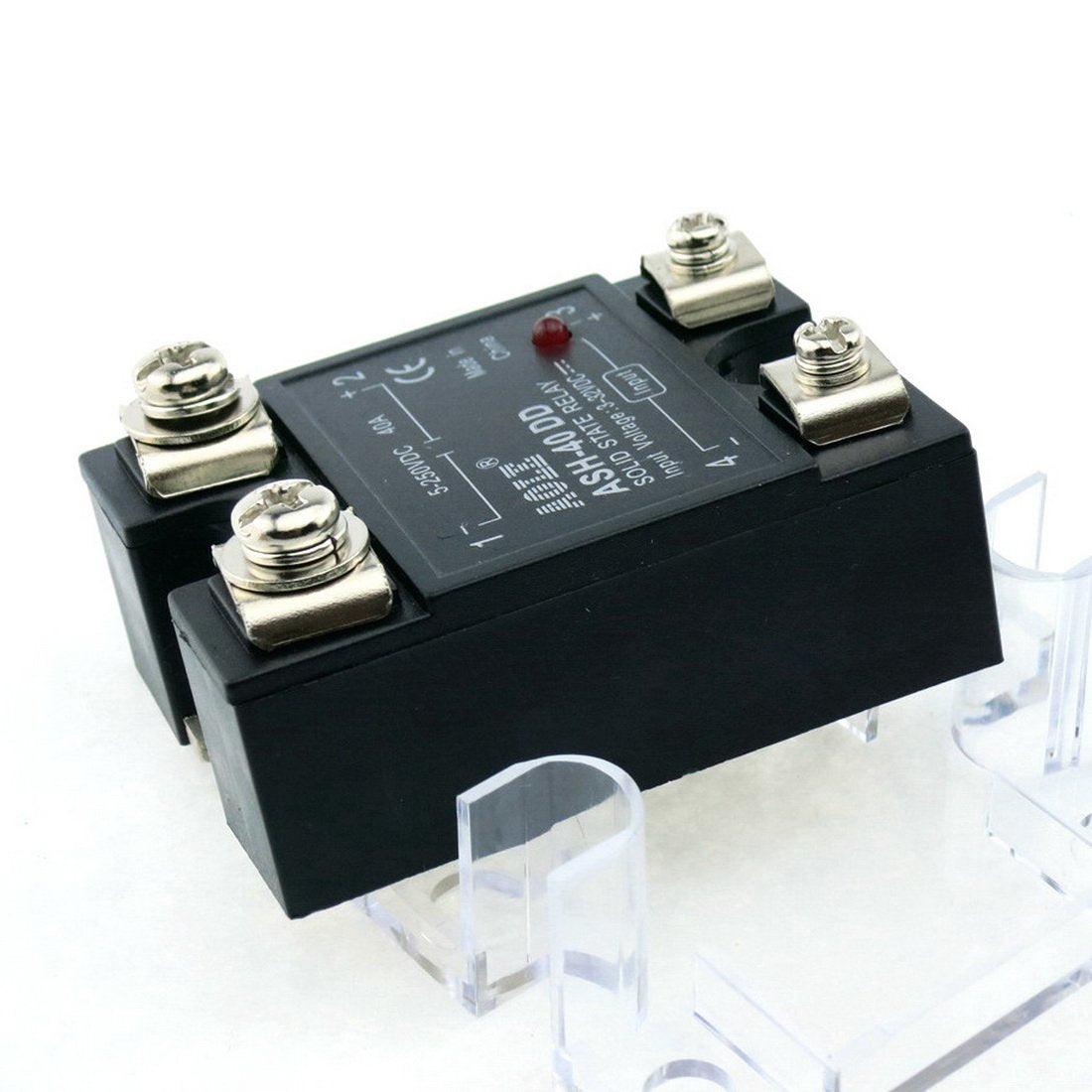

{"id":7169189675188,"title":"WerFamily SSR Solid State Relay SSR-40DD DC-DC 3-32V DC \/ 5-250V DC \/ 40A DC to DC","handle":"werfamily-ssr-solid-state-relay-ssr-40dd-dc-dc-3-32v-dc-5-250v-dc-40a-dc-to-dc","description":"\u003ch3\u003eWerFamily SSR Solid State Relay SSR-40DD DC-DC 3-32V DC \/ 5-250V DC \/ 40A\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eIntroduction: This single phrase Solid State Relay is ideal for automatic\nprocess control application, a must component for temperature controller and\nother machinery control system. High reliability, compact size, a great part\nfor temperature controller and other machinery control system. Specifications:\n- Model: ASH-A-40DD - Control Mode: DC to DC - Control Voltage: 3 - 32VDC -\nControl Current: DC4 - 12mA - Load Voltage: 5 - 250VDC - Load Current: 40A -\nOn-state Voltagedrop: ≤ 1.5V - Off Leakage Current: ≤ 2mA - On-off Time: ≤\n10ms - Dielectric Strength: 2500VAC - Insulation Resistance: 1000MΩ\/500VDC -\nAmbient Temperature: -30℃ - +70℃ - Protection Character: Resin Soldering -\nMounting Methods: Bolts Fixed - Size: 57.4 x 44.8 x 28mm\/2.26 x 1.76 x\n1.1inch(LWH) - Weight: 120g Features: - High reliability, high efficiency\nand long lifespan. - No electric spark, no noise and no contact. - Fine\nelectro magnetic interference, high sensitivity and fast switching speed. -\nLow drive voltage and current. - Unique shape and novel structure. -\nEspecially suitable for corrosion, moisture, dust resistant and other harsh\nenvironments. - Widely used in many automatic control systems. Packing\nInclude: 1 x ASH-A-40DD Solid State Relay. Note: - 10 to 25A radiator cooling,\nmore than 25A must on the radiator and fan cooling. - When Installation, solid\nstate plater and radiator with smeared thermal conductivity silicone grease. -\nAfter installation, check the insulation resistance between output and\nradiator radiator grounding is not recommended. - Output requirements\nconcatenated fuse or and the varistor. - If you have any questions, please\nfeel free to contact us by E-mail any time.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct name: Single Phrase Solid State Relay; Model: WF-ASH-A-DD-40DD\u003c\/li\u003e\n \u003cli\u003eControl Mode: DC to DC; Control Voltage: 3 - 32VDC; Output Voltage: 5 - 250VDC\u003c\/li\u003e\n \u003cli\u003eRelay size: 57.4 x 44.8 x 28mm\/2.26 x 1.76 x 1.1inch (L*W*H)\u003c\/li\u003e\n \u003cli\u003eSealed high temperature resistance housing. Transparent resin protective cap is included.\u003c\/li\u003e\n \u003cli\u003eOutput requirements concatenated fuse or and the varistor. 10 to 25A radiator cooling,more than 25A must on the radiator and fan cooling.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-25T20:31:41+10:00","created_at":"2022-06-25T20:31:49+10:00","vendor":"WerFamily","type":"Solid State Relays","tags":["industrial"],"price":12400,"price_min":12400,"price_max":12400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41607899676852,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B06XPT9GG4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WerFamily SSR Solid State Relay SSR-40DD DC-DC 3-32V DC \/ 5-250V DC \/ 40A DC to DC","public_title":null,"options":["Default Title"],"price":12400,"weight":110,"compare_at_price":null,"inventory_management":null,"barcode":"0710185898896","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B06XPT9GG4.jpg?v=1656229635","\/\/auspowers.com\/cdn\/shop\/products\/71zKb_pbC8L.jpg?v=1656153109","\/\/auspowers.com\/cdn\/shop\/products\/61lagY77hyL.jpg?v=1656153109","\/\/auspowers.com\/cdn\/shop\/products\/61qaGutp-sL.jpg?v=1656153109","\/\/auspowers.com\/cdn\/shop\/products\/61_WiDSnw4L.jpg?v=1656153109","\/\/auspowers.com\/cdn\/shop\/products\/61WlKY6MFVL.jpg?v=1656153109","\/\/auspowers.com\/cdn\/shop\/products\/61RRqcbcPHL_d0af6d30-9e29-41b8-8e1f-3a5e480e3070.jpg?v=1656153109","\/\/auspowers.com\/cdn\/shop\/products\/613RIFZlM-L.jpg?v=1656153109"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B06XPT9GG4.jpg?v=1656229635","options":["Title"],"media":[{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-40DD DC-DC 3-32V DC \/ 5-250V DC \/ 40A DC to DC ","id":26293398765748,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B06XPT9GG4.jpg?v=1656229635"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B06XPT9GG4.jpg?v=1656229635","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-40DD DC-DC 3-32V DC \/ 5-250V DC \/ 40A DC to DC ","id":26282786455732,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71zKb_pbC8L.jpg?v=1656153109"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71zKb_pbC8L.jpg?v=1656153109","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-40DD DC-DC 3-32V DC \/ 5-250V DC \/ 40A DC to DC ","id":26282786488500,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61lagY77hyL.jpg?v=1656153109"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61lagY77hyL.jpg?v=1656153109","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-40DD DC-DC 3-32V DC \/ 5-250V DC \/ 40A DC to DC ","id":26282786521268,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61qaGutp-sL.jpg?v=1656153109"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61qaGutp-sL.jpg?v=1656153109","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-40DD DC-DC 3-32V DC \/ 5-250V DC \/ 40A DC to DC ","id":26282786554036,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61_WiDSnw4L.jpg?v=1656153109"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61_WiDSnw4L.jpg?v=1656153109","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-40DD DC-DC 3-32V DC \/ 5-250V DC \/ 40A DC to DC ","id":26282786586804,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61WlKY6MFVL.jpg?v=1656153109"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61WlKY6MFVL.jpg?v=1656153109","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-40DD DC-DC 3-32V DC \/ 5-250V DC \/ 40A DC to DC ","id":26282786619572,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61RRqcbcPHL_d0af6d30-9e29-41b8-8e1f-3a5e480e3070.jpg?v=1656153109"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61RRqcbcPHL_d0af6d30-9e29-41b8-8e1f-3a5e480e3070.jpg?v=1656153109","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-40DD DC-DC 3-32V DC \/ 5-250V DC \/ 40A DC to DC ","id":26282786652340,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/613RIFZlM-L.jpg?v=1656153109"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/613RIFZlM-L.jpg?v=1656153109","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eWerFamily SSR Solid State Relay SSR-40DD DC-DC 3-32V DC \/ 5-250V DC \/ 40A\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eIntroduction: This single phrase Solid State Relay is ideal for automatic\nprocess control application, a must component for temperature controller and\nother machinery control system. High reliability, compact size, a great part\nfor temperature controller and other machinery control system. Specifications:\n- Model: ASH-A-40DD - Control Mode: DC to DC - Control Voltage: 3 - 32VDC -\nControl Current: DC4 - 12mA - Load Voltage: 5 - 250VDC - Load Current: 40A -\nOn-state Voltagedrop: ≤ 1.5V - Off Leakage Current: ≤ 2mA - On-off Time: ≤\n10ms - Dielectric Strength: 2500VAC - Insulation Resistance: 1000MΩ\/500VDC -\nAmbient Temperature: -30℃ - +70℃ - Protection Character: Resin Soldering -\nMounting Methods: Bolts Fixed - Size: 57.4 x 44.8 x 28mm\/2.26 x 1.76 x\n1.1inch(LWH) - Weight: 120g Features: - High reliability, high efficiency\nand long lifespan. - No electric spark, no noise and no contact. - Fine\nelectro magnetic interference, high sensitivity and fast switching speed. -\nLow drive voltage and current. - Unique shape and novel structure. -\nEspecially suitable for corrosion, moisture, dust resistant and other harsh\nenvironments. - Widely used in many automatic control systems. Packing\nInclude: 1 x ASH-A-40DD Solid State Relay. Note: - 10 to 25A radiator cooling,\nmore than 25A must on the radiator and fan cooling. - When Installation, solid\nstate plater and radiator with smeared thermal conductivity silicone grease. -\nAfter installation, check the insulation resistance between output and\nradiator radiator grounding is not recommended. - Output requirements\nconcatenated fuse or and the varistor. - If you have any questions, please\nfeel free to contact us by E-mail any time.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct name: Single Phrase Solid State Relay; Model: WF-ASH-A-DD-40DD\u003c\/li\u003e\n \u003cli\u003eControl Mode: DC to DC; Control Voltage: 3 - 32VDC; Output Voltage: 5 - 250VDC\u003c\/li\u003e\n \u003cli\u003eRelay size: 57.4 x 44.8 x 28mm\/2.26 x 1.76 x 1.1inch (L*W*H)\u003c\/li\u003e\n \u003cli\u003eSealed high temperature resistance housing. Transparent resin protective cap is included.\u003c\/li\u003e\n \u003cli\u003eOutput requirements concatenated fuse or and the varistor. 10 to 25A radiator cooling,more than 25A must on the radiator and fan cooling.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
