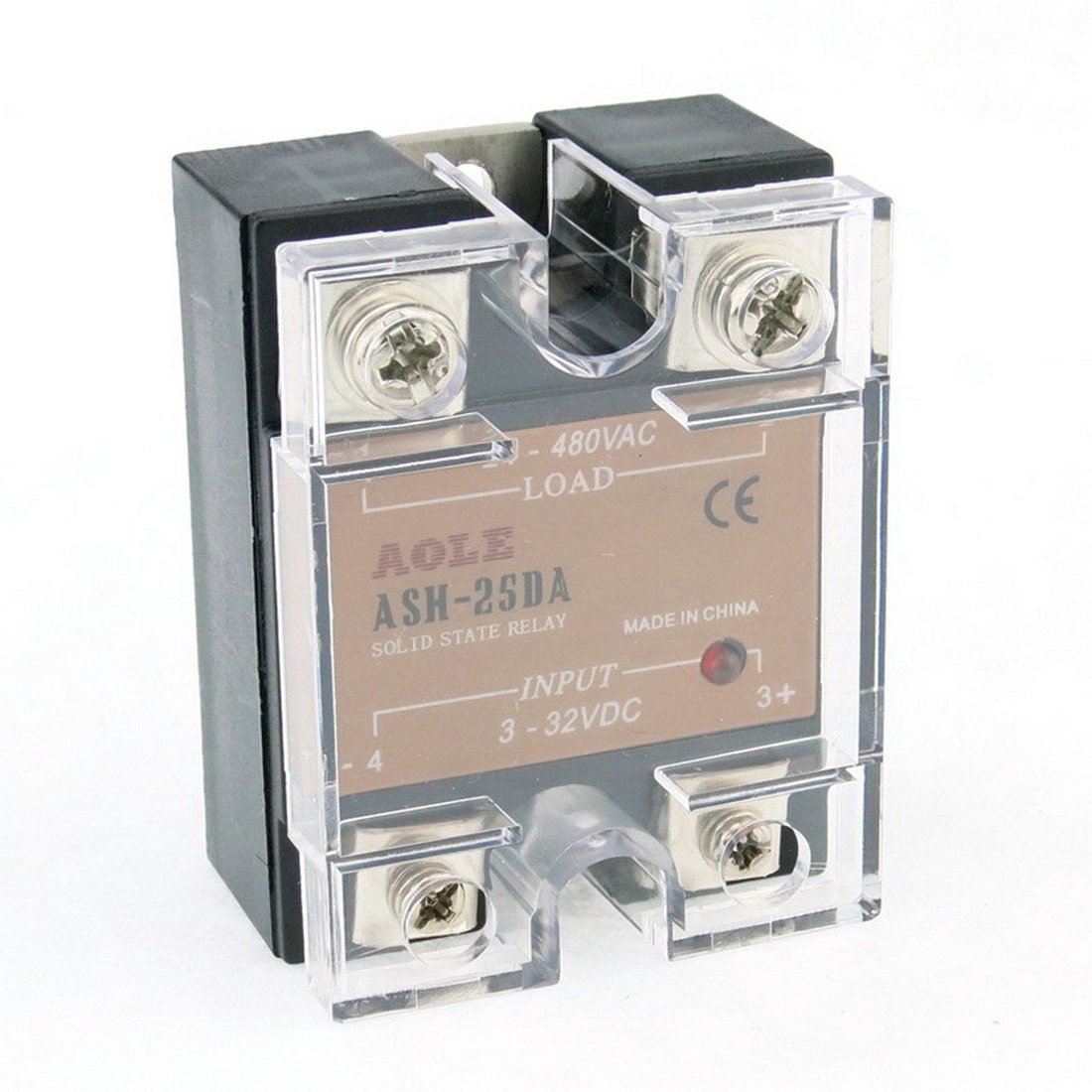

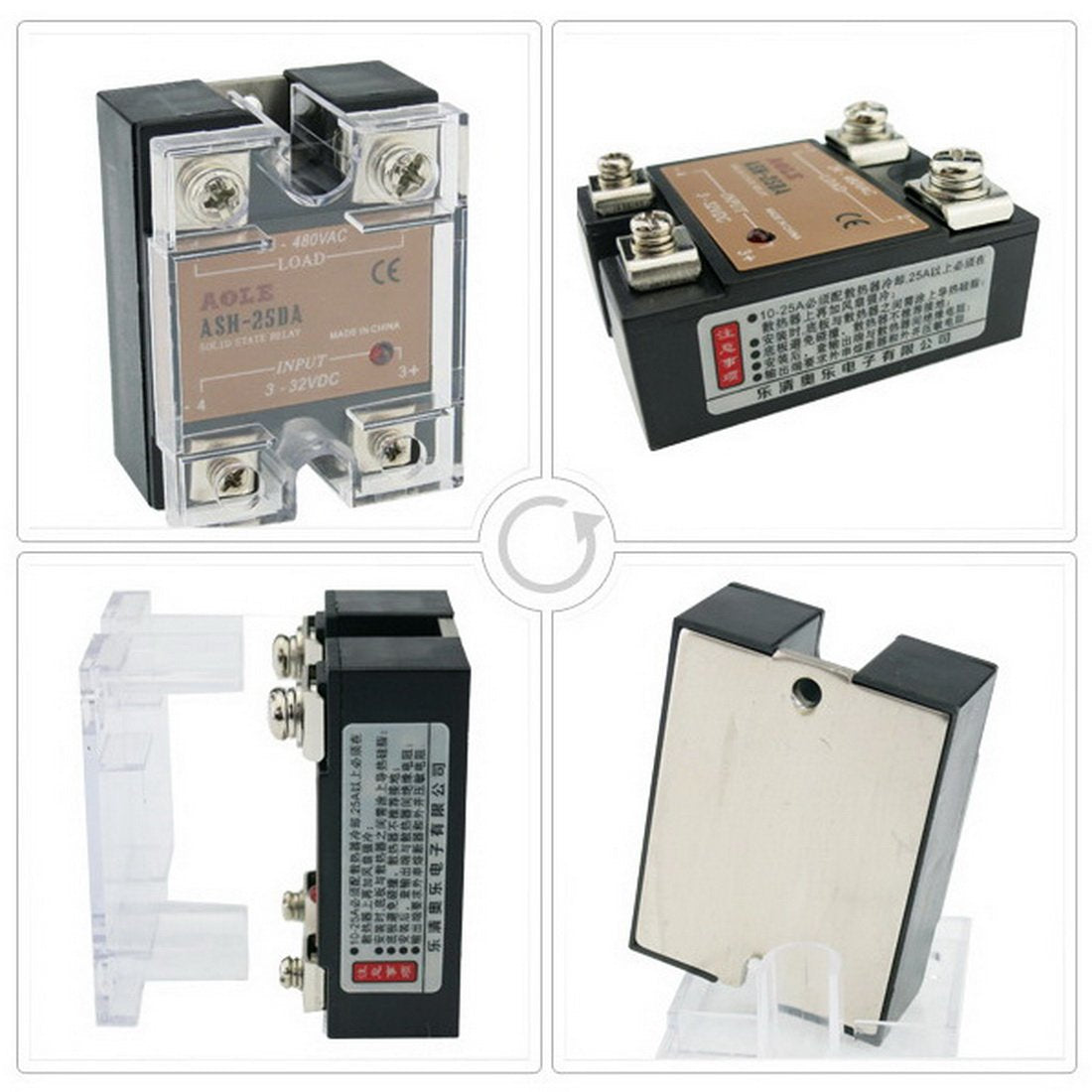

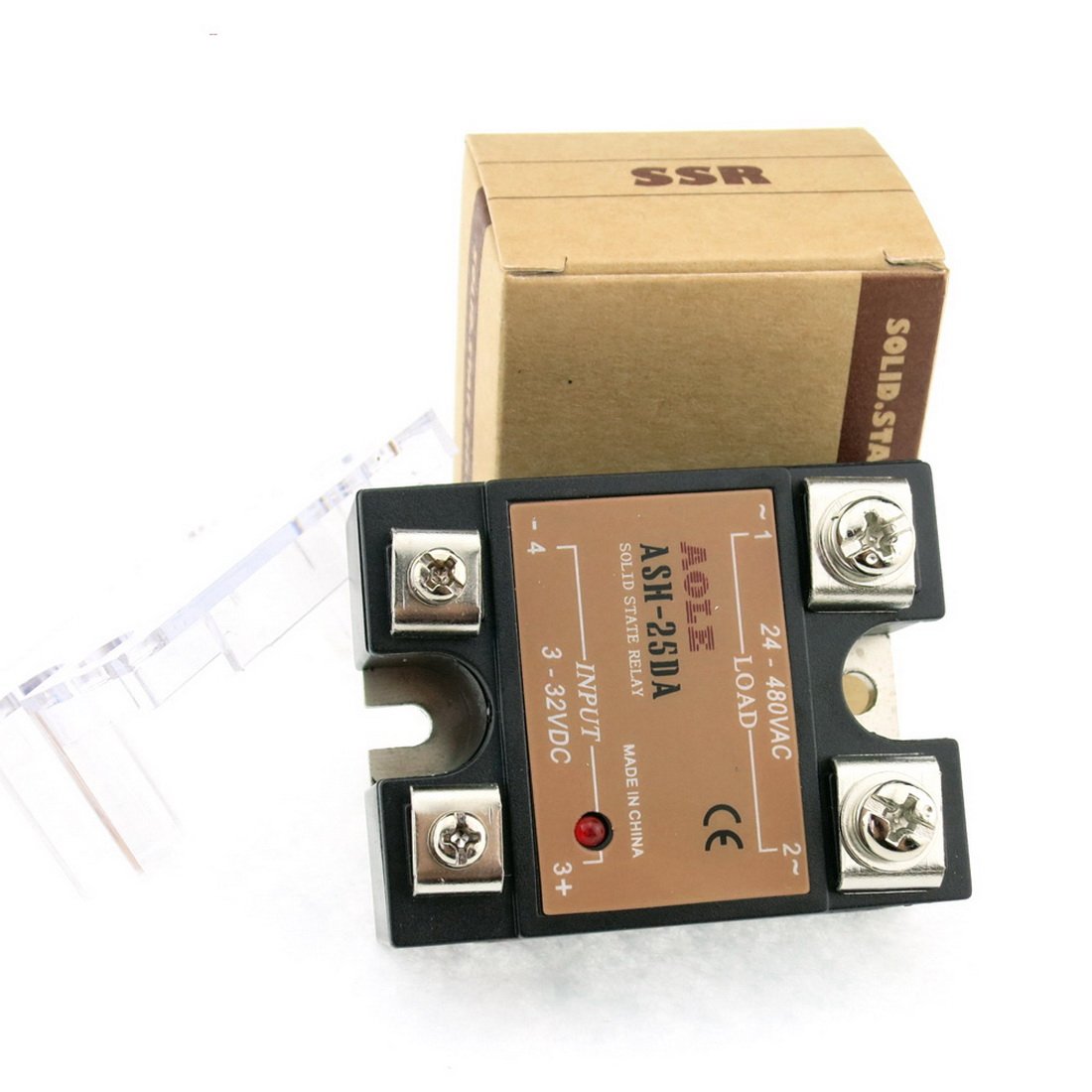

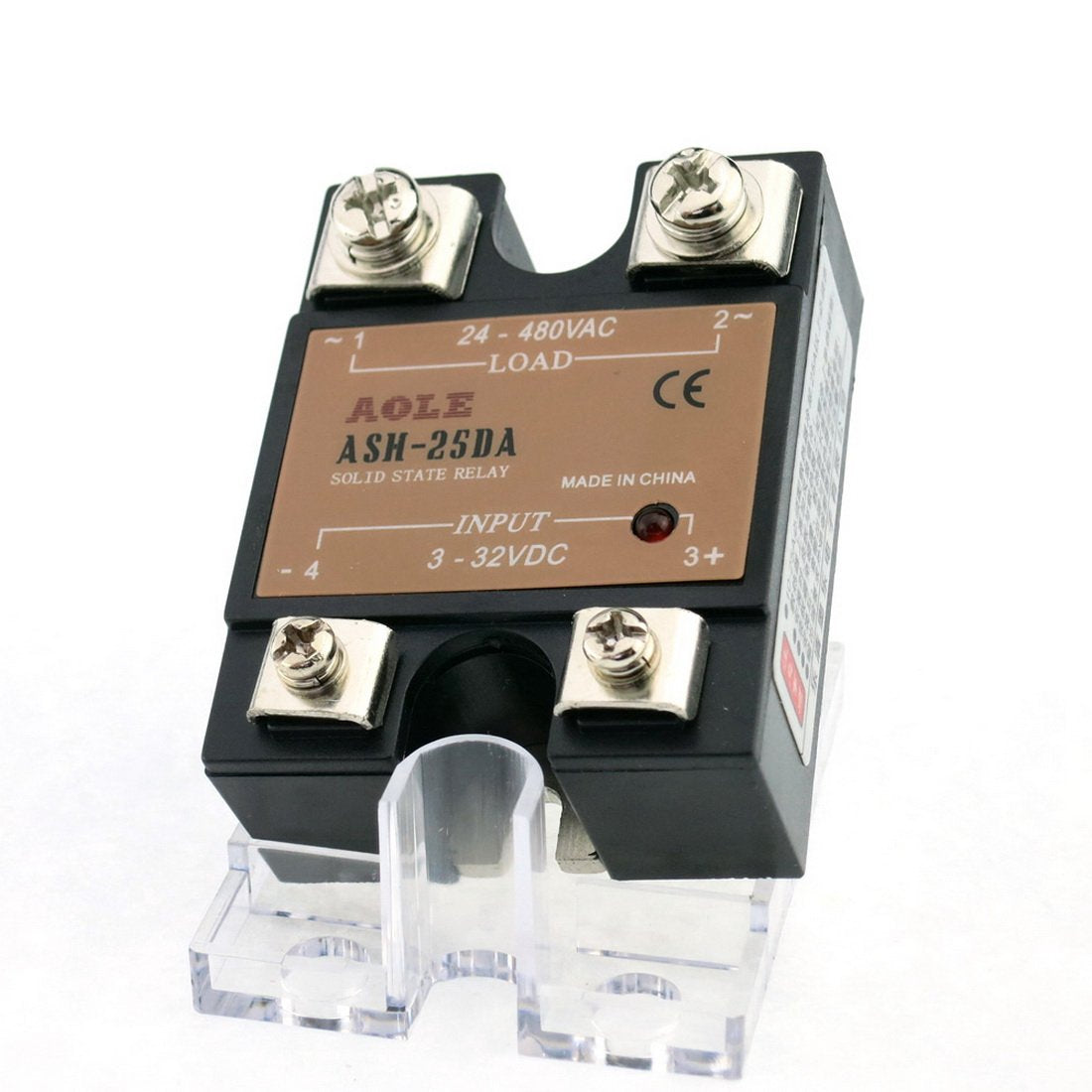

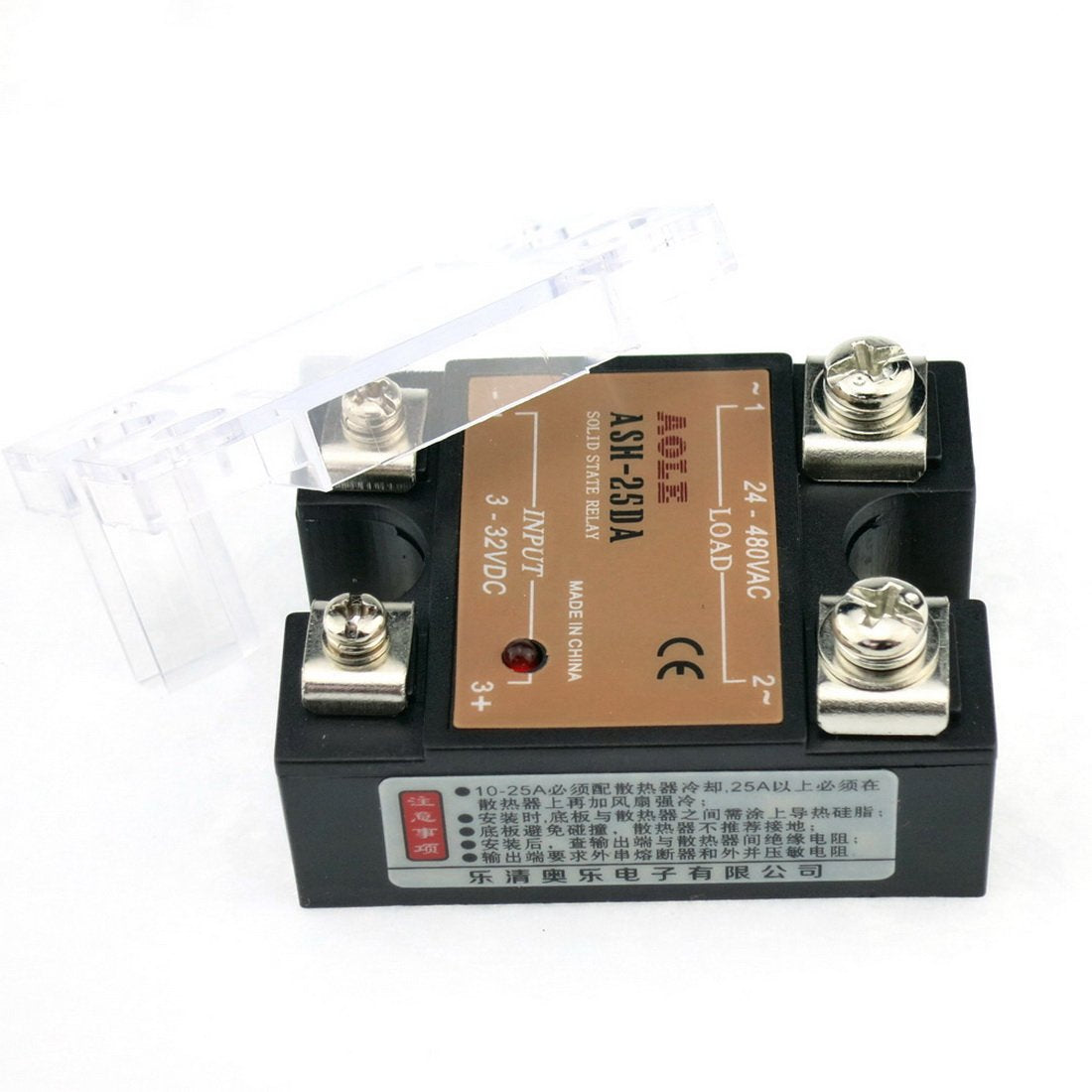

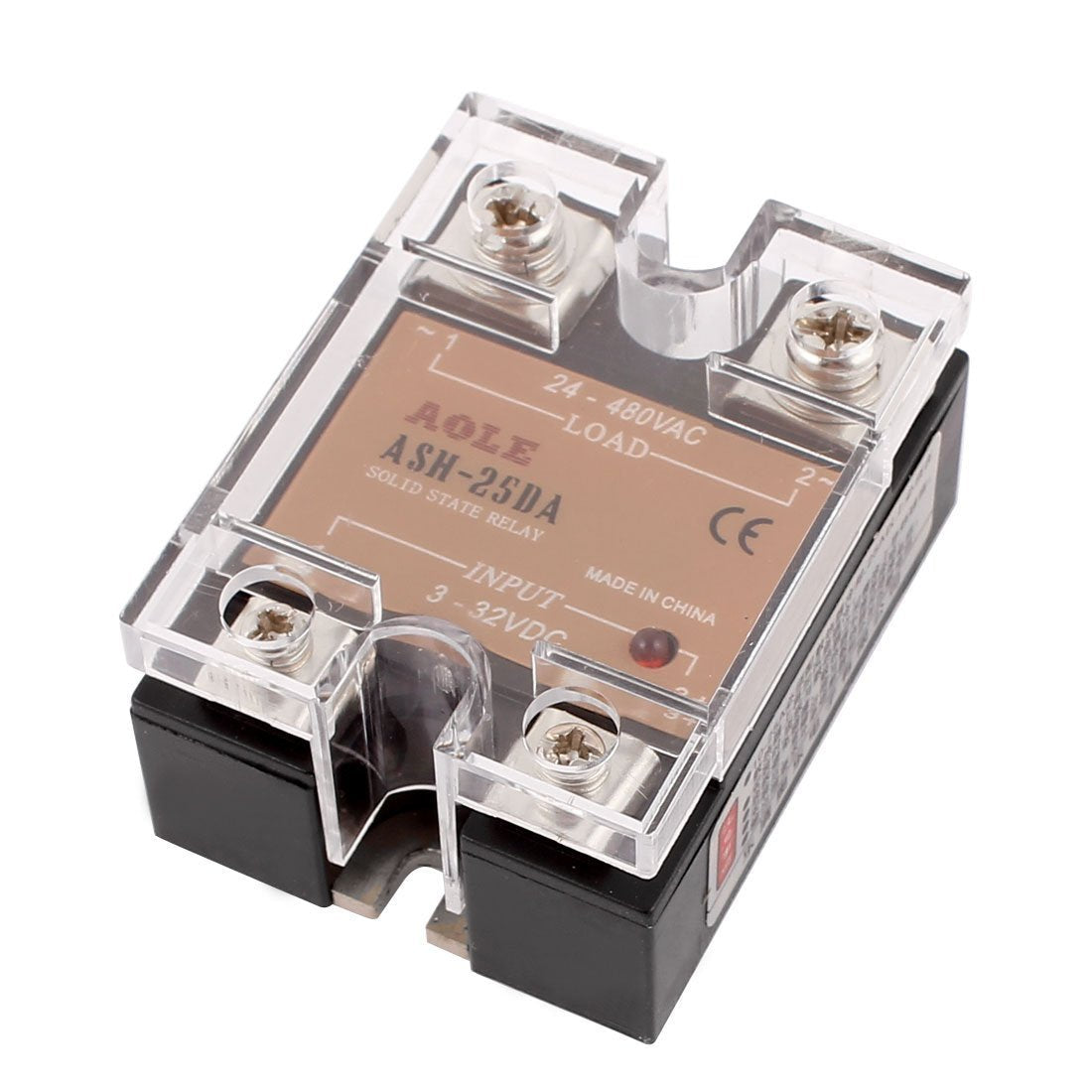

{"id":7169175191732,"title":"WerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A DC to AC","handle":"werfamily-ssr-solid-state-relay-ssr-25da-dc-ac-3-32v-dc-24-480v-ac-25a-dc-to-ac","description":"\u003ch3\u003eWerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eIntroduction: This single phrase Solid State Relay is ideal for automatic\nprocess control application, a must component for temperature controller and\nother machinery control system. High reliability, compact size, a great part\nfor temperature controller and other machinery control system. Specifications:\n- Model: ASH-A-25DA - Control Mode: DC to AC - Control Voltage: 3 - 32VDC -\nControl Current: DC4 - 25mA - Load Voltage: 24 - 480VAC - Load Current: 25A -\nOn-state Voltagedrop: ≤ 1.5V - Off Leakage Current: ≤ 2mA - On-off Time: ≤\n10ms - Dielectric Strength: 2500VAC - Insulation Resistance: 1000MΩ\/500VDC -\nAmbient Temperature: -30℃ ~ +75℃ - Protection Character: Resin Soldering -\nMounting Methods: Bolts Fixed - Size: 57.4 x 44.8 x 28mm\/2.26 x 1.76 x\n1.1inch(LWH) - Weight: 120g Features: - High reliability, high efficiency\nand long lifespan. - No electric spark, no noise and no contact. - Fine\nelectro magnetic interference, high sensitivity and fast switching speed. -\nLow drive voltage and current. - Unique shape and novel structure. -\nEspecially suitable for corrosion, moisture, dust resistant and other harsh\nenvironments. - Widely used in many automatic control systems. Packing\nInclude: 1 x ASH-A-25DA Solid State Relay. Note: - 10 to 25A radiator cooling,\nmore than 25A must on the radiator and fan cooling. - When Installation, solid\nstate plater and radiator with smeared thermal conductivity silicone grease. -\nAfter installation, check the insulation resistance between output and\nradiator, radiator grounding is not recommended. - Output requirements\nconcatenated fuse or and the varistor. - If you have any questions, please\nfeel free to contact us by E-mail any time.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct name: Single Phrase Solid State Relay; Model: WF-ASH-A-DA-25DA\u003c\/li\u003e\n \u003cli\u003eControl Mode: DC to AC; Control Voltage: 3 - 32VDC; Output Voltage: 24-480V AC\u003c\/li\u003e\n \u003cli\u003eRelay size: 57.4 x 44.8 x 28mm\/2.26 x 1.76 x 1.1inch (L*W*H)\u003c\/li\u003e\n \u003cli\u003eSealed high temperature resistance housing. Transparent resin protective cap is included.\u003c\/li\u003e\n \u003cli\u003eOutput requirements concatenated fuse or and the varistor. 10 to 25A radiator cooling,more than 25A must on the radiator and fan cooling.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-25T20:12:59+10:00","created_at":"2022-06-25T20:13:07+10:00","vendor":"WerFamily","type":"Solid State Relays","tags":["industrial"],"price":11800,"price_min":11800,"price_max":11800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41607880638644,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B06XKX8LWL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A DC to AC","public_title":null,"options":["Default Title"],"price":11800,"weight":114,"compare_at_price":null,"inventory_management":null,"barcode":"0710185899008","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B06XKX8LWL.jpg?v=1656228701","\/\/auspowers.com\/cdn\/shop\/products\/61DBKi4OsBL.jpg?v=1656151987","\/\/auspowers.com\/cdn\/shop\/products\/61AO1l-5S8L.jpg?v=1656151987","\/\/auspowers.com\/cdn\/shop\/products\/71BjLwTTLYL.jpg?v=1656151987","\/\/auspowers.com\/cdn\/shop\/products\/61S4Y44eBQL.jpg?v=1656151987","\/\/auspowers.com\/cdn\/shop\/products\/61yTt865jwL.jpg?v=1656151987","\/\/auspowers.com\/cdn\/shop\/products\/61RRqcbcPHL.jpg?v=1656151987","\/\/auspowers.com\/cdn\/shop\/products\/61AJQYDKh0L.jpg?v=1656151987","\/\/auspowers.com\/cdn\/shop\/products\/71SLK3qREvL.jpg?v=1656151987"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B06XKX8LWL.jpg?v=1656228701","options":["Title"],"media":[{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A DC to AC ","id":26293324218548,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B06XKX8LWL.jpg?v=1656228701"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B06XKX8LWL.jpg?v=1656228701","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A DC to AC ","id":26282715775156,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61DBKi4OsBL.jpg?v=1656151987"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61DBKi4OsBL.jpg?v=1656151987","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A DC to AC ","id":26282715807924,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61AO1l-5S8L.jpg?v=1656151987"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61AO1l-5S8L.jpg?v=1656151987","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A DC to AC ","id":26282715840692,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71BjLwTTLYL.jpg?v=1656151987"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71BjLwTTLYL.jpg?v=1656151987","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A DC to AC ","id":26282715873460,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61S4Y44eBQL.jpg?v=1656151987"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61S4Y44eBQL.jpg?v=1656151987","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A DC to AC ","id":26282715906228,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61yTt865jwL.jpg?v=1656151987"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61yTt865jwL.jpg?v=1656151987","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A DC to AC ","id":26282715938996,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61RRqcbcPHL.jpg?v=1656151987"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61RRqcbcPHL.jpg?v=1656151987","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A DC to AC ","id":26282715971764,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61AJQYDKh0L.jpg?v=1656151987"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61AJQYDKh0L.jpg?v=1656151987","width":1100},{"alt":"[Australia - AusPower] - WerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A DC to AC ","id":26282716004532,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71SLK3qREvL.jpg?v=1656151987"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71SLK3qREvL.jpg?v=1656151987","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eWerFamily SSR Solid State Relay SSR-25DA DC-AC 3-32V DC \/ 24-480V AC \/ 25A\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eIntroduction: This single phrase Solid State Relay is ideal for automatic\nprocess control application, a must component for temperature controller and\nother machinery control system. High reliability, compact size, a great part\nfor temperature controller and other machinery control system. Specifications:\n- Model: ASH-A-25DA - Control Mode: DC to AC - Control Voltage: 3 - 32VDC -\nControl Current: DC4 - 25mA - Load Voltage: 24 - 480VAC - Load Current: 25A -\nOn-state Voltagedrop: ≤ 1.5V - Off Leakage Current: ≤ 2mA - On-off Time: ≤\n10ms - Dielectric Strength: 2500VAC - Insulation Resistance: 1000MΩ\/500VDC -\nAmbient Temperature: -30℃ ~ +75℃ - Protection Character: Resin Soldering -\nMounting Methods: Bolts Fixed - Size: 57.4 x 44.8 x 28mm\/2.26 x 1.76 x\n1.1inch(LWH) - Weight: 120g Features: - High reliability, high efficiency\nand long lifespan. - No electric spark, no noise and no contact. - Fine\nelectro magnetic interference, high sensitivity and fast switching speed. -\nLow drive voltage and current. - Unique shape and novel structure. -\nEspecially suitable for corrosion, moisture, dust resistant and other harsh\nenvironments. - Widely used in many automatic control systems. Packing\nInclude: 1 x ASH-A-25DA Solid State Relay. Note: - 10 to 25A radiator cooling,\nmore than 25A must on the radiator and fan cooling. - When Installation, solid\nstate plater and radiator with smeared thermal conductivity silicone grease. -\nAfter installation, check the insulation resistance between output and\nradiator, radiator grounding is not recommended. - Output requirements\nconcatenated fuse or and the varistor. - If you have any questions, please\nfeel free to contact us by E-mail any time.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct name: Single Phrase Solid State Relay; Model: WF-ASH-A-DA-25DA\u003c\/li\u003e\n \u003cli\u003eControl Mode: DC to AC; Control Voltage: 3 - 32VDC; Output Voltage: 24-480V AC\u003c\/li\u003e\n \u003cli\u003eRelay size: 57.4 x 44.8 x 28mm\/2.26 x 1.76 x 1.1inch (L*W*H)\u003c\/li\u003e\n \u003cli\u003eSealed high temperature resistance housing. Transparent resin protective cap is included.\u003c\/li\u003e\n \u003cli\u003eOutput requirements concatenated fuse or and the varistor. 10 to 25A radiator cooling,more than 25A must on the radiator and fan cooling.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
