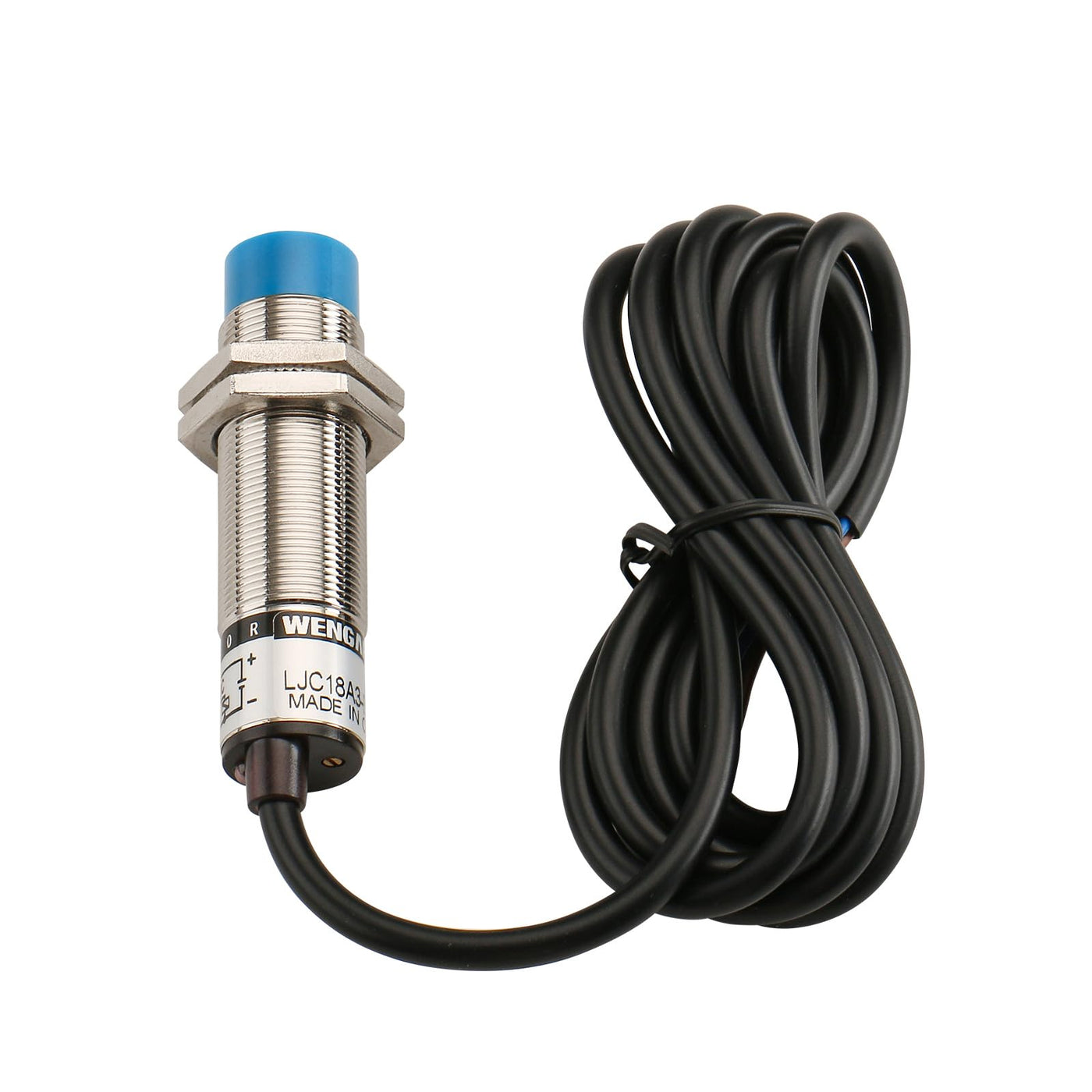

Wengart Capacitive Proximity Sensor Switch LJC18A3-B-Z,M18,DC10-30V,PNP_Normally Open 300mA,10mm Detecting Distance,3 Wire
Wengart Capacitive Proximity Sensor Switch LJC18A3-B-Z,M18,DC10-30V,PNP_Normally Open 300mA,10mm Detecting Distance,3 Wire

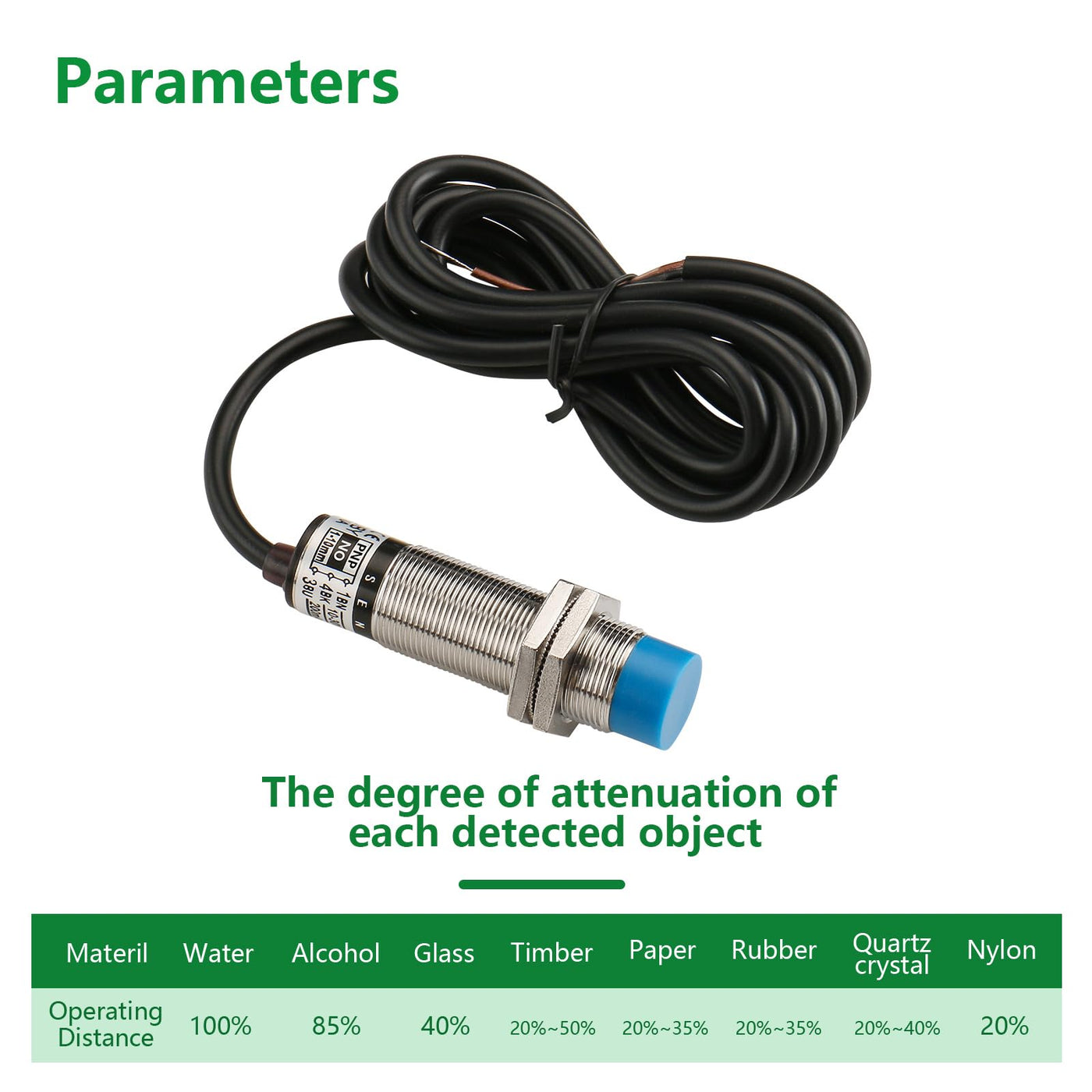

A capacitive proximity sensor is a non-contact sensor that uses a change in capacitance to detect the presence or displacement of a target. It is small in size, good in performance, and can detect all types of target materials. It is widely used in many industrial detection and control applications. Capacitive proximity sensors are true non-contact sensors that do not require physical contact with the target object. Avoid damage caused by contact, long service life, especially suitable for high-speed, high-temperature or easy-to-damage target detection. Capacitive proximity sensors can detect all types of target materials. Specification: Detection distance: 10mm±10%Setting distance: 0~8mmStandard detection object: Iron 50X50x1mmResponse frequency: DC0.5kHzDetection surface: ABSWaterproof: IP67Material: Nickel-plated brass

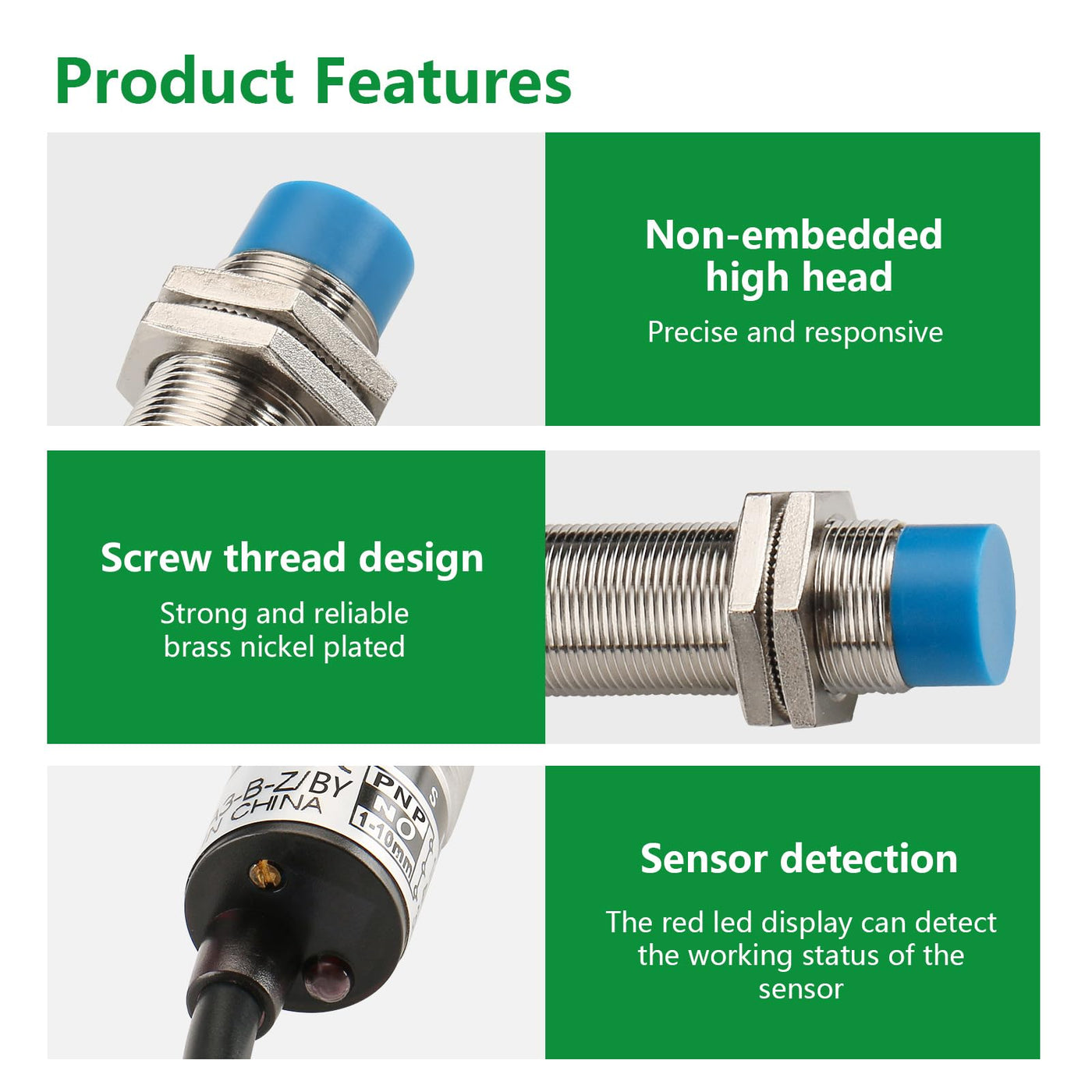

Product Features
- This proximity sensor has excellent performance, high sensitivity, good linearity, fast response, and can detect high-speed moving targets.
- This proximity sensor is not affected by external electromagnetic field interference when working, has strong anti-interference performance, and can detect all types of target materials.
- This proximity switch can choose NPN/PNP/NC/NO multiple output modes to meet different selection requirements
- This proximity switch adopts non-contact working mode, which will not scratch or damage the target surface due to contact, and has a long service life.
- This proximity sensor has a simple and compact mechanical structure, small size, and easy integration and installation.
