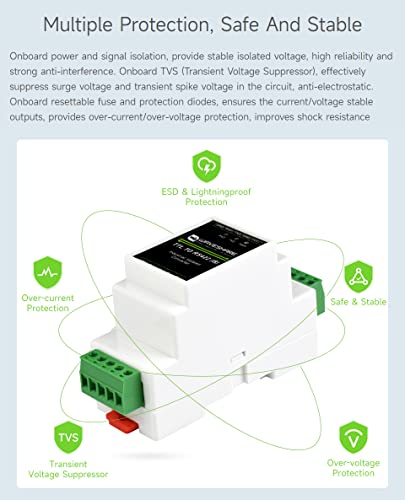

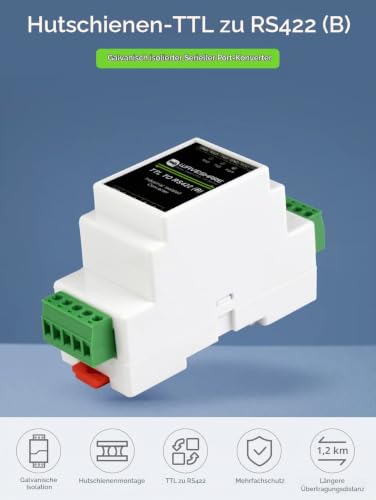

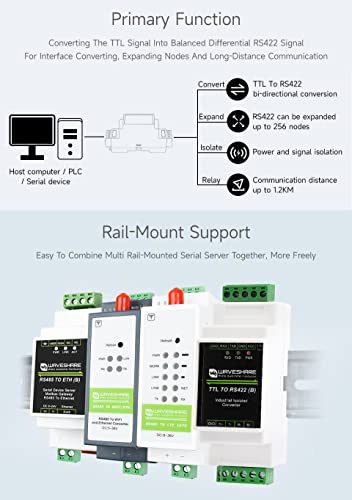

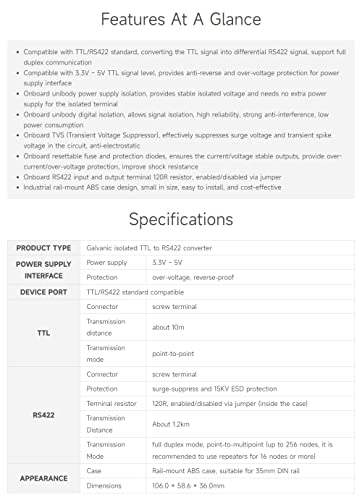

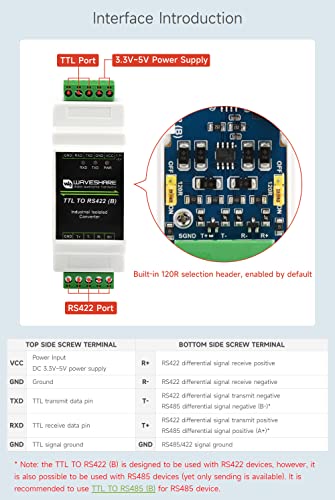

{"id":8115118932148,"title":"Waveshare Rail-Mount TTL to RS422 Galvanic Isolated Converter Anti-Surge Multiple Isolation Protection Longer Transmission Distance","handle":"waveshare-rail-mount-ttl-to-rs422-galvanic-isolated-converter-anti-surge-multiple-isolation-protection-longer-transmission-distance","description":"\u003ch3\u003eWaveshare Rail-Mount TTL to RS422 Galvanic Isolated Converter Anti-Surge Multiple Isolation Protection Longer Transmission Distance\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWaveshare\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCompatible with TTL\/RS422 standard, converting the TTL signal into differential RS422 signal, support full duplex communication.Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface.\u003c\/li\u003e\n \u003cli\u003eOnboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal.Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.\u003c\/li\u003e\n \u003cli\u003eOnboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, anti-electrostatic. Onboard resettable fuse and protection diodes, ensures the current\/voltage stable outputs, provide over-current\/over-voltage protection, improve shock resistance.\u003c\/li\u003e\n \u003cli\u003eOnboard RS422 input and output terminal 120R resistor, enabled\/disabled via jumper.Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective.\u003c\/li\u003e\n \u003cli\u003eRail-Mount Support,Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely. Point to point, full duplex communication, suitable for interface conversion.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T12:13:34+10:00","created_at":"2026-09-01T22:39:48+10:00","vendor":"Waveshare","type":"Digital to Analog Converters","tags":["industrial_DE_Aug2026"],"price":15600,"price_min":15600,"price_max":15600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374833758388,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0BPM8RH6Y","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Waveshare Rail-Mount TTL to RS422 Galvanic Isolated Converter Anti-Surge Multiple Isolation Protection Longer Transmission Distance","public_title":null,"options":["Default Title"],"price":15600,"weight":110,"compare_at_price":null,"inventory_management":"shopify","barcode":"TTL TO RS422 (B)","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0BPM8RH6Y.jpg?v=1788266390","\/\/auspowers.com\/cdn\/shop\/files\/31bxugTd2gL.jpg?v=1788266390","\/\/auspowers.com\/cdn\/shop\/files\/41DjNiUanML.jpg?v=1788266390","\/\/auspowers.com\/cdn\/shop\/files\/41crYRgLarL.jpg?v=1788266390","\/\/auspowers.com\/cdn\/shop\/files\/41fAYje6AUL.jpg?v=1788266390","\/\/auspowers.com\/cdn\/shop\/files\/41ygXtvpf0L.jpg?v=1788266390","\/\/auspowers.com\/cdn\/shop\/files\/41Dcoy9eXbL.jpg?v=1788266390"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0BPM8RH6Y.jpg?v=1788266390","options":["Title"],"media":[{"alt":null,"id":33272214552756,"position":1,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0BPM8RH6Y.jpg?v=1788266390"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0BPM8RH6Y.jpg?v=1788266390","width":500},{"alt":null,"id":33272214585524,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31bxugTd2gL.jpg?v=1788266390"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31bxugTd2gL.jpg?v=1788266390","width":500},{"alt":null,"id":33272214618292,"position":3,"preview_image":{"aspect_ratio":0.752,"height":500,"width":376,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41DjNiUanML.jpg?v=1788266390"},"aspect_ratio":0.752,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41DjNiUanML.jpg?v=1788266390","width":376},{"alt":null,"id":33272214651060,"position":4,"preview_image":{"aspect_ratio":0.724,"height":500,"width":362,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41crYRgLarL.jpg?v=1788266390"},"aspect_ratio":0.724,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41crYRgLarL.jpg?v=1788266390","width":362},{"alt":null,"id":33272214683828,"position":5,"preview_image":{"aspect_ratio":0.704,"height":500,"width":352,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41fAYje6AUL.jpg?v=1788266390"},"aspect_ratio":0.704,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41fAYje6AUL.jpg?v=1788266390","width":352},{"alt":null,"id":33272214716596,"position":6,"preview_image":{"aspect_ratio":0.81,"height":500,"width":405,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41ygXtvpf0L.jpg?v=1788266390"},"aspect_ratio":0.81,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41ygXtvpf0L.jpg?v=1788266390","width":405},{"alt":null,"id":33272214749364,"position":7,"preview_image":{"aspect_ratio":0.67,"height":500,"width":335,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41Dcoy9eXbL.jpg?v=1788266390"},"aspect_ratio":0.67,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41Dcoy9eXbL.jpg?v=1788266390","width":335}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eWaveshare Rail-Mount TTL to RS422 Galvanic Isolated Converter Anti-Surge Multiple Isolation Protection Longer Transmission Distance\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWaveshare\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCompatible with TTL\/RS422 standard, converting the TTL signal into differential RS422 signal, support full duplex communication.Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface.\u003c\/li\u003e\n \u003cli\u003eOnboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal.Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.\u003c\/li\u003e\n \u003cli\u003eOnboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, anti-electrostatic. Onboard resettable fuse and protection diodes, ensures the current\/voltage stable outputs, provide over-current\/over-voltage protection, improve shock resistance.\u003c\/li\u003e\n \u003cli\u003eOnboard RS422 input and output terminal 120R resistor, enabled\/disabled via jumper.Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective.\u003c\/li\u003e\n \u003cli\u003eRail-Mount Support,Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely. Point to point, full duplex communication, suitable for interface conversion.\u003c\/li\u003e\n \u003c\/ul\u003e"}
