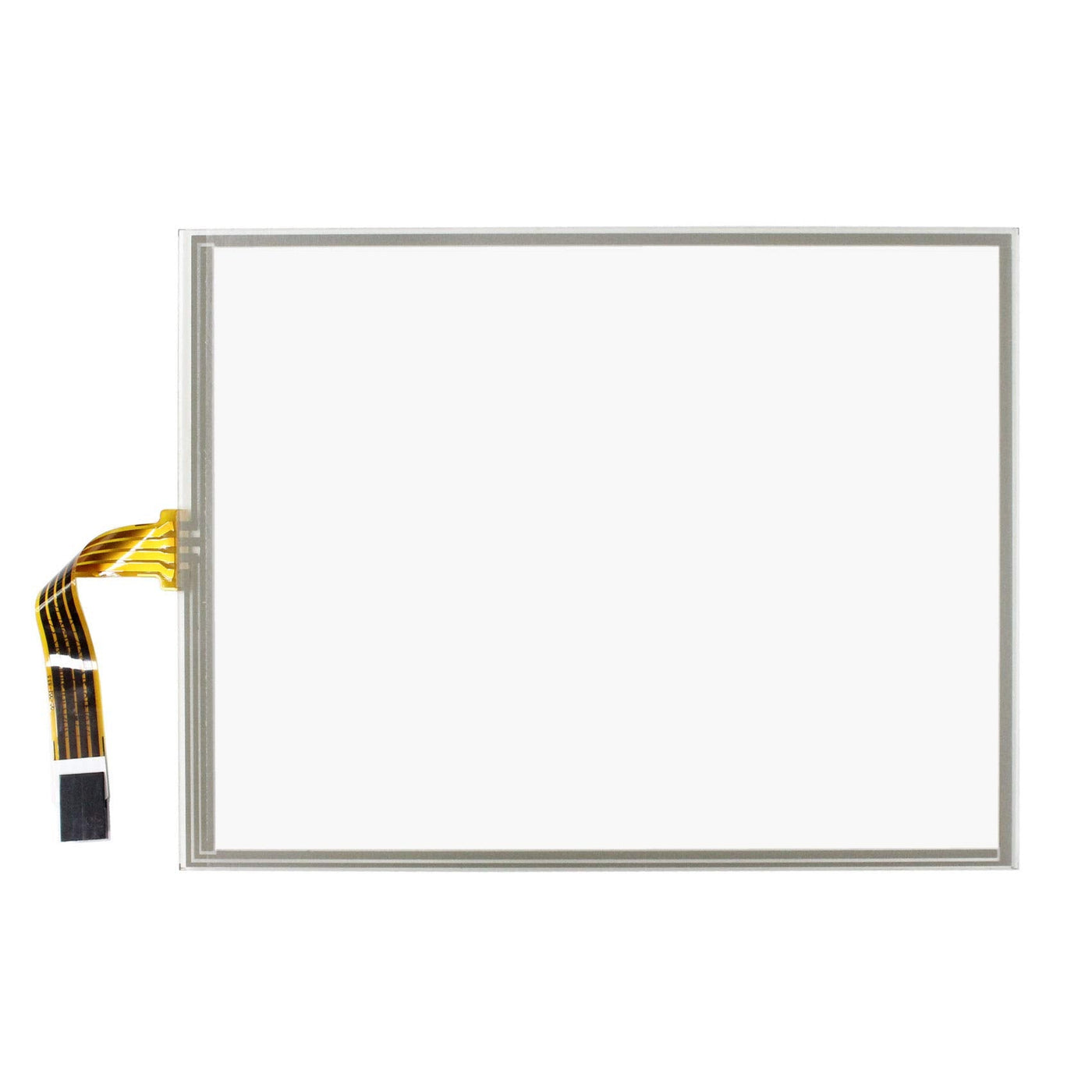

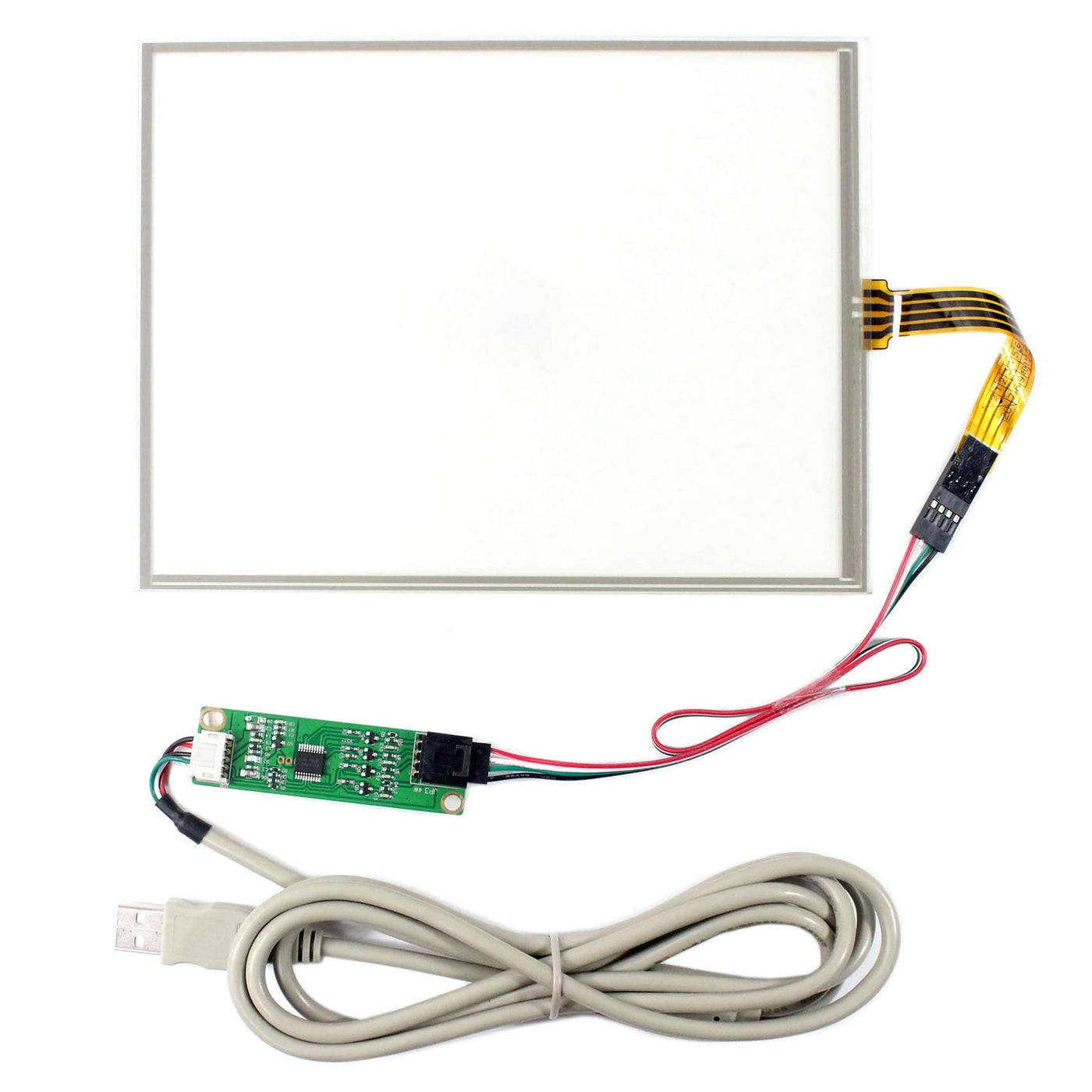

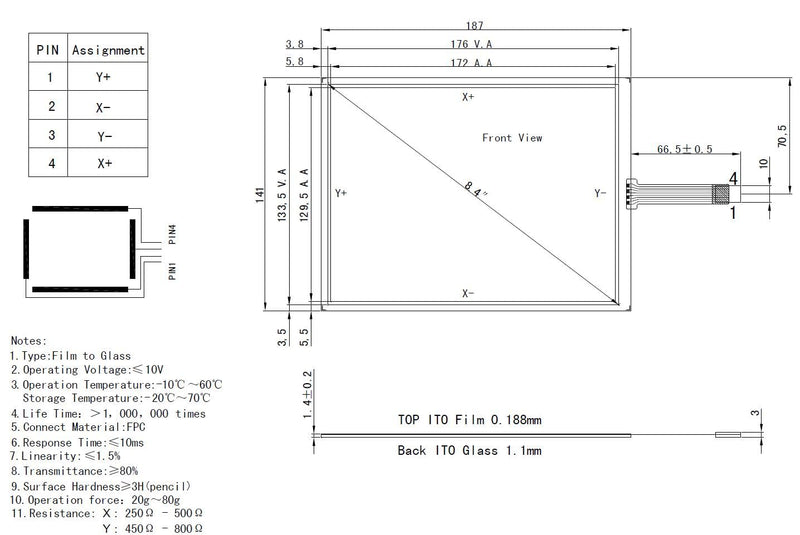

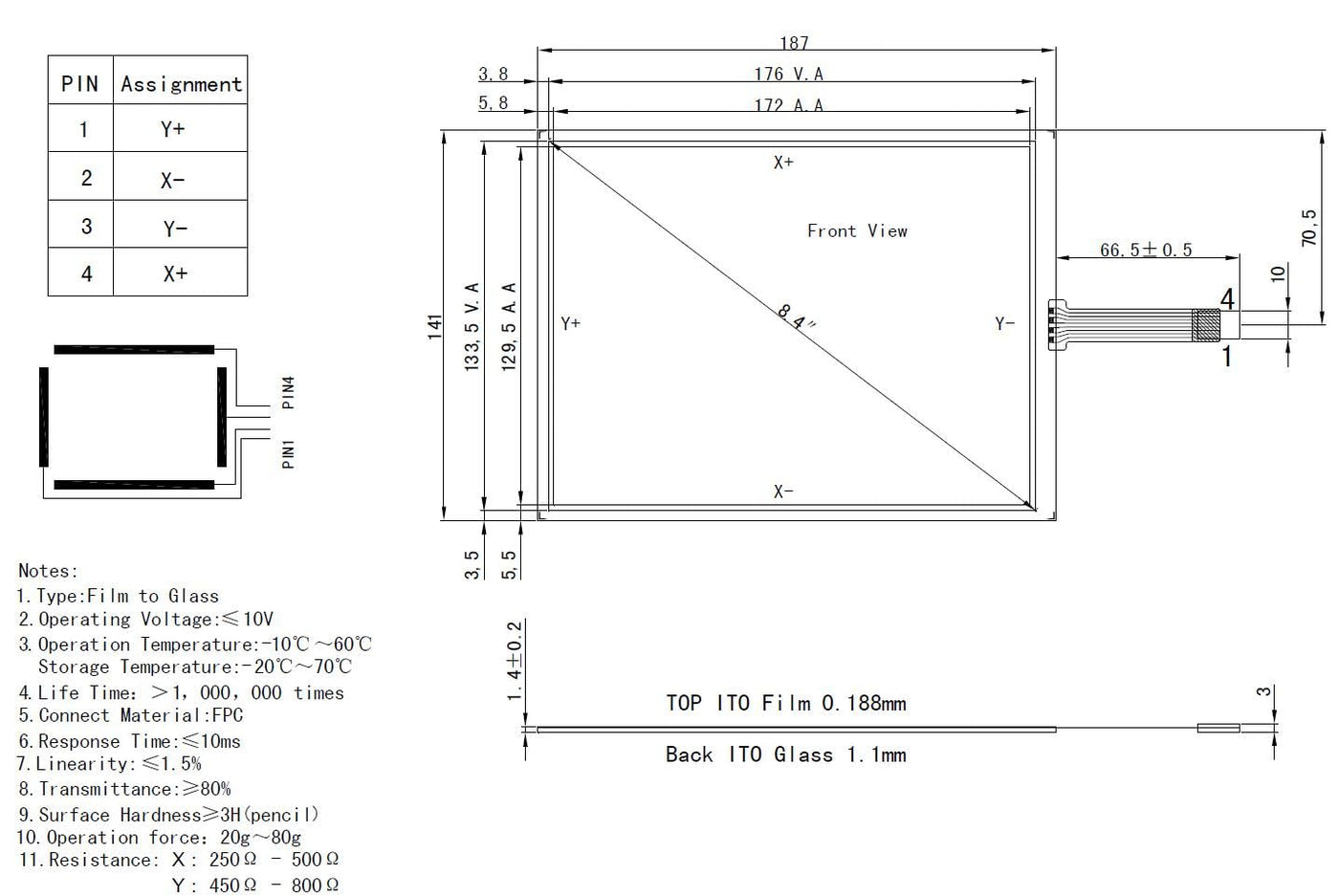

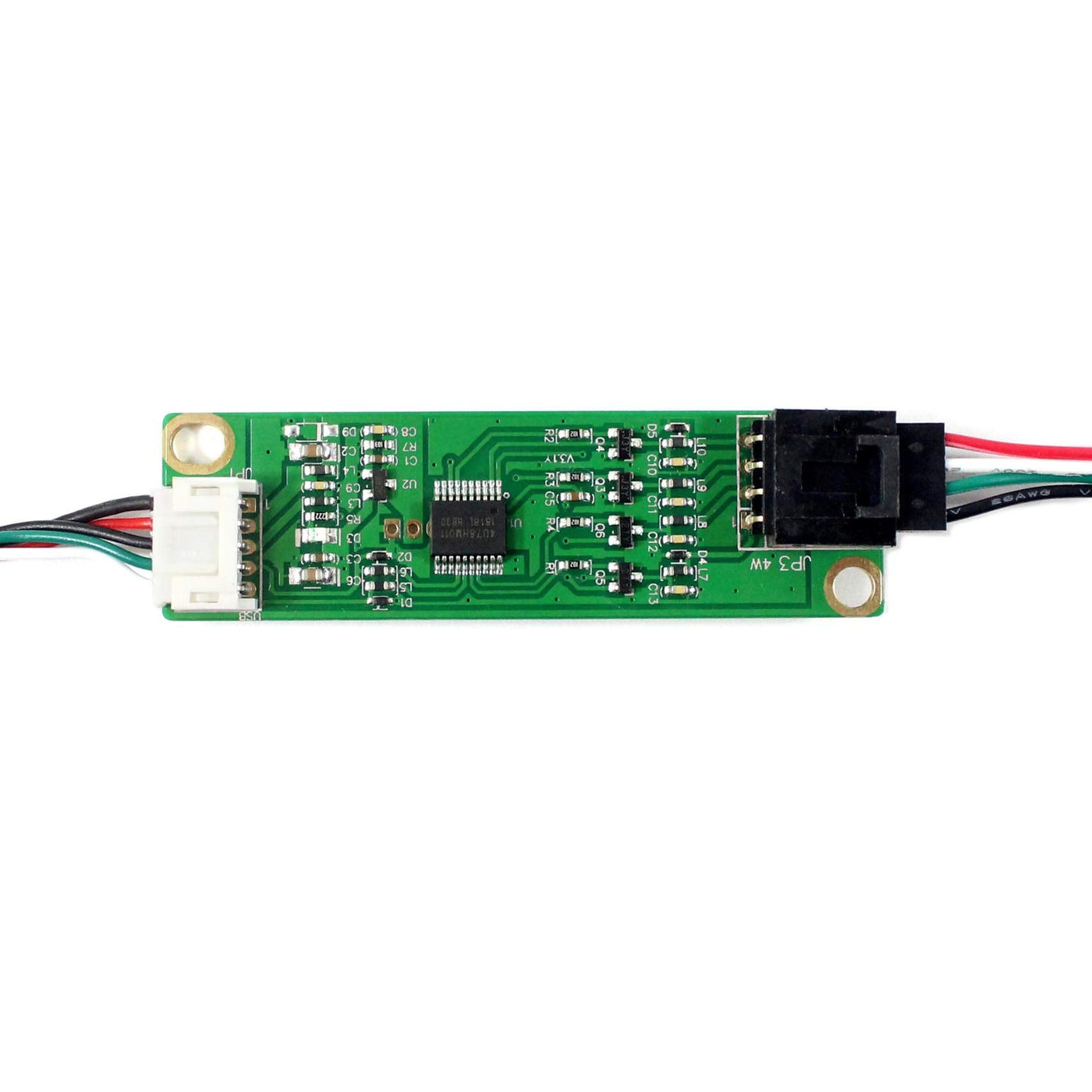

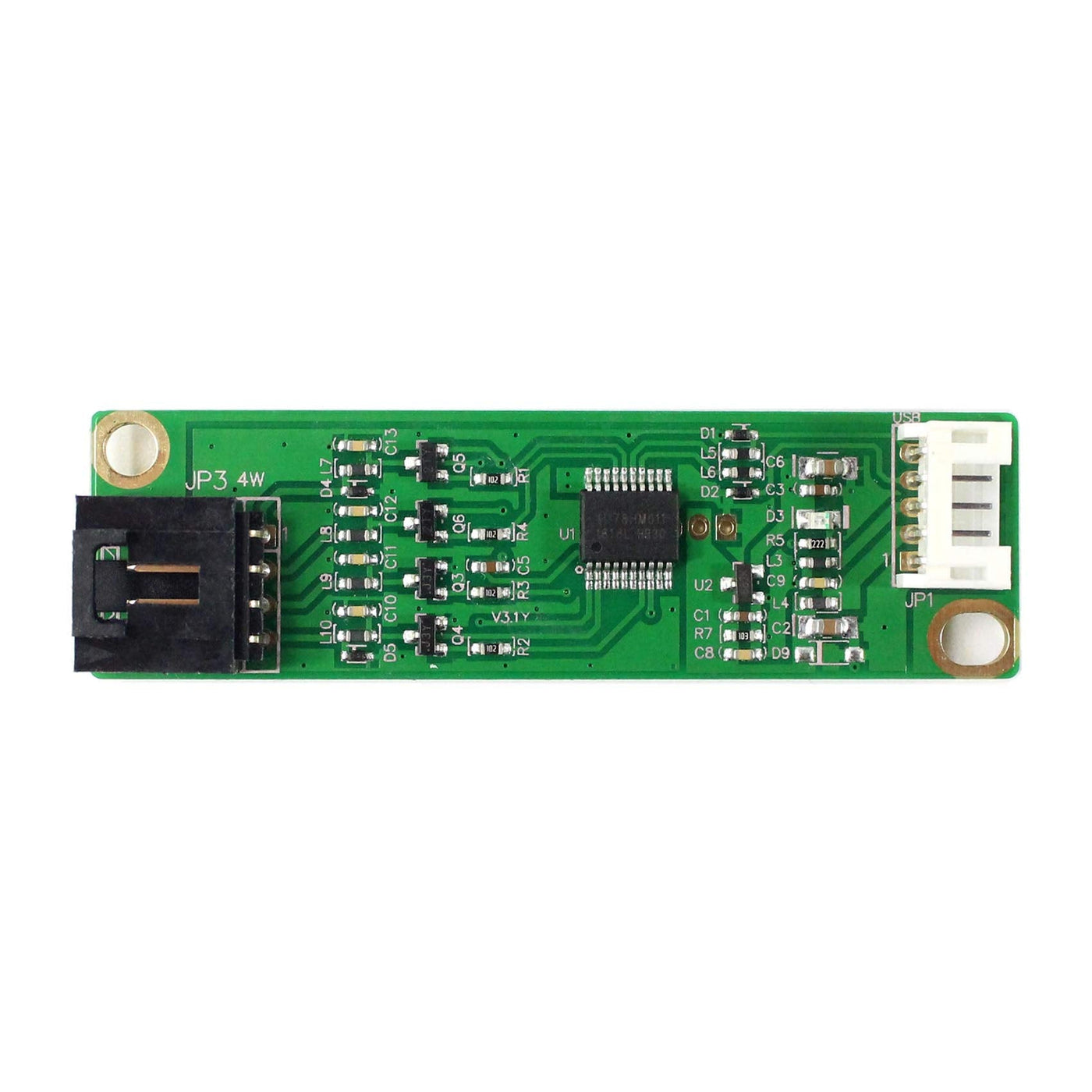

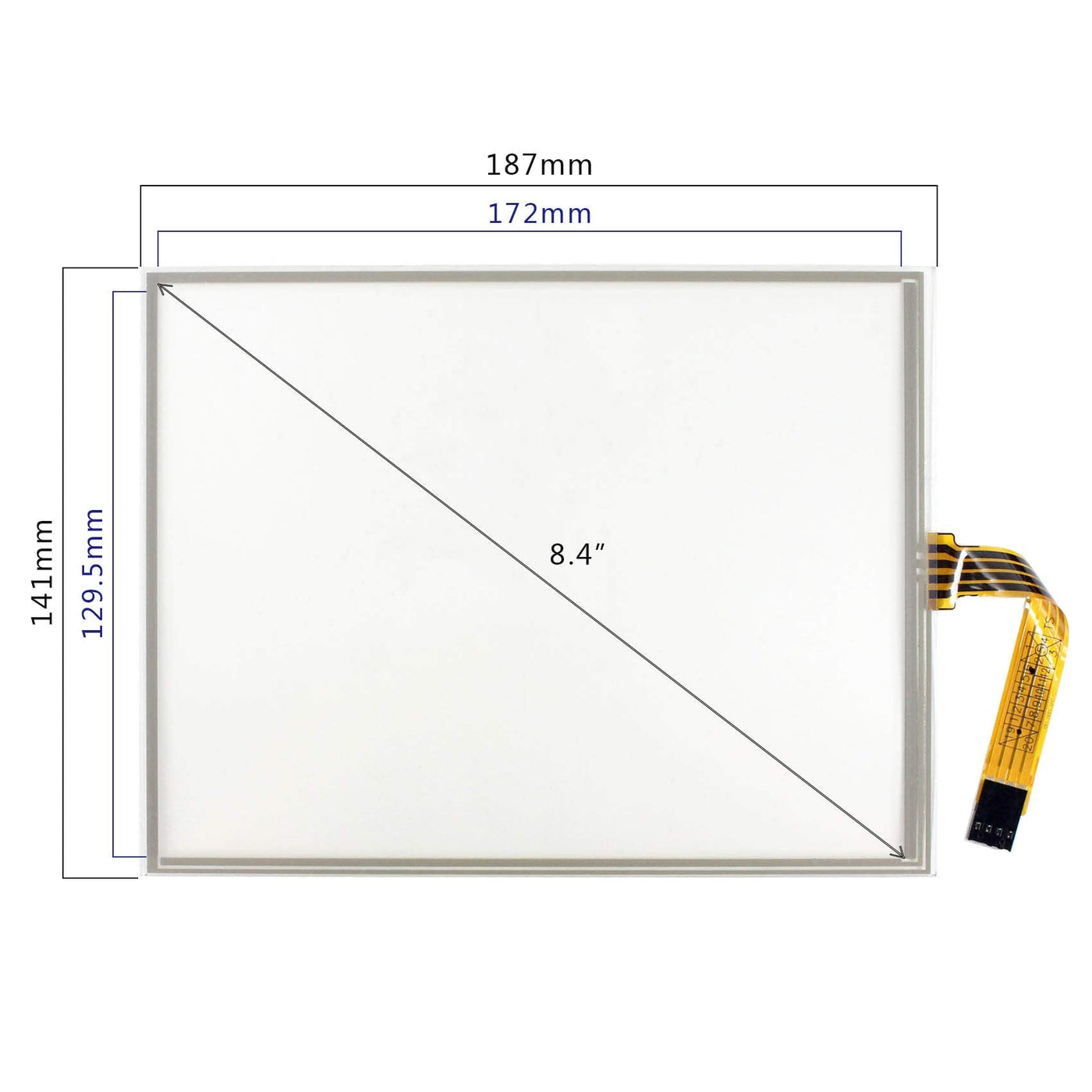

{"id":7860552925364,"title":"VSDISPLAY 8.4\" 4 Wire resistive Touch Screen with USB Controller for 8.4 inch 800x600 LCD Panel","handle":"vsdisplay-8-4-4-wire-resistive-touch-screen-with-usb-controller-for-8-4-inch-800x600-lcd-panel","description":"\u003ch3\u003eVSDISPLAY 8.4\" 4 Wire resistive Touch Screen with USB Controller for 8.4 inch 800x600 LCD Panel\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: USB Type Controller Dimension Size: 71mm x 20mm x 10mm Power\nRequirements D.C.+5V (100mA typical,50mV peak to peak maximum ripple and\nnoise) Operating Temperature 0 to 50°C Storage Temperature -40 to 80°C\nRelative Humidity 95% at 60°C Interface USB 1.1 \u0026amp; 2.0 Resolution 2048×2048\nresolution Report rate USB Model: Max. 160 points\/sec Response time Max. 20 ms\nAttached Cable 6' shielded cable with USB-A connector for USB port Regulatory\nApprovals FCC-B , CE, Unaffected by EMI from other nearly and other display\ndevices EMI Unaffected by environmental EMI Panel resistance 4 wire resistive\nmodel: 200 ~ 900 ohm MTBF 200,000 hrs PIN1: Y- PIN2: X- PIN3: Y+ PIN4: X+\nTouch Panel Dimension Size: 187mm x 141mm Display Area: 172mm x 129.5mm FPC\nconnector: 4pin 0.5mm pitch bottom contact. Packing list: 1× 8.4inch 4-Wire\nResistive Touch Screen VS084TP-A1 1× 4-Wire USB Controller Card 1× USB Cable\n1× Converter Cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCompatible work For 8.4inch 800x600 LCD Panel\u003c\/li\u003e\n \u003cli\u003eUSB Type Controller ,Power Requirements D.C.+5V\u003c\/li\u003e\n \u003cli\u003eDimension Size: 187mm x 141mm Display Area: 172mm x 129.5mm\u003c\/li\u003e\n \u003cli\u003ePacking list: 1 8.4inch 4-Wire Resistive Touch Screen VS084TP-A1 1 4-Wire USB Controller Card 1 USB Cable 1 Converter Cable\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-10-11T10:36:57+11:00","created_at":"2024-10-11T05:25:02+11:00","vendor":"VSDISPLAY","type":"LCD Touch Panels","tags":["industrial_Aug2024_update"],"price":23400,"price_min":23400,"price_max":23400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43644046082228,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07TZGVY8K","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"VSDISPLAY 8.4\" 4 Wire resistive Touch Screen with USB Controller for 8.4 inch 800x600 LCD Panel","public_title":null,"options":["Default Title"],"price":23400,"weight":331,"compare_at_price":null,"inventory_management":"shopify","barcode":"601285647647","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07TZGVY8K.jpg?v=1728630926","\/\/auspowers.com\/cdn\/shop\/files\/61QEm_-PckL.jpg?v=1728584704","\/\/auspowers.com\/cdn\/shop\/files\/61R-d-tp_lL.jpg?v=1728584705","\/\/auspowers.com\/cdn\/shop\/files\/71aQjEj5SrL.jpg?v=1728584705","\/\/auspowers.com\/cdn\/shop\/files\/61GJSWc8FbL.jpg?v=1728584705","\/\/auspowers.com\/cdn\/shop\/files\/61X5x8dPmbL.jpg?v=1728584704"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07TZGVY8K.jpg?v=1728630926","options":["Title"],"media":[{"alt":"[Australia - AusPower] - VSDISPLAY 8.4\" 4 Wire resistive Touch Screen with USB Controller for 8.4 inch 800x600 LCD Panel ","id":30846695866548,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1700,"width":1700,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07TZGVY8K.jpg?v=1728630926"},"aspect_ratio":1.0,"height":1700,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07TZGVY8K.jpg?v=1728630926","width":1700},{"alt":"[Australia - AusPower] - VSDISPLAY 8.4\" 4 Wire resistive Touch Screen with USB Controller for 8.4 inch 800x600 LCD Panel ","id":30844358230196,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1700,"width":1700,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61QEm_-PckL.jpg?v=1728584704"},"aspect_ratio":1.0,"height":1700,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61QEm_-PckL.jpg?v=1728584704","width":1700},{"alt":"[Australia - AusPower] - VSDISPLAY 8.4\" 4 Wire resistive Touch Screen with USB Controller for 8.4 inch 800x600 LCD Panel ","id":30844358262964,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1700,"width":1700,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61R-d-tp_lL.jpg?v=1728584705"},"aspect_ratio":1.0,"height":1700,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61R-d-tp_lL.jpg?v=1728584705","width":1700},{"alt":"[Australia - AusPower] - VSDISPLAY 8.4\" 4 Wire resistive Touch Screen with USB Controller for 8.4 inch 800x600 LCD Panel ","id":30844358295732,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1700,"width":1700,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71aQjEj5SrL.jpg?v=1728584705"},"aspect_ratio":1.0,"height":1700,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71aQjEj5SrL.jpg?v=1728584705","width":1700},{"alt":"[Australia - AusPower] - VSDISPLAY 8.4\" 4 Wire resistive Touch Screen with USB Controller for 8.4 inch 800x600 LCD Panel ","id":30844358328500,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1700,"width":1700,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61GJSWc8FbL.jpg?v=1728584705"},"aspect_ratio":1.0,"height":1700,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61GJSWc8FbL.jpg?v=1728584705","width":1700},{"alt":"[Australia - AusPower] - VSDISPLAY 8.4\" 4 Wire resistive Touch Screen with USB Controller for 8.4 inch 800x600 LCD Panel ","id":30844358361268,"position":6,"preview_image":{"aspect_ratio":1.494,"height":961,"width":1436,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61X5x8dPmbL.jpg?v=1728584704"},"aspect_ratio":1.494,"height":961,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61X5x8dPmbL.jpg?v=1728584704","width":1436}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eVSDISPLAY 8.4\" 4 Wire resistive Touch Screen with USB Controller for 8.4 inch 800x600 LCD Panel\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: USB Type Controller Dimension Size: 71mm x 20mm x 10mm Power\nRequirements D.C.+5V (100mA typical,50mV peak to peak maximum ripple and\nnoise) Operating Temperature 0 to 50°C Storage Temperature -40 to 80°C\nRelative Humidity 95% at 60°C Interface USB 1.1 \u0026amp; 2.0 Resolution 2048×2048\nresolution Report rate USB Model: Max. 160 points\/sec Response time Max. 20 ms\nAttached Cable 6' shielded cable with USB-A connector for USB port Regulatory\nApprovals FCC-B , CE, Unaffected by EMI from other nearly and other display\ndevices EMI Unaffected by environmental EMI Panel resistance 4 wire resistive\nmodel: 200 ~ 900 ohm MTBF 200,000 hrs PIN1: Y- PIN2: X- PIN3: Y+ PIN4: X+\nTouch Panel Dimension Size: 187mm x 141mm Display Area: 172mm x 129.5mm FPC\nconnector: 4pin 0.5mm pitch bottom contact. Packing list: 1× 8.4inch 4-Wire\nResistive Touch Screen VS084TP-A1 1× 4-Wire USB Controller Card 1× USB Cable\n1× Converter Cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCompatible work For 8.4inch 800x600 LCD Panel\u003c\/li\u003e\n \u003cli\u003eUSB Type Controller ,Power Requirements D.C.+5V\u003c\/li\u003e\n \u003cli\u003eDimension Size: 187mm x 141mm Display Area: 172mm x 129.5mm\u003c\/li\u003e\n \u003cli\u003ePacking list: 1 8.4inch 4-Wire Resistive Touch Screen VS084TP-A1 1 4-Wire USB Controller Card 1 USB Cable 1 Converter Cable\u003c\/li\u003e\n \u003c\/ul\u003e"}
