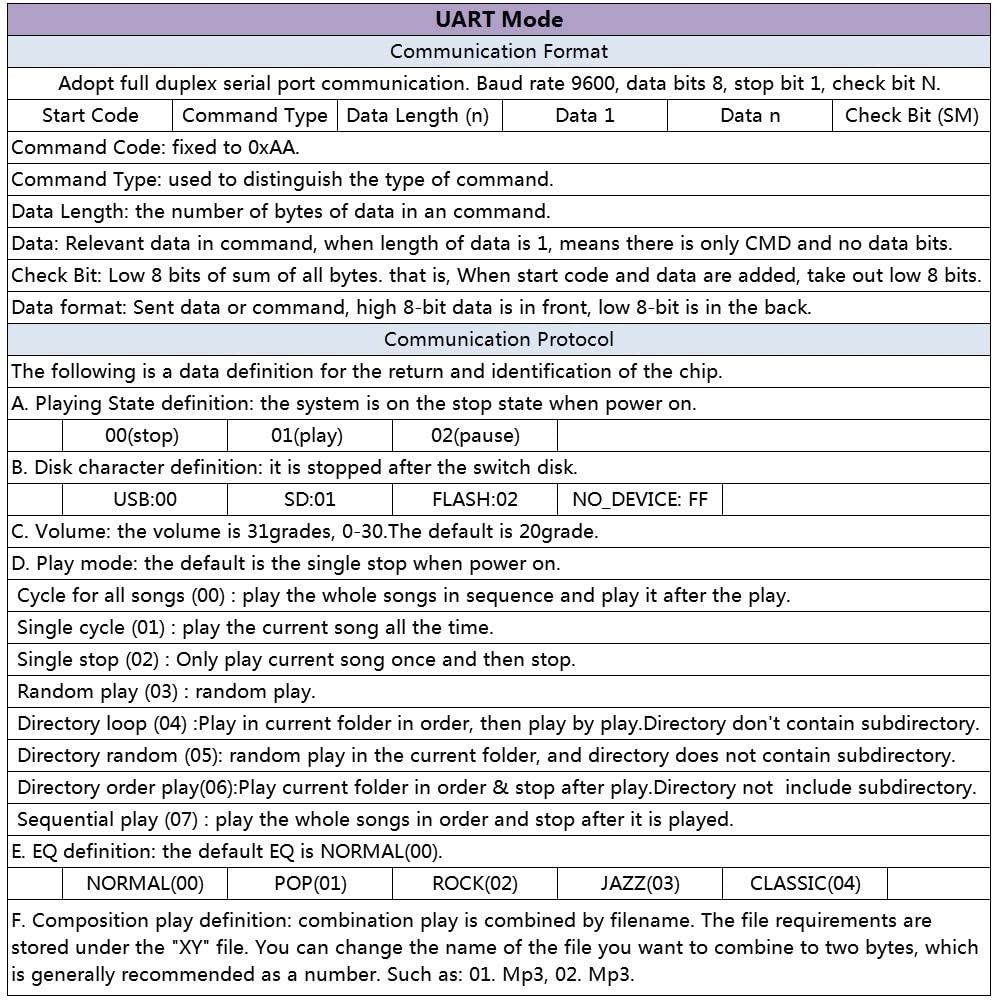

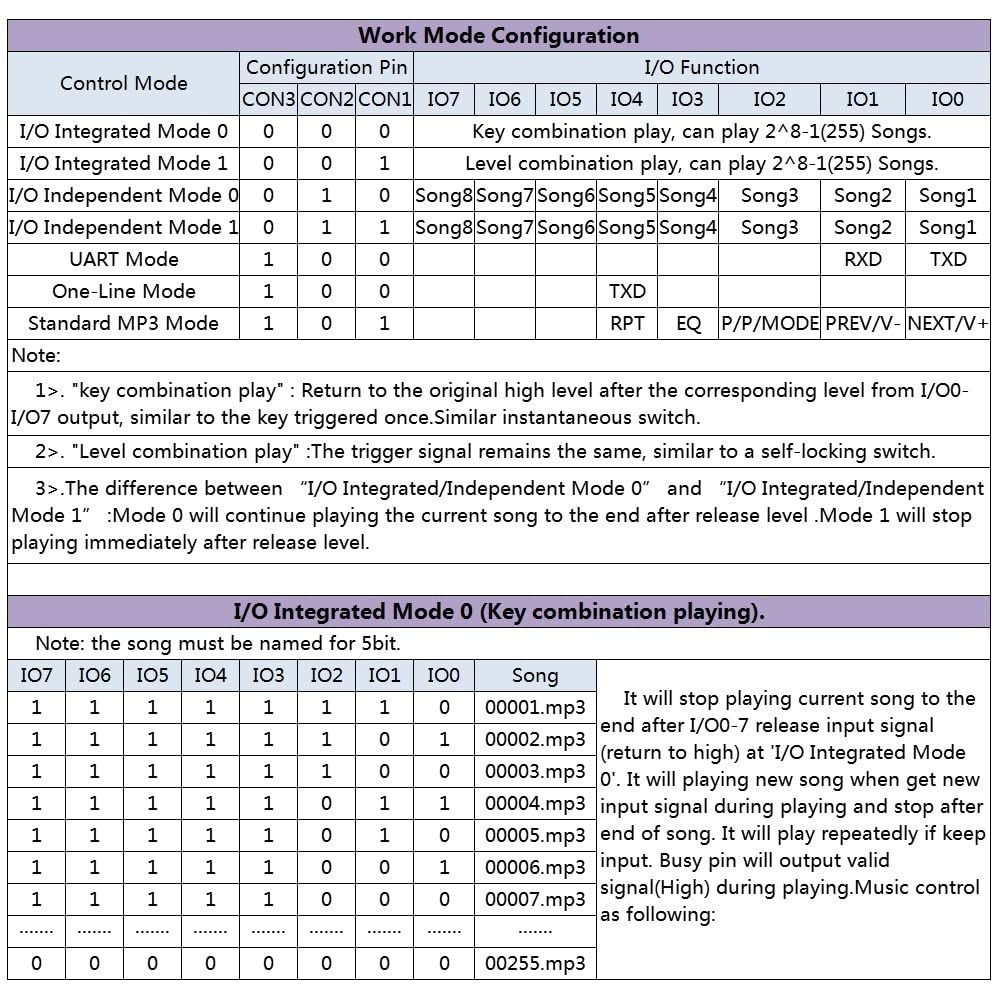

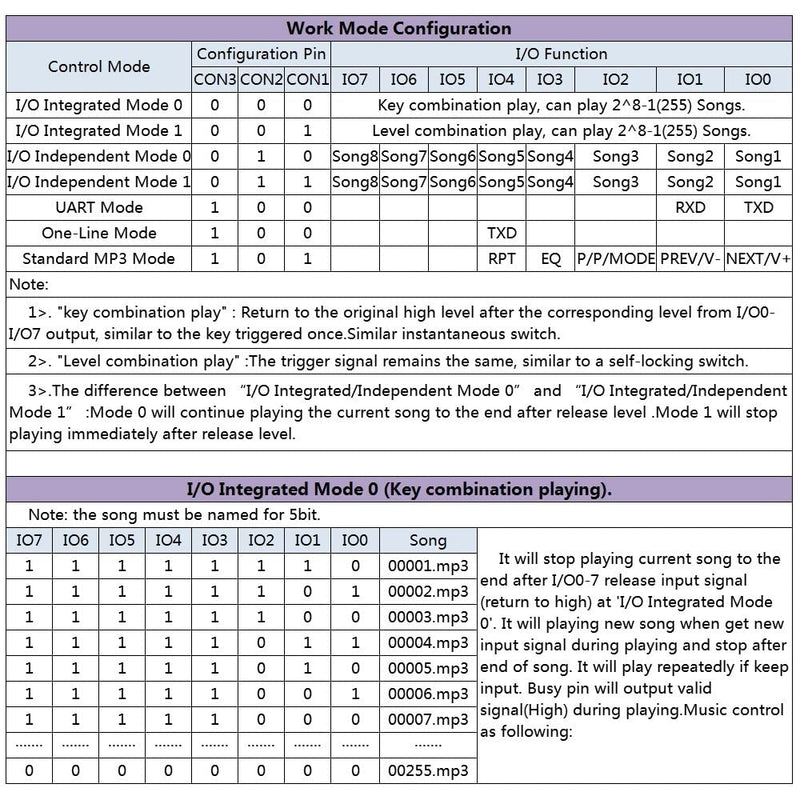

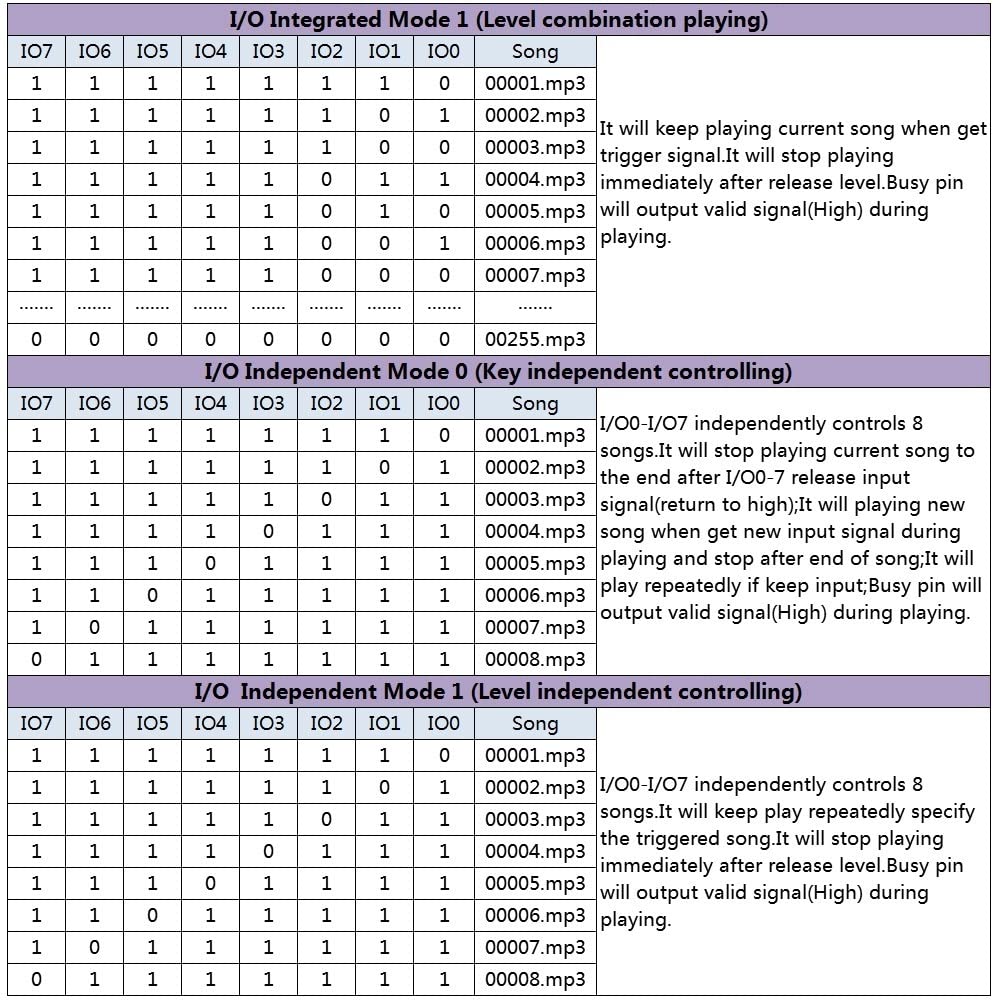

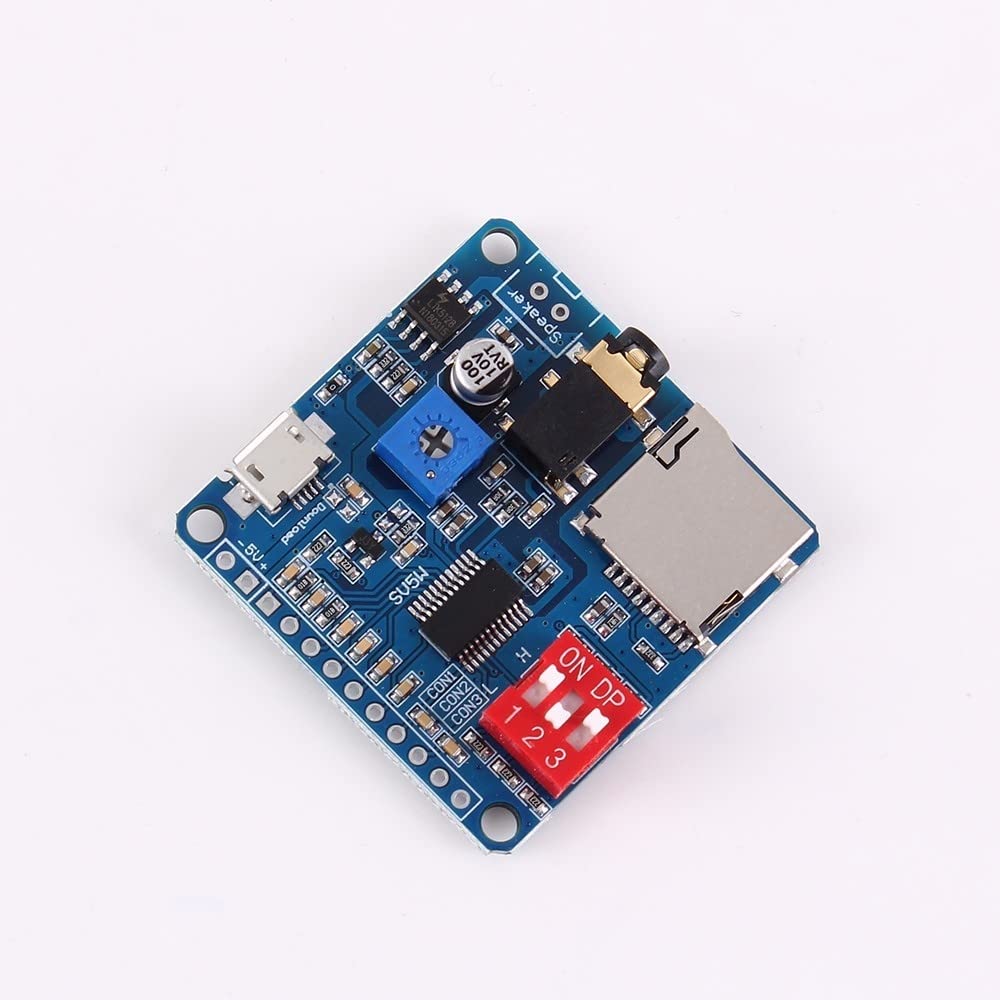

{"id":7991797448884,"title":"Voice Playback Module DY-SV5W MP3 Player IO Trigger Playback MP3 Trigger Amplifier Class D 5W with Serial Control","handle":"voice-playback-module-dy-sv5w-mp3-player-io-trigger-playback-mp3-trigger-amplifier-class-d-5w-with-serial-control","description":"\u003ch3\u003eVoice Playback Module DY-SV5W MP3 Player IO Trigger Playback MP3 Trigger Amplifier Class D 5W with Serial Control\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Supports MP3 and WAV decoding format. 2. Supported sampling\nfrequency (KHz): 8\/11.025\/12\/16\/22.05\/24\/32\/44.1\/48 3\u0026gt;.24-bit DAC output,\nsupport dynamic range 90dB, SNR support 85dB. 4. Support FAT16\/FAT32 file\nsystem with maximum 32Gbit (4MByte) TF card and 32Gbit (4MByte) U disk. 5.\nSupports the voice transmission function of the UART serial interface. It can\ncontrol playback, pause, selection, volume and other functions, the largest\nselection of 65535 songs. The baud rate is 9600 bit\/s. 6. Support I\/O trigger\nfunction, 8-bit I\/O ports can trigger 8 pieces of music or 8 I\/O combinations\nto trigger 255 songs. 7\u0026gt;.Support One_line single bus serial port control,\nwhich can control playback, pause, selection, volume increase and decrease and\nother functions. 8\u0026gt;.Supports 3 configuration I\/O for mode selection to create\n7 working modes. 9. Built-in 5W class D amplifier circuit and can directly\ndrive 4-ohm 3-5W speakers. Parameters: 1. Product Name: DY-SV5W Voice Playback\nModule 2. Product number: DY-SV5W. 3. Working Voltage: DC 5V 4. Working\ntemperature range: -20 ℃ ~ 85 ℃. Working humidity range: 0% - 95% RH. 6. Size:\n40 x 40 x 9 mm. Package list: 1 x DY-SV5W voice playback module.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDY-SV5W is an intelligent voice module. It integrates I\/O subsection triggering, UART serial port control, ONE_line single bus serial port control. Built-in 5W Class D amplifier circuit and can directly drive 4 ohm speakers from 3 to 5 W. Supports MP3 and WAV decoding format.\u003c\/li\u003e\n \u003cli\u003eMax. Support 32Gbit (4MByte) TF card storage, can connect the computer to update the TF card to save audio files via USB cable. 3.5mm audio interface, U disk interface, micro USB download interface, button module in one module\u003c\/li\u003e\n \u003cli\u003eSupports MP3 and WAV decoding format. Supported sampling frequency (KHz): 8\/11.025\/12\/16\/22.05\/24\/32\/44.1\/48\u003c\/li\u003e\n \u003cli\u003e24-bit DAC output, dynamic range support 90dB, SNR support 85dB Supports the FAT16\/FAT32 file system with the maximum\u003c\/li\u003e\n \u003cli\u003eSHOP WITH CONFIDENCE: To provide you with the highest quality service, please feel free to contact us if you have any questions. We provide after-sales service until you are satisfied.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T01:28:37+10:00","created_at":"2025-09-24T01:28:34+10:00","vendor":"DONGKER","type":"IO Modules","tags":["industryDE_Sep2025"],"price":14500,"price_min":14500,"price_max":14500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44048609181876,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09STSQ21W","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Voice Playback Module DY-SV5W MP3 Player IO Trigger Playback MP3 Trigger Amplifier Class D 5W with Serial Control","public_title":null,"options":["Default Title"],"price":14500,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"774590154398","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B09STSQ21W.jpg?v=1775769085","\/\/auspowers.com\/cdn\/shop\/files\/61fWJp-7D0L.jpg?v=1758641317","\/\/auspowers.com\/cdn\/shop\/files\/51V1zsCRqHL.jpg?v=1758641317","\/\/auspowers.com\/cdn\/shop\/files\/61HLBQ1iLRL.jpg?v=1758641317","\/\/auspowers.com\/cdn\/shop\/files\/613Ma15J_aL.jpg?v=1758641317","\/\/auspowers.com\/cdn\/shop\/files\/710sKH47QsL.jpg?v=1758641317","\/\/auspowers.com\/cdn\/shop\/files\/71qpeybmKKL.jpg?v=1758641317","\/\/auspowers.com\/cdn\/shop\/files\/71SFKEn1mkL.jpg?v=1758641317"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B09STSQ21W.jpg?v=1775769085","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Voice Playback Module DY-SV5W MP3 Player IO Trigger Playback MP3 Trigger Amplifier Class D 5W with Serial Control ","id":32189289234612,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B09STSQ21W.jpg?v=1775769085"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B09STSQ21W.jpg?v=1775769085","width":1000},{"alt":"[Australia - AusPower] - Voice Playback Module DY-SV5W MP3 Player IO Trigger Playback MP3 Trigger Amplifier Class D 5W with Serial Control ","id":32189289267380,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61fWJp-7D0L.jpg?v=1758641317"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61fWJp-7D0L.jpg?v=1758641317","width":1000},{"alt":"[Australia - AusPower] - Voice Playback Module DY-SV5W MP3 Player IO Trigger Playback MP3 Trigger Amplifier Class D 5W with Serial Control ","id":32189289300148,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51V1zsCRqHL.jpg?v=1758641317"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51V1zsCRqHL.jpg?v=1758641317","width":1000},{"alt":"[Australia - AusPower] - Voice Playback Module DY-SV5W MP3 Player IO Trigger Playback MP3 Trigger Amplifier Class D 5W with Serial Control ","id":32189289332916,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61HLBQ1iLRL.jpg?v=1758641317"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61HLBQ1iLRL.jpg?v=1758641317","width":1000},{"alt":"[Australia - AusPower] - Voice Playback Module DY-SV5W MP3 Player IO Trigger Playback MP3 Trigger Amplifier Class D 5W with Serial Control ","id":32189289365684,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/613Ma15J_aL.jpg?v=1758641317"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/613Ma15J_aL.jpg?v=1758641317","width":1000},{"alt":"[Australia - AusPower] - Voice Playback Module DY-SV5W MP3 Player IO Trigger Playback MP3 Trigger Amplifier Class D 5W with Serial Control ","id":32189289398452,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/710sKH47QsL.jpg?v=1758641317"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/710sKH47QsL.jpg?v=1758641317","width":1000},{"alt":"[Australia - AusPower] - Voice Playback Module DY-SV5W MP3 Player IO Trigger Playback MP3 Trigger Amplifier Class D 5W with Serial Control ","id":32189289431220,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71qpeybmKKL.jpg?v=1758641317"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71qpeybmKKL.jpg?v=1758641317","width":1000},{"alt":"[Australia - AusPower] - Voice Playback Module DY-SV5W MP3 Player IO Trigger Playback MP3 Trigger Amplifier Class D 5W with Serial Control ","id":32189289463988,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71SFKEn1mkL.jpg?v=1758641317"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71SFKEn1mkL.jpg?v=1758641317","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eVoice Playback Module DY-SV5W MP3 Player IO Trigger Playback MP3 Trigger Amplifier Class D 5W with Serial Control\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Supports MP3 and WAV decoding format. 2. Supported sampling\nfrequency (KHz): 8\/11.025\/12\/16\/22.05\/24\/32\/44.1\/48 3\u0026gt;.24-bit DAC output,\nsupport dynamic range 90dB, SNR support 85dB. 4. Support FAT16\/FAT32 file\nsystem with maximum 32Gbit (4MByte) TF card and 32Gbit (4MByte) U disk. 5.\nSupports the voice transmission function of the UART serial interface. It can\ncontrol playback, pause, selection, volume and other functions, the largest\nselection of 65535 songs. The baud rate is 9600 bit\/s. 6. Support I\/O trigger\nfunction, 8-bit I\/O ports can trigger 8 pieces of music or 8 I\/O combinations\nto trigger 255 songs. 7\u0026gt;.Support One_line single bus serial port control,\nwhich can control playback, pause, selection, volume increase and decrease and\nother functions. 8\u0026gt;.Supports 3 configuration I\/O for mode selection to create\n7 working modes. 9. Built-in 5W class D amplifier circuit and can directly\ndrive 4-ohm 3-5W speakers. Parameters: 1. Product Name: DY-SV5W Voice Playback\nModule 2. Product number: DY-SV5W. 3. Working Voltage: DC 5V 4. Working\ntemperature range: -20 ℃ ~ 85 ℃. Working humidity range: 0% - 95% RH. 6. Size:\n40 x 40 x 9 mm. Package list: 1 x DY-SV5W voice playback module.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDY-SV5W is an intelligent voice module. It integrates I\/O subsection triggering, UART serial port control, ONE_line single bus serial port control. Built-in 5W Class D amplifier circuit and can directly drive 4 ohm speakers from 3 to 5 W. Supports MP3 and WAV decoding format.\u003c\/li\u003e\n \u003cli\u003eMax. Support 32Gbit (4MByte) TF card storage, can connect the computer to update the TF card to save audio files via USB cable. 3.5mm audio interface, U disk interface, micro USB download interface, button module in one module\u003c\/li\u003e\n \u003cli\u003eSupports MP3 and WAV decoding format. Supported sampling frequency (KHz): 8\/11.025\/12\/16\/22.05\/24\/32\/44.1\/48\u003c\/li\u003e\n \u003cli\u003e24-bit DAC output, dynamic range support 90dB, SNR support 85dB Supports the FAT16\/FAT32 file system with the maximum\u003c\/li\u003e\n \u003cli\u003eSHOP WITH CONFIDENCE: To provide you with the highest quality service, please feel free to contact us if you have any questions. We provide after-sales service until you are satisfied.\u003c\/li\u003e\n \u003c\/ul\u003e"}
