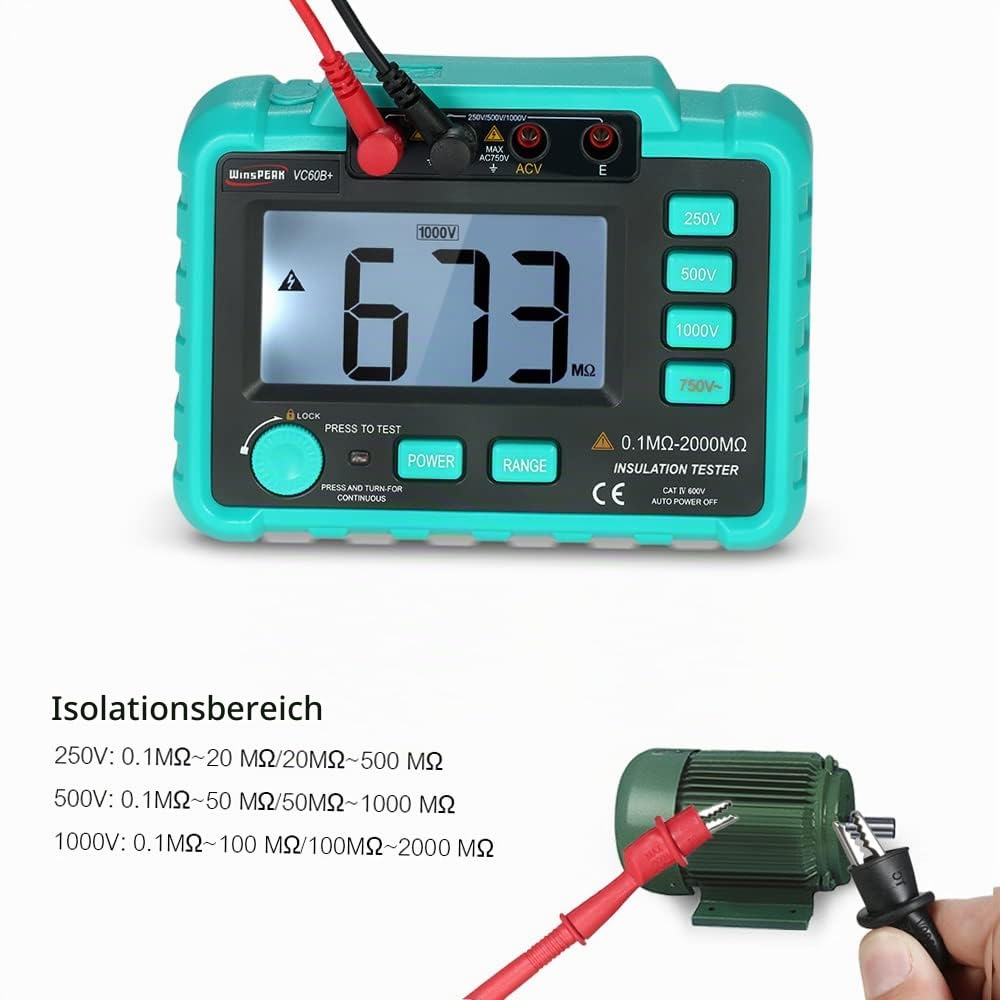

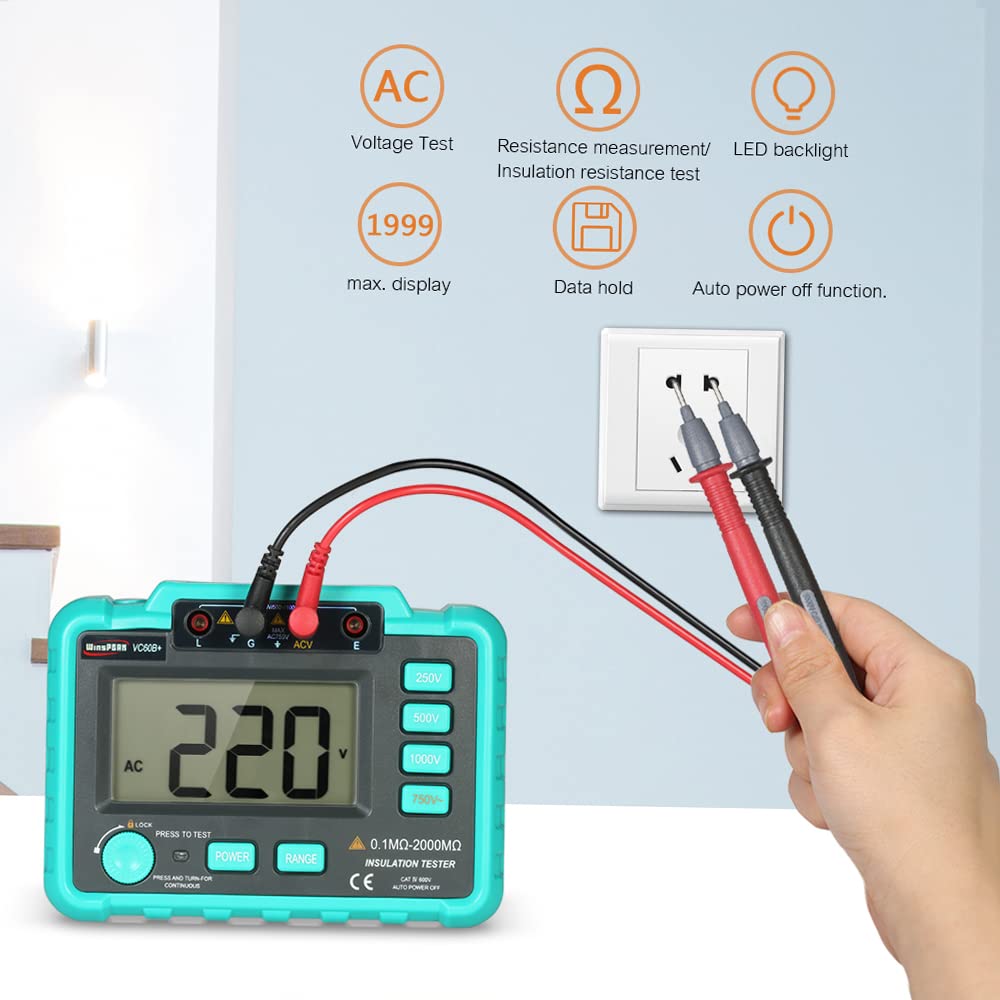

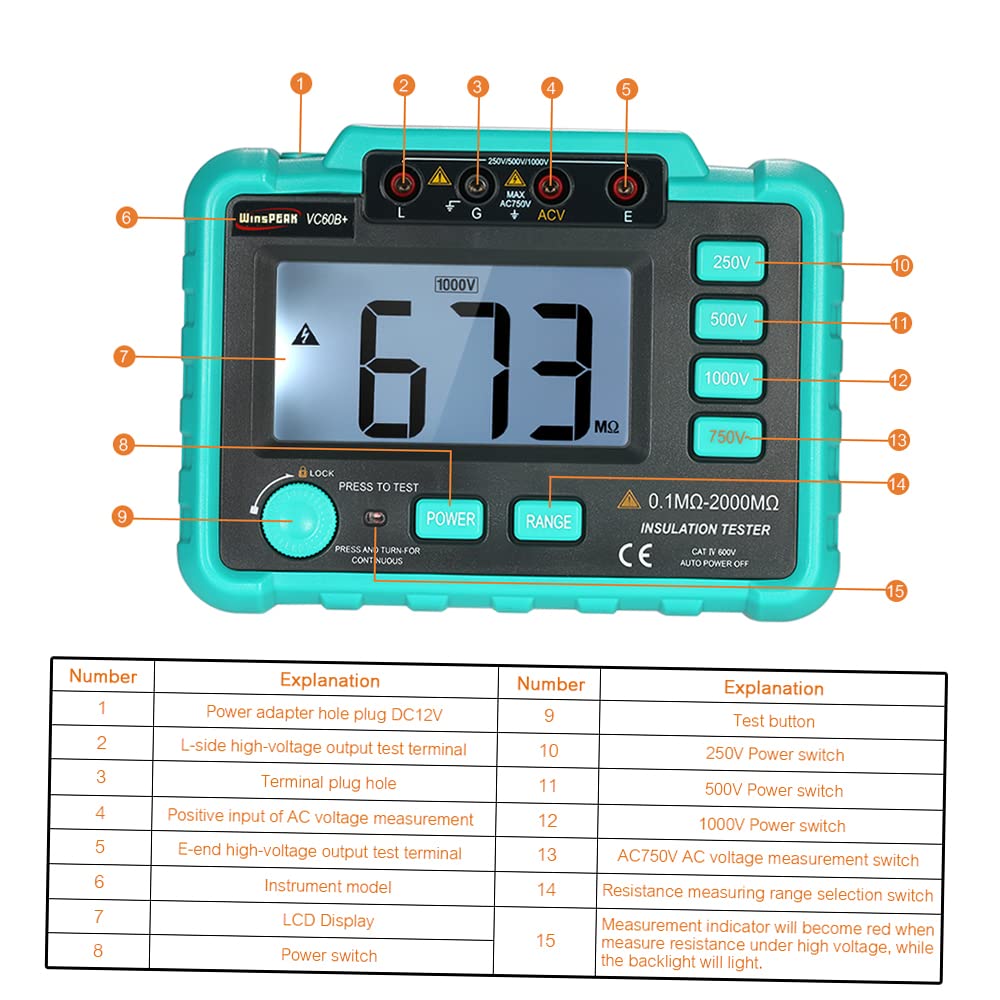

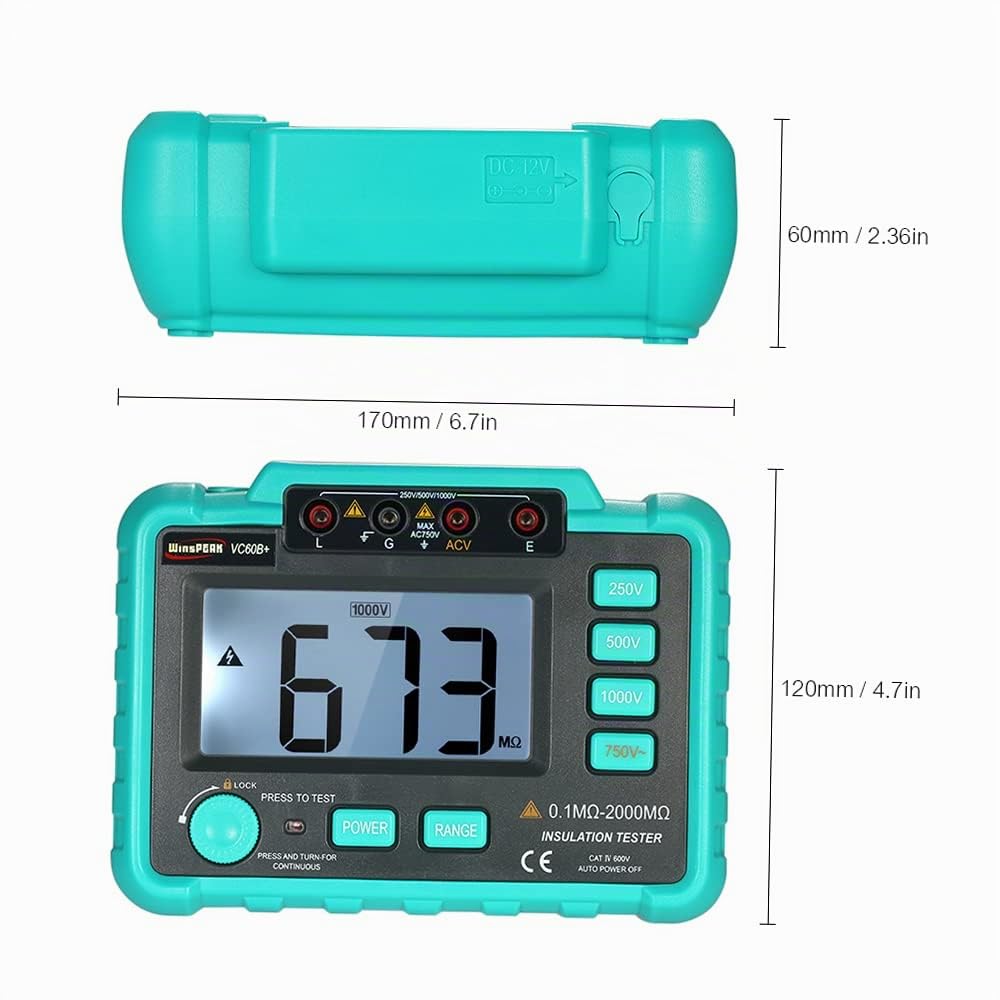

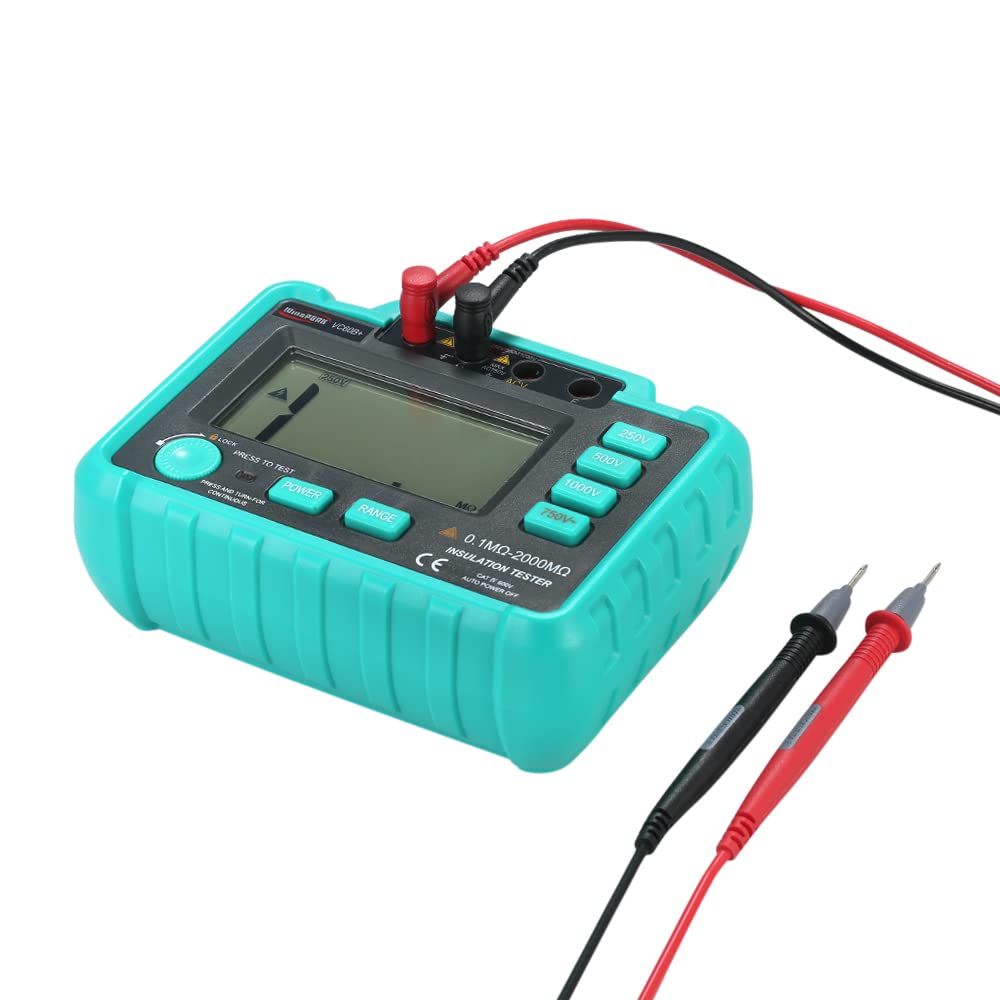

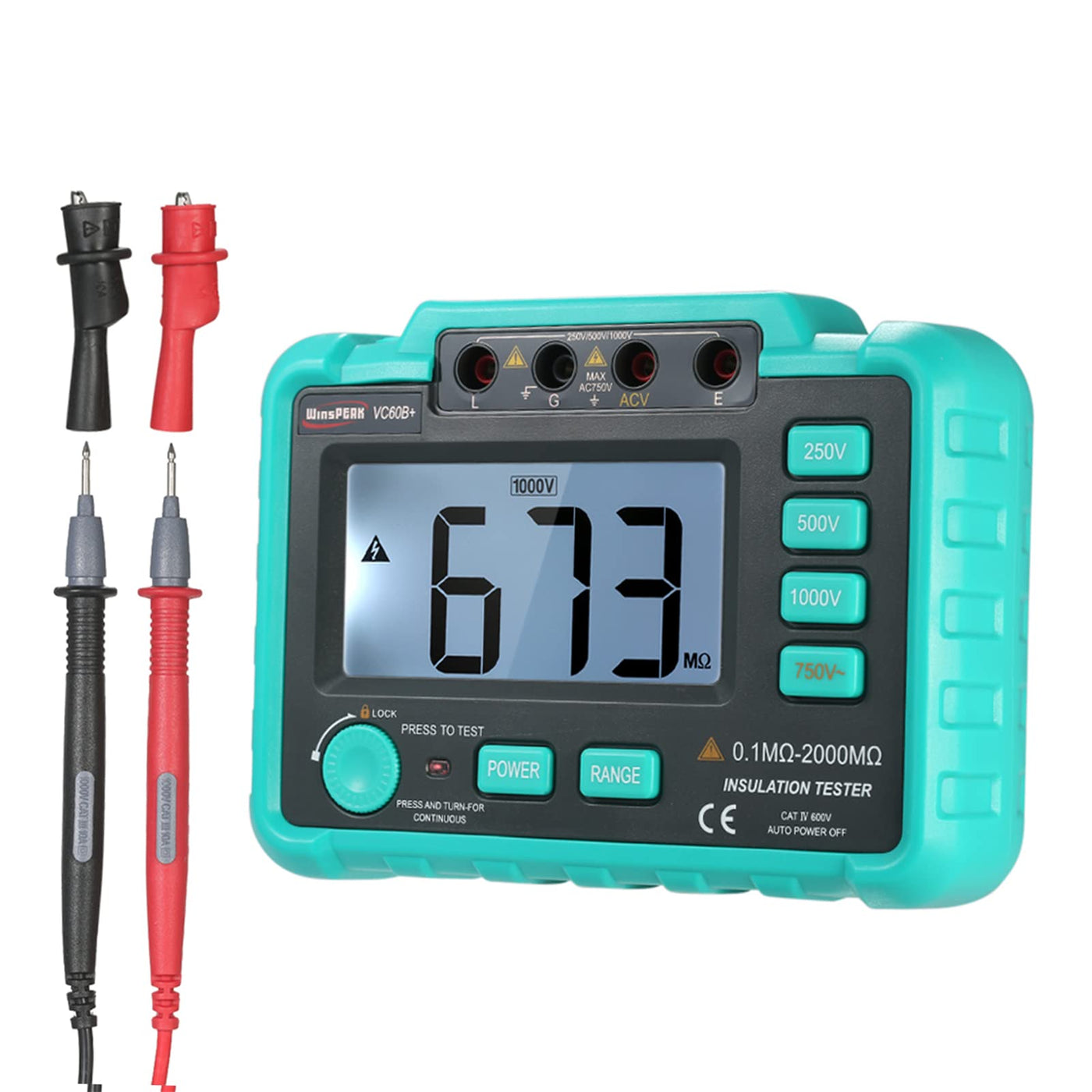

{"id":8115040223412,"title":"VC60B+ LCD Digital Insulation Resistance Tester Megohm Meter Megohmmeter DC250V\/500V\/1000V AC750V","handle":"vc60b-lcd-digital-insulation-resistance-tester-megohm-meter-megohmmeter-dc250v-500v-1000v-ac750v","description":"\u003ch3\u003eVC60B+ LCD Digital Insulation Resistance Tester Megohm Meter Megohmmeter DC250V\/500V\/1000V AC750V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis instrument adopts low-loss energy enrichment DC converter of the high\nratio of inductance to change 12V to DC 250V \/ 500V \/ 1000V. It uses digital\nLCR bridge for resistance measurement and insulation resistance test. It has\nmany advantages: light weight, large measuring range, backlight, test lock,\nautomatic shutdown and other functions. It can also be used for measuring\nelectricity with advanced appearance and stable performance. Specifications:\nMaterial: ABS Output voltage: DC250V \/ 500V \/ 1000V, ± 10%. Insulation range:\n250 V: 0.1 MΩ ~ 20 MΩ \/ 20 MΩ ~ 500 MΩ; 500 V: 0.1 MΩ ~ 50 MΩ \/ 50 MΩ ~ 1000\nMΩ; 1000 V: 0.1 MΩ ~ 100 MΩ \/ 100 MΩ ~ 2000 MΩ. Accuracy: ± (4% reading + 2\ndigits). Short circuit current: 1.6 mA. Median resistance: 250V\/500V: 2MΩ;\n1000V: 5MΩ. Terminal position: L \u0026amp; E. Voltage test: AC750V; Accuracy: ± (1%\nread + 6 digits) Input impedance: 1MΩ. Frequency response: (50 ~ 200) Hz. End\nposition: ACV \u0026amp; G. Display: 90 x 48 mm LCD with backlight. Max. Display: \"1999\n\" Range display: \"1\" Measurement method: A\/D conversion. Sampling rate: 3\ntimes\/second. Operating temperature: 0 ~ 40 °C. Operating humidity: 30% ~ 85%\nRH. Power supply: 8 x 1.5 V LR6 batteries (not included); or DC 12 V power\nsupply (not included). Product size: 170 x 120 x 60 mm \/ 6.7 x 4.7 x 2.36\ninches. Product weight: 528 g \/ 18.65 oz. Package size: 20 x 16.5 x 7 cm \/\n7.87 x 6.5 x 2.76 inches. Package weight: 730 g \/ 25.77 oz. Package list: 1 x\ninsulation resistance tester. 1 x pair of 10 A test leads. 2 x crocodile\nclips. 1 x user manual (English)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWide measuring range: up to 2000 M 1000 V with an accuracy of (4% of measured value + 2 digits).\u003c\/li\u003e\n \u003cli\u003eLarge LCD display (90 x 48 mm), with backlight, max. Display \"1999\".\u003c\/li\u003e\n \u003cli\u003eData hold and auto power off function.\u003c\/li\u003e\n \u003cli\u003eLow power consumption: less than 300mW when idle measurement.\u003c\/li\u003e\n \u003cli\u003eApplied in insulation resistance tests of motors, cables, electrical equipment, telecommunication equipment, etc.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T12:38:27+10:00","created_at":"2026-09-01T21:42:32+10:00","vendor":"VISLONE","type":"Ohmmeters","tags":["industrial_DE_Aug2026"],"price":35400,"price_min":35400,"price_max":35400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374745317556,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09WTLVS1M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"VC60B+ LCD Digital Insulation Resistance Tester Megohm Meter Megohmmeter DC250V\/500V\/1000V AC750V","public_title":null,"options":["Default Title"],"price":35400,"weight":528,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B09WTLVS1M.jpg?v=1788262954","\/\/auspowers.com\/cdn\/shop\/files\/61gVC8vousL.jpg?v=1788262954","\/\/auspowers.com\/cdn\/shop\/files\/61d_mQMkThL.jpg?v=1788262954","\/\/auspowers.com\/cdn\/shop\/files\/61B0KJNdwfL.jpg?v=1788262954","\/\/auspowers.com\/cdn\/shop\/files\/51Q9GrpeGXL.jpg?v=1788262954","\/\/auspowers.com\/cdn\/shop\/files\/51ZebeB2NjL.jpg?v=1788262954","\/\/auspowers.com\/cdn\/shop\/files\/51OyH8GXAEL.jpg?v=1788262954"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B09WTLVS1M.jpg?v=1788262954","options":["Title"],"media":[{"alt":null,"id":33271748264116,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B09WTLVS1M.jpg?v=1788262954"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B09WTLVS1M.jpg?v=1788262954","width":1601},{"alt":null,"id":33271748296884,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61gVC8vousL.jpg?v=1788262954"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61gVC8vousL.jpg?v=1788262954","width":1000},{"alt":null,"id":33271748329652,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61d_mQMkThL.jpg?v=1788262954"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61d_mQMkThL.jpg?v=1788262954","width":1000},{"alt":null,"id":33271748362420,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61B0KJNdwfL.jpg?v=1788262954"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61B0KJNdwfL.jpg?v=1788262954","width":1000},{"alt":null,"id":33271748395188,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Q9GrpeGXL.jpg?v=1788262954"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Q9GrpeGXL.jpg?v=1788262954","width":1000},{"alt":null,"id":33271748427956,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51ZebeB2NjL.jpg?v=1788262954"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51ZebeB2NjL.jpg?v=1788262954","width":1000},{"alt":null,"id":33271748460724,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51OyH8GXAEL.jpg?v=1788262954"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51OyH8GXAEL.jpg?v=1788262954","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eVC60B+ LCD Digital Insulation Resistance Tester Megohm Meter Megohmmeter DC250V\/500V\/1000V AC750V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis instrument adopts low-loss energy enrichment DC converter of the high\nratio of inductance to change 12V to DC 250V \/ 500V \/ 1000V. It uses digital\nLCR bridge for resistance measurement and insulation resistance test. It has\nmany advantages: light weight, large measuring range, backlight, test lock,\nautomatic shutdown and other functions. It can also be used for measuring\nelectricity with advanced appearance and stable performance. Specifications:\nMaterial: ABS Output voltage: DC250V \/ 500V \/ 1000V, ± 10%. Insulation range:\n250 V: 0.1 MΩ ~ 20 MΩ \/ 20 MΩ ~ 500 MΩ; 500 V: 0.1 MΩ ~ 50 MΩ \/ 50 MΩ ~ 1000\nMΩ; 1000 V: 0.1 MΩ ~ 100 MΩ \/ 100 MΩ ~ 2000 MΩ. Accuracy: ± (4% reading + 2\ndigits). Short circuit current: 1.6 mA. Median resistance: 250V\/500V: 2MΩ;\n1000V: 5MΩ. Terminal position: L \u0026amp; E. Voltage test: AC750V; Accuracy: ± (1%\nread + 6 digits) Input impedance: 1MΩ. Frequency response: (50 ~ 200) Hz. End\nposition: ACV \u0026amp; G. Display: 90 x 48 mm LCD with backlight. Max. Display: \"1999\n\" Range display: \"1\" Measurement method: A\/D conversion. Sampling rate: 3\ntimes\/second. Operating temperature: 0 ~ 40 °C. Operating humidity: 30% ~ 85%\nRH. Power supply: 8 x 1.5 V LR6 batteries (not included); or DC 12 V power\nsupply (not included). Product size: 170 x 120 x 60 mm \/ 6.7 x 4.7 x 2.36\ninches. Product weight: 528 g \/ 18.65 oz. Package size: 20 x 16.5 x 7 cm \/\n7.87 x 6.5 x 2.76 inches. Package weight: 730 g \/ 25.77 oz. Package list: 1 x\ninsulation resistance tester. 1 x pair of 10 A test leads. 2 x crocodile\nclips. 1 x user manual (English)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWide measuring range: up to 2000 M 1000 V with an accuracy of (4% of measured value + 2 digits).\u003c\/li\u003e\n \u003cli\u003eLarge LCD display (90 x 48 mm), with backlight, max. Display \"1999\".\u003c\/li\u003e\n \u003cli\u003eData hold and auto power off function.\u003c\/li\u003e\n \u003cli\u003eLow power consumption: less than 300mW when idle measurement.\u003c\/li\u003e\n \u003cli\u003eApplied in insulation resistance tests of motors, cables, electrical equipment, telecommunication equipment, etc.\u003c\/li\u003e\n \u003c\/ul\u003e"}
