V3 Extension Board, CNC Shield Expansion Board with 4pcs A4988 Stepper Motor Driver Heat Sink for Engraver 3D Printer DC 12V to 36V

In Stock. Leaves warehouse within 2 - 3 business days

$104.00 AUD
Maximum quantity available reached.
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

V3 Extension Board, CNC Shield Expansion Board with 4pcs A4988 Stepper Motor Driver Heat Sink for Engraver 3D Printer DC 12V to 36V

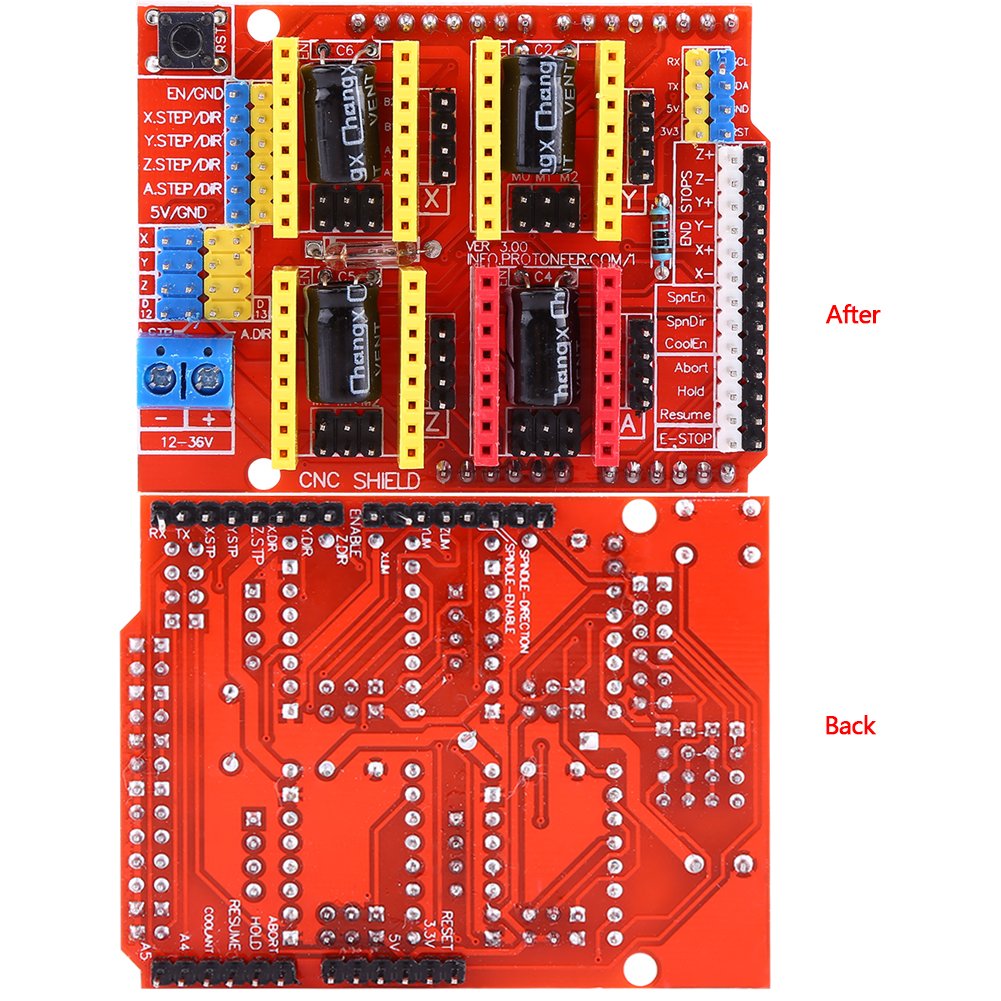

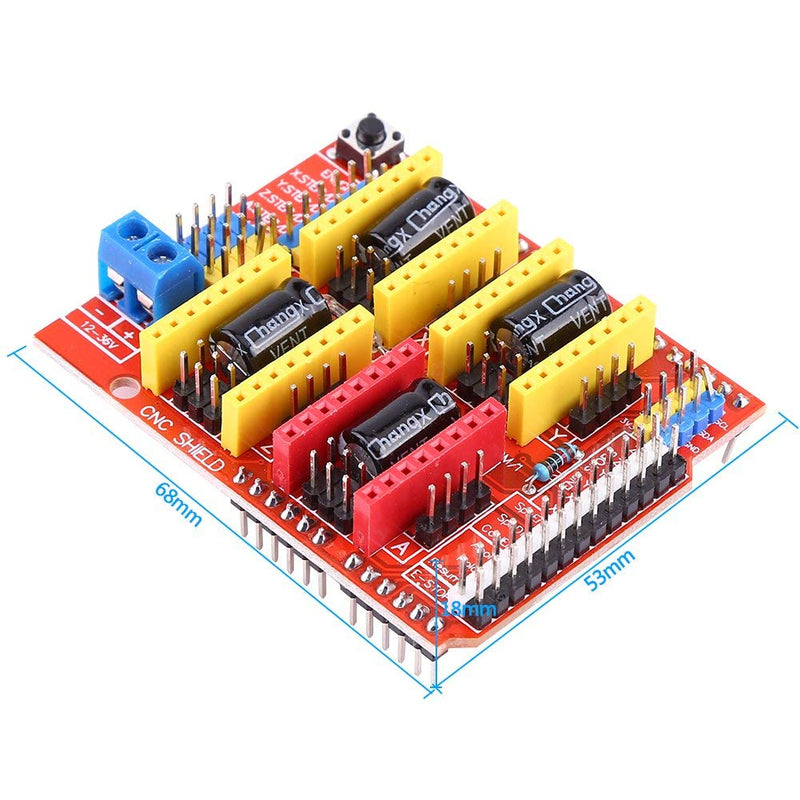

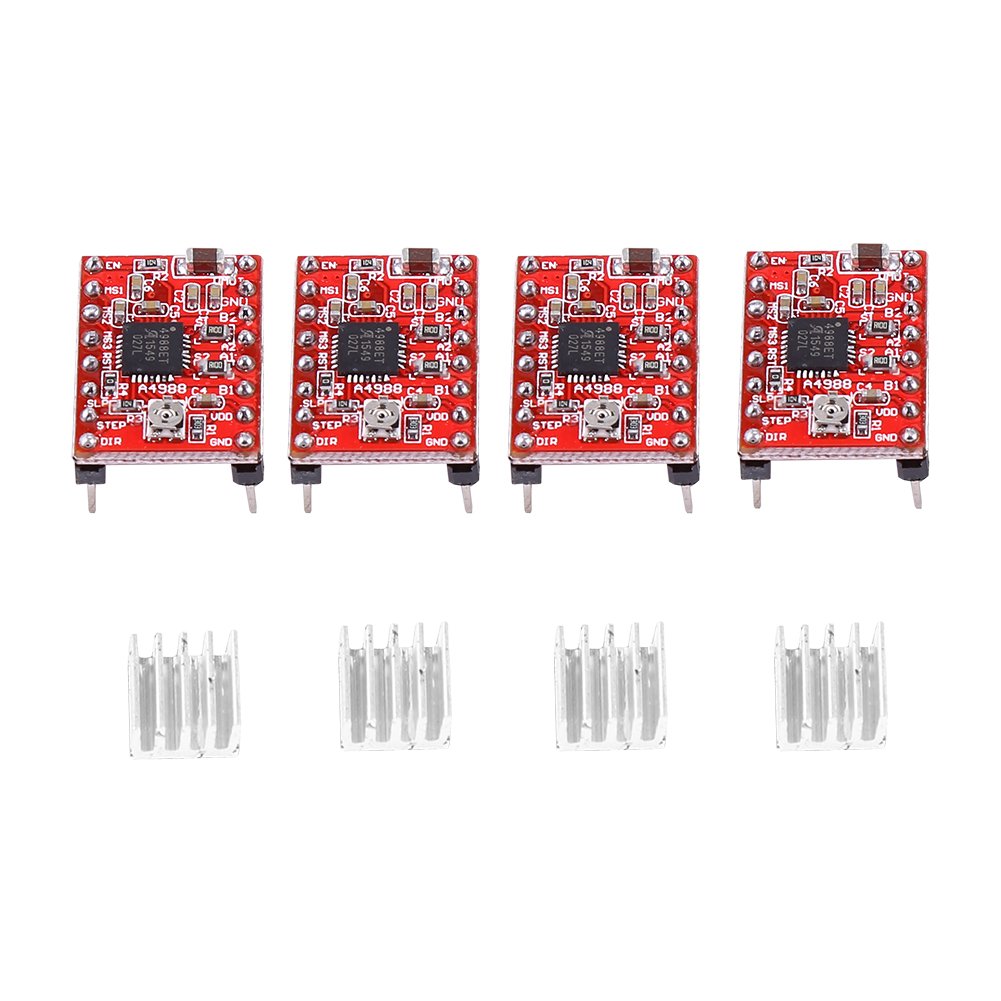

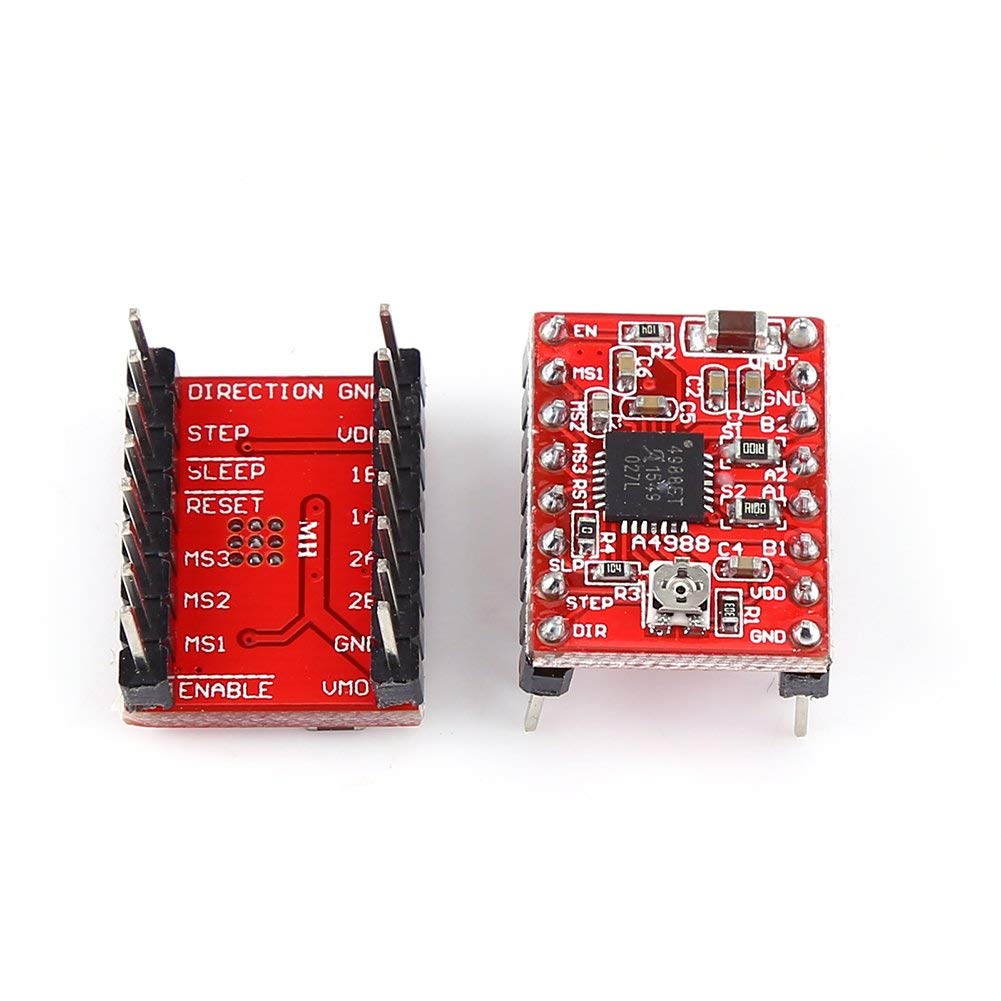

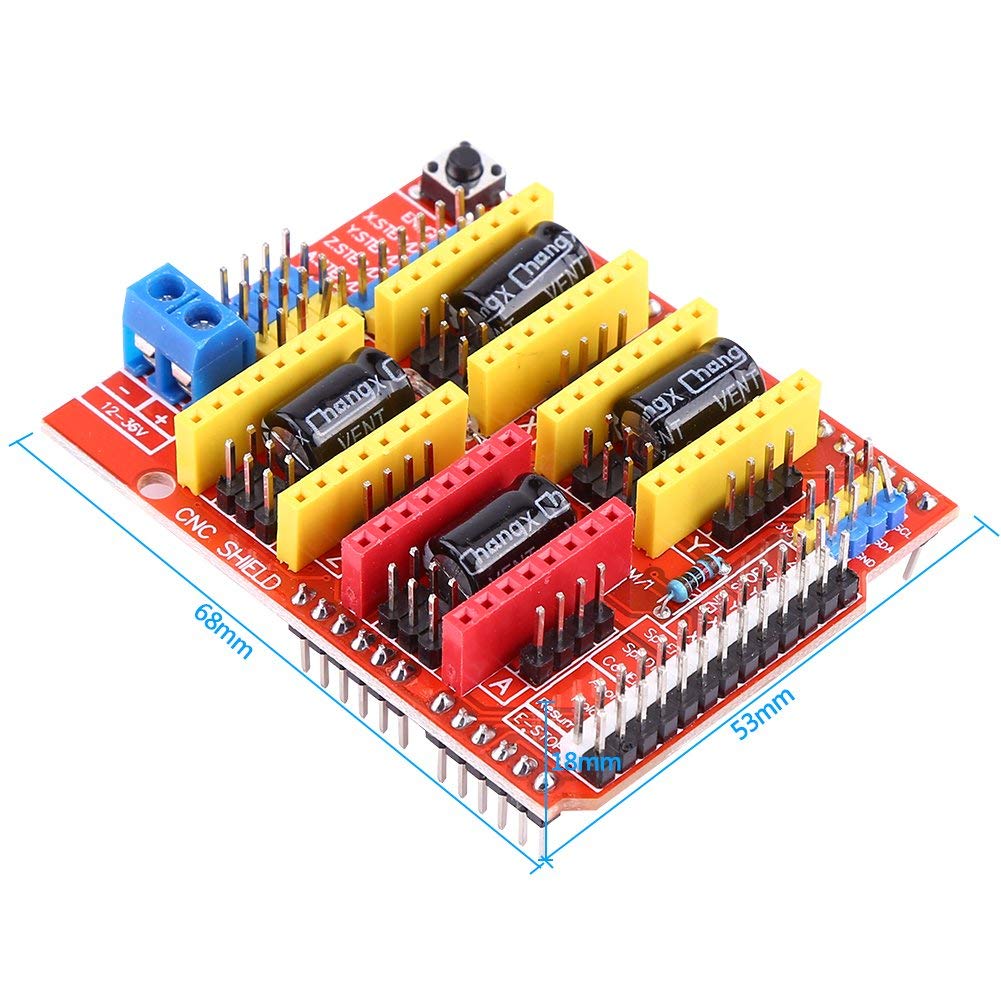

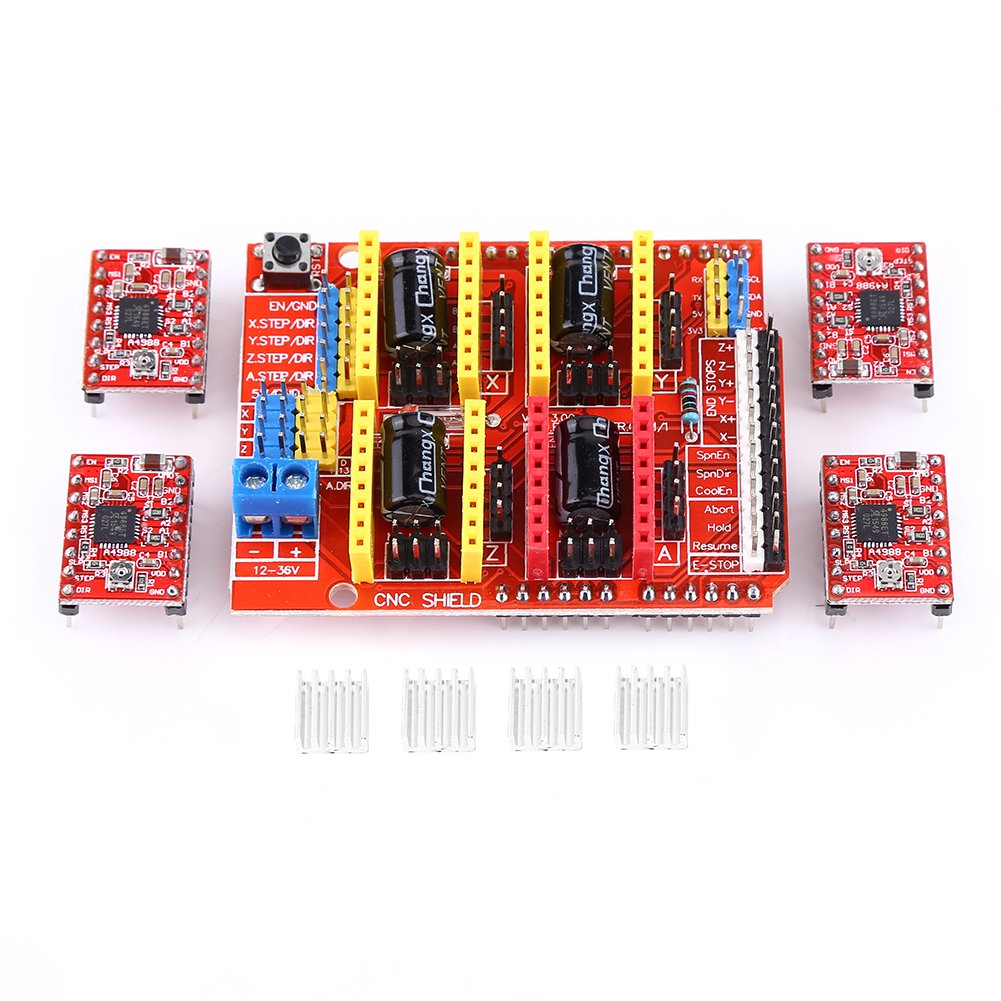

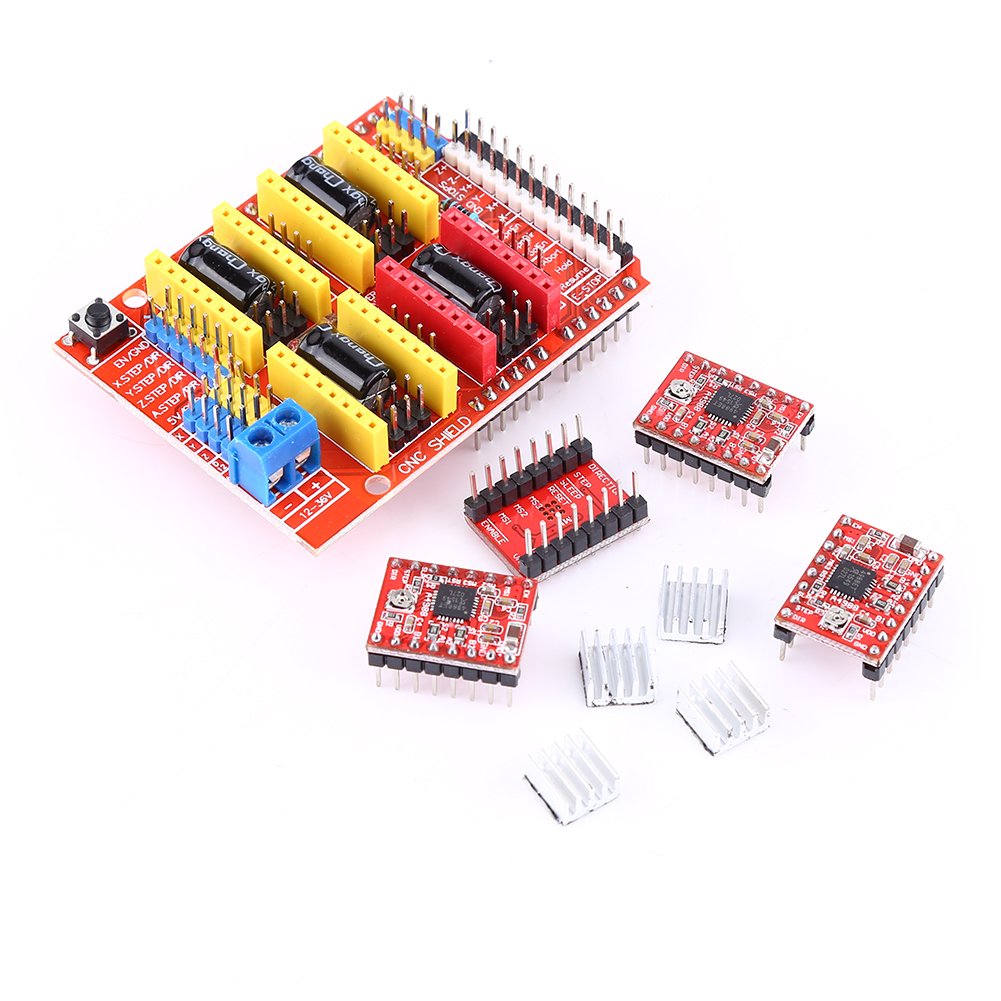

Package Includes: 1 x V3 Extension Board4 x Drivers4 x Heat Sinks Read more CNC Expansion Board: Version: V3.0Size: 68 x 53 x 18mm / 2.67 x 2.08 x 0.7"Voltage: DC 12V to 36V (only DRV8825 driver can handle up to 36V, so please consider voltage for power supply)The V3.0 expansion board can be used as a drive expansion board for engraving machines, 3D printers, etc. There are a total of 4 slots for stepper motor drive modules, which can drive 4 stepper motors, and each stepper motor only needs 2 IO ports, that is to say, 6 IO ports can manage 3 steppers The motor is more convenient to use.Experimental phenomenon: The stepper motor reverses one circle, pauses for 1 second, and then rotates forward one circle, and so on.Note that when connecting the A4988 module, do not connect it backwards. The wiring of the stepper motor is: 2A, 2B are a group (red, green); 1A, 1B are a group (blue, yellow). If you want to change the direction, you can change the position of one group, such as swapping 2A and 2B. Read more 4pcs A4988 Driver: Size: 20 x 15mm / 0.78 x 0.59"Thermal Shutdown Circuit: YesCross Current Protection: YesGround Fault Protection: YesShort Circuit Protection: YesCompatible Logic Voltage: 3.3V and 5VFive Step Modes: Full, 1/2, 1/4, 1/8 and 1/16Mix with slow current attenuation model.Internal UVLO and low RDS (on) output.Automatic current attenuation mode Detection/Select.Phase-in rectifier, low power consumption.Warning: Connecting or disconnecting stepping motor while driver is powered on might damage driver.In terms of power supply, we connect the +5V power supply terminal between the logic voltage of the device VDD and GND, and we need to connect 8-15V (DC) between the motor power supply VMOT and GND.Three mode selection terminals: MS1, MS2, MS3, full step mode (200 steps or one step for one revolution), if higher accuracy is required, you can select other modes, such as if you choose 1 /4 step mode, then the motor needs to send 800 microsteps to complete one revolution. 4pcs Heat Sinks: Size: 8 x 8mm / 0.31 x 0.31"Color: White Features: Use removable A4988 or DRV8825 compatible stepping driver.The extension board can be used for engraving machine or 3D printer driver.Compatible with GRBL 0.8. Open-source firmware, converting G code command into stepping signal.PWM spindle and direction pin, 4 shaft support (X, Y, Z, A - you can copy X, Y, Z or use pin D12 and D13 customize firmware perform complete shaft 4).This is a set of disassembled part, and you need basic soldering skills to solder them together. Read more

Product Features

  • NOTE:Use removable A4988 or DRV8825 compatible stepping driver
  • CAN BE USED FOR:The extension board can be used for engraving machine or 3D printer driver
  • COMPATIBLE WITH GRBL 0.8:Compatible with GRBL 0.8. Open-source firmware operated on UNO, converting G code command into stepping signal

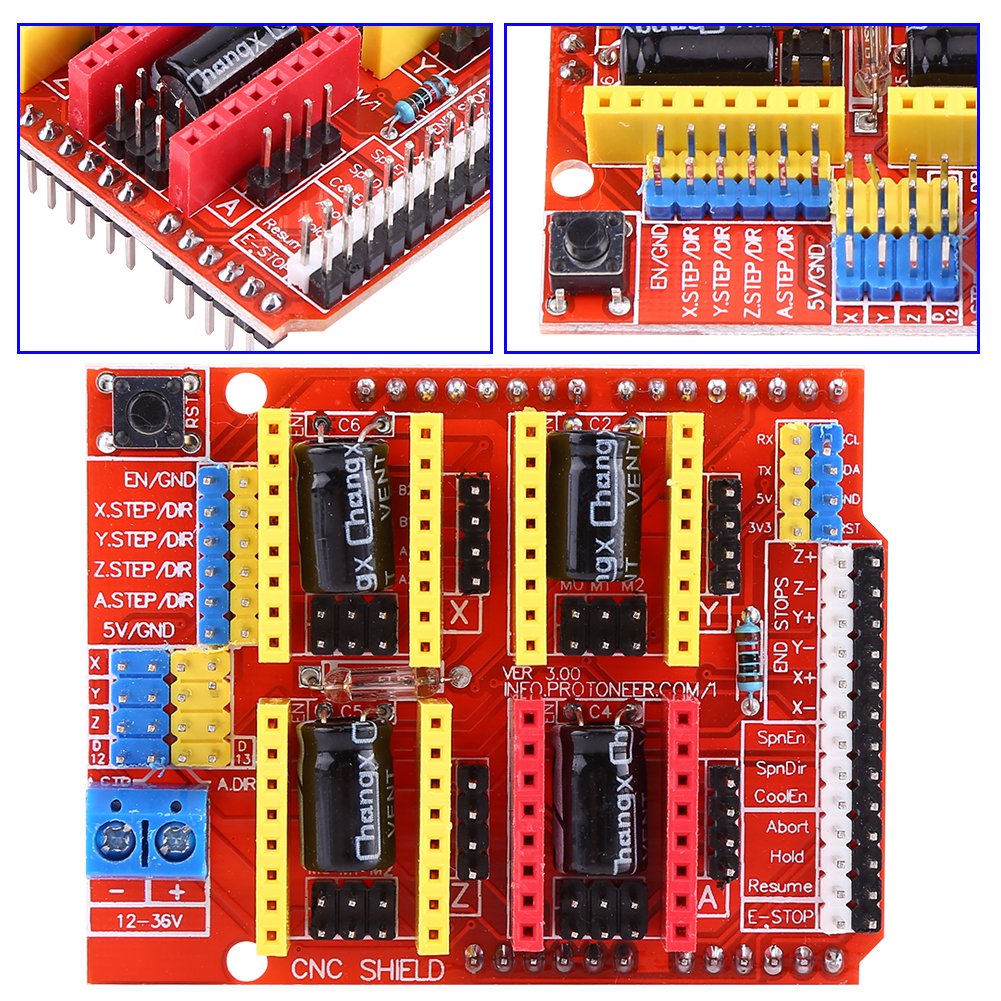

  • PWM SPINDLE AND DIRECTION PIN:PWM spindle and direction pin, 4 shaft support (X, Y, Z, A - you can copy X, Y, Z or use pin D12 and D13 customize firmware perform complete shaft 4)
  • COMPACT DESIGN:Compact design, stepping motor can connect 4 pin connectors or be soldered
