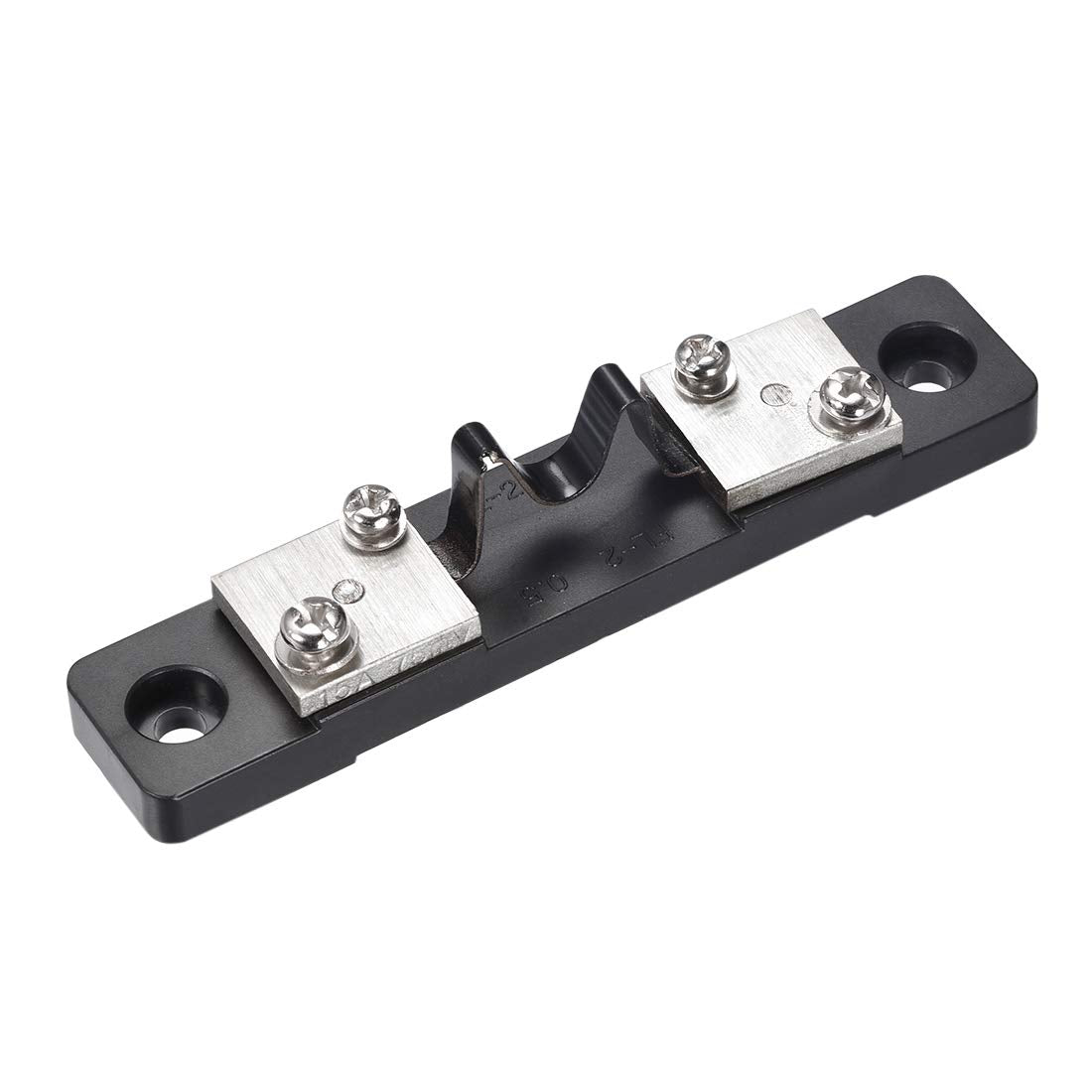

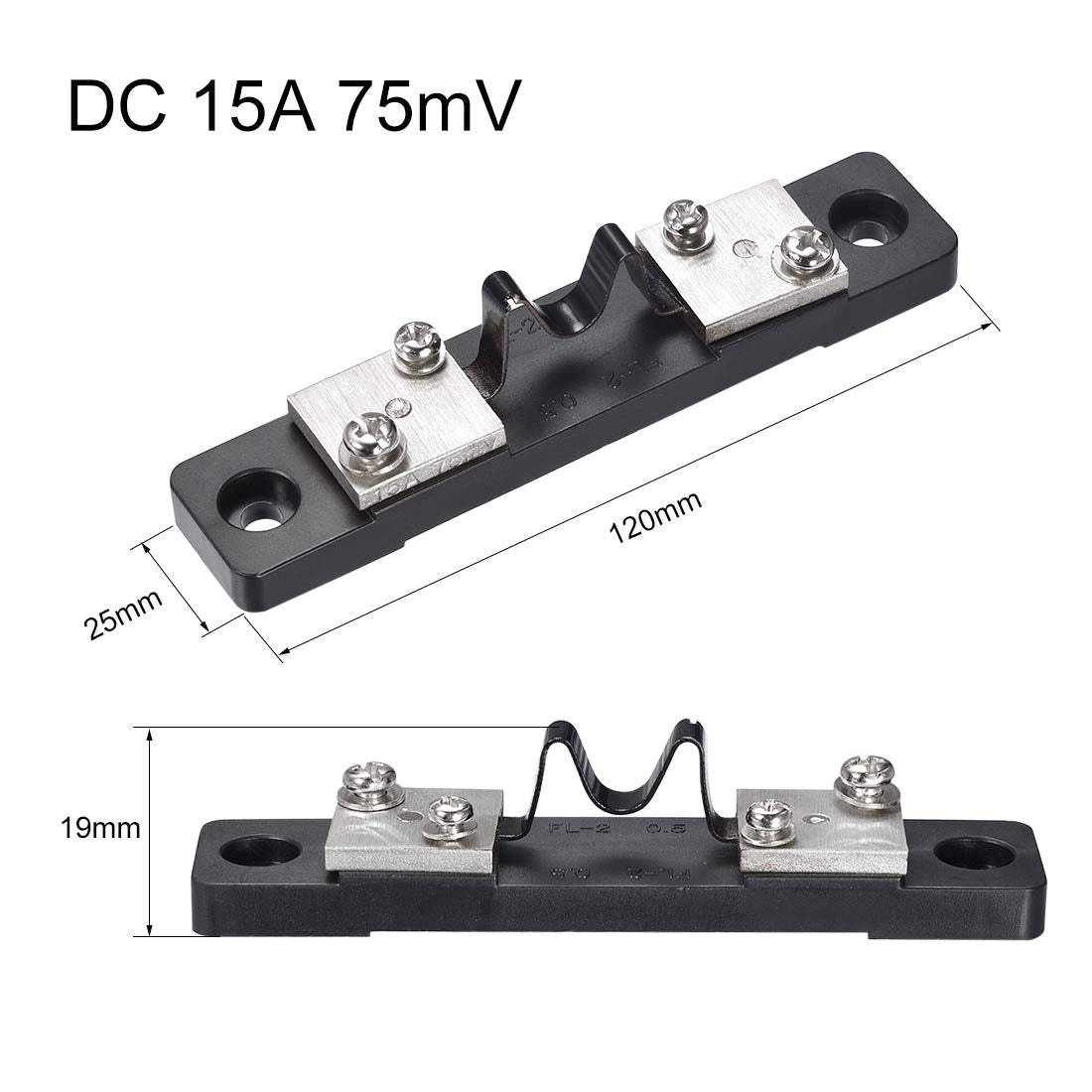

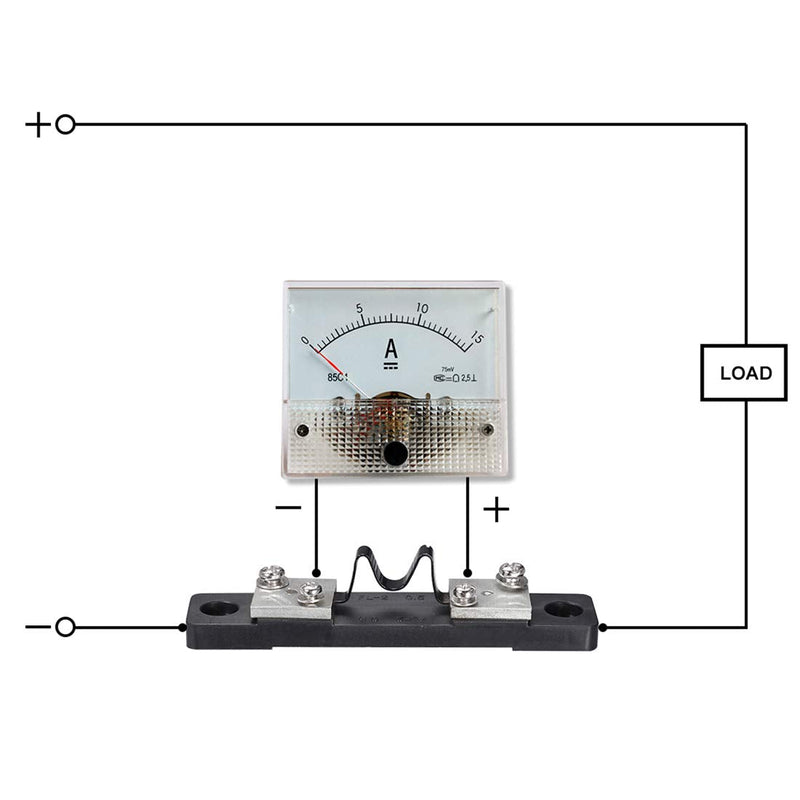

{"id":8013435863220,"title":"uxcell Shunt Resistor 15A 75mV for DC Current Ammeter Analog Panel Meter External FL-2 Shunt Resistance Divider","handle":"uxcell-shunt-resistor-15a-75mv-for-dc-current-ammeter-analog-panel-meter-external-fl-2-shunt-resistance-divider","description":"\u003ch3\u003euxcell Shunt Resistor 15A 75mV for DC Current Ammeter Analog Panel Meter External FL-2 Shunt Resistance Divider\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e15A DC Ammeter Shunt Resistor Rated Current: 15A Voltage Drop: 75mV Materials:\r\nCopper Overload Rated Current: 120%(2 Hours) Accuracy: 0.5% Working Temp: -40C\r\nto 60C(-40F to 140F) Type: FL-2 External Length: 120mm Width: 25mm Overall\r\nHeight: 19mm Weight: 57g Application: An ammeter shunt allows the measurement\r\nof current values too large to be directly measured by a particular ammeter.\r\nIn this case, a separate shunt, a resistor of very low but accurately known\r\nresistance, is placed in parallel with a voltmeter, so that all of the current\r\nto be measured will flow through the shunt. Package Content: 1 pcs 15A \/ 75mV\r\nExternal Shunt Resistor\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e75mV Voltage Drop and 15A Rated (Maximum) Current, 75mV satisfies most of the DC ammeter.\u003c\/li\u003e\r\n \u003cli\u003eMade of Copper with Anti-Rust plated, ensures the performance of stability and durability.\u003c\/li\u003e\r\n \u003cli\u003e0.5% Accuracy and 120% Overload Rated Current(For 2 hours)\u003c\/li\u003e\r\n \u003cli\u003eExternal type. Two holes on both sides for a solid placing, and nuts for the circuit connection.\u003c\/li\u003e\r\n \u003cli\u003eConnection. A shunt needs to be placed parallel with the Ammeter(Moving Coil Galvanometer), to bypass the current. Normally, the two outside terminals were connected with the power circuit directly, and both the inside terminals placed in series with the Meter.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-12-09T01:50:30+11:00","created_at":"2025-12-09T01:50:27+11:00","vendor":"uxcell","type":"Multi Testers","tags":["industrial_selected_Nov2025"],"price":9100,"price_min":9100,"price_max":9100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44103302971572,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07QX8KZ55","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"uxcell Shunt Resistor 15A 75mV for DC Current Ammeter Analog Panel Meter External FL-2 Shunt Resistance Divider","public_title":null,"options":["Default Title"],"price":9100,"weight":63,"compare_at_price":null,"inventory_management":"shopify","barcode":"a19012700ux0379","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/51S82eSC8lL.jpg?v=1765205429","\/\/auspowers.com\/cdn\/shop\/files\/61Sop_l1K-L.jpg?v=1765205430","\/\/auspowers.com\/cdn\/shop\/files\/51KPARJrCFL.jpg?v=1765205429"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/51S82eSC8lL.jpg?v=1765205429","options":["Title"],"media":[{"alt":"[Australia - AusPower] - uxcell Shunt Resistor 15A 75mV for DC Current Ammeter Analog Panel Meter External FL-2 Shunt Resistance Divider ","id":32455593001140,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51S82eSC8lL.jpg?v=1765205429"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51S82eSC8lL.jpg?v=1765205429","width":1100},{"alt":"[Australia - AusPower] - uxcell Shunt Resistor 15A 75mV for DC Current Ammeter Analog Panel Meter External FL-2 Shunt Resistance Divider ","id":32455593033908,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Sop_l1K-L.jpg?v=1765205430"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Sop_l1K-L.jpg?v=1765205430","width":1100},{"alt":"[Australia - AusPower] - uxcell Shunt Resistor 15A 75mV for DC Current Ammeter Analog Panel Meter External FL-2 Shunt Resistance Divider ","id":32455593066676,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51KPARJrCFL.jpg?v=1765205429"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51KPARJrCFL.jpg?v=1765205429","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003euxcell Shunt Resistor 15A 75mV for DC Current Ammeter Analog Panel Meter External FL-2 Shunt Resistance Divider\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e15A DC Ammeter Shunt Resistor Rated Current: 15A Voltage Drop: 75mV Materials:\r\nCopper Overload Rated Current: 120%(2 Hours) Accuracy: 0.5% Working Temp: -40C\r\nto 60C(-40F to 140F) Type: FL-2 External Length: 120mm Width: 25mm Overall\r\nHeight: 19mm Weight: 57g Application: An ammeter shunt allows the measurement\r\nof current values too large to be directly measured by a particular ammeter.\r\nIn this case, a separate shunt, a resistor of very low but accurately known\r\nresistance, is placed in parallel with a voltmeter, so that all of the current\r\nto be measured will flow through the shunt. Package Content: 1 pcs 15A \/ 75mV\r\nExternal Shunt Resistor\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e75mV Voltage Drop and 15A Rated (Maximum) Current, 75mV satisfies most of the DC ammeter.\u003c\/li\u003e\r\n \u003cli\u003eMade of Copper with Anti-Rust plated, ensures the performance of stability and durability.\u003c\/li\u003e\r\n \u003cli\u003e0.5% Accuracy and 120% Overload Rated Current(For 2 hours)\u003c\/li\u003e\r\n \u003cli\u003eExternal type. Two holes on both sides for a solid placing, and nuts for the circuit connection.\u003c\/li\u003e\r\n \u003cli\u003eConnection. A shunt needs to be placed parallel with the Ammeter(Moving Coil Galvanometer), to bypass the current. Normally, the two outside terminals were connected with the power circuit directly, and both the inside terminals placed in series with the Meter.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
