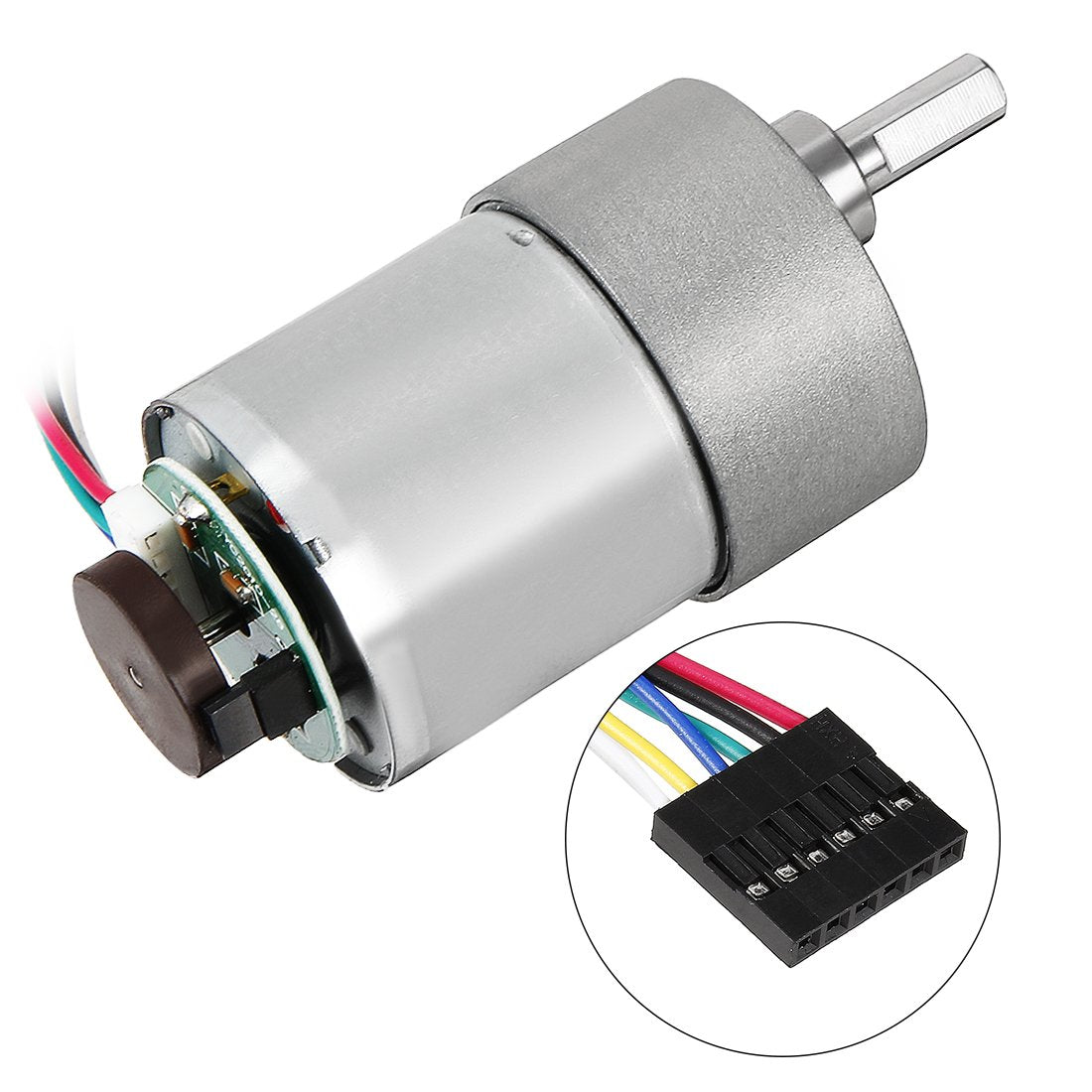

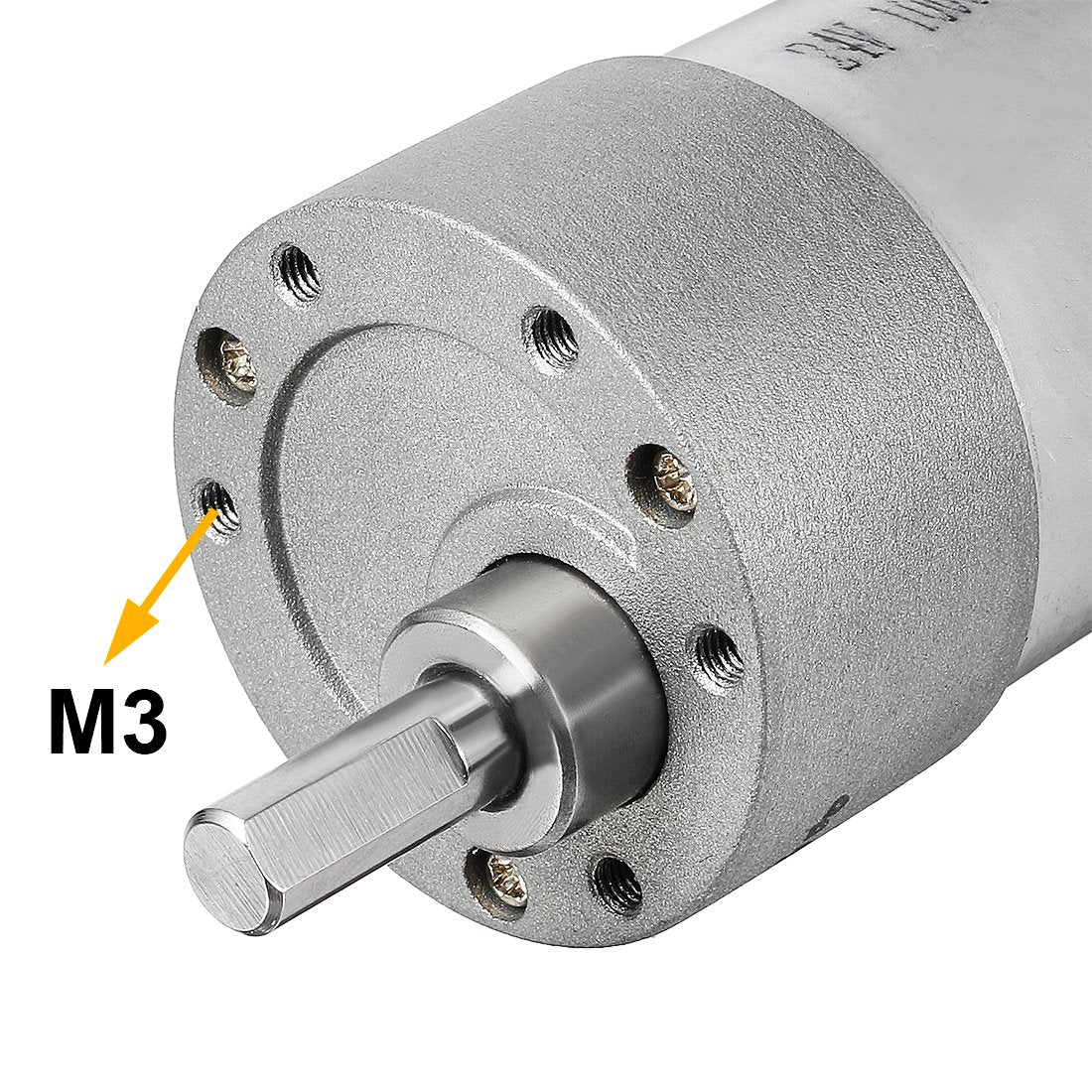

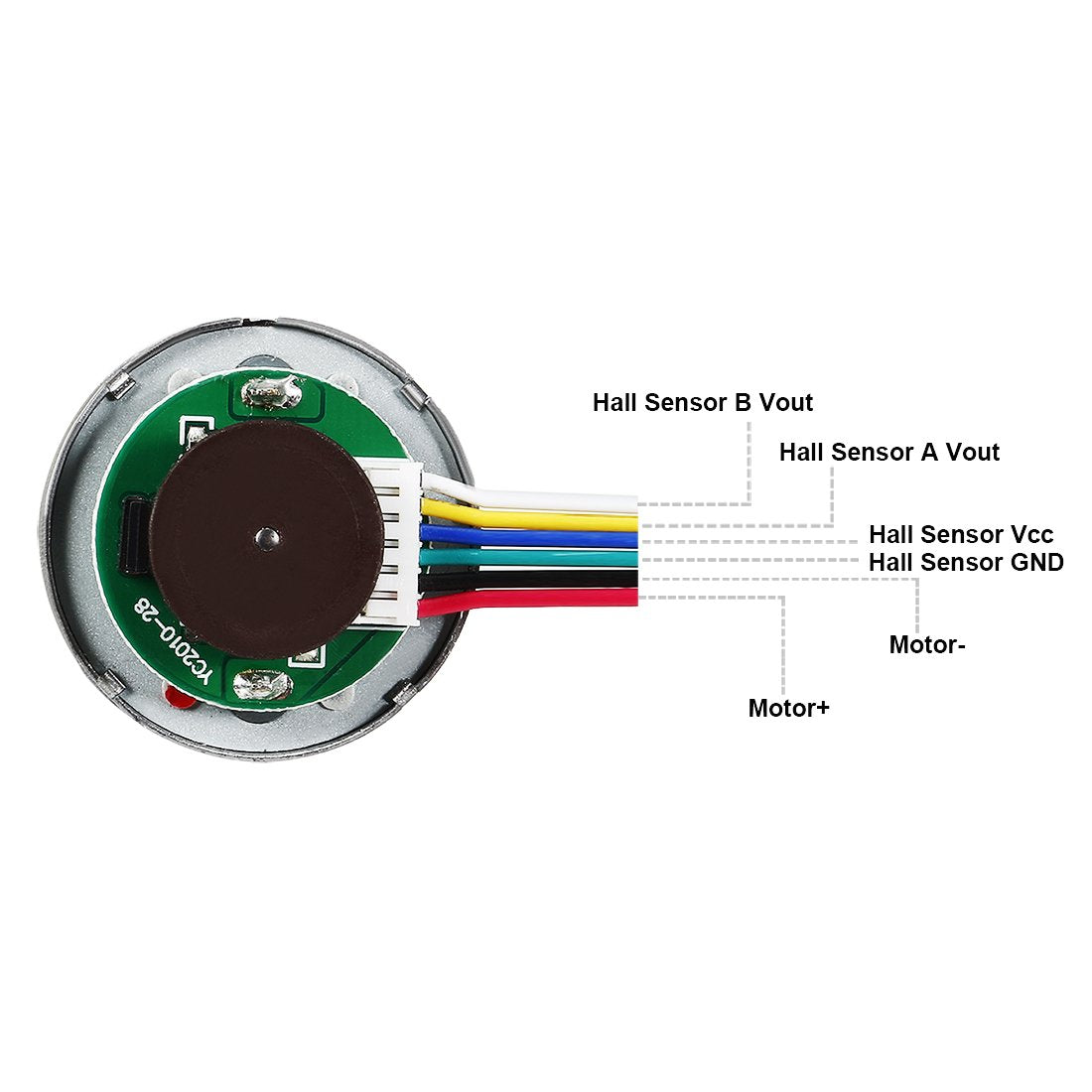

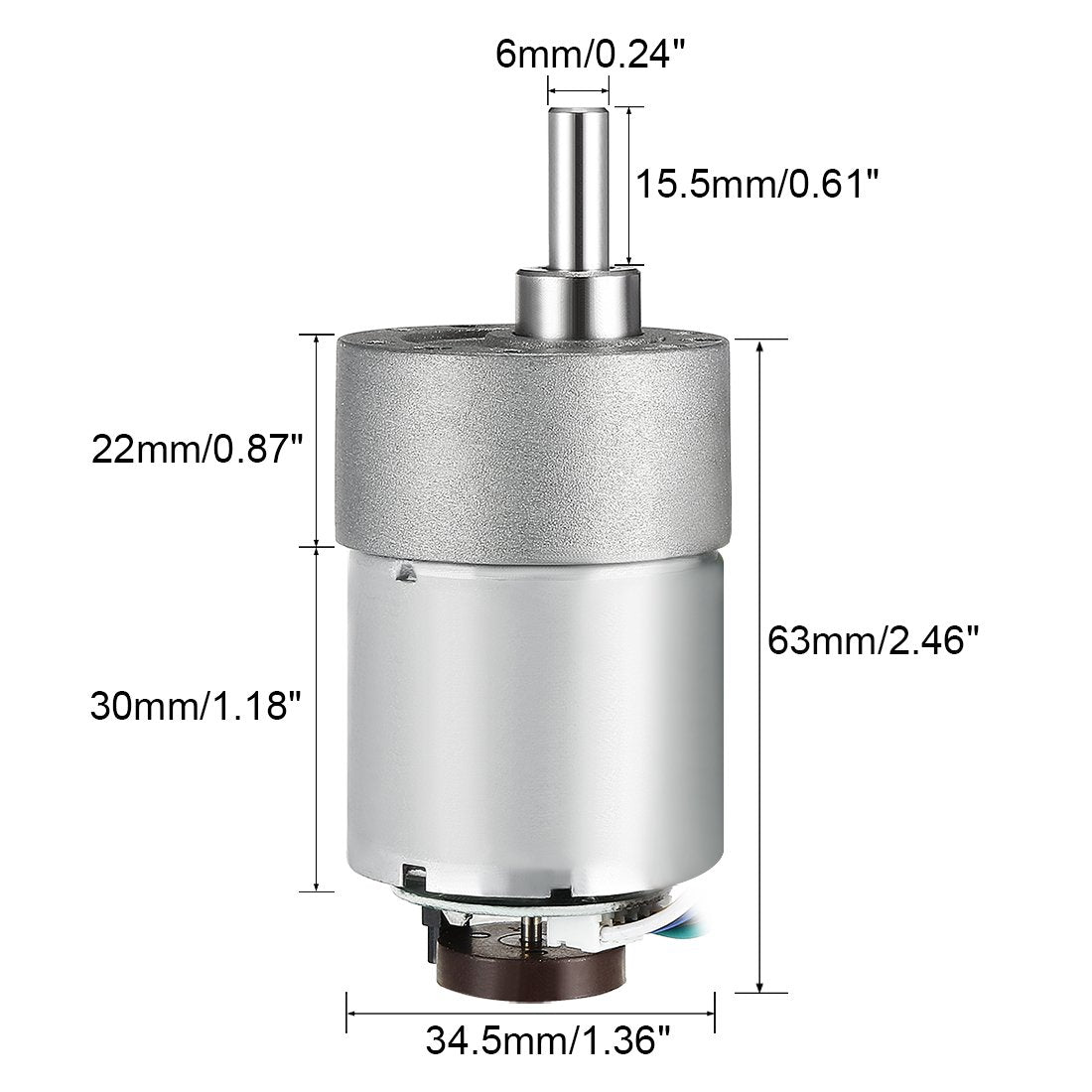

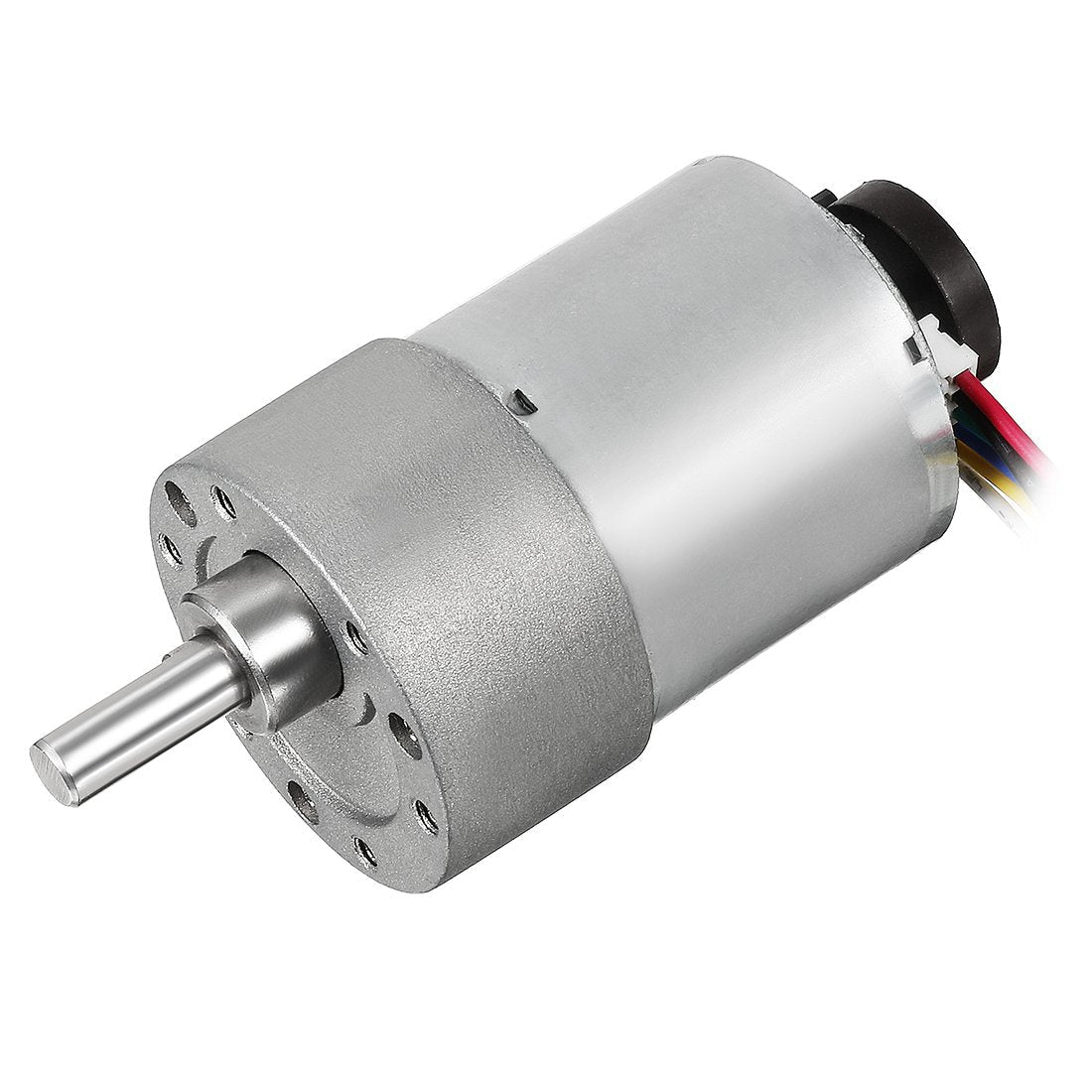

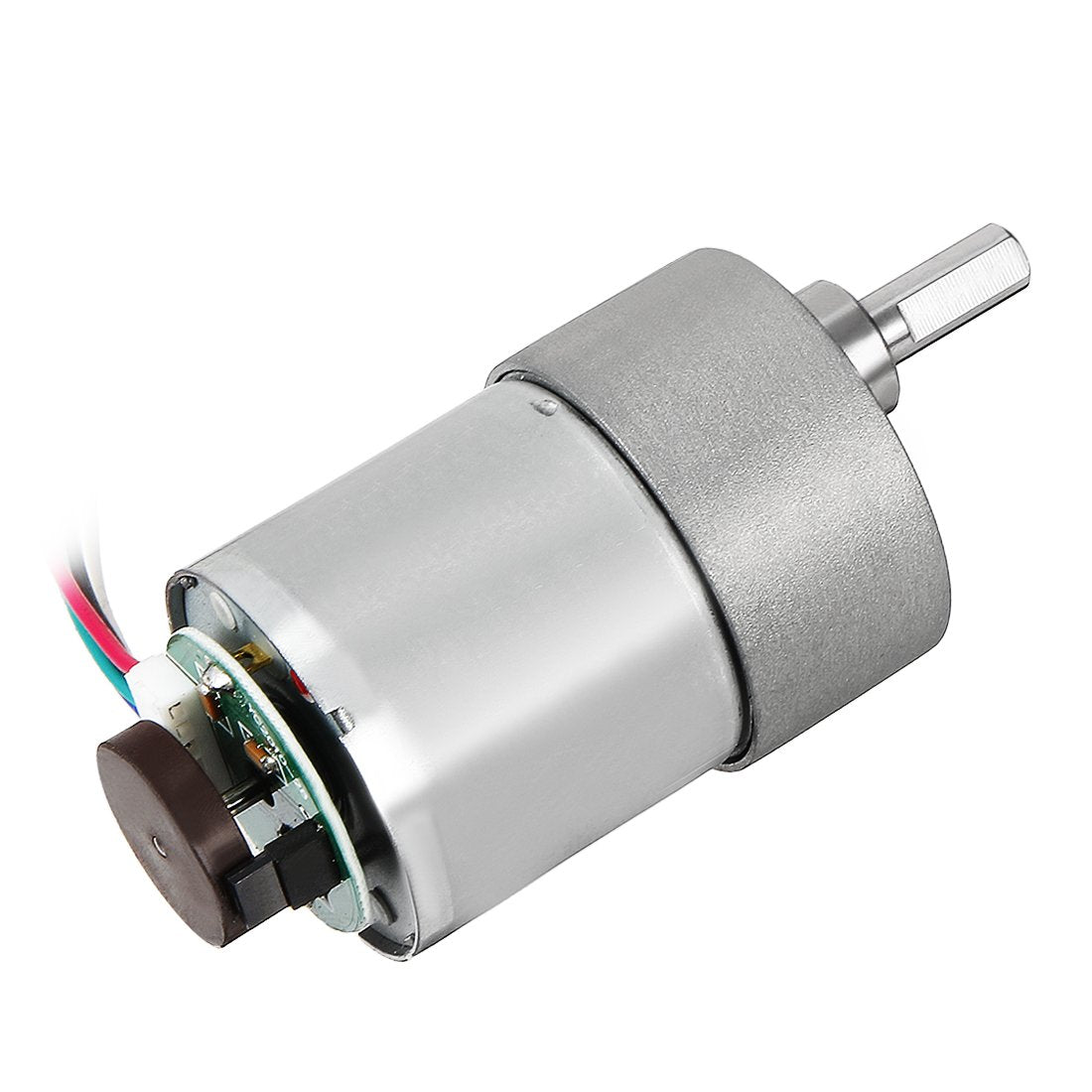

{"id":7167427150004,"title":"uxcell Gear Motor with Encoder DC 24V 530RPM Gear Ratio 18.8:1 D Shaft Metal Encoder Gear Motor Silver 37Dx52L mm for Robot RC Model DIY Engine","handle":"uxcell-gear-motor-with-encoder-dc-24v-530rpm-gear-ratio-18-8-1-d-shaft-metal-encoder-gear-motor-silver-37dx52l-mm-for-robot-rc-model-diy-engine","description":"\u003ch3\u003euxcell Gear Motor with Encoder DC 24V 530RPM Gear Ratio 18.8:1 D Shaft Metal Encoder Gear Motor Silver 37Dx52L mm for Robot RC Model DIY Engine\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications:Material: MetalColor: SilverRated Voltage: 24VVoltage Range:\n6-24VNo-load Speed: 530RPMLoad Spee: 430RPMNo-load Current: 90mALoad Current:\n480mAStall Current:2.5ATorque: 3.2kg.cmReduction Ratio: 18.8:1Gearbox\nSize(DL): 37x22mm\/1.46x0.87inchMotor Size(DL): 34.5x30mm\/1.36x1.18inchShaft\nSize(DL): 6x15.5mm\/0.24x0.61inchEncoder Cable Length: 20cm\/7.87inchGross\nWeight: Approx. 190g Features:The encoder has 6 color-coded, 7.87\" (20 cm)\nleads terminated by a 6 female header with a 0.1\" pitch.The A and B outputs of\nthe hall sensor are square waves from 0 V to Vcc approximately 90° out of\nphase. The face plate has 6 mounting holes evenly spaced around the outer edge\nthreaded for M3 screws;These mounting holes form a regular hexagon and the\ncenters of neighboring holes are 15.5 mm apart. Package Includes:1 X DC 24V\n530RPM Gear Motor with Encoder\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eRated Voltage: 24V; Using Range: 6-24V; Speed: 530RPM\u003c\/li\u003e\n \u003cli\u003eGearbox Size(D*L): 1.46x0.87inch; Motor Size(D*L): 1.36x1.18inch\u003c\/li\u003e\n \u003cli\u003eD-shape Shaft Size(D*L): 0.24x0.61inch; Mounting Hole Size: M3\u003c\/li\u003e\n \u003cli\u003eThe encoder has 6 color-coded, 7.87\" (20 cm) leads terminated by a 6 female header with a 0.1\" pitch.\u003c\/li\u003e\n \u003cli\u003eGreat for robot or other items which need to change directions.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-24T14:48:44+10:00","created_at":"2022-06-24T14:48:50+10:00","vendor":"uxcell","type":"Fan Motors","tags":["industrial"],"price":18800,"price_min":18800,"price_max":18800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41604415127732,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0792S3FDL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"uxcell Gear Motor with Encoder DC 24V 530RPM Gear Ratio 18.8:1 D Shaft Metal Encoder Gear Motor Silver 37Dx52L mm for Robot RC Model DIY Engine","public_title":null,"options":["Default Title"],"price":18800,"weight":198,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B0792S3FDL.jpg?v=1656053022","\/\/auspowers.com\/cdn\/shop\/products\/61H6b-fdUvL.jpg?v=1656046131","\/\/auspowers.com\/cdn\/shop\/products\/61QLVDWhNoL.jpg?v=1656046131","\/\/auspowers.com\/cdn\/shop\/products\/61rMpX2hUtL.jpg?v=1656046131","\/\/auspowers.com\/cdn\/shop\/products\/81nxpfG4uML.jpg?v=1656046131","\/\/auspowers.com\/cdn\/shop\/products\/61Hwbe2l7SL.jpg?v=1656046131"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B0792S3FDL.jpg?v=1656053022","options":["Title"],"media":[{"alt":"[Australia - AusPower] - uxcell Gear Motor with Encoder DC 24V 530RPM Gear Ratio 18.8:1 D Shaft Metal Encoder Gear Motor Silver 37Dx52L mm for Robot RC Model DIY Engine ","id":26268655321268,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B0792S3FDL.jpg?v=1656053022"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B0792S3FDL.jpg?v=1656053022","width":1100},{"alt":"[Australia - AusPower] - uxcell Gear Motor with Encoder DC 24V 530RPM Gear Ratio 18.8:1 D Shaft Metal Encoder Gear Motor Silver 37Dx52L mm for Robot RC Model DIY Engine ","id":26267450343604,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61H6b-fdUvL.jpg?v=1656046131"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61H6b-fdUvL.jpg?v=1656046131","width":1100},{"alt":"[Australia - AusPower] - uxcell Gear Motor with Encoder DC 24V 530RPM Gear Ratio 18.8:1 D Shaft Metal Encoder Gear Motor Silver 37Dx52L mm for Robot RC Model DIY Engine ","id":26267450376372,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61QLVDWhNoL.jpg?v=1656046131"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61QLVDWhNoL.jpg?v=1656046131","width":1100},{"alt":"[Australia - AusPower] - uxcell Gear Motor with Encoder DC 24V 530RPM Gear Ratio 18.8:1 D Shaft Metal Encoder Gear Motor Silver 37Dx52L mm for Robot RC Model DIY Engine ","id":26267450409140,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61rMpX2hUtL.jpg?v=1656046131"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61rMpX2hUtL.jpg?v=1656046131","width":1100},{"alt":"[Australia - AusPower] - uxcell Gear Motor with Encoder DC 24V 530RPM Gear Ratio 18.8:1 D Shaft Metal Encoder Gear Motor Silver 37Dx52L mm for Robot RC Model DIY Engine ","id":26267450441908,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81nxpfG4uML.jpg?v=1656046131"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81nxpfG4uML.jpg?v=1656046131","width":1100},{"alt":"[Australia - AusPower] - uxcell Gear Motor with Encoder DC 24V 530RPM Gear Ratio 18.8:1 D Shaft Metal Encoder Gear Motor Silver 37Dx52L mm for Robot RC Model DIY Engine ","id":26267450474676,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61Hwbe2l7SL.jpg?v=1656046131"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61Hwbe2l7SL.jpg?v=1656046131","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003euxcell Gear Motor with Encoder DC 24V 530RPM Gear Ratio 18.8:1 D Shaft Metal Encoder Gear Motor Silver 37Dx52L mm for Robot RC Model DIY Engine\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications:Material: MetalColor: SilverRated Voltage: 24VVoltage Range:\n6-24VNo-load Speed: 530RPMLoad Spee: 430RPMNo-load Current: 90mALoad Current:\n480mAStall Current:2.5ATorque: 3.2kg.cmReduction Ratio: 18.8:1Gearbox\nSize(DL): 37x22mm\/1.46x0.87inchMotor Size(DL): 34.5x30mm\/1.36x1.18inchShaft\nSize(DL): 6x15.5mm\/0.24x0.61inchEncoder Cable Length: 20cm\/7.87inchGross\nWeight: Approx. 190g Features:The encoder has 6 color-coded, 7.87\" (20 cm)\nleads terminated by a 6 female header with a 0.1\" pitch.The A and B outputs of\nthe hall sensor are square waves from 0 V to Vcc approximately 90° out of\nphase. The face plate has 6 mounting holes evenly spaced around the outer edge\nthreaded for M3 screws;These mounting holes form a regular hexagon and the\ncenters of neighboring holes are 15.5 mm apart. Package Includes:1 X DC 24V\n530RPM Gear Motor with Encoder\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eRated Voltage: 24V; Using Range: 6-24V; Speed: 530RPM\u003c\/li\u003e\n \u003cli\u003eGearbox Size(D*L): 1.46x0.87inch; Motor Size(D*L): 1.36x1.18inch\u003c\/li\u003e\n \u003cli\u003eD-shape Shaft Size(D*L): 0.24x0.61inch; Mounting Hole Size: M3\u003c\/li\u003e\n \u003cli\u003eThe encoder has 6 color-coded, 7.87\" (20 cm) leads terminated by a 6 female header with a 0.1\" pitch.\u003c\/li\u003e\n \u003cli\u003eGreat for robot or other items which need to change directions.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
