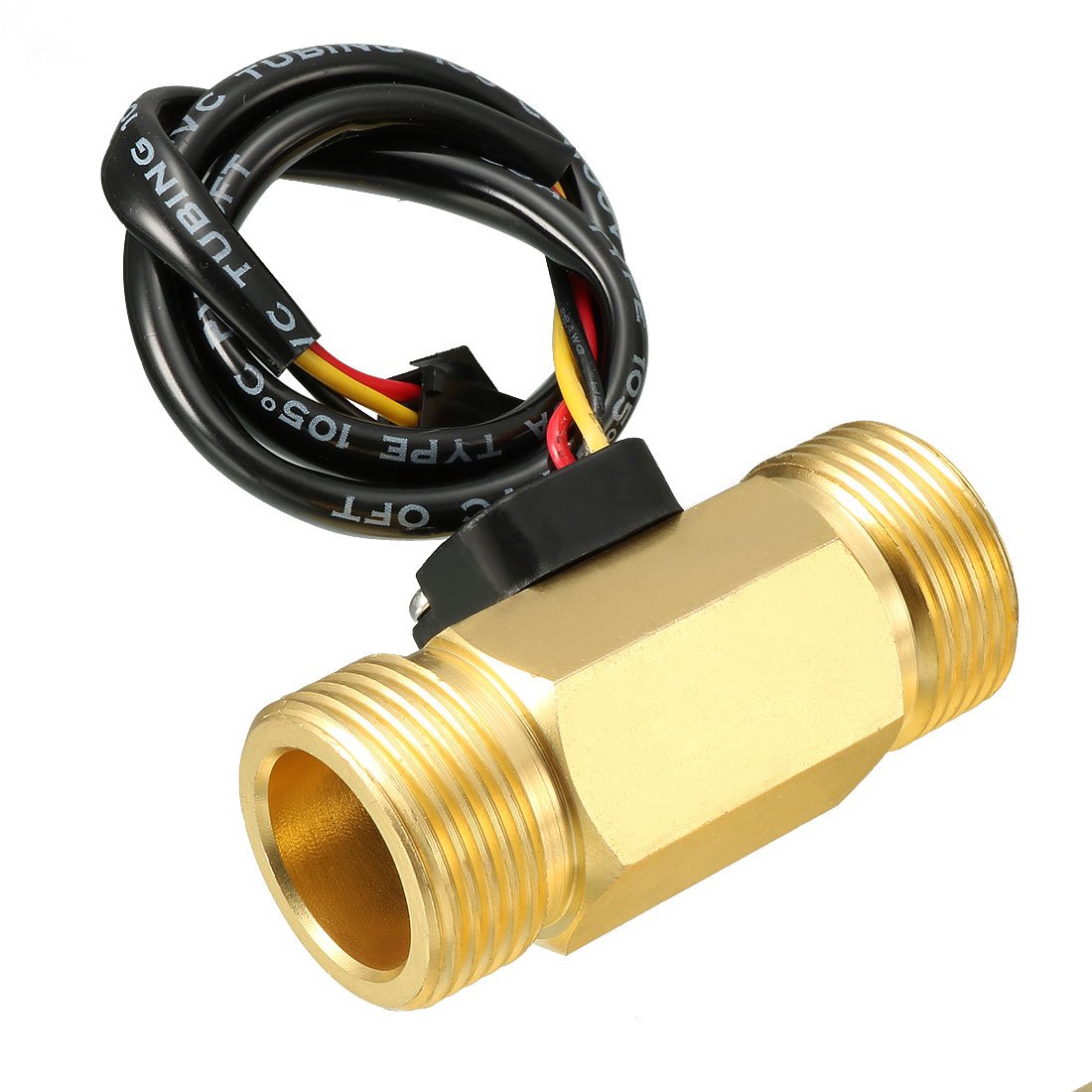

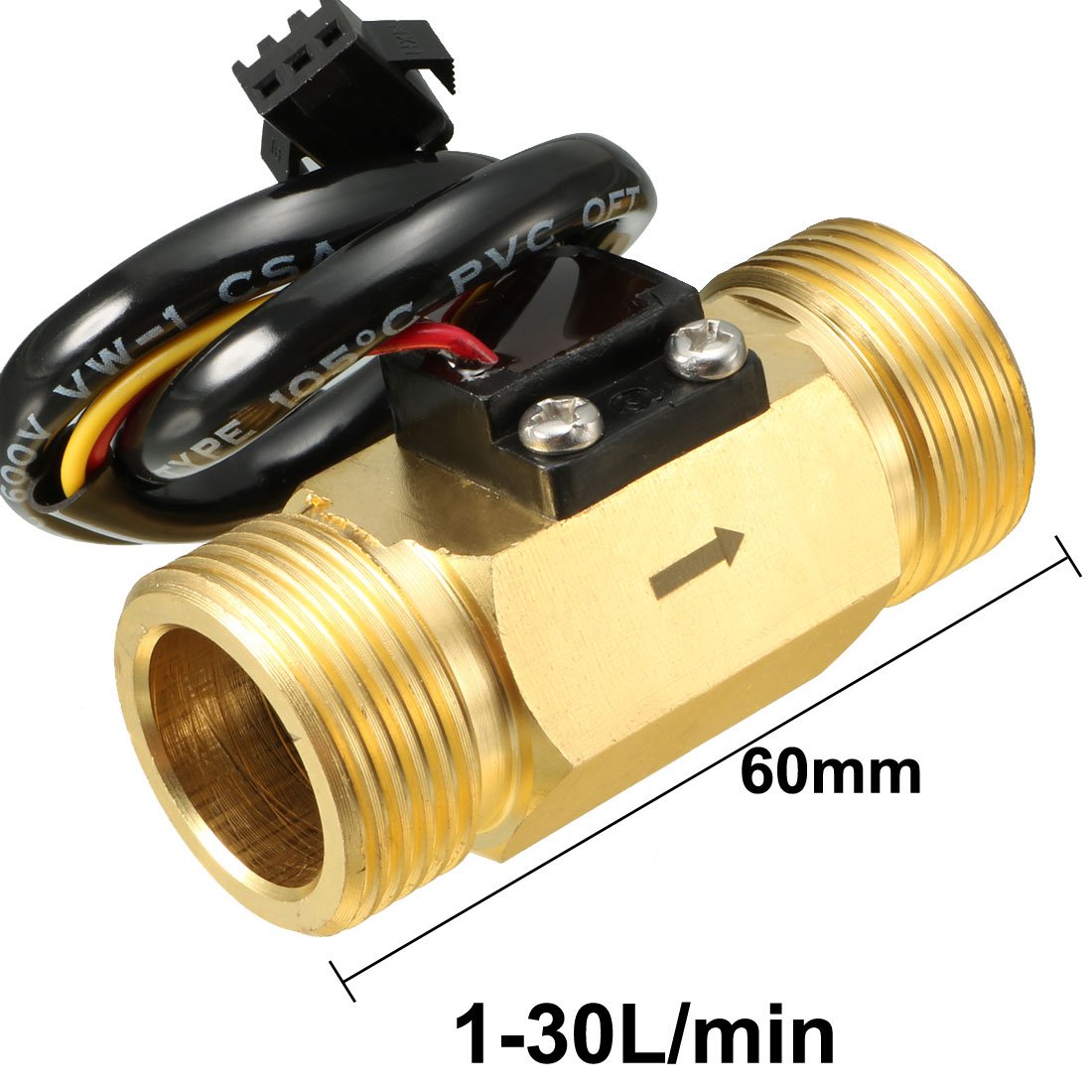

{"id":8013213139124,"title":"uxcell G1\/2\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 60mm 1-30L\/min SEN-HZ21WI","handle":"uxcell-g1-2-hall-effect-liquid-water-flow-sensor-switch-flowmeter-counter-meter-dc-5v-60mm-1-30l-min-sen-hz21wi","description":"\u003ch3\u003euxcell G1\/2\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 60mm 1-30L\/min SEN-HZ21WI\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e1. The Water Flow Sensor is light, nimble outline, small size and easy to\r\ninstall. All materials are in line with SGS testing standards. 2. There is an\r\nintegrated hall effect sensor that outputs an electrical pulse with every\r\nrevolution. The hall effect sensor is sealed from the water pipe and allows\r\nthe sensor to stay safe and dry. 3. Stable, high temperature, low water\r\npressure start. 4. Can use for Water heaters, credit card machines, water\r\nvending machine, flow measurement device. 5. Three wire connection: Red for\r\npositive, black for negative, yellow for pulse signal. Specifications: Product\r\nName: Water Flow Sensor Material: Brass(Shell) Liquid Temperature: Not More\r\nThan 60C External Thread Diameter: G1\/2 Tube Length: 60mm Flow Range:\r\n1-30L\/min Working Voltage Range: DC5V Max Current: 10mA Maximum Water\r\nPressure: 1.75MPa Instantaneous Flow Pulse Characteristic F=(10Q-4)+\/-10% The\r\ncumulative flow pulse conversion rate 1L WATER=596pulse+\/-10% Connector: Male\r\nSM-3P Cable Length: 35cm Size: 60mm x 24mm x 27mm(LWH) Ingress Protection\r\nRating: IP65 Color: Brass Tone Net Weight: 99g Package Included: 1 x Water\r\nFlow Sensor Note: 1. Installed in accordance with flow direction in the\r\nproduct, otherwise there is no signal output. 2. A filter screen must be\r\ninstalled at the inlet of the sensor, in order to avoid particles and debris\r\nentering the sensor.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eStable, high temperature, low water pressure start.\u003c\/li\u003e\r\n \u003cli\u003eBrass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.\u003c\/li\u003e\r\n \u003cli\u003eThe water flow sensor is applied for water heater, and can be used as flow switch.\u003c\/li\u003e\r\n \u003cli\u003eAll materials are in line with SGS testing standards.\u003c\/li\u003e\r\n \u003cli\u003eFlow Range: 1-30L\/Min; Maximum Water Pressure: 1.75MPa\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-12-07T19:44:55+11:00","created_at":"2025-12-07T19:44:52+11:00","vendor":"uxcell","type":"Flowmeters","tags":["industrial_selected_Nov2025"],"price":12000,"price_min":12000,"price_max":12000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44102866632884,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07DM26X87","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"uxcell G1\/2\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 60mm 1-30L\/min SEN-HZ21WI","public_title":null,"options":["Default Title"],"price":12000,"weight":91,"compare_at_price":null,"inventory_management":"shopify","barcode":"a18041200ux0140","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07DM.jpg?v=1775782102","\/\/auspowers.com\/cdn\/shop\/files\/71HaWMG8KyL.jpg?v=1765097094","\/\/auspowers.com\/cdn\/shop\/files\/71Adca-8bBL.jpg?v=1765097094","\/\/auspowers.com\/cdn\/shop\/files\/71edNI1lJkL.jpg?v=1765097094","\/\/auspowers.com\/cdn\/shop\/files\/61OYS1Rt1yL.jpg?v=1765097094"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07DM.jpg?v=1775782102","options":["Title"],"media":[{"alt":"[Australia - AusPower] - uxcell G1\/2\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 60mm 1-30L\/min SEN-HZ21WI ","id":32452854874292,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07DM.jpg?v=1775782102"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07DM.jpg?v=1775782102","width":1100},{"alt":"[Australia - AusPower] - uxcell G1\/2\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 60mm 1-30L\/min SEN-HZ21WI ","id":32452854907060,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71HaWMG8KyL.jpg?v=1765097094"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71HaWMG8KyL.jpg?v=1765097094","width":1100},{"alt":"[Australia - AusPower] - uxcell G1\/2\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 60mm 1-30L\/min SEN-HZ21WI ","id":32452854939828,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Adca-8bBL.jpg?v=1765097094"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Adca-8bBL.jpg?v=1765097094","width":1100},{"alt":"[Australia - AusPower] - uxcell G1\/2\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 60mm 1-30L\/min SEN-HZ21WI ","id":32452854972596,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71edNI1lJkL.jpg?v=1765097094"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71edNI1lJkL.jpg?v=1765097094","width":1100},{"alt":"[Australia - AusPower] - uxcell G1\/2\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 60mm 1-30L\/min SEN-HZ21WI ","id":32452855005364,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61OYS1Rt1yL.jpg?v=1765097094"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61OYS1Rt1yL.jpg?v=1765097094","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003euxcell G1\/2\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 60mm 1-30L\/min SEN-HZ21WI\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e1. The Water Flow Sensor is light, nimble outline, small size and easy to\r\ninstall. All materials are in line with SGS testing standards. 2. There is an\r\nintegrated hall effect sensor that outputs an electrical pulse with every\r\nrevolution. The hall effect sensor is sealed from the water pipe and allows\r\nthe sensor to stay safe and dry. 3. Stable, high temperature, low water\r\npressure start. 4. Can use for Water heaters, credit card machines, water\r\nvending machine, flow measurement device. 5. Three wire connection: Red for\r\npositive, black for negative, yellow for pulse signal. Specifications: Product\r\nName: Water Flow Sensor Material: Brass(Shell) Liquid Temperature: Not More\r\nThan 60C External Thread Diameter: G1\/2 Tube Length: 60mm Flow Range:\r\n1-30L\/min Working Voltage Range: DC5V Max Current: 10mA Maximum Water\r\nPressure: 1.75MPa Instantaneous Flow Pulse Characteristic F=(10Q-4)+\/-10% The\r\ncumulative flow pulse conversion rate 1L WATER=596pulse+\/-10% Connector: Male\r\nSM-3P Cable Length: 35cm Size: 60mm x 24mm x 27mm(LWH) Ingress Protection\r\nRating: IP65 Color: Brass Tone Net Weight: 99g Package Included: 1 x Water\r\nFlow Sensor Note: 1. Installed in accordance with flow direction in the\r\nproduct, otherwise there is no signal output. 2. A filter screen must be\r\ninstalled at the inlet of the sensor, in order to avoid particles and debris\r\nentering the sensor.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eStable, high temperature, low water pressure start.\u003c\/li\u003e\r\n \u003cli\u003eBrass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.\u003c\/li\u003e\r\n \u003cli\u003eThe water flow sensor is applied for water heater, and can be used as flow switch.\u003c\/li\u003e\r\n \u003cli\u003eAll materials are in line with SGS testing standards.\u003c\/li\u003e\r\n \u003cli\u003eFlow Range: 1-30L\/Min; Maximum Water Pressure: 1.75MPa\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
