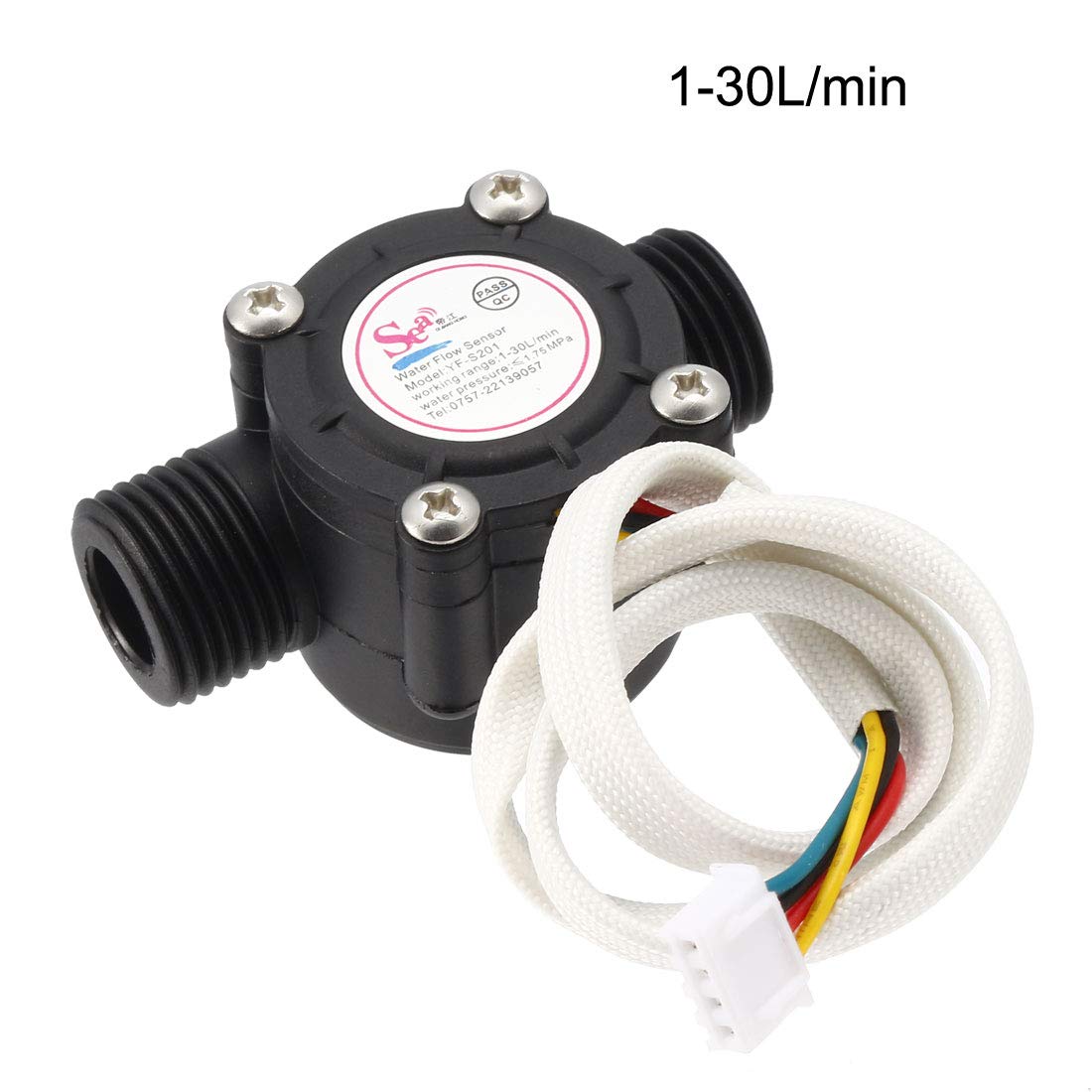

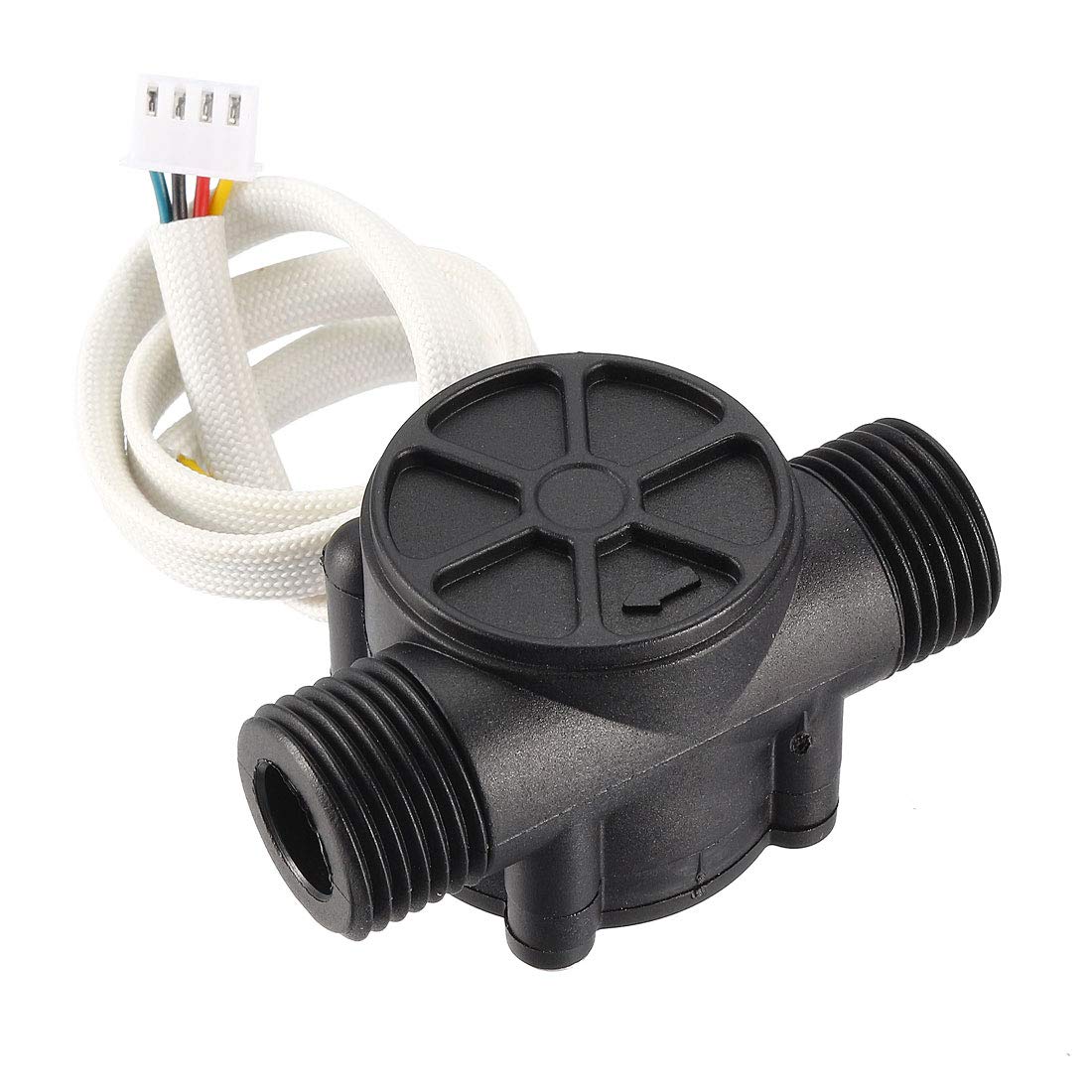

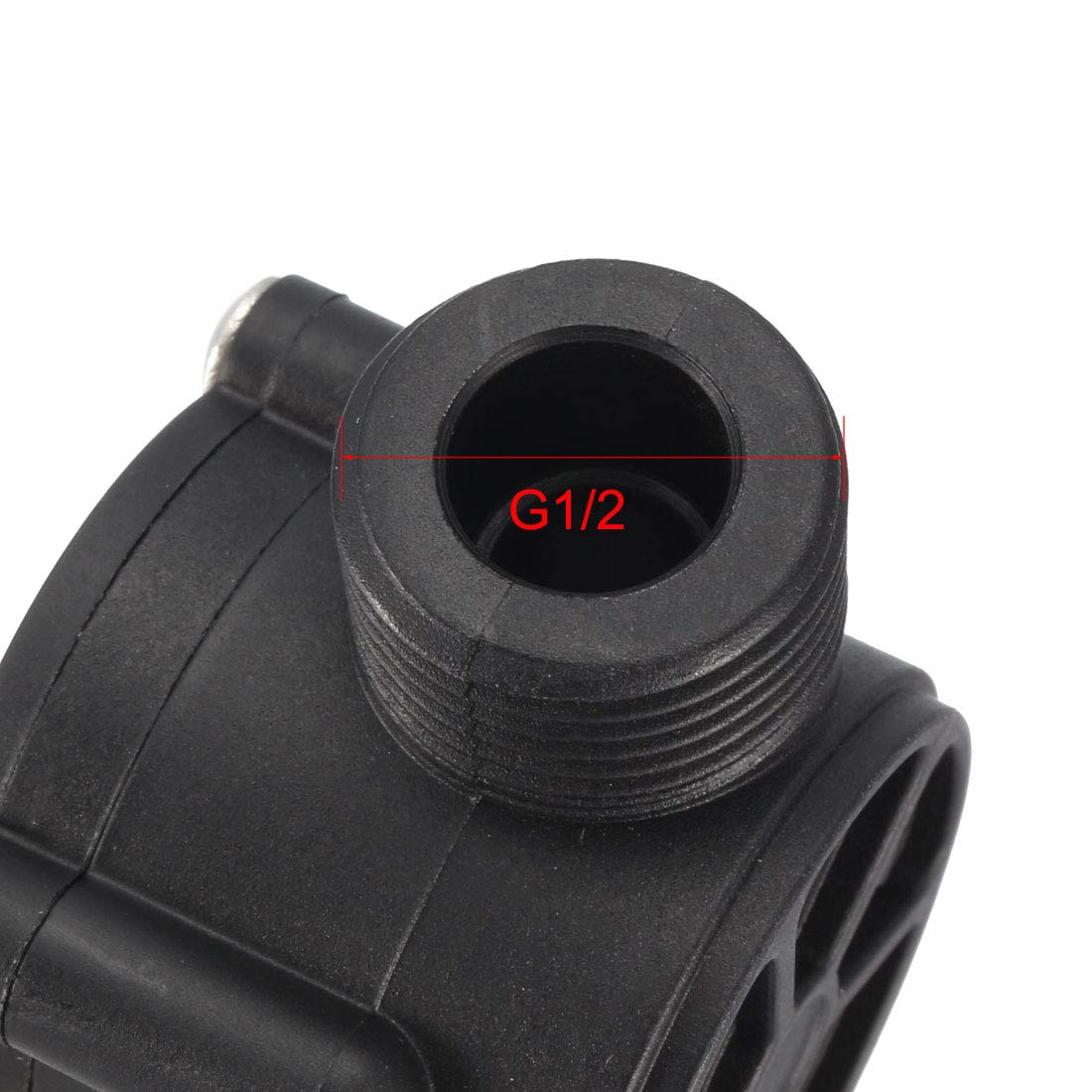

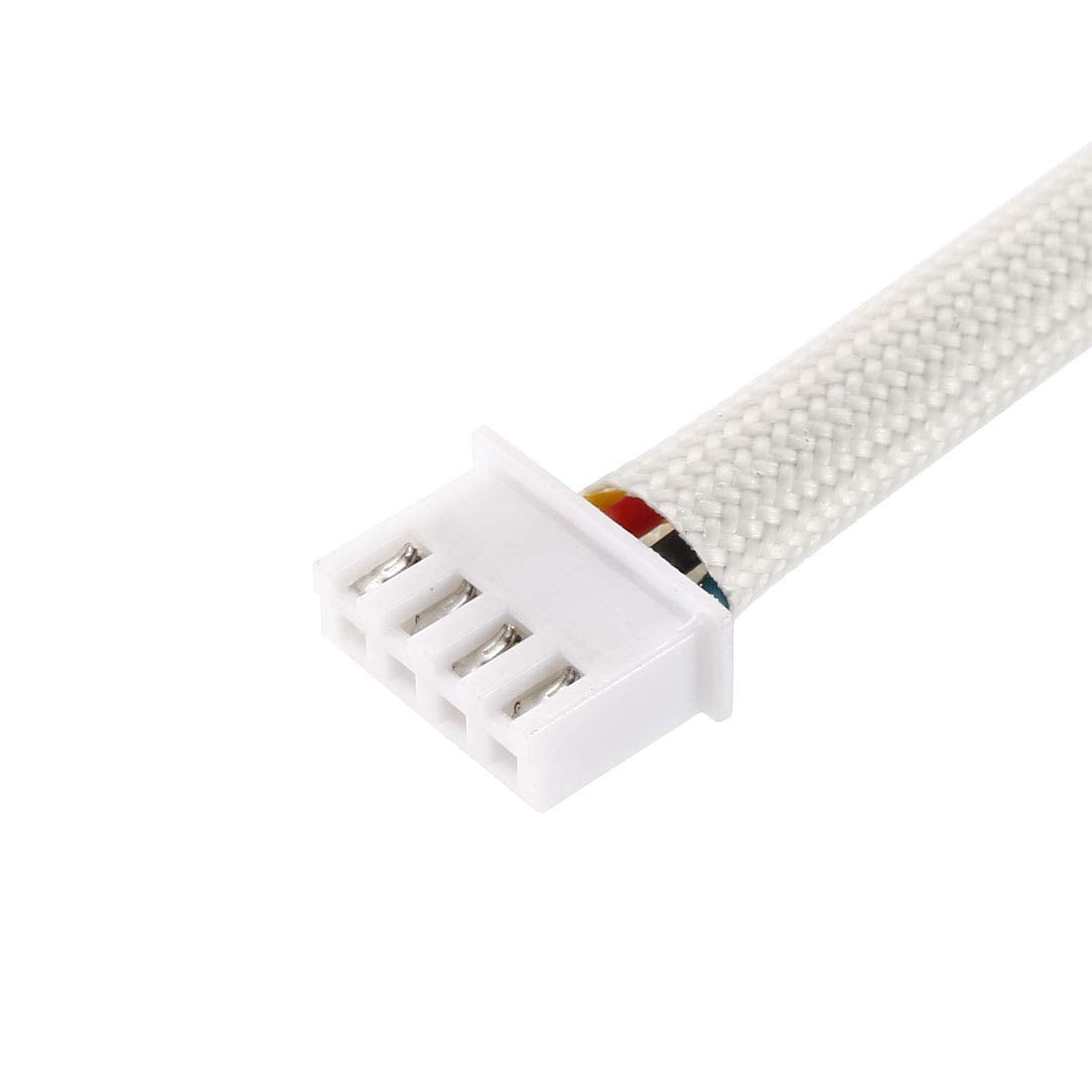

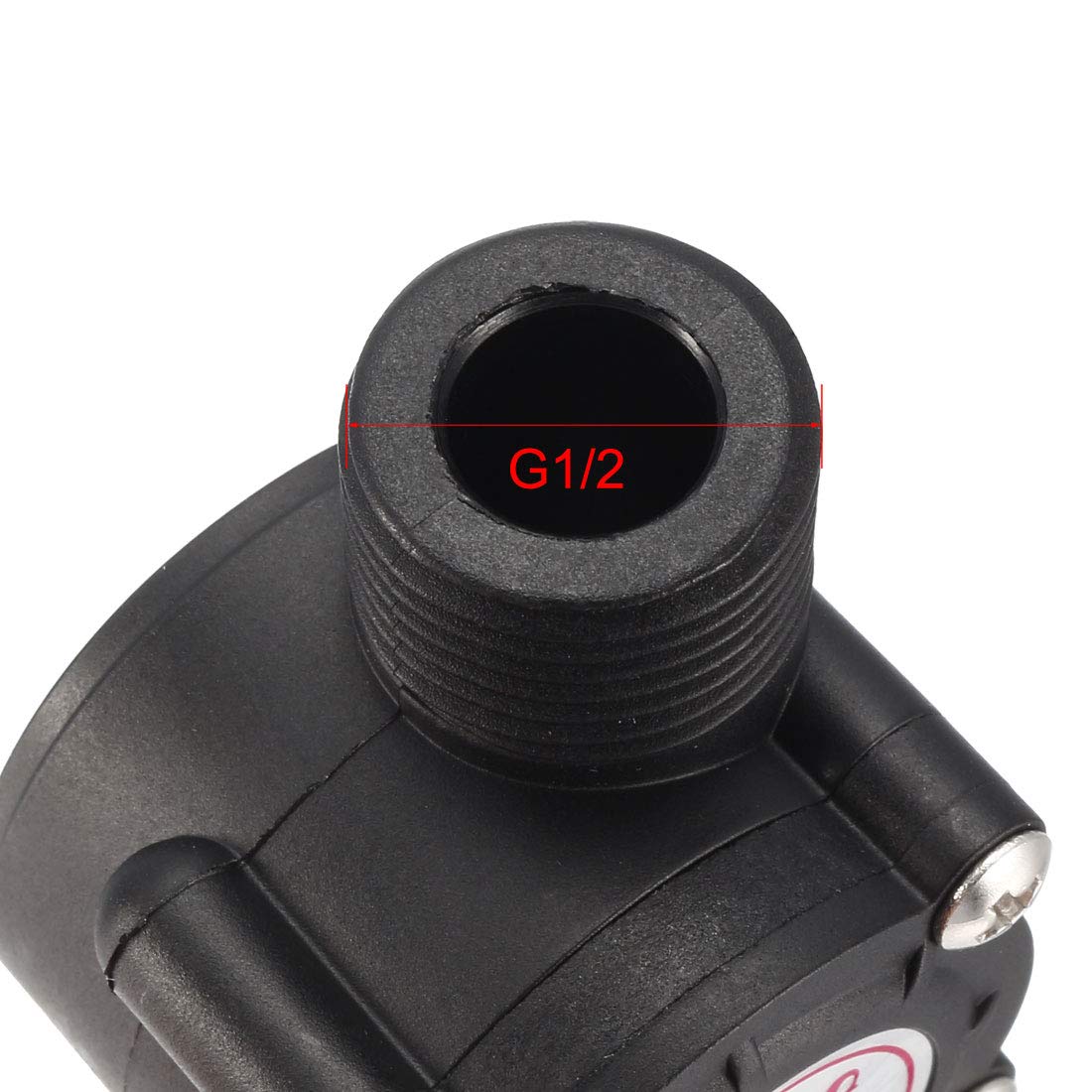

{"id":7170992242868,"title":"uxcell G1\/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-30L\/min Black YF-S201 4 Wire","handle":"uxcell-g1-2-hall-effect-liquid-water-flow-sensor-switch-flowmeter-counter-dc5v-1-30l-min-black-yf-s201-4-wire","description":"\u003ch3\u003euxcell G1\/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-30L\/min Black YF-S201 4 Wire\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1. The Water Flow Sensor is light, nimble outline, small size and easy to\ninstall. The bearings used in the rotating part.2. There is an integrated\nmagnetic hall effect sensor that outputs an electrical pulse with every\nrevolution. The hall effect sensor is sealed from the water pipe and allows\nthe sensor to stay safe and dry.3. Four wire connection: Red for positive,\nblack for negative, yellow for pulse signal, green for temperature\nsignal(3950K 50K). Specifications:Product Name: Water Flow SensorMaterial:\nNylon(Shell)Size: 62mm x 36mm x 34mm \/ 2.44\" x 1.42\" x 1.34\"(LWH)Cable\nLength: 390mm \/ 15.35\"Liquid Temperature: Not More Than 60CRated Voltage: DC\n5VMax Current: 10mA(DC 5V)Maximum water pressure: 1.75MPaFlow range:\n1-30L\/minConnector: Male XH-4PExternal Thread Diameter: G1\/2Ingress Protection\nRating: IP65Color: BlackNet Weight: 58g Package Included:1 x Water Flow Sensor\nNote: 1. Installed in accordance with flow direction in the product, otherwise\nthere is no signal output.2. A filter screen must be installed at the inlet of\nthe sensor, in order to avoid particles and debris entering the sensor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLight weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.\u003c\/li\u003e\n \u003cli\u003eNylon made, explosion-proof, heat and cold resistant.\u003c\/li\u003e\n \u003cli\u003eFour wire connection: Red for positive, black for negative, yellow for pulse signal, green for temperature signal(3950K 50K).\u003c\/li\u003e\n \u003cli\u003eThe water flow sensor is applied for water heater, and can be used as flow switch.\u003c\/li\u003e\n \u003cli\u003eMaximum water pressure:1.75MPa, flow range: 1-30L\/min.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-27T21:19:40+10:00","created_at":"2022-06-27T21:19:46+10:00","vendor":"uxcell","type":"Flowmeters","tags":["industrial"],"price":12700,"price_min":12700,"price_max":12700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41611577065652,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07WHHGFGH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"uxcell G1\/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-30L\/min Black YF-S201 4 Wire","public_title":null,"options":["Default Title"],"price":12700,"weight":60,"compare_at_price":null,"inventory_management":null,"barcode":"a19052300ux0377","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07WHHGFGH.jpg?v=1656401162","\/\/auspowers.com\/cdn\/shop\/products\/61ZJ8lMjzgL.jpg?v=1656328786","\/\/auspowers.com\/cdn\/shop\/products\/61aIwan-tNL.jpg?v=1656328786","\/\/auspowers.com\/cdn\/shop\/products\/61wq68EJ4TL.jpg?v=1656328786","\/\/auspowers.com\/cdn\/shop\/products\/51zDIIEPMnL.jpg?v=1656328786"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07WHHGFGH.jpg?v=1656401162","options":["Title"],"media":[{"alt":"[Australia - AusPower] - uxcell G1\/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-30L\/min Black YF-S201 4 Wire ","id":26320710107316,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07WHHGFGH.jpg?v=1656401162"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07WHHGFGH.jpg?v=1656401162","width":1100},{"alt":"[Australia - AusPower] - uxcell G1\/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-30L\/min Black YF-S201 4 Wire ","id":26307356065972,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61ZJ8lMjzgL.jpg?v=1656328786"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61ZJ8lMjzgL.jpg?v=1656328786","width":1100},{"alt":"[Australia - AusPower] - uxcell G1\/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-30L\/min Black YF-S201 4 Wire ","id":26307356098740,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61aIwan-tNL.jpg?v=1656328786"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61aIwan-tNL.jpg?v=1656328786","width":1100},{"alt":"[Australia - AusPower] - uxcell G1\/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-30L\/min Black YF-S201 4 Wire ","id":26307356131508,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61wq68EJ4TL.jpg?v=1656328786"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61wq68EJ4TL.jpg?v=1656328786","width":1100},{"alt":"[Australia - AusPower] - uxcell G1\/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-30L\/min Black YF-S201 4 Wire ","id":26307356164276,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51zDIIEPMnL.jpg?v=1656328786"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51zDIIEPMnL.jpg?v=1656328786","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003euxcell G1\/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-30L\/min Black YF-S201 4 Wire\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1. The Water Flow Sensor is light, nimble outline, small size and easy to\ninstall. The bearings used in the rotating part.2. There is an integrated\nmagnetic hall effect sensor that outputs an electrical pulse with every\nrevolution. The hall effect sensor is sealed from the water pipe and allows\nthe sensor to stay safe and dry.3. Four wire connection: Red for positive,\nblack for negative, yellow for pulse signal, green for temperature\nsignal(3950K 50K). Specifications:Product Name: Water Flow SensorMaterial:\nNylon(Shell)Size: 62mm x 36mm x 34mm \/ 2.44\" x 1.42\" x 1.34\"(LWH)Cable\nLength: 390mm \/ 15.35\"Liquid Temperature: Not More Than 60CRated Voltage: DC\n5VMax Current: 10mA(DC 5V)Maximum water pressure: 1.75MPaFlow range:\n1-30L\/minConnector: Male XH-4PExternal Thread Diameter: G1\/2Ingress Protection\nRating: IP65Color: BlackNet Weight: 58g Package Included:1 x Water Flow Sensor\nNote: 1. Installed in accordance with flow direction in the product, otherwise\nthere is no signal output.2. A filter screen must be installed at the inlet of\nthe sensor, in order to avoid particles and debris entering the sensor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLight weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.\u003c\/li\u003e\n \u003cli\u003eNylon made, explosion-proof, heat and cold resistant.\u003c\/li\u003e\n \u003cli\u003eFour wire connection: Red for positive, black for negative, yellow for pulse signal, green for temperature signal(3950K 50K).\u003c\/li\u003e\n \u003cli\u003eThe water flow sensor is applied for water heater, and can be used as flow switch.\u003c\/li\u003e\n \u003cli\u003eMaximum water pressure:1.75MPa, flow range: 1-30L\/min.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
