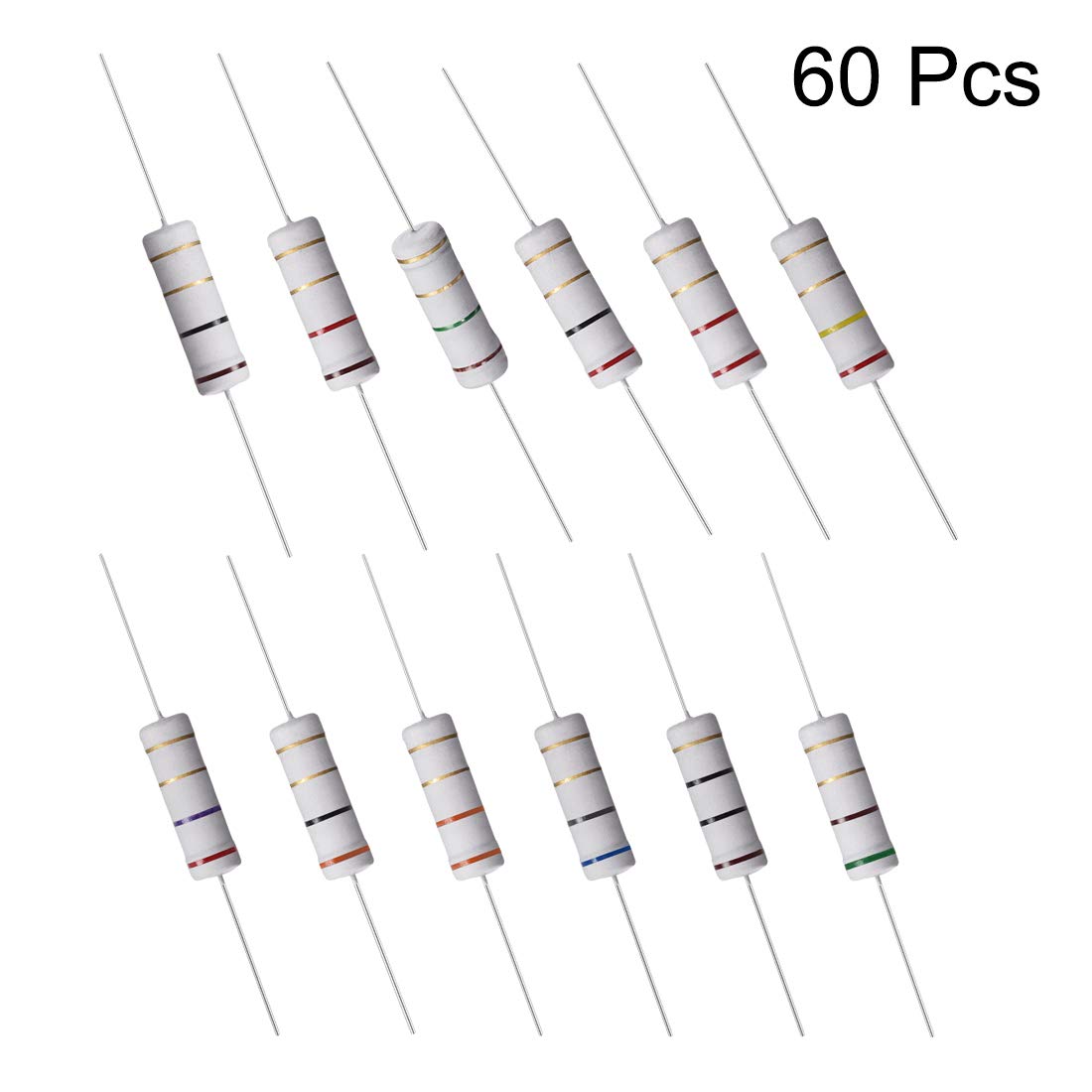

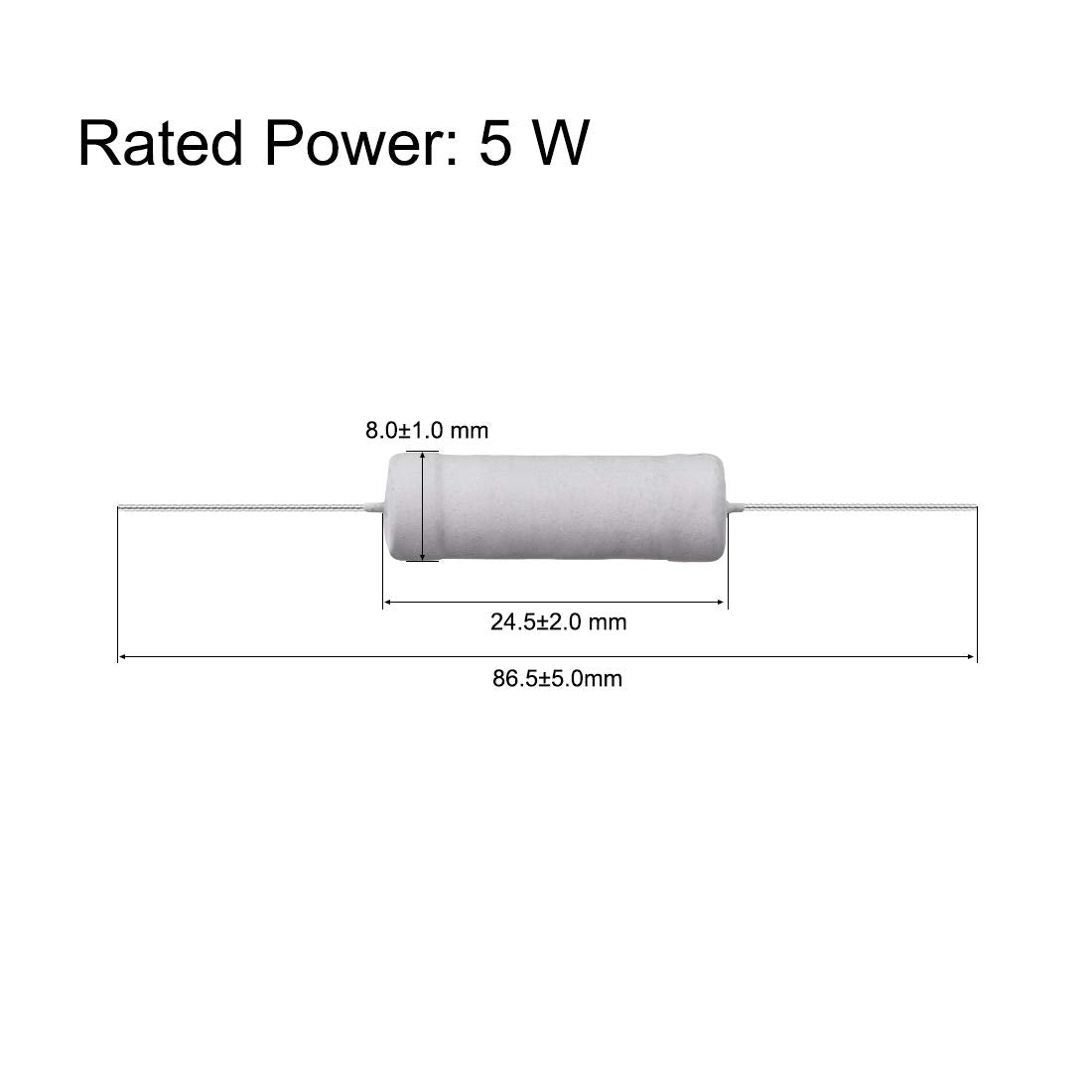

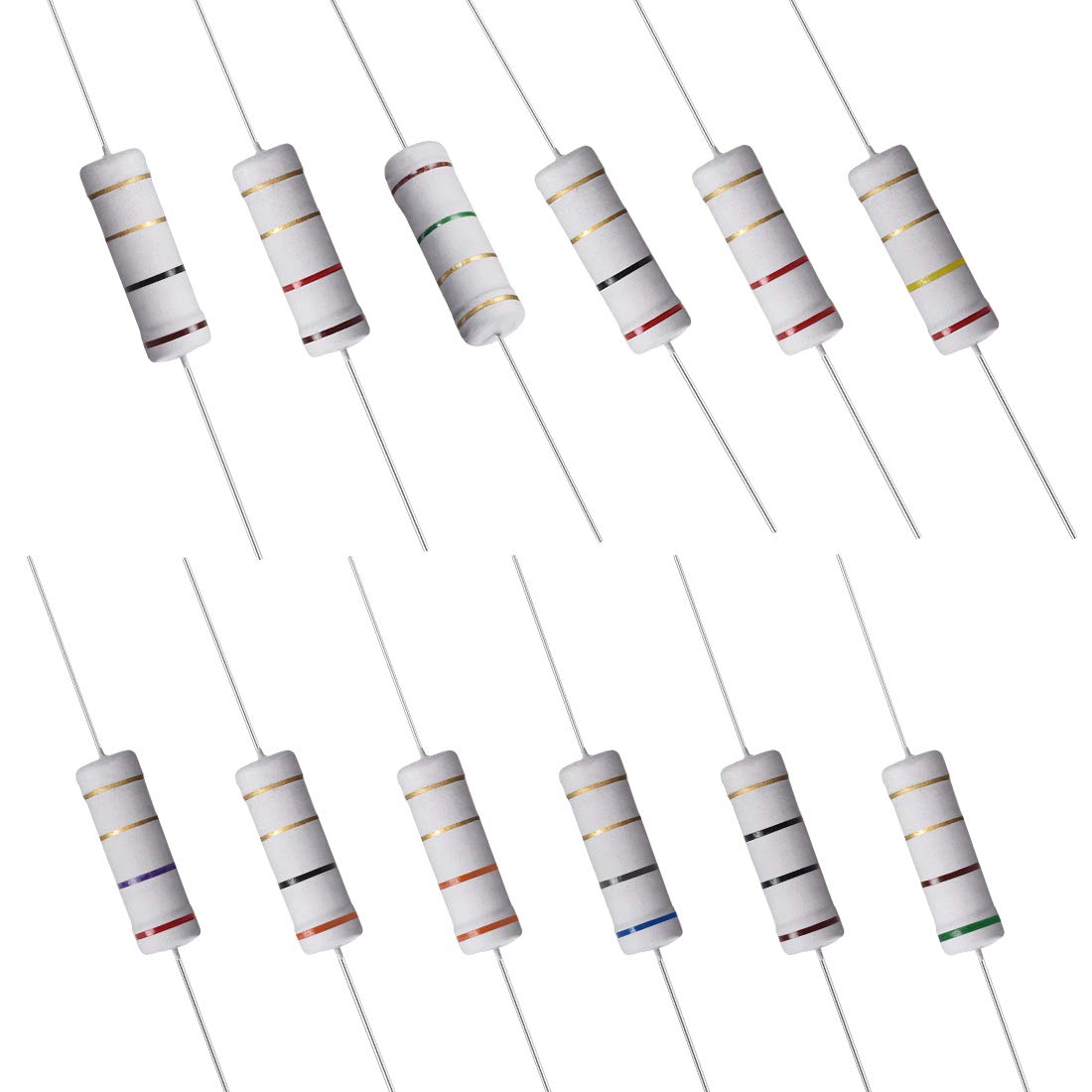

{"id":7167425314996,"title":"uxcell 60 Pcs 5W Metal Oxide Film Resistor 1R,1.2R,1.5R,2R,2.2R,2.4R,2.7R,3R,3.3R,5.1R,6.8R,10R Ohm","handle":"uxcell-60-pcs-5w-metal-oxide-film-resistor-1r-1-2r-1-5r-2r-2-2r-2-4r-2-7r-3r-3-3r-5-1r-6-8r-10r-ohm","description":"\u003ch3\u003euxcell 60 Pcs 5W Metal Oxide Film Resistor 1R,1.2R,1.5R,2R,2.2R,2.4R,2.7R,3R,3.3R,5.1R,6.8R,10R Ohm\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Metal oxide film resistors exceed the performance of metal film and\ncarbon film for the following properties: power rating, voltage rating,\noverload capabilities, surges and high temperatures.The metal oxide film\nresistors have 5% tolerance. The temperature coefficient is around\n-55℃～155℃.The resistance material for metal oxide resistors is tin oxide that\nis contaminated with oxide, this is to increase the resistivity. Metal oxide\nresistors can withstand higher temperatures than carbon or metal film\nresistors.Noted:Different Resistance on this listing, please check what you\nneed correctly before purchasing. Specification： Rated Power:5 W;Maximum\nworking voltage:500V;Maximum overload voltage:1000V;Maximum pulse\nvoltage:1500V;Dielectric withstanding voltage:700VOperating temperature\nrange:-55℃～155℃;Resistance Values (Ohm):\n1R,1.2R,1.5R,2R,2.2R,2.4R,2.7R,3R,3.3R,5.1R,6.8R,10R;Resistance Tolerance\n(%):5%;Body Size:24.5±2.0 mm x 8.0±1.0 mm（LxD)Total Length:86.5±5.0mm;Lead\nWire Size:31±5mm x 0.7±0.1mm(LxD) Package Content： 60 Pcs x Metal Oxide Film\nResistor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMetal oxide film resistors exceed the performance of metal film and carbon film for the following properties: operate at higher temperatures; produce low noise; small size; high stability; high reliability.\u003c\/li\u003e\n \u003cli\u003eThe metal oxide film resistors have 5% tolerance. The temperature coefficient is around -55C~155C.\u003c\/li\u003e\n \u003cli\u003eThe metal oxide film resistor is made by coating the ceramic core with metal oxide The antimony oxide is added to the tin oxide to increase its resistivity.\u003c\/li\u003e\n \u003cli\u003eRated Power:5 W;Maximum working voltage:500V;Maximum overload voltage:1000V;Maximum pulse voltage:1500V;Dielectric withstanding voltage:700V;Operating temperature range:-55C~155C;Resistance Tolerance (%):5%;\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-24T14:44:45+10:00","created_at":"2022-06-24T14:44:50+10:00","vendor":"uxcell","type":"Single Resistors","tags":["industrial"],"price":16000,"price_min":16000,"price_max":16000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41604393369780,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07V81MGGB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"uxcell 60 Pcs 5W Metal Oxide Film Resistor 1R,1.2R,1.5R,2R,2.2R,2.4R,2.7R,3R,3.3R,5.1R,6.8R,10R Ohm","public_title":null,"options":["Default Title"],"price":16000,"weight":200,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07V81MGGB.jpg?v=1656052892","\/\/auspowers.com\/cdn\/shop\/products\/51vz6VnwjtL.jpg?v=1656045890","\/\/auspowers.com\/cdn\/shop\/products\/51v7hCzWlKL.jpg?v=1656045890","\/\/auspowers.com\/cdn\/shop\/products\/61_AERx0CWS_ccd03c3f-ef31-4125-b59c-d68eebec6797.jpg?v=1656045890","\/\/auspowers.com\/cdn\/shop\/products\/81C96oCgyTS_d5b80fa4-5ff2-4fdf-9d53-fb4f41a46e98.jpg?v=1656045890"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07V81MGGB.jpg?v=1656052892","options":["Title"],"media":[{"alt":"[Australia - AusPower] - uxcell 60 Pcs 5W Metal Oxide Film Resistor 1R,1.2R,1.5R,2R,2.2R,2.4R,2.7R,3R,3.3R,5.1R,6.8R,10R Ohm ","id":26268640870580,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07V81MGGB.jpg?v=1656052892"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07V81MGGB.jpg?v=1656052892","width":1100},{"alt":"[Australia - AusPower] - uxcell 60 Pcs 5W Metal Oxide Film Resistor 1R,1.2R,1.5R,2R,2.2R,2.4R,2.7R,3R,3.3R,5.1R,6.8R,10R Ohm ","id":26267425636532,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51vz6VnwjtL.jpg?v=1656045890"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51vz6VnwjtL.jpg?v=1656045890","width":1100},{"alt":"[Australia - AusPower] - uxcell 60 Pcs 5W Metal Oxide Film Resistor 1R,1.2R,1.5R,2R,2.2R,2.4R,2.7R,3R,3.3R,5.1R,6.8R,10R Ohm ","id":26267425669300,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51v7hCzWlKL.jpg?v=1656045890"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51v7hCzWlKL.jpg?v=1656045890","width":1100},{"alt":"[Australia - AusPower] - uxcell 60 Pcs 5W Metal Oxide Film Resistor 1R,1.2R,1.5R,2R,2.2R,2.4R,2.7R,3R,3.3R,5.1R,6.8R,10R Ohm ","id":26267425702068,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61_AERx0CWS_ccd03c3f-ef31-4125-b59c-d68eebec6797.jpg?v=1656045890"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61_AERx0CWS_ccd03c3f-ef31-4125-b59c-d68eebec6797.jpg?v=1656045890","width":1100},{"alt":"[Australia - AusPower] - uxcell 60 Pcs 5W Metal Oxide Film Resistor 1R,1.2R,1.5R,2R,2.2R,2.4R,2.7R,3R,3.3R,5.1R,6.8R,10R Ohm ","id":26267425734836,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81C96oCgyTS_d5b80fa4-5ff2-4fdf-9d53-fb4f41a46e98.jpg?v=1656045890"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81C96oCgyTS_d5b80fa4-5ff2-4fdf-9d53-fb4f41a46e98.jpg?v=1656045890","width":2000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003euxcell 60 Pcs 5W Metal Oxide Film Resistor 1R,1.2R,1.5R,2R,2.2R,2.4R,2.7R,3R,3.3R,5.1R,6.8R,10R Ohm\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Metal oxide film resistors exceed the performance of metal film and\ncarbon film for the following properties: power rating, voltage rating,\noverload capabilities, surges and high temperatures.The metal oxide film\nresistors have 5% tolerance. The temperature coefficient is around\n-55℃～155℃.The resistance material for metal oxide resistors is tin oxide that\nis contaminated with oxide, this is to increase the resistivity. Metal oxide\nresistors can withstand higher temperatures than carbon or metal film\nresistors.Noted:Different Resistance on this listing, please check what you\nneed correctly before purchasing. Specification： Rated Power:5 W;Maximum\nworking voltage:500V;Maximum overload voltage:1000V;Maximum pulse\nvoltage:1500V;Dielectric withstanding voltage:700VOperating temperature\nrange:-55℃～155℃;Resistance Values (Ohm):\n1R,1.2R,1.5R,2R,2.2R,2.4R,2.7R,3R,3.3R,5.1R,6.8R,10R;Resistance Tolerance\n(%):5%;Body Size:24.5±2.0 mm x 8.0±1.0 mm（LxD)Total Length:86.5±5.0mm;Lead\nWire Size:31±5mm x 0.7±0.1mm(LxD) Package Content： 60 Pcs x Metal Oxide Film\nResistor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMetal oxide film resistors exceed the performance of metal film and carbon film for the following properties: operate at higher temperatures; produce low noise; small size; high stability; high reliability.\u003c\/li\u003e\n \u003cli\u003eThe metal oxide film resistors have 5% tolerance. The temperature coefficient is around -55C~155C.\u003c\/li\u003e\n \u003cli\u003eThe metal oxide film resistor is made by coating the ceramic core with metal oxide The antimony oxide is added to the tin oxide to increase its resistivity.\u003c\/li\u003e\n \u003cli\u003eRated Power:5 W;Maximum working voltage:500V;Maximum overload voltage:1000V;Maximum pulse voltage:1500V;Dielectric withstanding voltage:700V;Operating temperature range:-55C~155C;Resistance Tolerance (%):5%;\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
