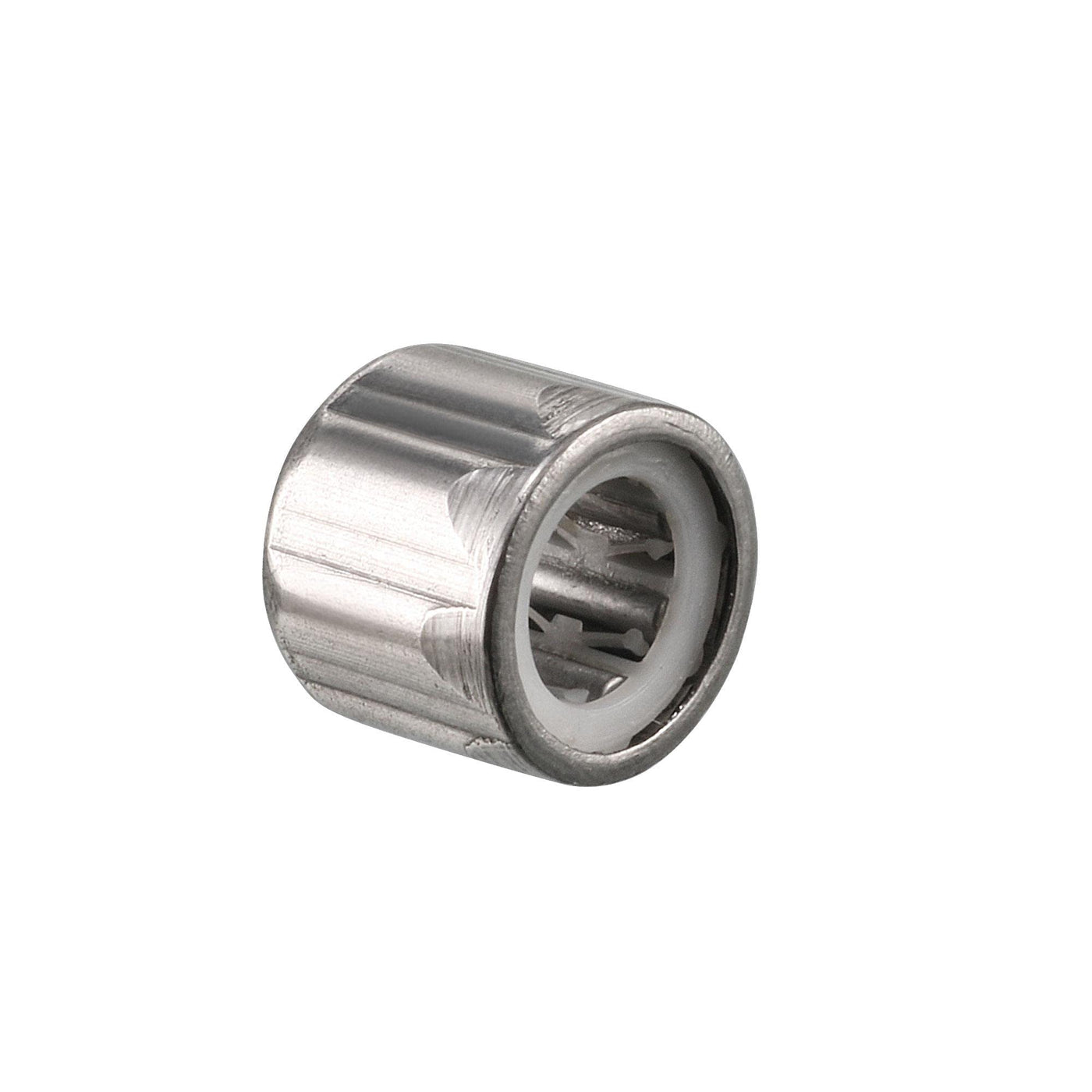

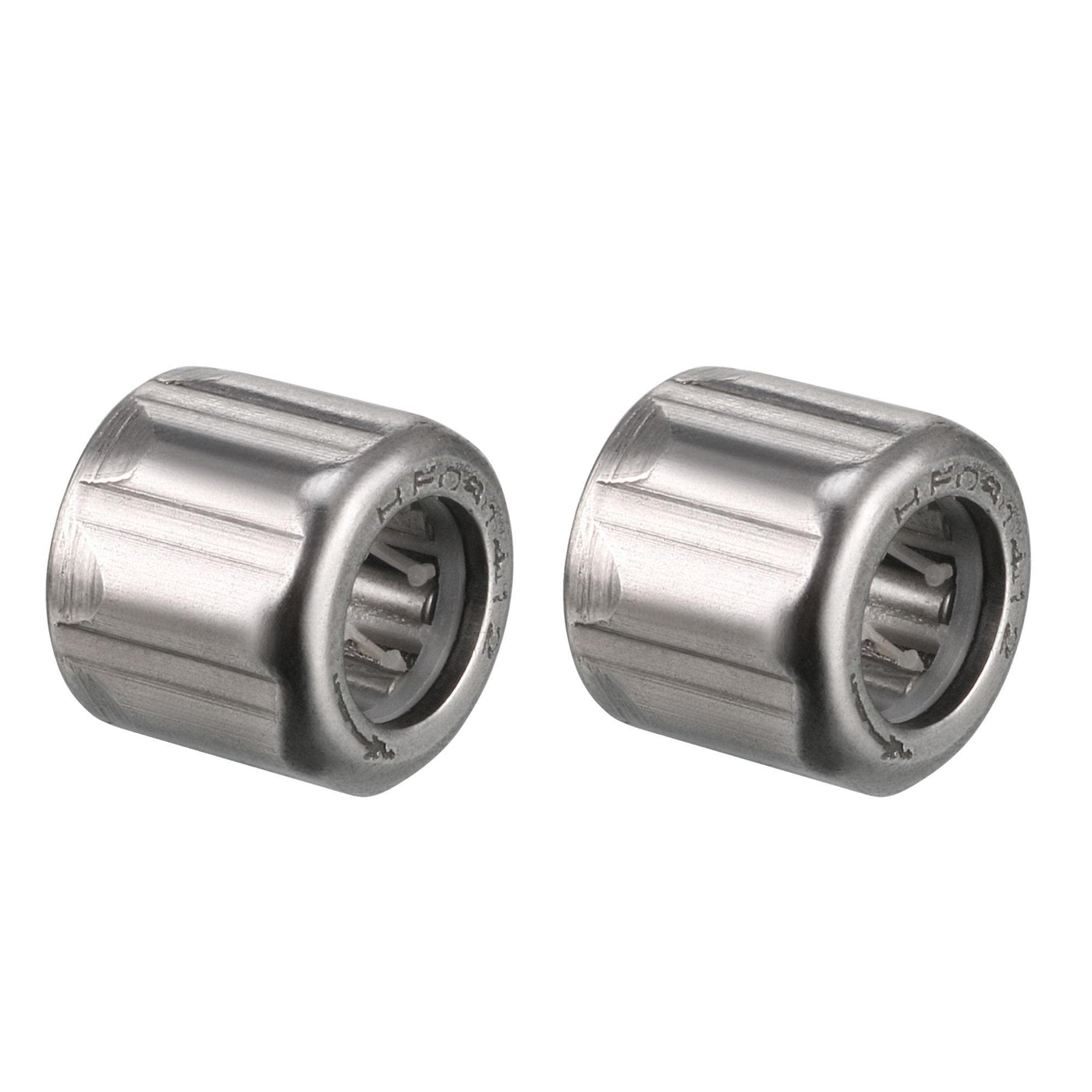

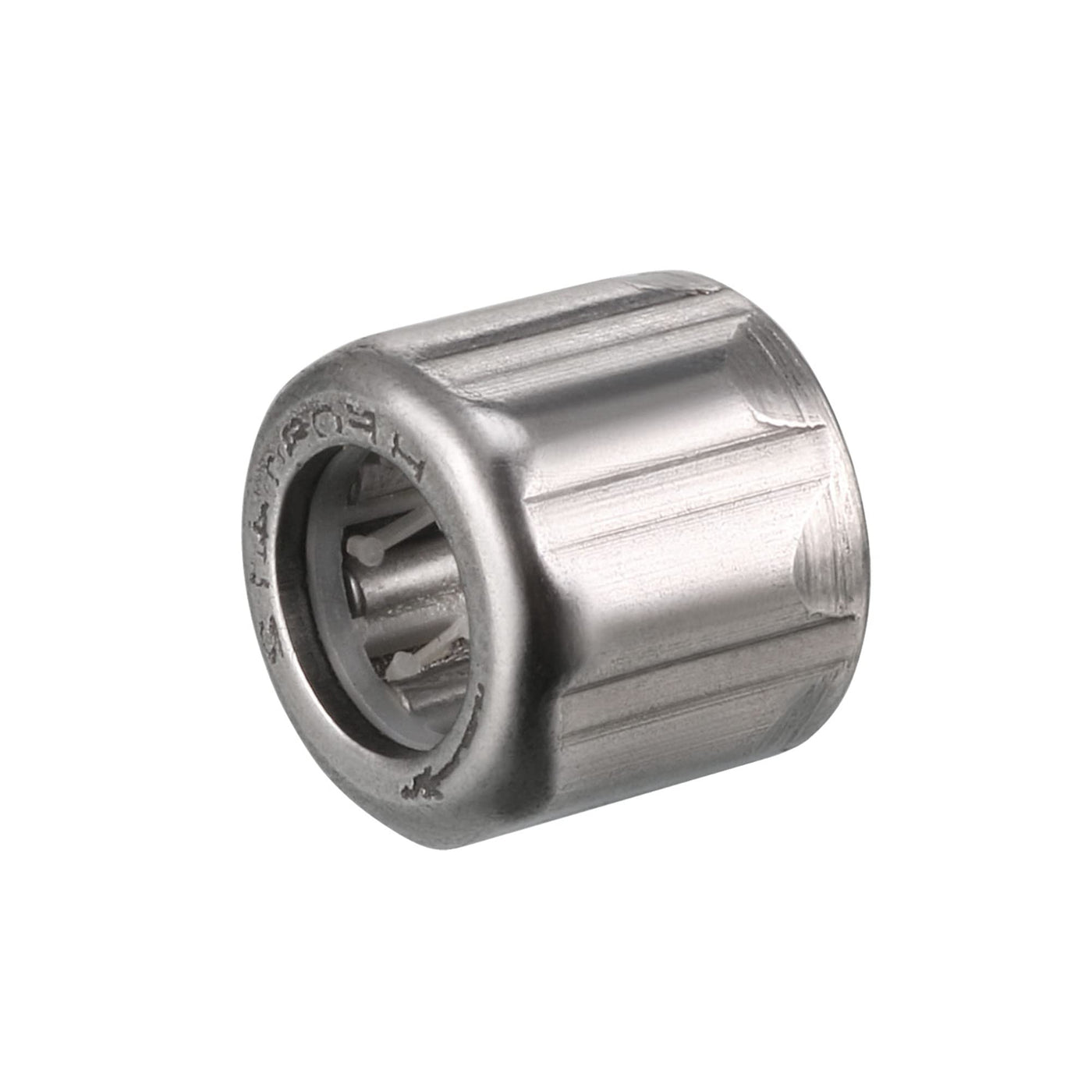

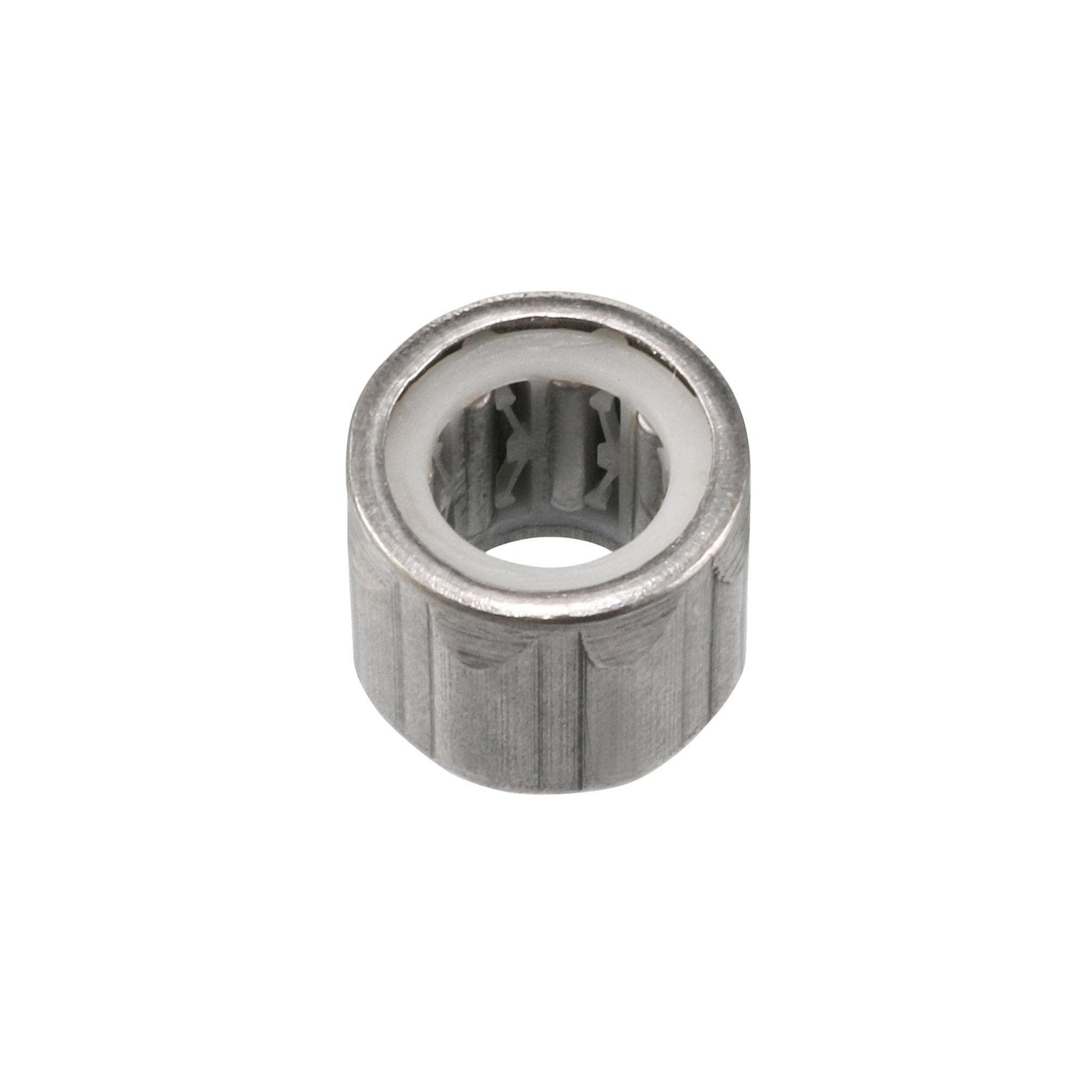

uxcell 2 Pcs Needle Roller Bearings, 8mm Bore 14mm OD 12mm Width Chrome Steel Needles, One Way Clutch Bearing
uxcell 2 Pcs Needle Roller Bearings, 8mm Bore 14mm OD 12mm Width Chrome Steel Needles, One Way Clutch Bearing
Specification:Drawn Cup Material: ST14 SteelNeedle Roller Material: Chromium Steel (GCr15)Bore Diameter (Fw): 8mmOutside Diameter (D): 14mmWidth: 12mmTorque: 5NmRotating Shaft Limiting Speed: 16000rpmRotating Outer Ring Limiting Speed: 12000rpmPackage Content:2 x Needle Roller BearingDescription:1. Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.2. These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.3. Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.
Product Features

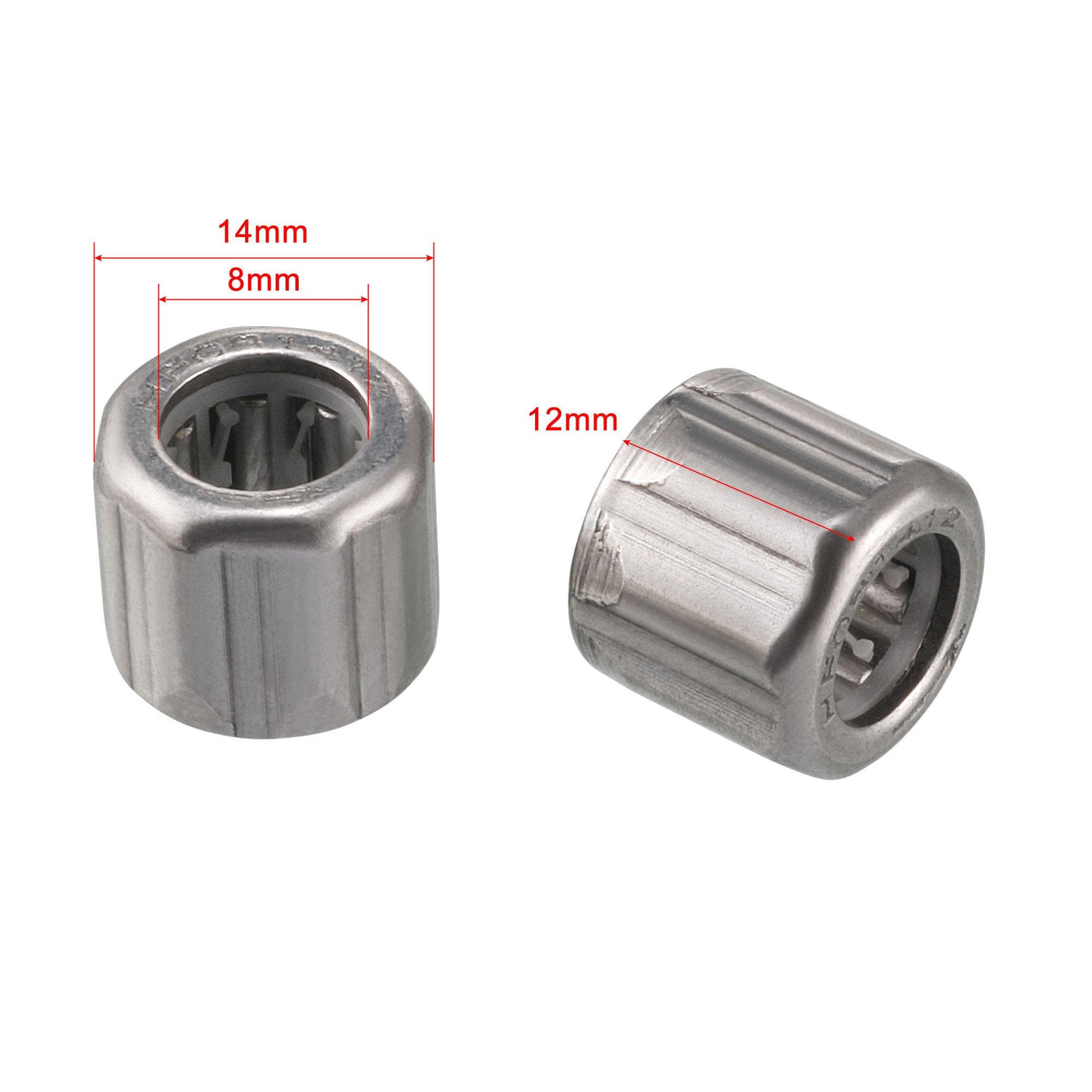

- Size: (I.D. (Fw)= 8mm, O.D. (D)= 14mm, Width (C)= 12mm)

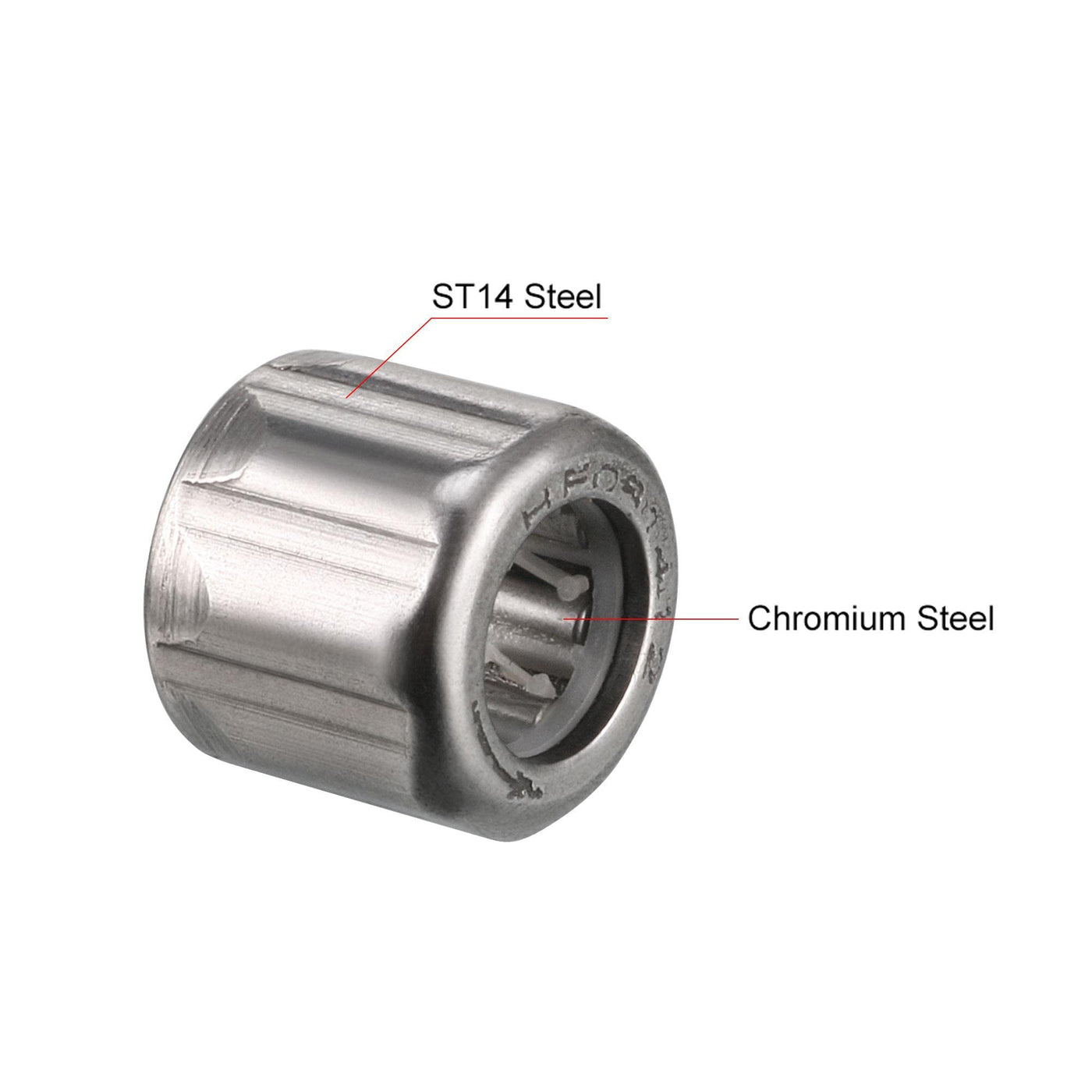

- ST14 steel drawn cup, GCr15 needle rollers one way clutch
- Good heat tolerance, high load carrying capacity and stiffness
- Low cross section, enable downsizing and suit for use in restricted mounting spaces
- Pre-Lubricated. Good running properties
