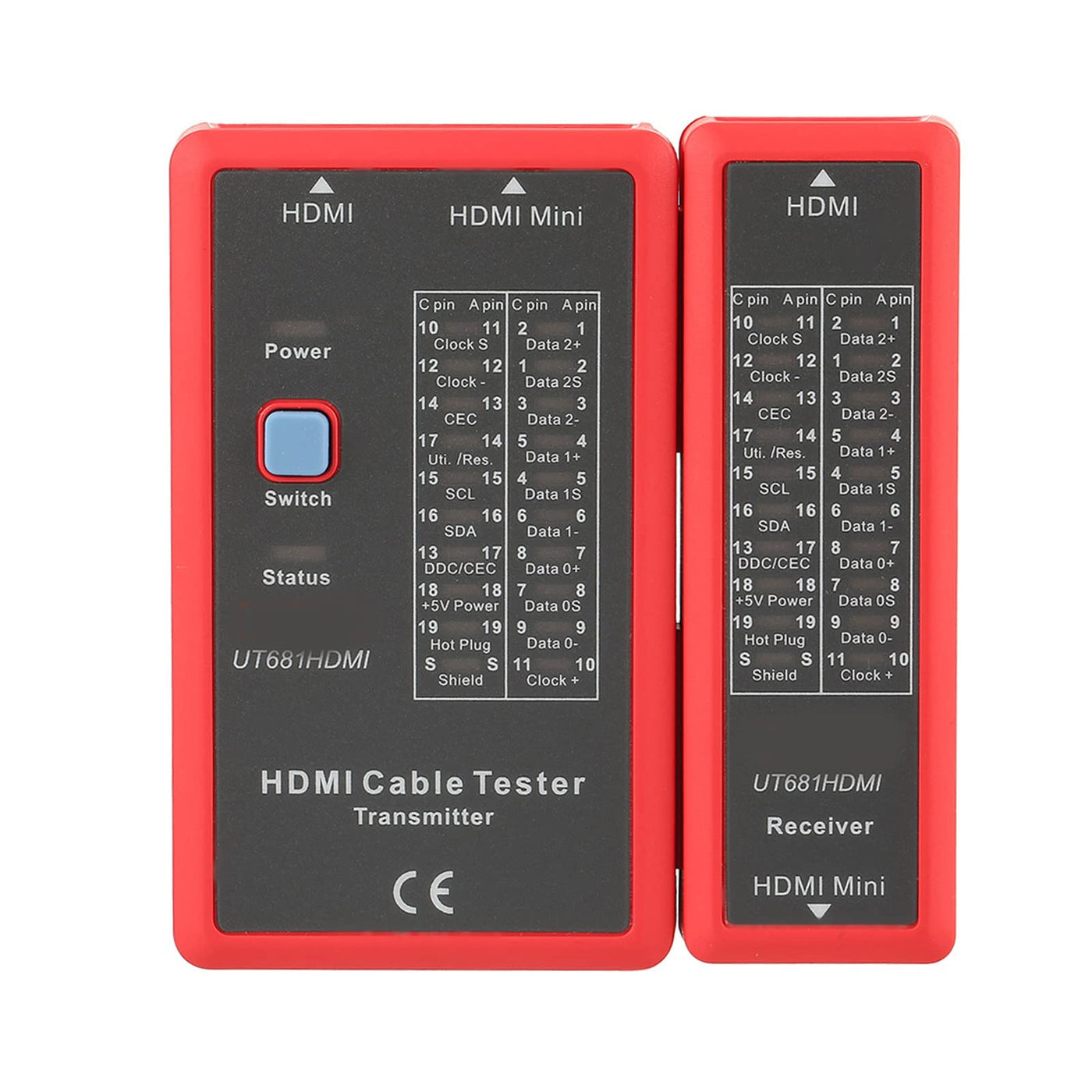

UT681 HDMI Cable Tester, Portable Mini HDMI to HDMI, High Definition USB Cable Tester, for Check Disorder Short Open and Cross Connection
UT681 HDMI Cable Tester, Portable Mini HDMI to HDMI, High Definition USB Cable Tester, for Check Disorder Short Open and Cross Connection

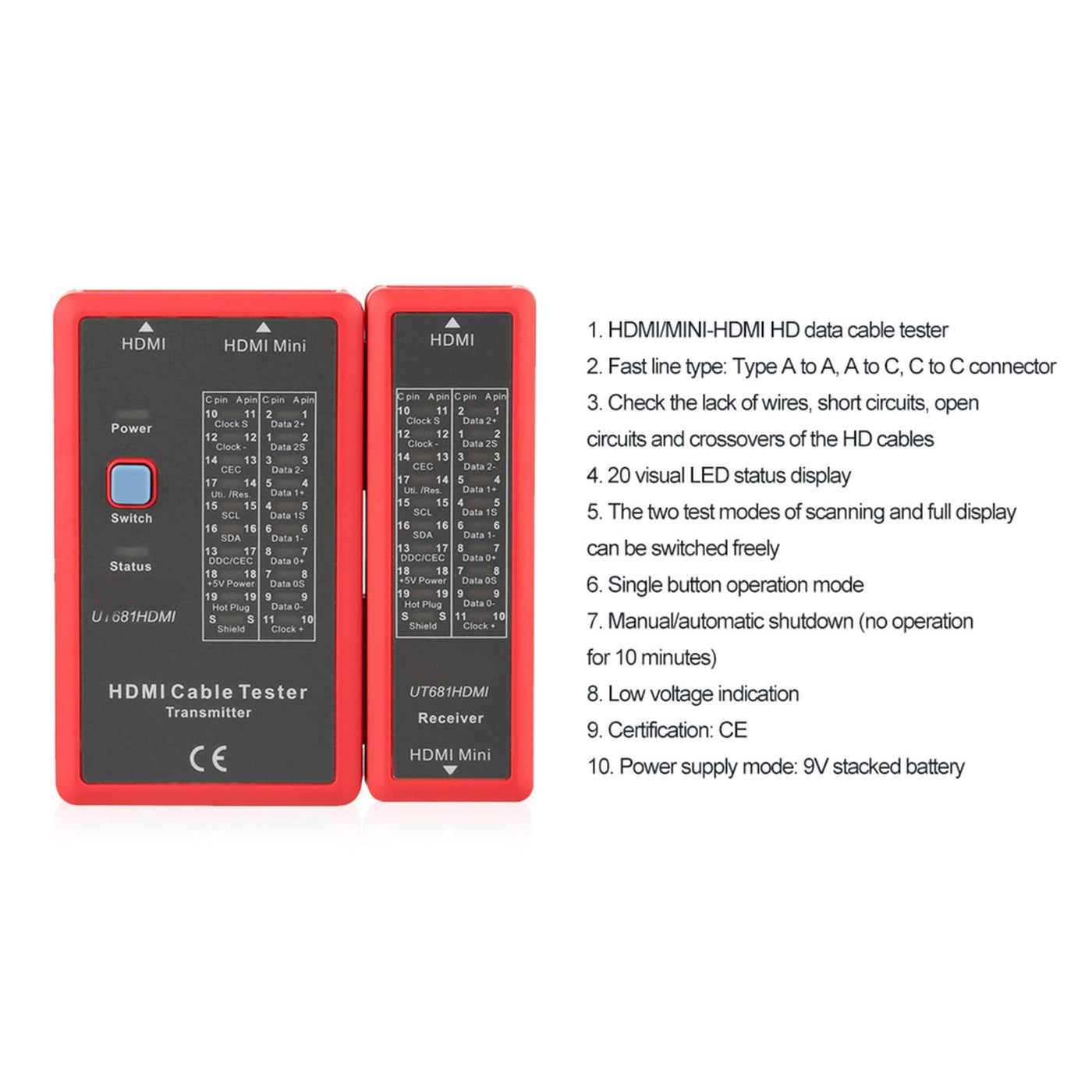

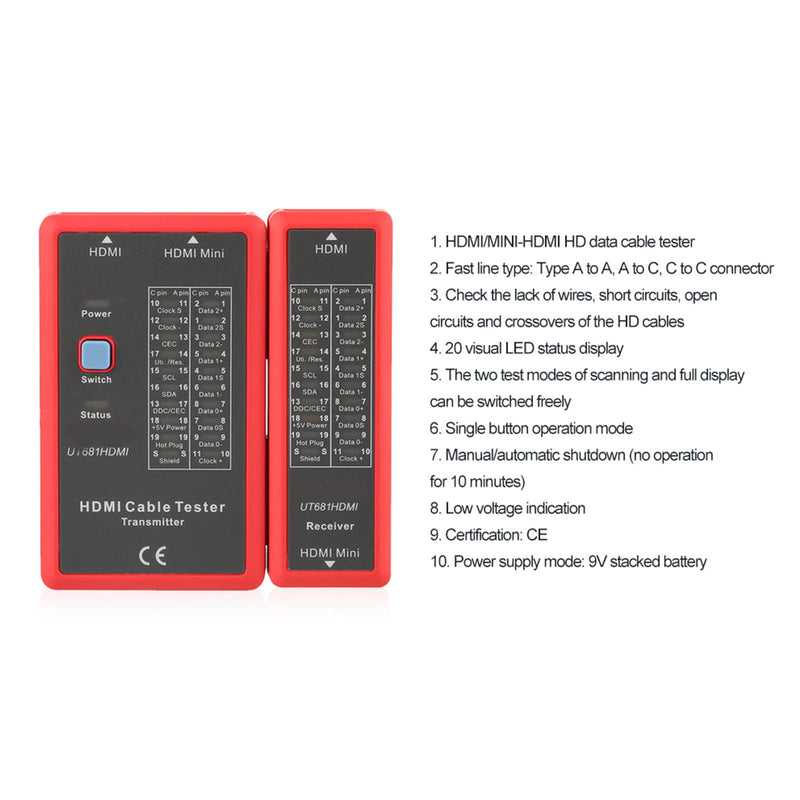

Specifications: Model: UT681HDMI Supported Connector: HDMI (type A); HDMI Mini (Type C) Scan Test Mode: 20 LED (LED1~LED8, LED_G) scan test Full Display Test Mode: 20 LED (LED1~LED8, LED_G) all light on Continuity Test: Yes Short Circuit Test: Yes Crossover Test: Yes Network Cable Test: Sheilding/Un- sheilding Auto Power-off: After 10 minutes without work Power Supply: 9V battery Operating Temperature: 0℃~40℃ Storage Temperature: -10℃~50℃ Operating Humidity: 20%~80% RH Storage Humidity: 10%~90% RH Altitude: Less than 2000 meters Weight: 175g(approx.) Package Includes: 1 x Transmitter 1 x Receiver
Product Features
- Multi-version Adaptation: Micro HDMI to mini HDMI support HDMI 1.2V/1.3V/1.4V/2.0V multi-version specification cable detection, compatible with Type A standard interface and Type C mini interface, to adapt to the quality of high-definition cable verification requirements
- Rapid Analysis: HDMI to mini HDMI 19 wires to quickly scan the core conduction state, complete identification of short-circuit disconnection mis-sequence and other types of faults, LED indicator zones show the abnormal points, simplify the troubleshooting process

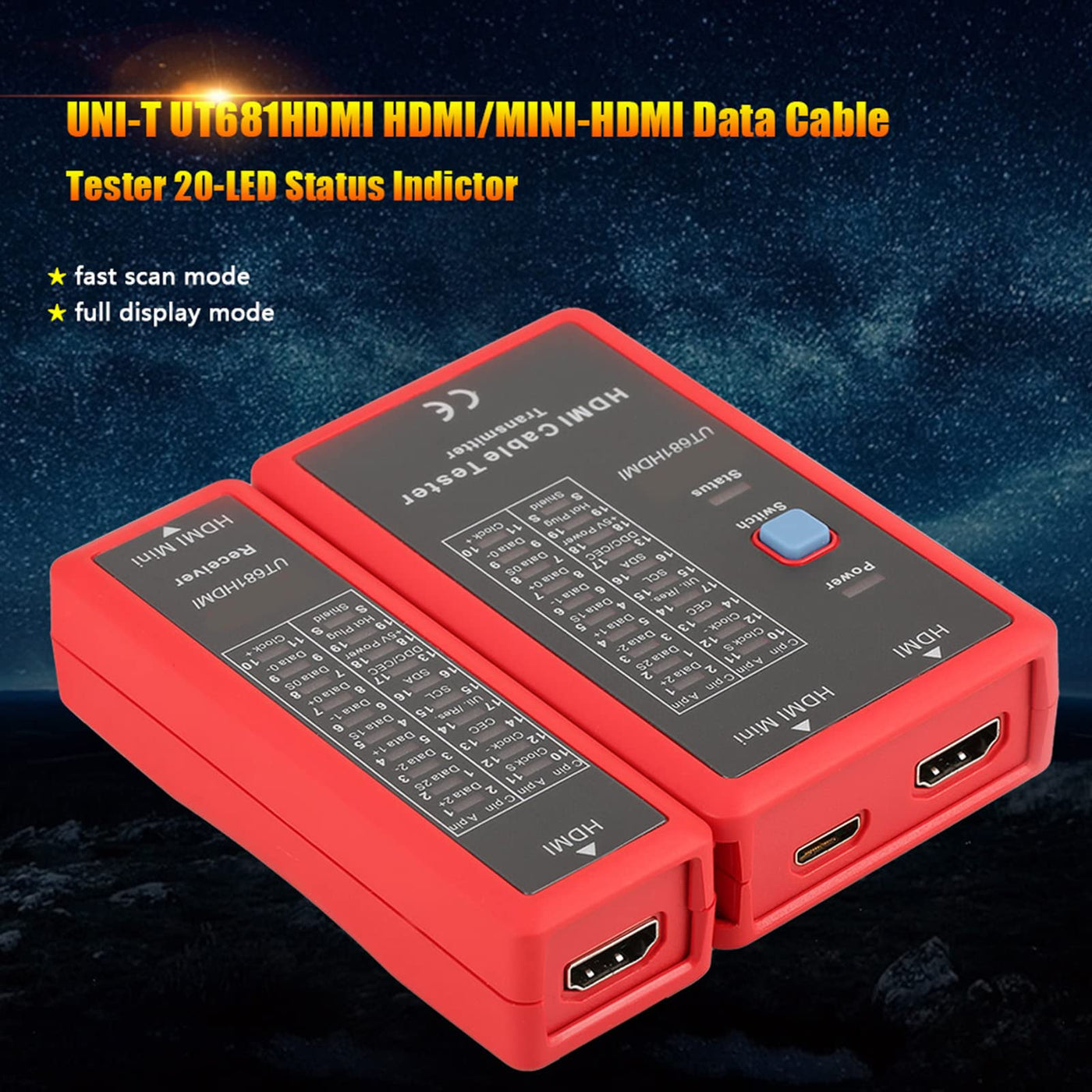

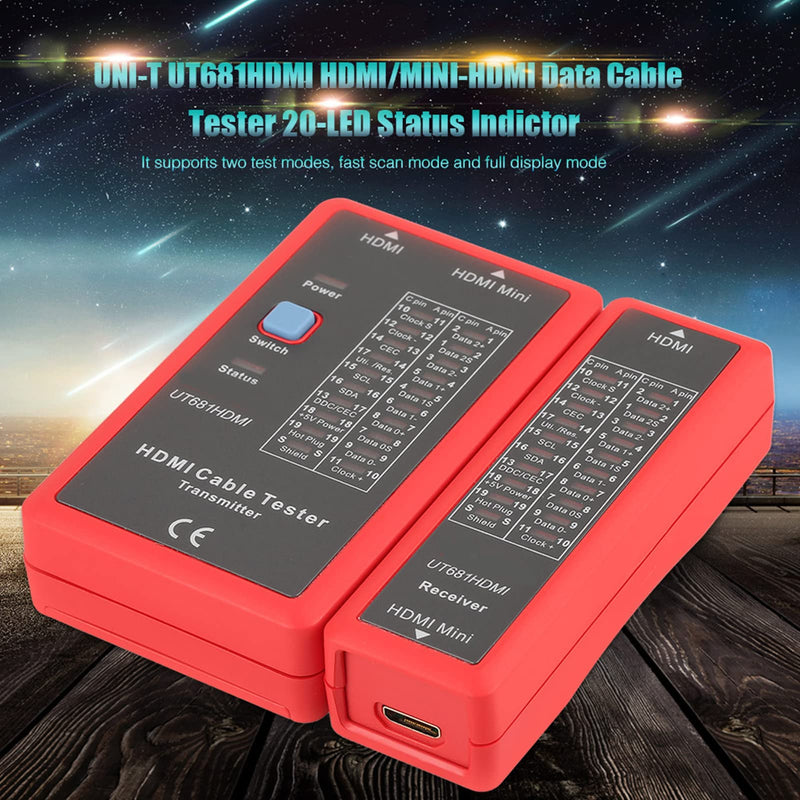

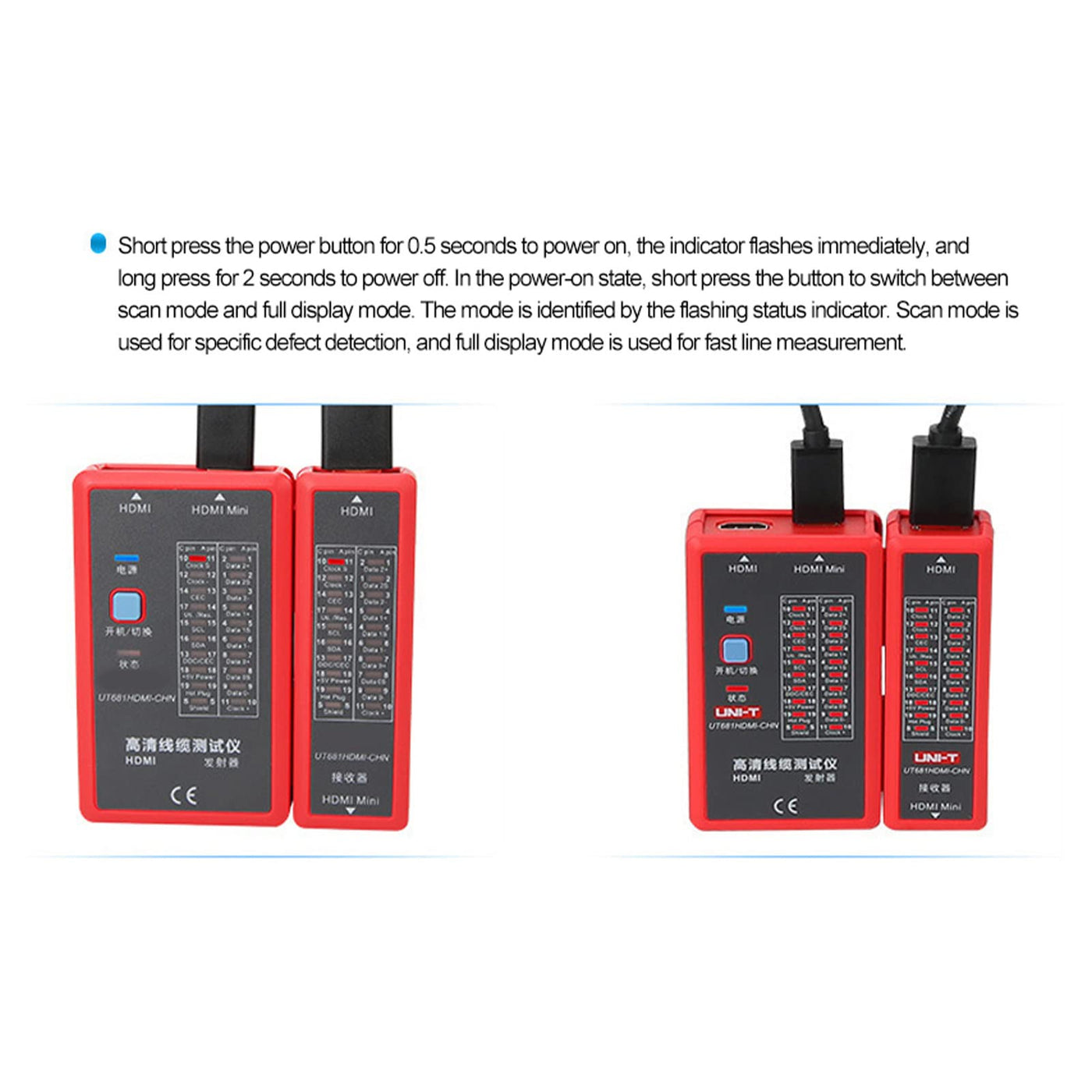

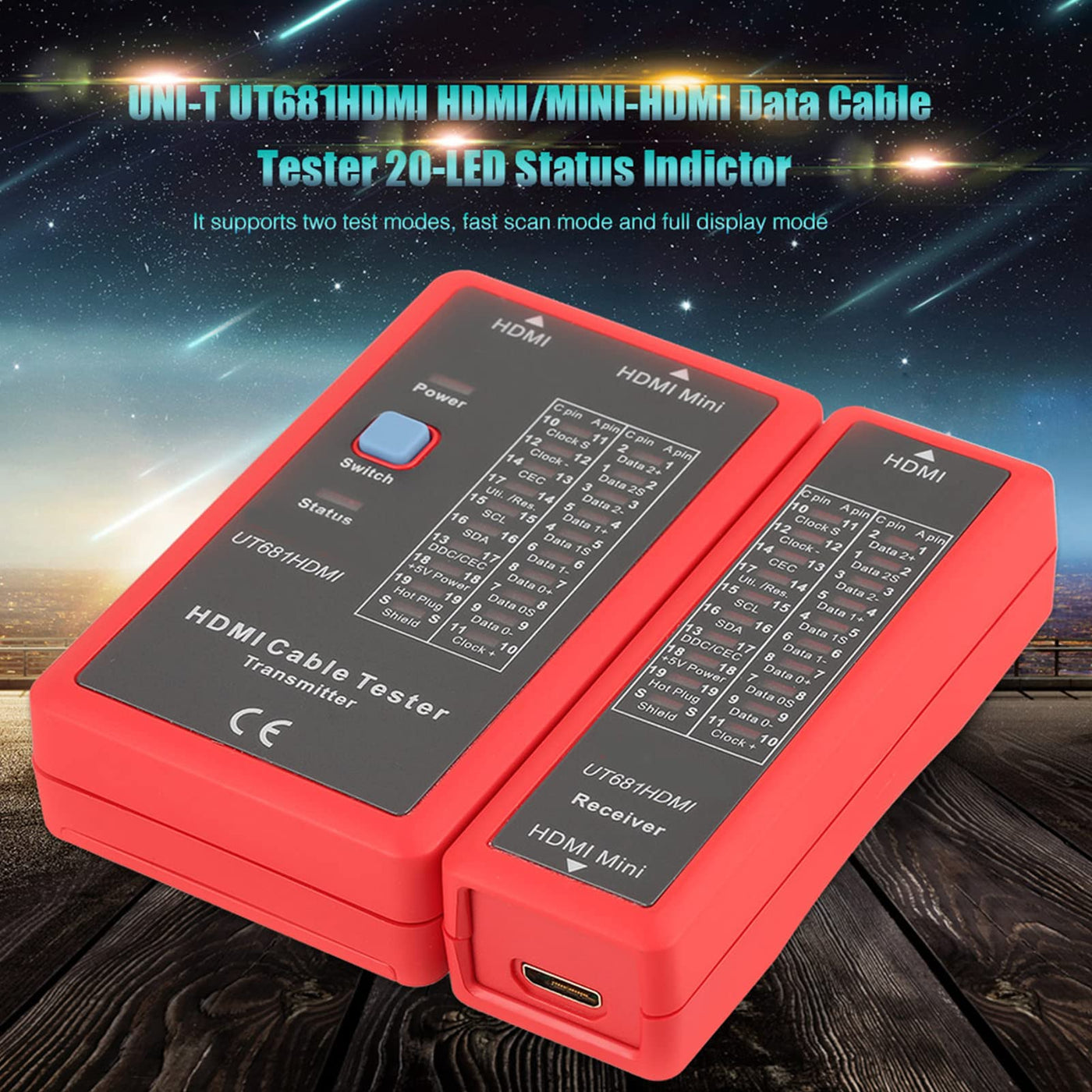

- Double-mode Test: The HDMI cable under the boot state scanning mode based on on-off detection, the full display mode synchronized lighting all 20 groups of LEDs, intuitive presentation of the overall connection status of the cable
- Intelligent Power Consumption: The HDMI repair kit battery voltage is lower than 7.2V when the blue light flashes warning, prompting the need for battery replacement, no work 10 minutes automatic power-off

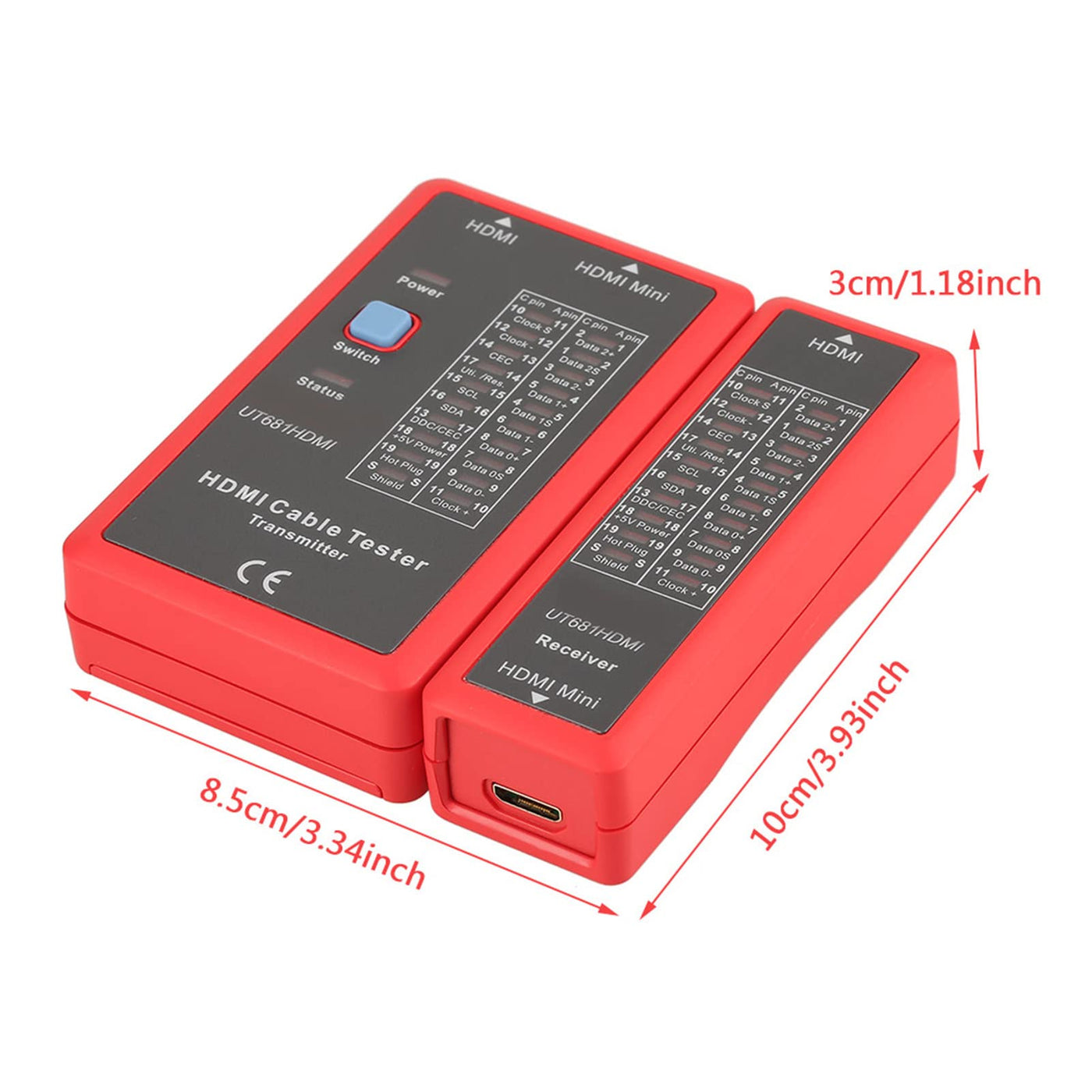

- Portable work: The coaxial cable tester body weight of about 175 grams, -10 C ~ 50 C temperature domain tolerance, equipped with a separate transceiver, field testing can be a single person to operate efficiently complete
