USB Logic Analyzer Device 24MHz 8CH 8 Channel UART IIC SPI Debug with Mini USB Cable DuPont Cable 6 Colors Test Hook Clip Set for Arduino FPGA M100 SCM Mini interface
USB Logic Analyzer Device 24MHz 8CH 8 Channel UART IIC SPI Debug with Mini USB Cable DuPont Cable 6 Colors Test Hook Clip Set for Arduino FPGA M100 SCM

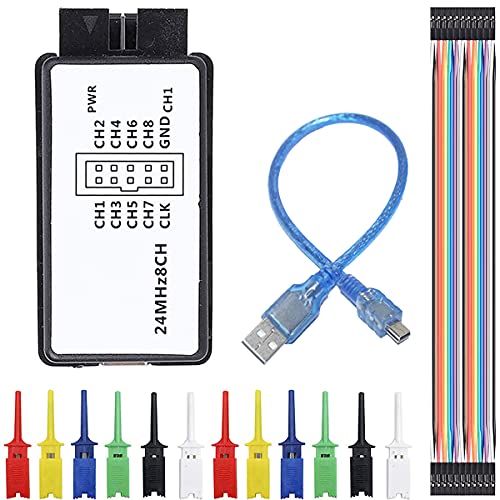

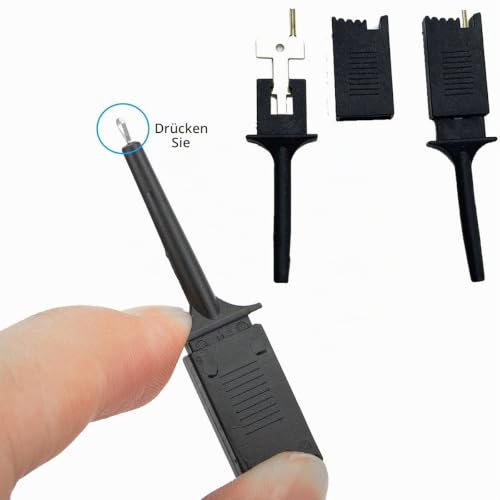

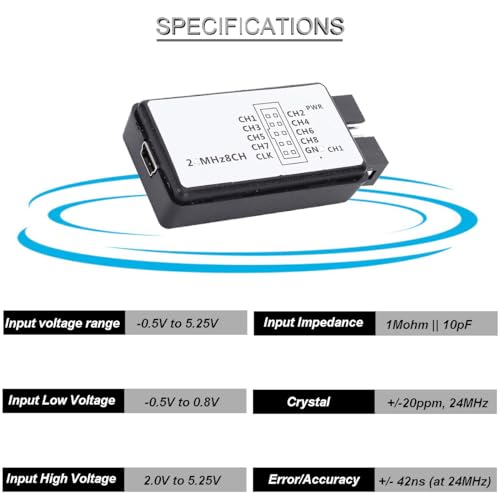

Product description: This item is an inexpensive logic analyzer designed to be compatible with Saleae Logic Analyzer software. Specifications: Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended Input impedance: 1Mohm || 10pF (typical, approximate) Crystal: +/-20ppm, 24MHz. Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz) Voltage range: Input voltage range: -0.5V to 5.25V Input Low Voltage: -0.5V to 0.8V Input high voltage: 2.0V to 5.25V. Input impedance: 1Mohm || 10pF (typical, approximate) Package includes: 1 x logic analyzer. 1 x mini USB cable. 1 x 22 pin female and female DuPont cable. 12 x test hook clips.
Product Features
- Product Introduction: This item is a cost-effective logic analyzer compatible with Saleae Logic Analyzer software.
- Applicable for different occasions: the logical sampling rate of each of the 8 channels is 24 m/s, generally about 10 m, which is sufficient for different occasions

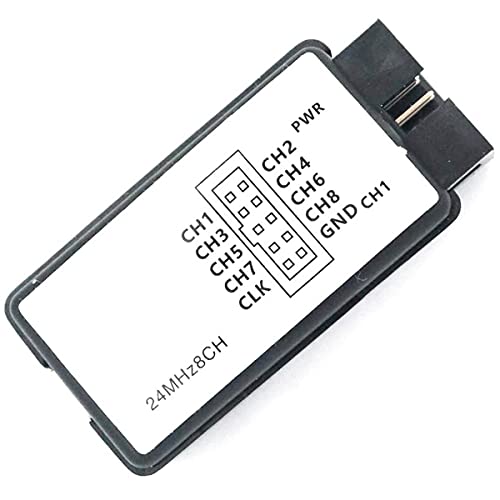

- Channel Value: Total 8 digital channels, the voltage range is 0V and 5.5V, of which 1.5V is the voltage threshold, below 1.5V is considered low, above 1.5V as high.
- Sample rate up to: 24MHz, can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
- Automatic analysis: UART, SPI, IIC and other communication debugging so you can achieve double the result with half the effort. 24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.
