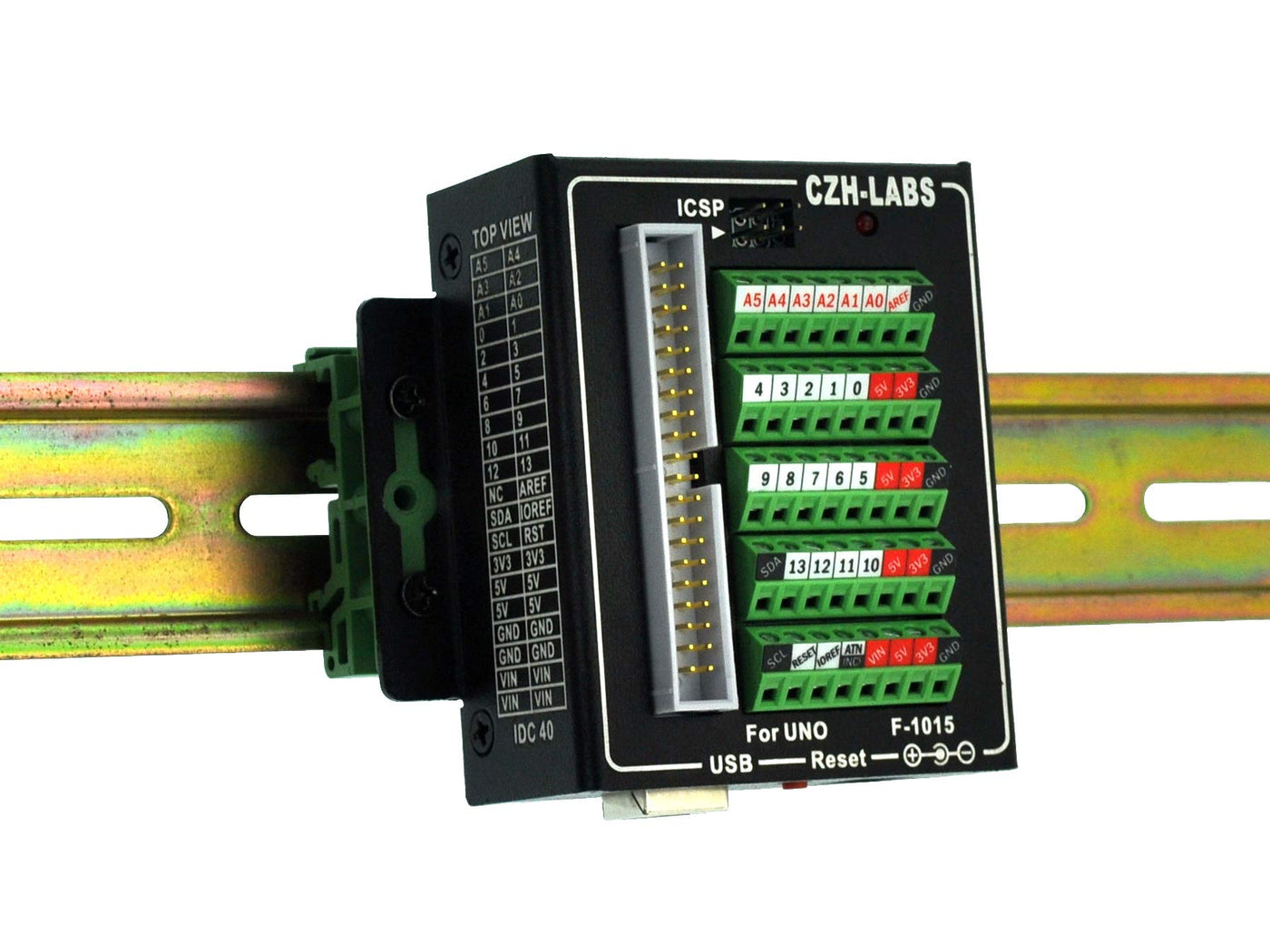

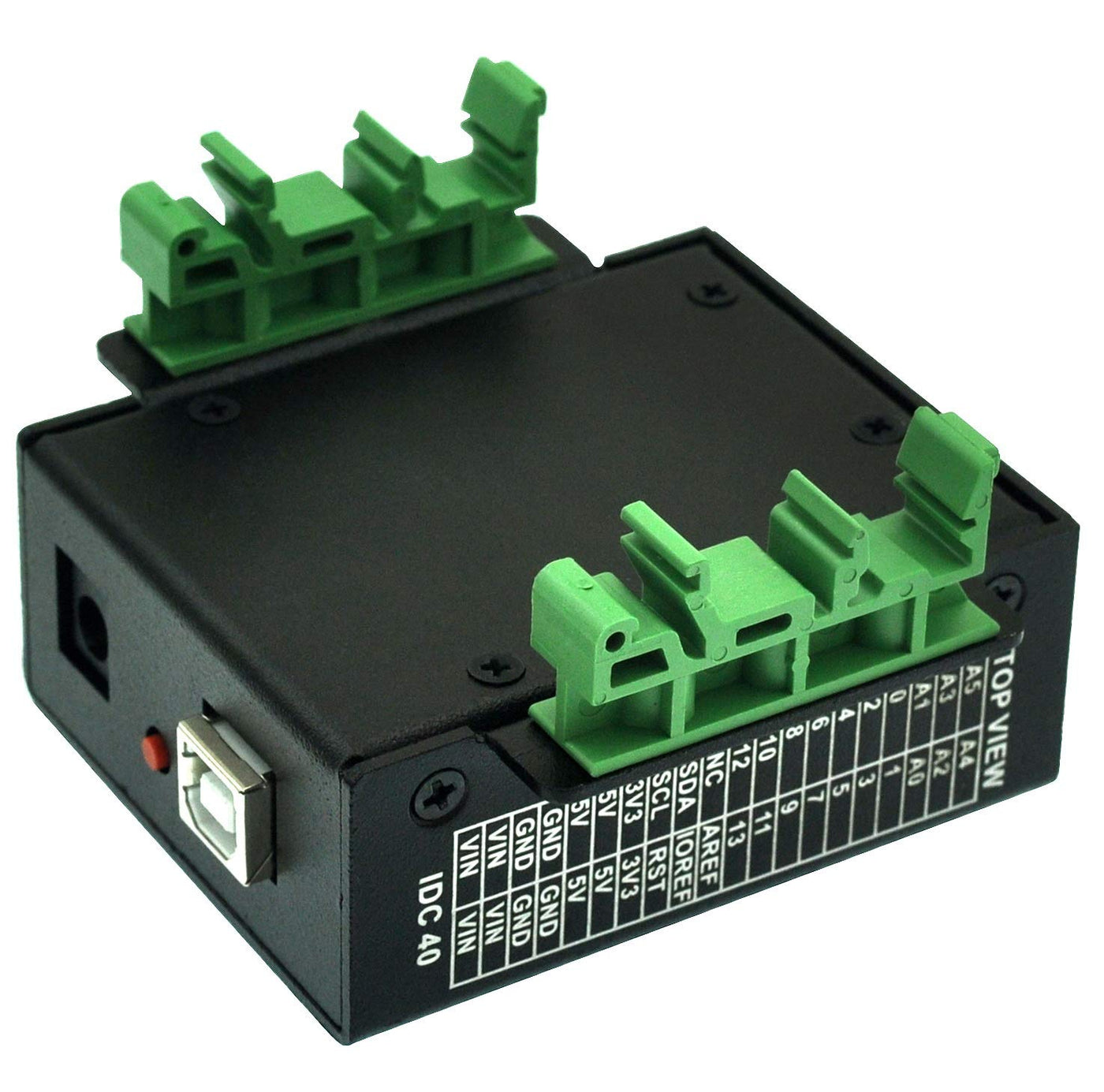

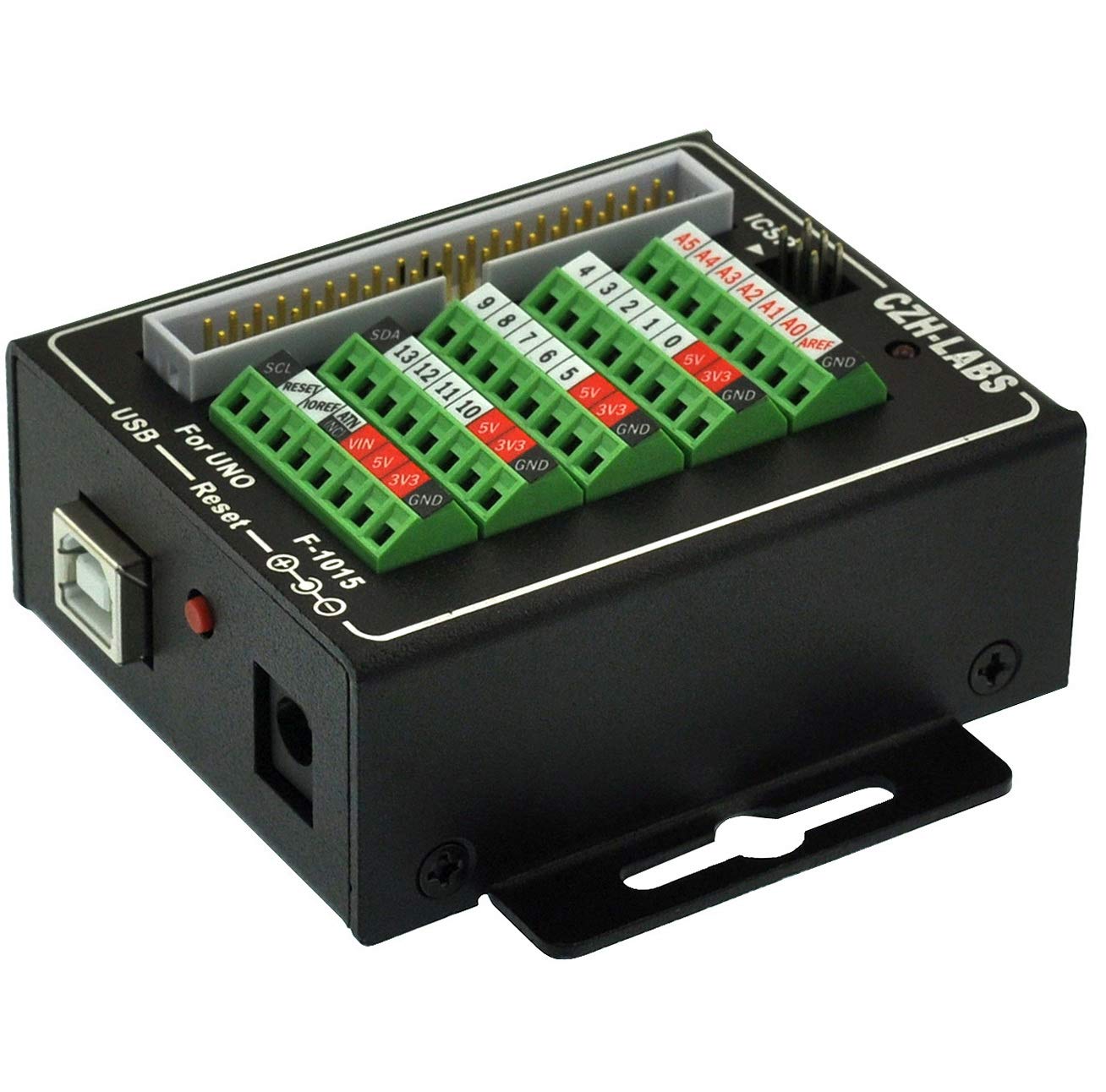

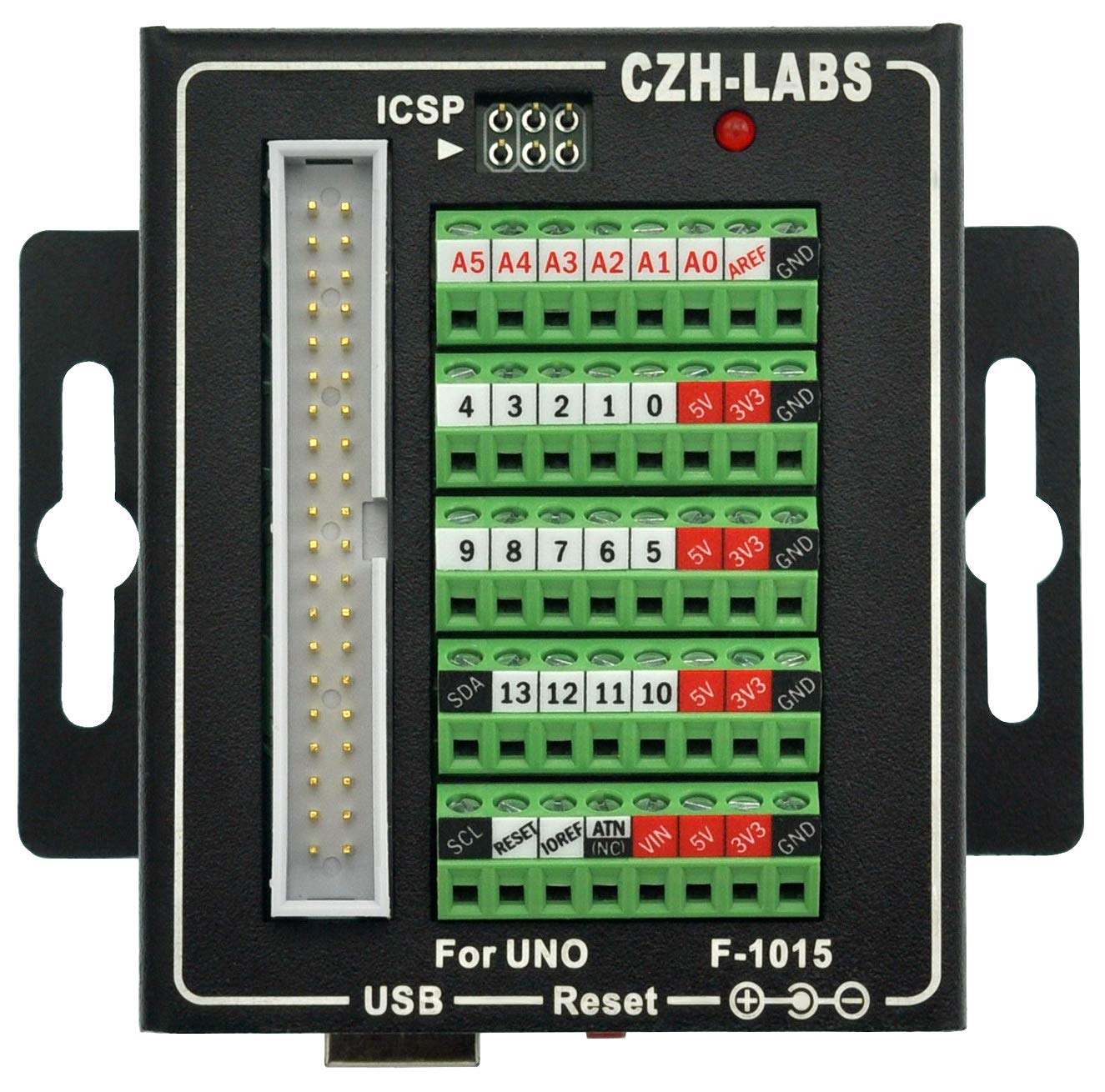

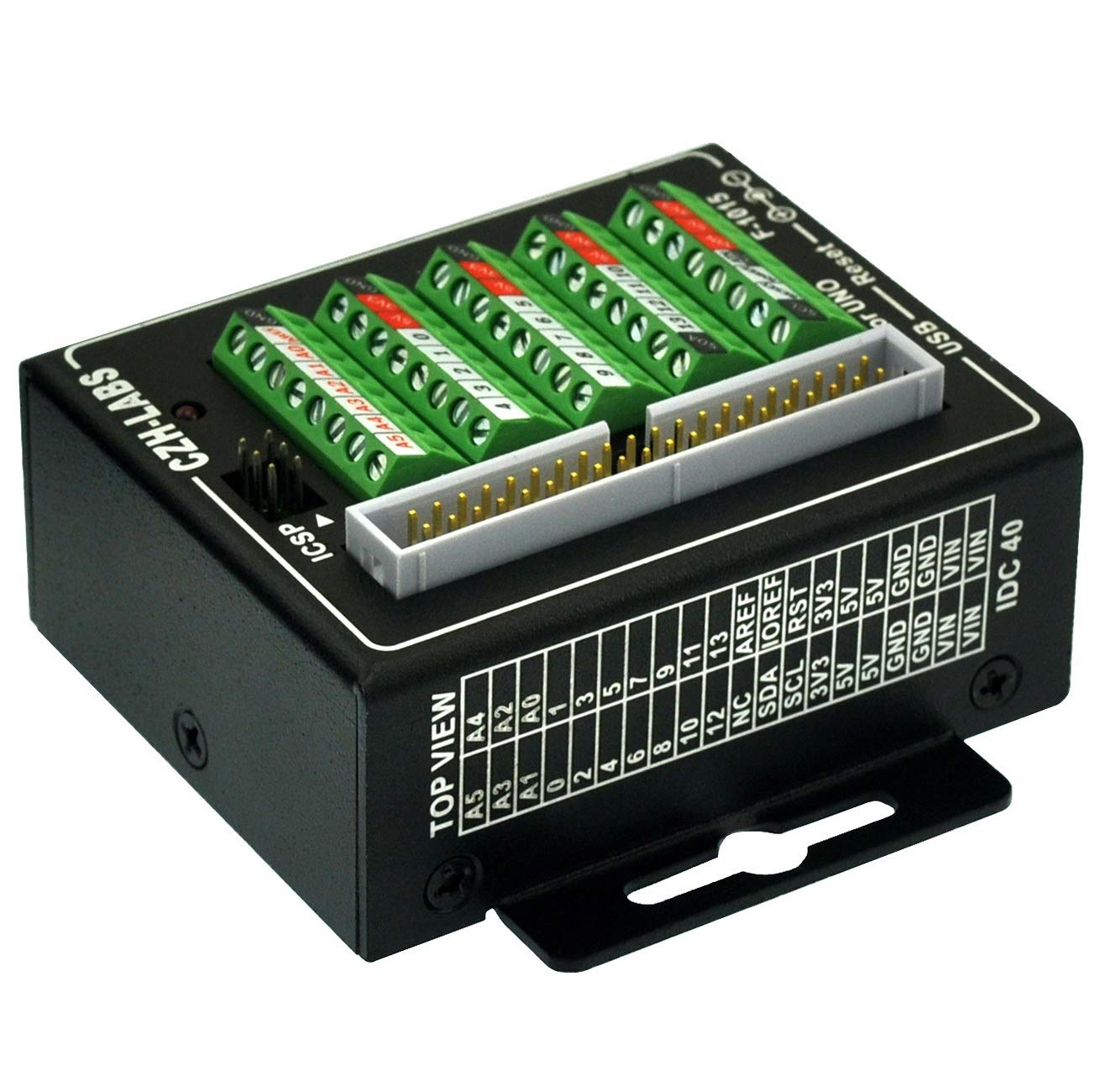

{"id":7843170386100,"title":"UNO Screw Terminal Block Breakout Module with Aluminum Enclosure, for UNO R3.","handle":"uno-screw-terminal-block-breakout-module-with-aluminum-enclosure-for-uno-r3","description":"\u003ch3\u003eUNO Screw Terminal Block Breakout Module with Aluminum Enclosure, for UNO R3.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1, UNO Screw Terminal Block Breakout Module with Aluminum Enclosure. With the\nadapter module you can easily extend UNO projects to industrial control\napplications. Applications for Arduino UNO R2 \/ R3 ( NOTE: the item not\ninclude UNO module).2, Terminal block pitch 3.5mm\/0.138\", wire size range\n26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper.\nStandard IDC40 pitch 0.1\" header, you can use 40pin FRC(flat ribbon cable)\nconnector cable connect all UNO pins to peripheral equipment. 6pin connector\nheader support ICSP external connects.3, Support for Desktop, Panel mount,\nWall-mount or DIN rail mount. DIN rail mount supports vertical or horizontal\nplace mounting. Can support width 35mm \/ 32mm \/ 15mm rail.4, Enclosure: High\nquality aluminum enclosure, thickness 1.5mm\/0.06\", with attractive and\nextremely durable powder coat painting and clear laser marking labels. FR-4\nfiber glass PCB, dual copper layers.5, Packing list: 1x Terminal Block\nBoard(assembled standoffs and screws), 1x Aluminum enclosure(top and bottom\ncovers), 5x M3x4mm Flat head screws(for top and bottom cover), 4x M2x6mm\nStandoff, 4x M2x6mm Flat head screw, 2x DIN rail adapter bracket, 4x M3x10mm\nFlat head tapping screw(for DIN rail adapter bracket). 1x 2x3pin header\nconnector(for ICSP).\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eUNO Screw Terminal Block Breakout Module with Aluminum Enclosure. With the adapter module you can easily extend UNO projects to industrial control applications. Applications for UNO R2 \/ R3 ( NOTE: the item not include UNO module).\u003c\/li\u003e\n \u003cli\u003eTerminal block pitch 3.5mm\/0.138\", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper. Standard IDC40 pitch 0.1\" header, you can use 40pin FRC(flat ribbon cable) connector cable connect all UNO pins to peripheral equipment. 6pin connector header support ICSP external connects.\u003c\/li\u003e\n \u003cli\u003eSupport for Desktop, Panel mount, Wall-mount or DIN rail mount. DIN rail mount supports vertical or horizontal place mounting. Can support width 35mm \/ 32mm \/ 15mm rail.\u003c\/li\u003e\n \u003cli\u003eEnclosure: High quality aluminum enclosure, thickness 1.5mm\/0.06\", with attractive and extremely durable powder coat painting and clear laser marking labels. FR-4 fiber glass PCB, dual copper layers.\u003c\/li\u003e\n \u003cli\u003ePacking list: 1x Terminal Block Board(assembled standoffs and screws), 1x Aluminum enclosure(top and bottom covers), 5x M3x4mm Flat head screws(for top and bottom cover), 4x M2x6mm Standoff, 4x M2x6mm Flat head screw, 2x DIN rail adapter bracket, 4x M3x10mm Flat head tapping screw(for DIN rail adapter bracket). 1x 2x3pin header connector(for ICSP).\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-09-19T13:47:20+10:00","created_at":"2024-09-08T23:02:33+10:00","vendor":"OONO","type":"Ground Circuit Terminal Blocks","tags":["industrial_Aug2024_update"],"price":21900,"price_min":21900,"price_max":21900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43566693646516,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B081SWW2TY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"UNO Screw Terminal Block Breakout Module with Aluminum Enclosure, for UNO R3.","public_title":null,"options":["Default Title"],"price":21900,"weight":177,"compare_at_price":null,"inventory_management":"shopify","barcode":"MD-F1015-1","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/714WDeaOM3L.jpg?v=1725800557","\/\/auspowers.com\/cdn\/shop\/files\/81xlf4weqYL.jpg?v=1725800557","\/\/auspowers.com\/cdn\/shop\/files\/71OeBtWNveL.jpg?v=1725800556","\/\/auspowers.com\/cdn\/shop\/files\/71yUNjWOinL.jpg?v=1725800556","\/\/auspowers.com\/cdn\/shop\/files\/9146cS4SMqL.jpg?v=1725800557","\/\/auspowers.com\/cdn\/shop\/files\/81LAq-Pg8wL.jpg?v=1725800557","\/\/auspowers.com\/cdn\/shop\/files\/71PY-iDBbxL.jpg?v=1725800556","\/\/auspowers.com\/cdn\/shop\/files\/71LQw2_T75L.jpg?v=1725800556"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/714WDeaOM3L.jpg?v=1725800557","options":["Title"],"media":[{"alt":"[Australia - AusPower] - UNO Screw Terminal Block Breakout Module with Aluminum Enclosure, for UNO R3. ","id":30733153566900,"position":1,"preview_image":{"aspect_ratio":1.011,"height":1310,"width":1325,"src":"\/\/auspowers.com\/cdn\/shop\/files\/714WDeaOM3L.jpg?v=1725800557"},"aspect_ratio":1.011,"height":1310,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/714WDeaOM3L.jpg?v=1725800557","width":1325},{"alt":"[Australia - AusPower] - UNO Screw Terminal Block Breakout Module with Aluminum Enclosure, for UNO R3. ","id":30733153599668,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2362,"width":2362,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81xlf4weqYL.jpg?v=1725800557"},"aspect_ratio":1.0,"height":2362,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81xlf4weqYL.jpg?v=1725800557","width":2362},{"alt":"[Australia - AusPower] - UNO Screw Terminal Block Breakout Module with Aluminum Enclosure, for UNO R3. ","id":30733153632436,"position":3,"preview_image":{"aspect_ratio":1.012,"height":1300,"width":1316,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71OeBtWNveL.jpg?v=1725800556"},"aspect_ratio":1.012,"height":1300,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71OeBtWNveL.jpg?v=1725800556","width":1316},{"alt":"[Australia - AusPower] - UNO Screw Terminal Block Breakout Module with Aluminum Enclosure, for UNO R3. ","id":30733153665204,"position":4,"preview_image":{"aspect_ratio":1.012,"height":1292,"width":1308,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71yUNjWOinL.jpg?v=1725800556"},"aspect_ratio":1.012,"height":1292,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71yUNjWOinL.jpg?v=1725800556","width":1308},{"alt":"[Australia - AusPower] - UNO Screw Terminal Block Breakout Module with Aluminum Enclosure, for UNO R3. ","id":30733153697972,"position":5,"preview_image":{"aspect_ratio":0.695,"height":2560,"width":1778,"src":"\/\/auspowers.com\/cdn\/shop\/files\/9146cS4SMqL.jpg?v=1725800557"},"aspect_ratio":0.695,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/9146cS4SMqL.jpg?v=1725800557","width":1778},{"alt":"[Australia - AusPower] - UNO Screw Terminal Block Breakout Module with Aluminum Enclosure, for UNO R3. ","id":30733153730740,"position":6,"preview_image":{"aspect_ratio":0.695,"height":2560,"width":1778,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81LAq-Pg8wL.jpg?v=1725800557"},"aspect_ratio":0.695,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81LAq-Pg8wL.jpg?v=1725800557","width":1778},{"alt":"[Australia - AusPower] - UNO Screw Terminal Block Breakout Module with Aluminum Enclosure, for UNO R3. ","id":30733153763508,"position":7,"preview_image":{"aspect_ratio":1.011,"height":1459,"width":1475,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71PY-iDBbxL.jpg?v=1725800556"},"aspect_ratio":1.011,"height":1459,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71PY-iDBbxL.jpg?v=1725800556","width":1475},{"alt":"[Australia - AusPower] - UNO Screw Terminal Block Breakout Module with Aluminum Enclosure, for UNO R3. ","id":30733153796276,"position":8,"preview_image":{"aspect_ratio":1.333,"height":1347,"width":1796,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71LQw2_T75L.jpg?v=1725800556"},"aspect_ratio":1.333,"height":1347,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71LQw2_T75L.jpg?v=1725800556","width":1796}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eUNO Screw Terminal Block Breakout Module with Aluminum Enclosure, for UNO R3.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1, UNO Screw Terminal Block Breakout Module with Aluminum Enclosure. With the\nadapter module you can easily extend UNO projects to industrial control\napplications. Applications for Arduino UNO R2 \/ R3 ( NOTE: the item not\ninclude UNO module).2, Terminal block pitch 3.5mm\/0.138\", wire size range\n26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper.\nStandard IDC40 pitch 0.1\" header, you can use 40pin FRC(flat ribbon cable)\nconnector cable connect all UNO pins to peripheral equipment. 6pin connector\nheader support ICSP external connects.3, Support for Desktop, Panel mount,\nWall-mount or DIN rail mount. DIN rail mount supports vertical or horizontal\nplace mounting. Can support width 35mm \/ 32mm \/ 15mm rail.4, Enclosure: High\nquality aluminum enclosure, thickness 1.5mm\/0.06\", with attractive and\nextremely durable powder coat painting and clear laser marking labels. FR-4\nfiber glass PCB, dual copper layers.5, Packing list: 1x Terminal Block\nBoard(assembled standoffs and screws), 1x Aluminum enclosure(top and bottom\ncovers), 5x M3x4mm Flat head screws(for top and bottom cover), 4x M2x6mm\nStandoff, 4x M2x6mm Flat head screw, 2x DIN rail adapter bracket, 4x M3x10mm\nFlat head tapping screw(for DIN rail adapter bracket). 1x 2x3pin header\nconnector(for ICSP).\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eUNO Screw Terminal Block Breakout Module with Aluminum Enclosure. With the adapter module you can easily extend UNO projects to industrial control applications. Applications for UNO R2 \/ R3 ( NOTE: the item not include UNO module).\u003c\/li\u003e\n \u003cli\u003eTerminal block pitch 3.5mm\/0.138\", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper. Standard IDC40 pitch 0.1\" header, you can use 40pin FRC(flat ribbon cable) connector cable connect all UNO pins to peripheral equipment. 6pin connector header support ICSP external connects.\u003c\/li\u003e\n \u003cli\u003eSupport for Desktop, Panel mount, Wall-mount or DIN rail mount. DIN rail mount supports vertical or horizontal place mounting. Can support width 35mm \/ 32mm \/ 15mm rail.\u003c\/li\u003e\n \u003cli\u003eEnclosure: High quality aluminum enclosure, thickness 1.5mm\/0.06\", with attractive and extremely durable powder coat painting and clear laser marking labels. FR-4 fiber glass PCB, dual copper layers.\u003c\/li\u003e\n \u003cli\u003ePacking list: 1x Terminal Block Board(assembled standoffs and screws), 1x Aluminum enclosure(top and bottom covers), 5x M3x4mm Flat head screws(for top and bottom cover), 4x M2x6mm Standoff, 4x M2x6mm Flat head screw, 2x DIN rail adapter bracket, 4x M3x10mm Flat head tapping screw(for DIN rail adapter bracket). 1x 2x3pin header connector(for ICSP).\u003c\/li\u003e\n \u003c\/ul\u003e"}
