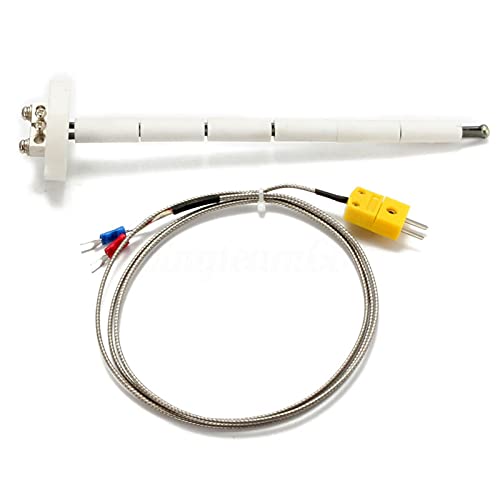

Universal K-Type Thermocouple Block Ceramic Kiln Probe 2372/1300 Degree F/C 11G High Tool Temperature Controller New
Universal K-Type Thermocouple Block Ceramic Kiln Probe 2372/1300 Degree F/C 11G High Tool Temperature Controller New
Features: Its connector can be connected dierectly to Digital Thermometers. By removing its connector, it can also be connected to Temperature Controllers. It can measure VERY HIGH temperatures up to 2372 °F(1300degree Celsius) This heavy duty 8 gauge comes in 7.5 inch length. The length of this thermocouple is measured by the number of 1 inch long ceramics. Some extra length is added for connections. You can adjust the length of this thermocouple by bending the probe/thread at installation. Specifications: Thermocouple: Type K Measuring Temperature: -58 to 2372 °F (-50 to 1300 °C) Cable: 1m (3.3ft) Internal Insulation: Fiberglass K-type Thermocouple Wire: External Shielding : Metal Shield (Stainless Steel Braided) Thread Material: Cr-Ni, Si-Ni Thread Diameter (ɸ): 3.2 mm (~0.13 inch)(Approx.) Thread Length: 190 mm (~7.5 inch)(Approx.) Tube Length: 150 mm (~ 6.0 inch)(Approx.) Tube Diameter (ɸ): Oval Shape: L=12.3 mm & W=10mm (L~ 0.5" & W~ 0.4")(Approx.) Tube Shape: 6 x (1 inch Pcs) Ceramic Tube Insulator: Two-hole Insulator Package Contents: 1 x Ceramic Mounting Block. 1 x 1m (3.3 ft) Wire Extension.
Product Features
- Universal K-Type Thermocouple Block Ceramic Kiln Probe 2372/1300 Degree F/C 11G High Tool Temperature Controller New
