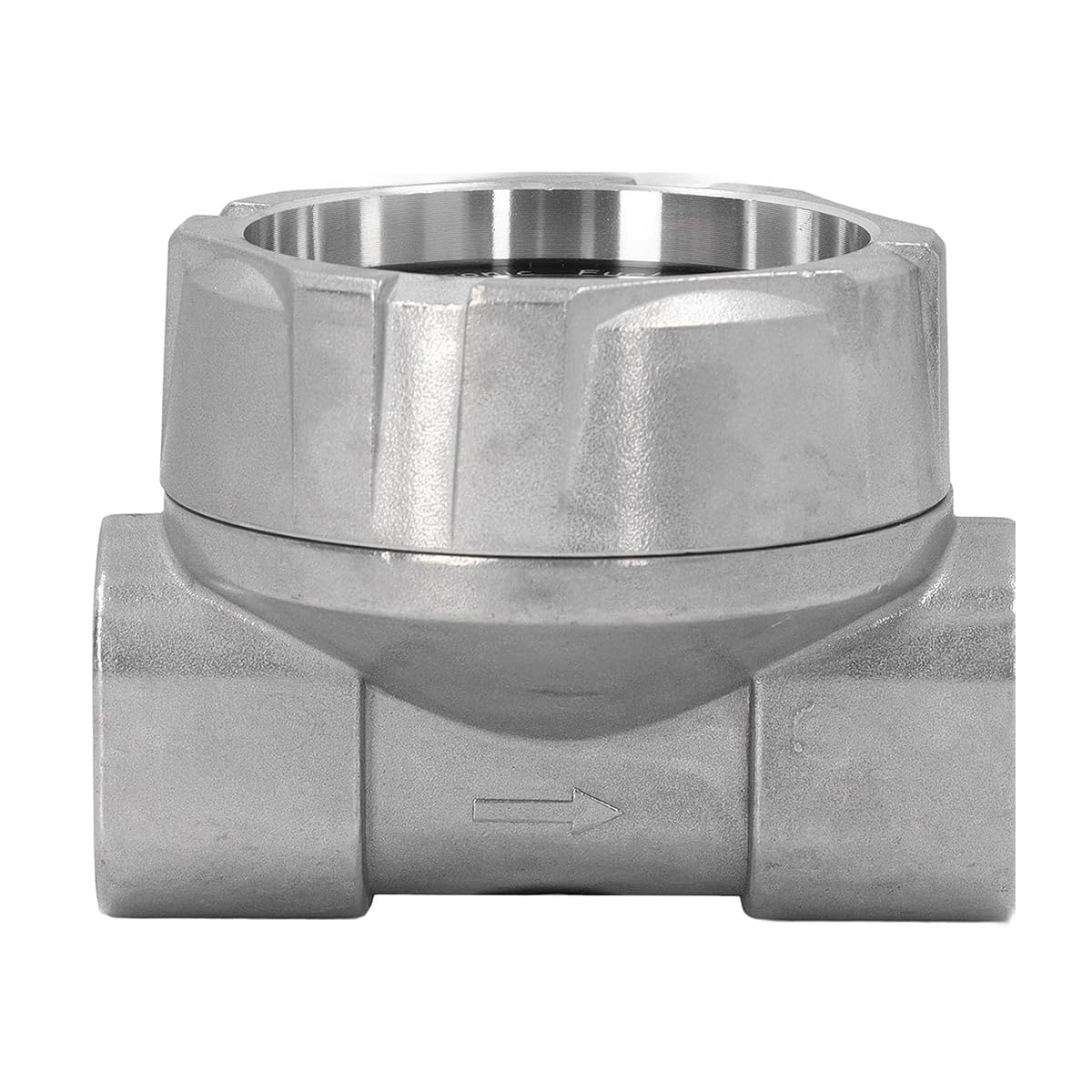

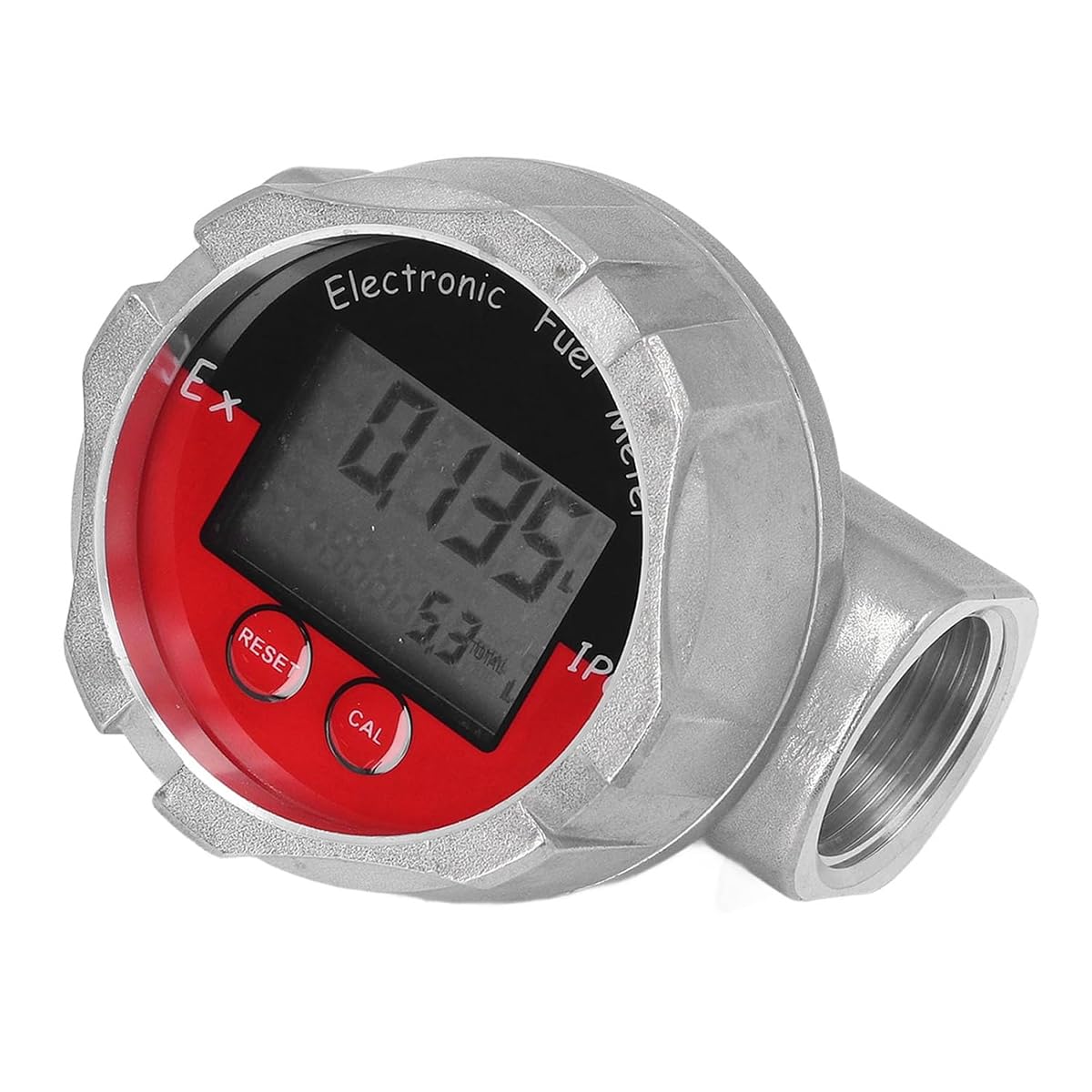

Ubric 1 Inch Stainless Steel Flow Meter Electronic Digital Flow Meter Stainless Steel Liquid Water Petrol Kerosene Oil
Ubric 1 Inch Stainless Steel Flow Meter Electronic Digital Flow Meter Stainless Steel Liquid Water Petrol Kerosene Oil

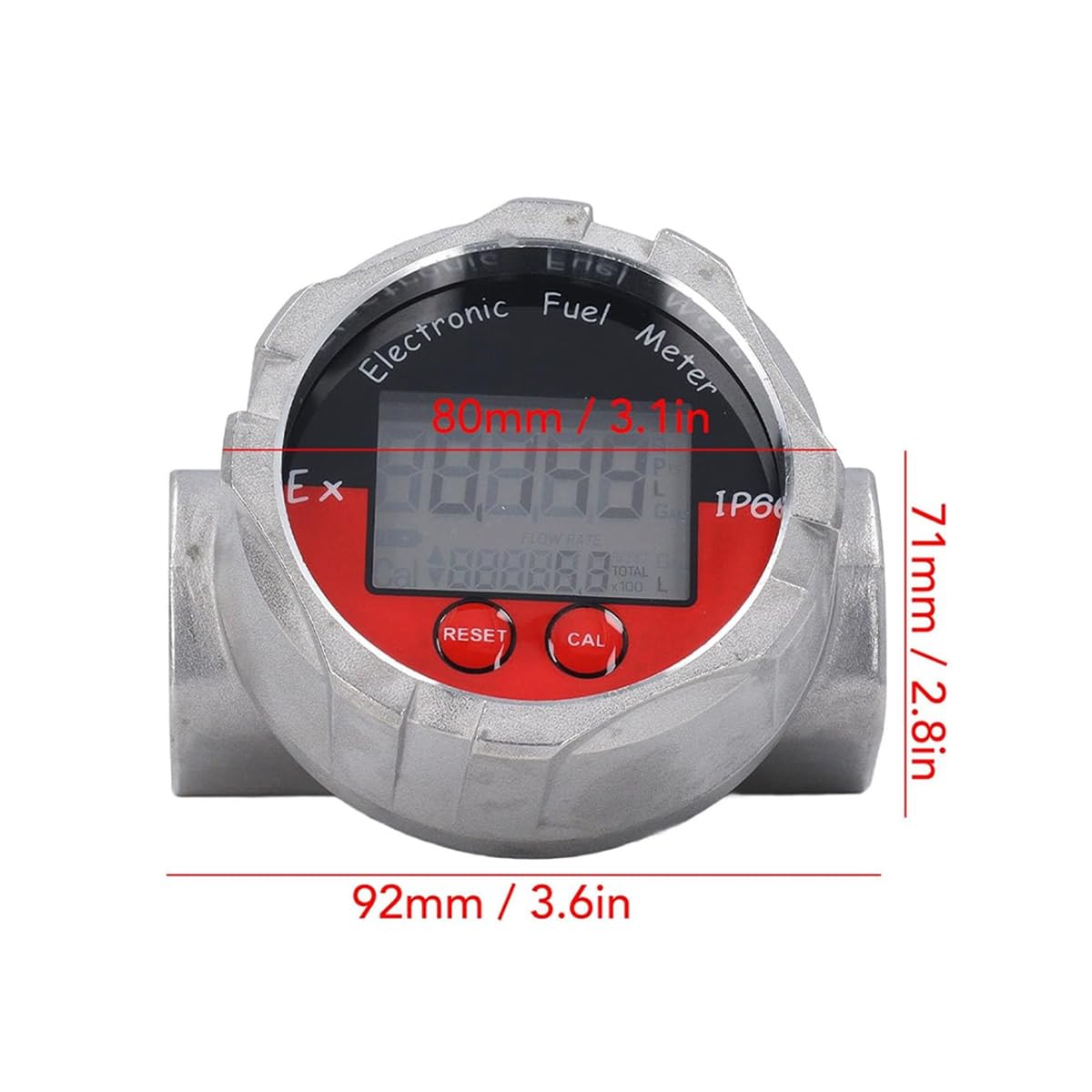

Features: Precise measurement: this digital turbine flow meter provides accurate readings with an accuracy of up to ± 1% and ensures a reliable measurement of water, petrol, kerosene, CH3OH, E15 and other liquids. Digital LCD display. The clear LCD display of the digital flowmeter shows the real- time rate, cumulative total quantity and current rate. The single counting range is 99999, the cumulative total counting range is 29999999. UNITS AND RANGE Switch between GAL, QTS, PTS, L and m³ units to meet your specific measurement requirements and provide flexibility and comfort. The range is 2.6-26GPM (10-100L/min), with a maximum pressure of 20MPa. Specifications: Material: aluminium alloy. Nominal diameter: 1 inch (DN32 mm). Connection method: female thread connection Measuring accuracy: ± 1%. Flow range: 9 ~ 100 L/min. Working pressure: 0.2 MPa. Temperature resistance: up to 120℃ Measurable fluids: diesel, petrol, kerosene, methanol, water, chemical corrosive liquids, etc. Flow indicator: Single flow: 0~9999 Cumulative flow: 0~999999 Dimensions: Height of main body: 68 mm. Connection length: 93 mm. Connection diameter: 32 mm. Total width: 78 mm. Package includes: 1 x Flow Meter
Product Features
- Precise measurement: this digital turbine flow meter provides accurate readings with an accuracy of up to 1% and ensures a reliable measurement of water, petrol, kerosene, CH3OH, E15 and other liquids.

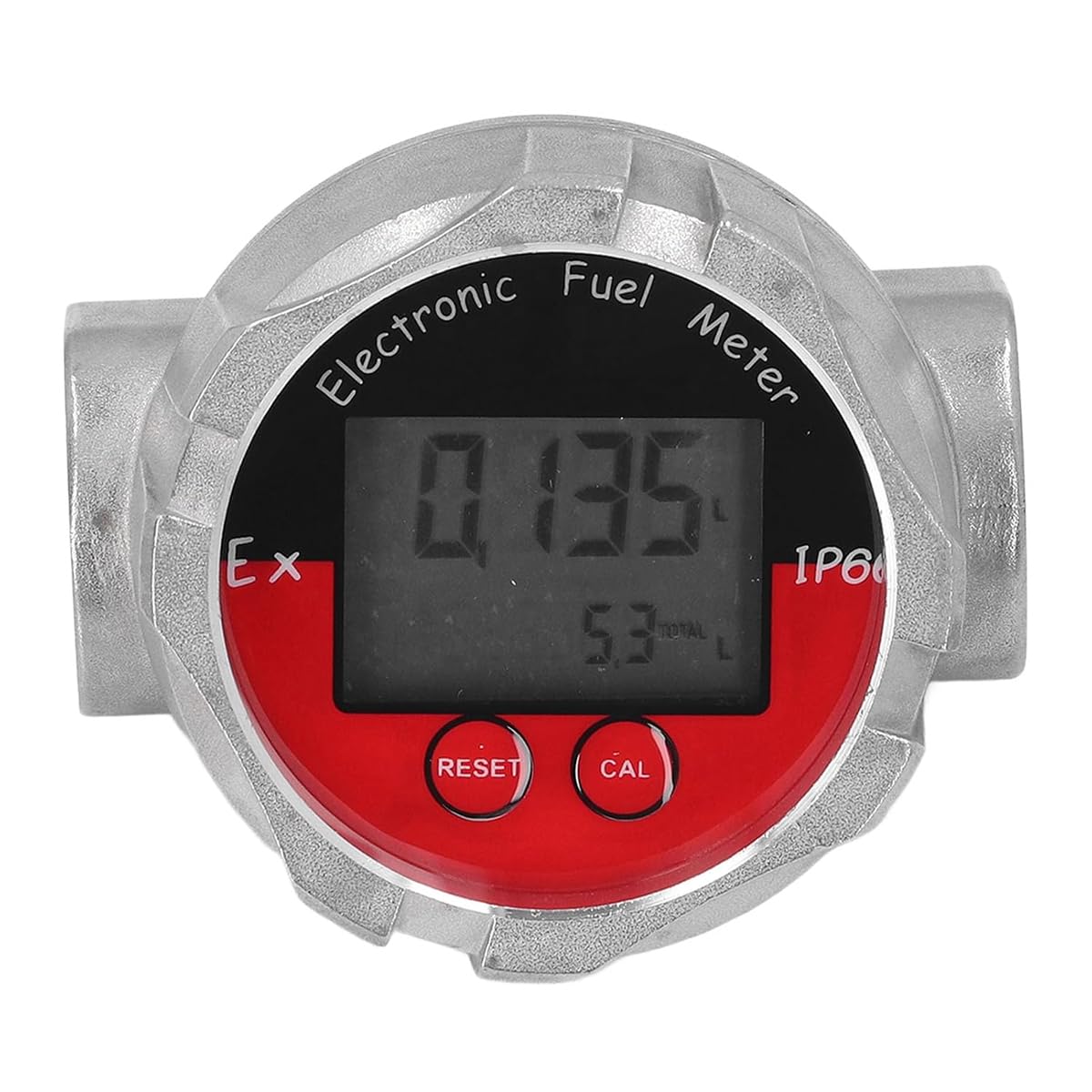

- Digital LCD display. The clear LCD display of the digital flowmeter shows the real-time rate, cumulative total quantity and current rate. The single counting range is 99999, the cumulative total counting range is 29999999.
- UNITS AND RANGE Switch between GAL, QTS, PTS, L and m3 units to meet your specific measurement requirements and provide flexibility and comfort. The range is 2.6-26GPM (10-100L/min), with a maximum pressure of 20MPa.

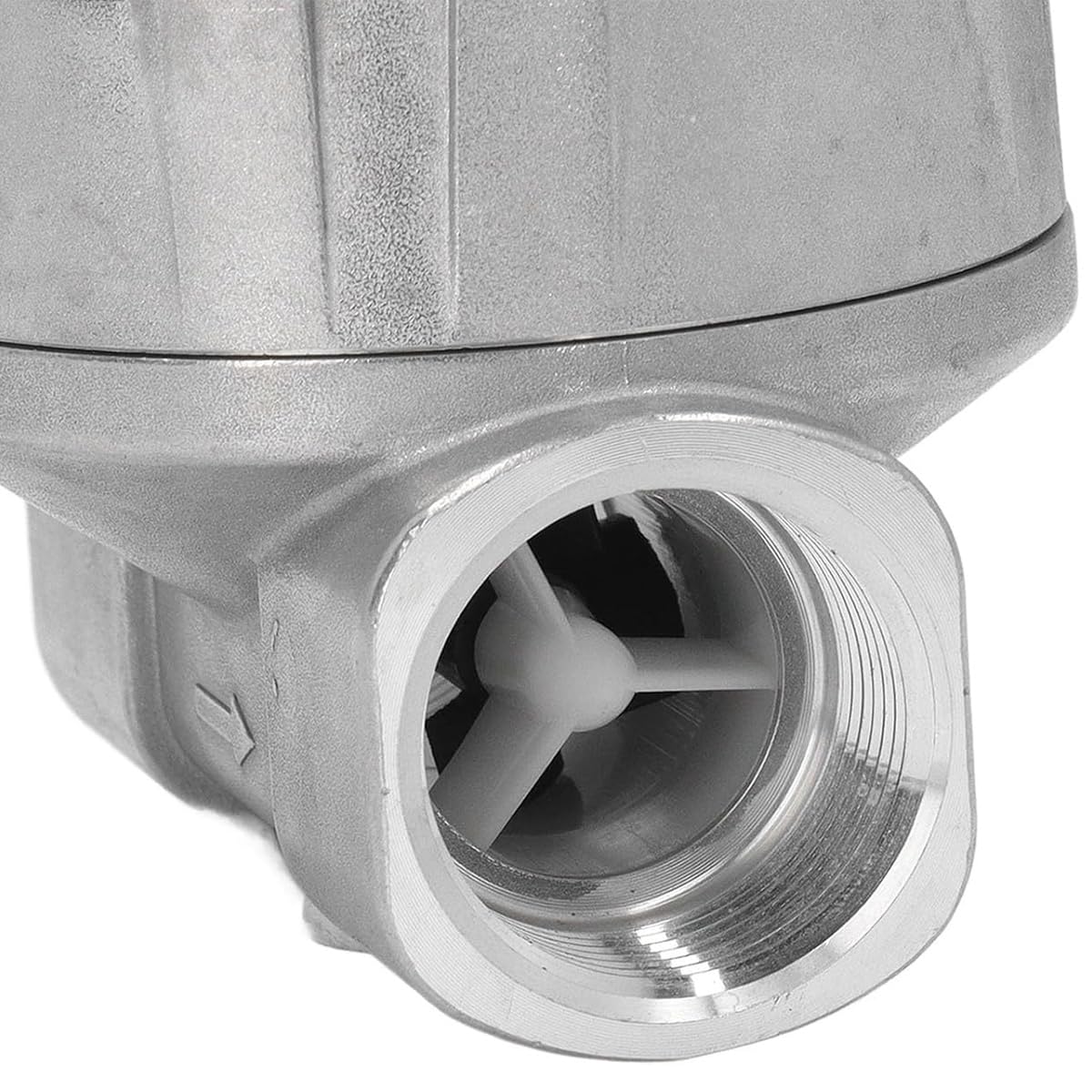

- Reliable structure: this digital meter uses an aluminium alloy housing and a stainless steel turbine, is suitable for different environments and provides durable performance. The working temperature range is -10-80 C (14-176 F).
- Energy-saving design: the digital screen turns off after 2 minutes of inactivity and turns on automatically when liquid flows. It can also be activated by pressing any button, with a standby time of more than 1 year.
