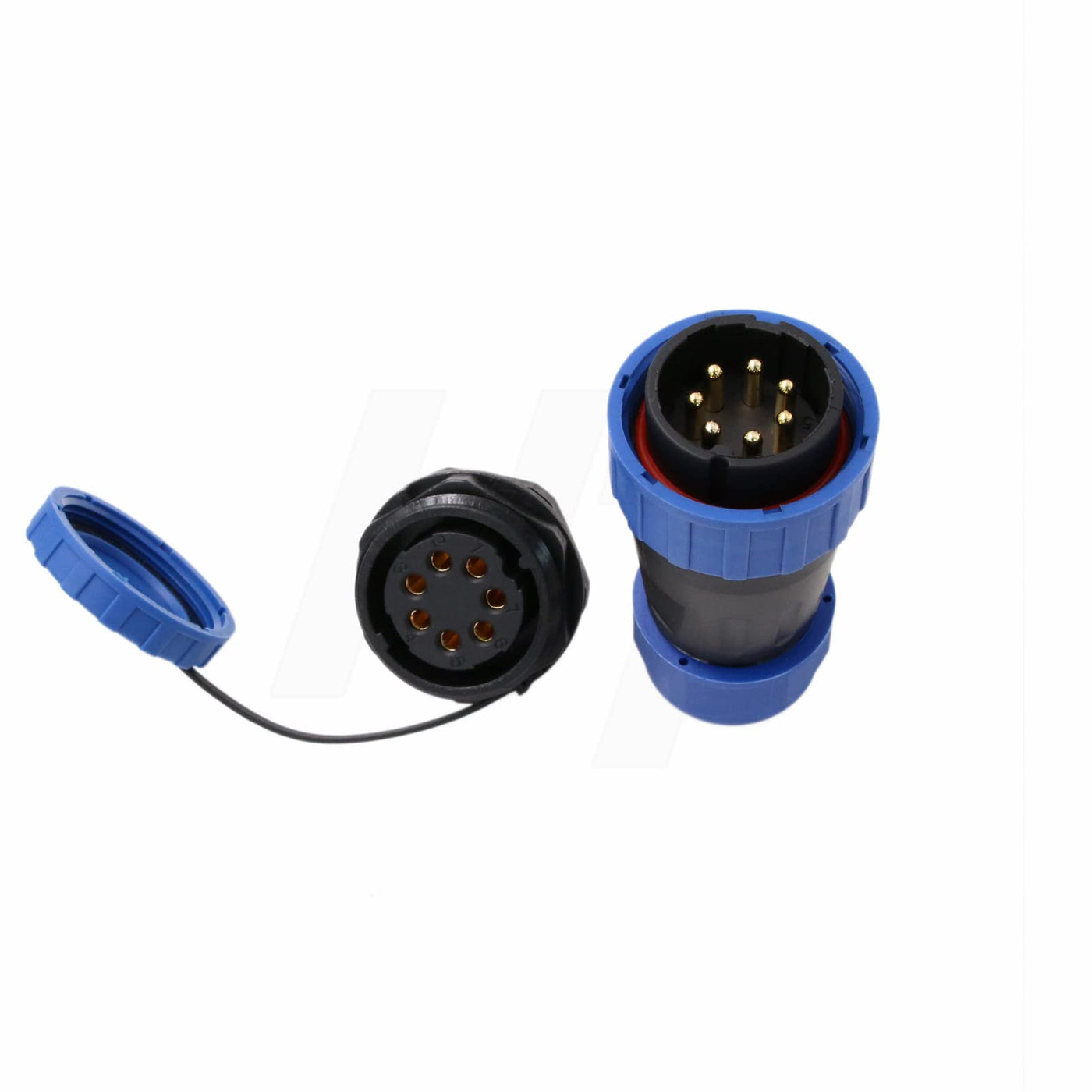

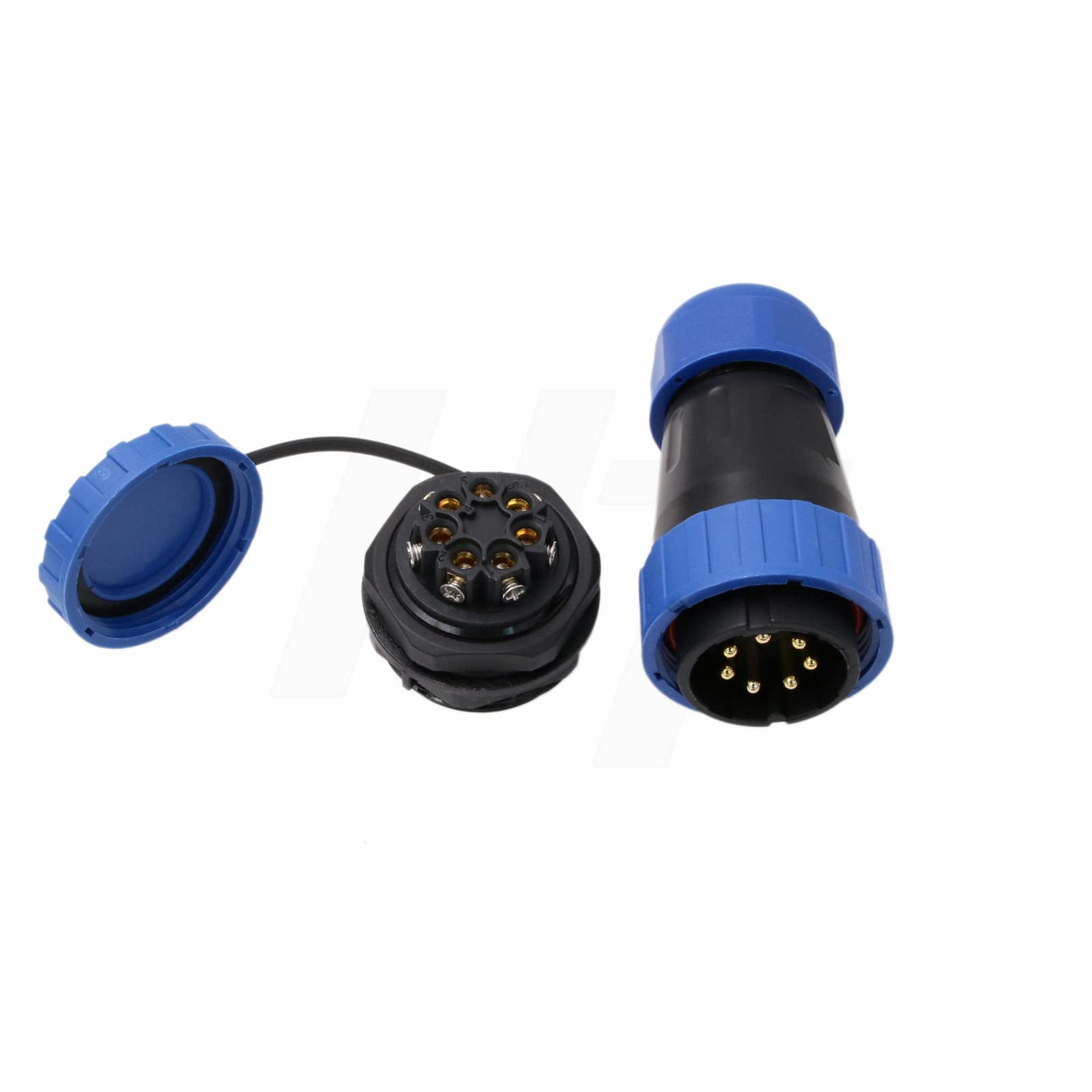

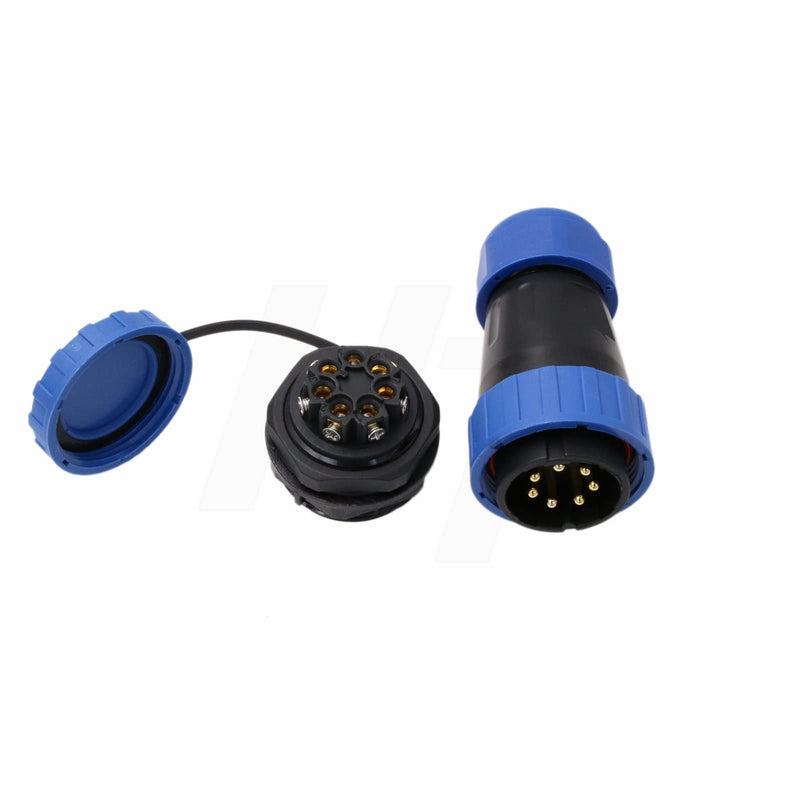

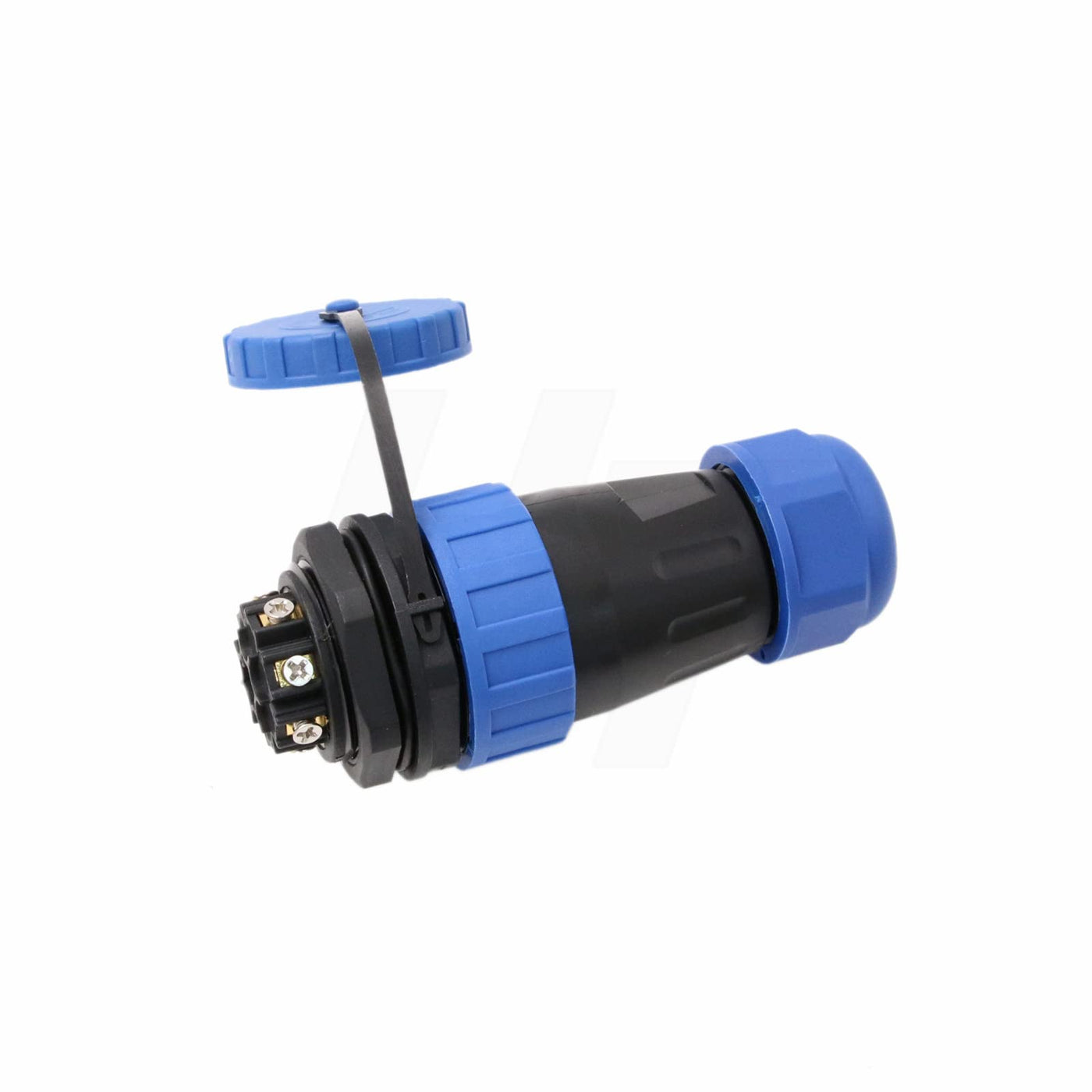

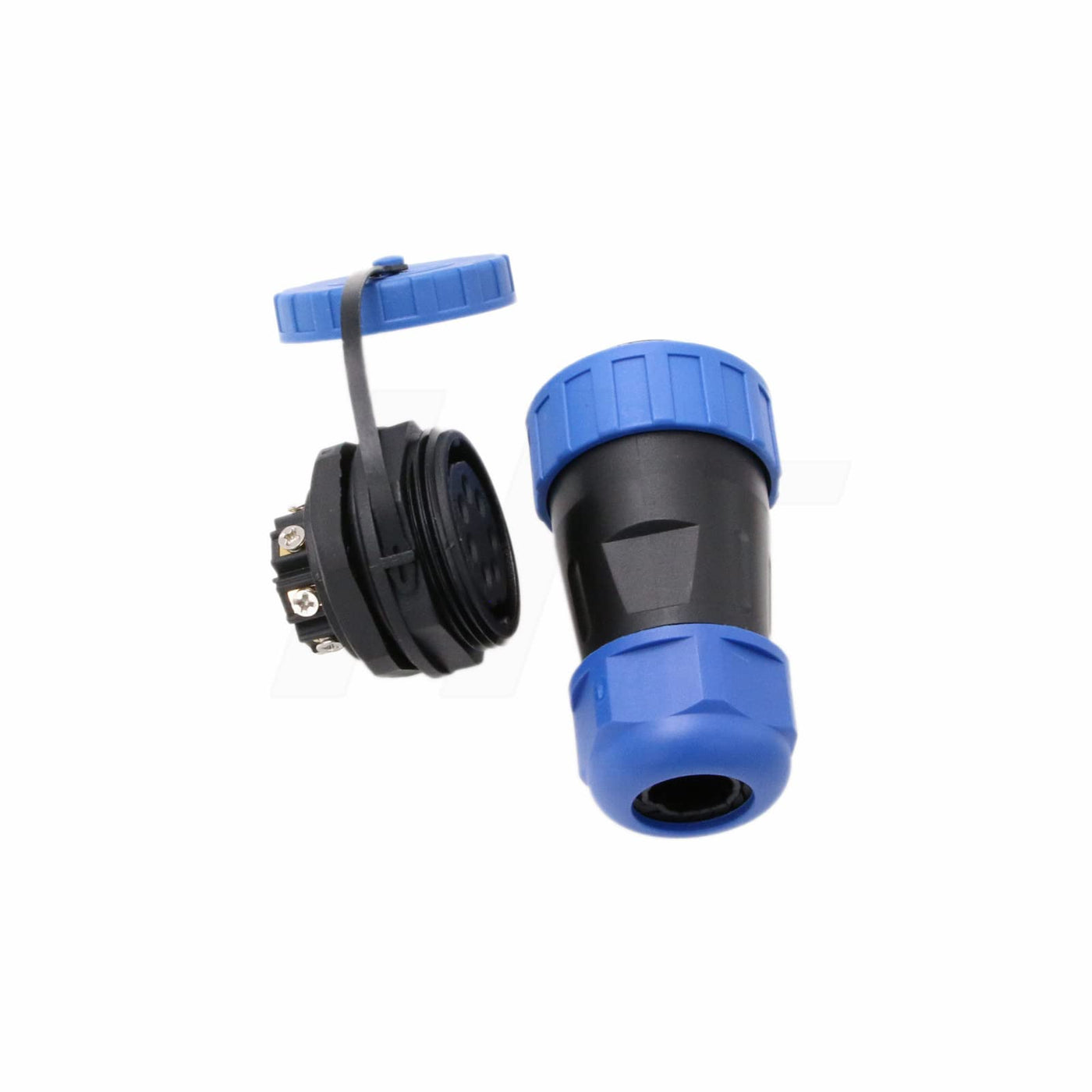

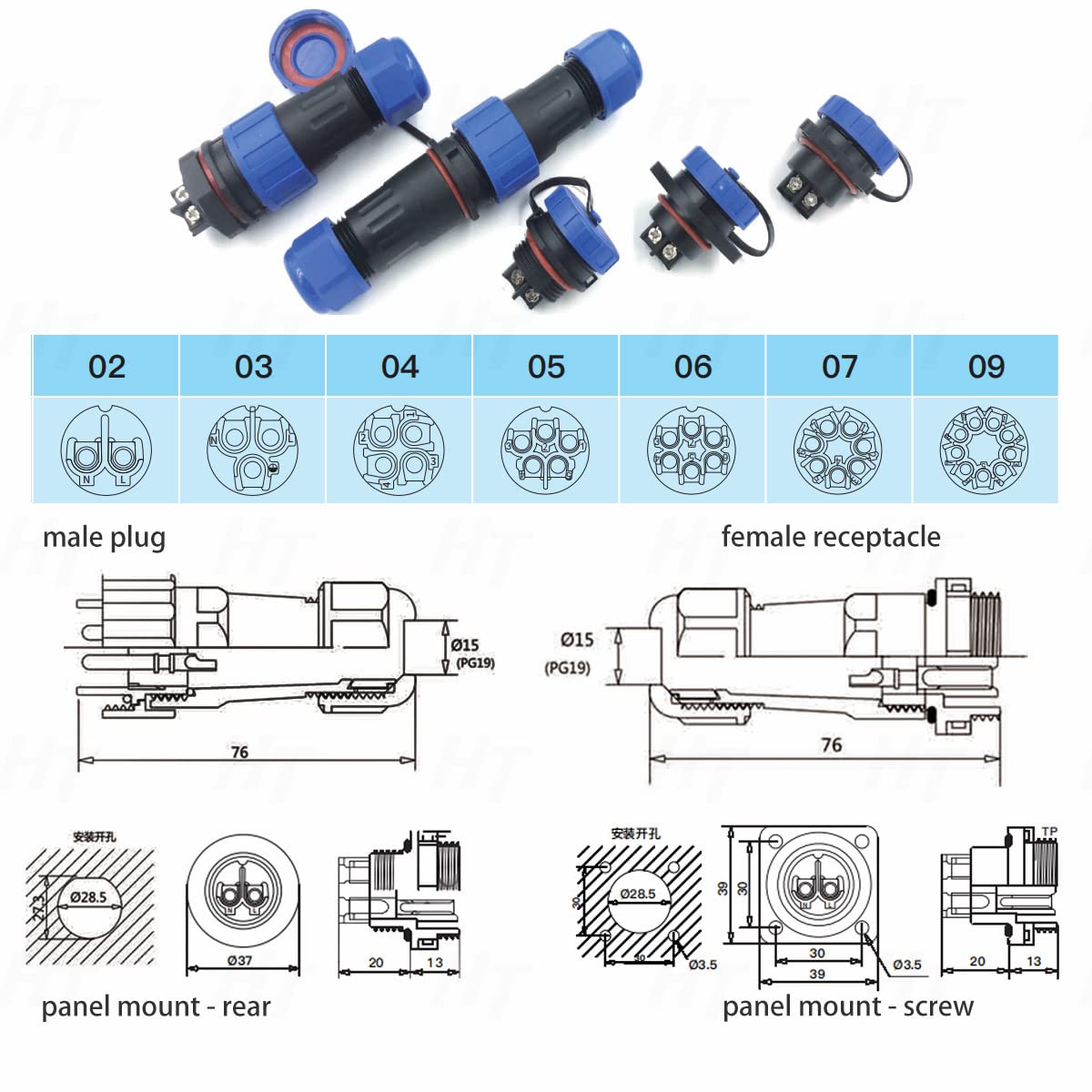

{"id":7838458577076,"title":"TY28 7 Pin 25A Circular Waterproof Connector Screw Crimp Solder-Free Male Female Cable Plug Socket Quick-Disconnect for Outdoor Marine Power Device Panel Mount","handle":"ty28-7-pin-25a-circular-waterproof-connector-screw-crimp-solder-free-male-female-cable-plug-socket-quick-disconnect-for-outdoor-marine-power-device-panel-mount","description":"\u003ch3\u003eTY28 7 Pin 25A Circular Waterproof Connector Screw Crimp Solder-Free Male Female Cable Plug Socket Quick-Disconnect for Outdoor Marine Power Device\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: The connector can provide a safe and reliable connection in the\nharsh environment . TY28 series connector is ideal for watertight power\nequipment applications, outdoor electric tools or appliances, camper van truck\npower, communications, marine equipment, under water equipment, outdoor led\nlighting, outdoor LED panels, solar energy system, outdoor security cameras,\ntransformer, control box. Specifications: TY28: Model: 2 3 4 5 6 7 9 Pin IP\nRating: IP68 Panel Cutout Diameter: 28.5mm Cable Outer Diameter Range:10-15mm\nCoupling Type: Threaded Coupling Shell material: Thermoplastic Nylon66, Fire\nResistance: V-0 Insert Material: Thermoplastic PA66, max temperature 200?\nContact Material: Pure copper plated gold Wiring way: Free-Solder \/ Screw\nCrimp Mating Cycle: \u0026gt;500 times Temperature Range: -25~+85? Package Includes: 1\nx Plug with male contact 1 x Socket with female contact 1 x Waterproof \/\nDustproof Cap\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTY28 7-pin 25A screw crimp watertight dust-proof bulkhead connector, easy for assembly cable, no need solder\u003c\/li\u003e\n \u003cli\u003eFeatures Waterproof IP68, threaded coupling, quick disconnect. The contact pins of the connector are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance\u003c\/li\u003e\n \u003cli\u003eRear panel mount female socket and cable plug with watertight cap\u003c\/li\u003e\n \u003cli\u003eRated Voltage\/Current AC 380V \/ 25A, Contact resistance 1m, Insulation resistance 2000m. Suitable wire outer diameter range 10-15mm, Wire gauge 4mm2 or 12AWG, Contact Diameter 2.8mm\u003c\/li\u003e\n \u003cli\u003eProtected against solids and liquids, provide a secure and reliable power connection in the harsh environment\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-09-19T15:00:22+10:00","created_at":"2024-09-03T16:37:18+10:00","vendor":"HangTon","type":"Cylindrical Connectors","tags":["industrial_Aug2024_update"],"price":15000,"price_min":15000,"price_max":15000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43554717401268,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B7XHNNFM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TY28 7 Pin 25A Circular Waterproof Connector Screw Crimp Solder-Free Male Female Cable Plug Socket Quick-Disconnect for Outdoor Marine Power Device Panel Mount","public_title":null,"options":["Default Title"],"price":15000,"weight":91,"compare_at_price":null,"inventory_management":"shopify","barcode":"TY28","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0B7XHNNFM.jpg?v=1775744928","\/\/auspowers.com\/cdn\/shop\/files\/510dVqsDleL.jpg?v=1725345441","\/\/auspowers.com\/cdn\/shop\/files\/51JxoubJLCL.jpg?v=1725345441","\/\/auspowers.com\/cdn\/shop\/files\/51G6NOP0GAL.jpg?v=1725345441","\/\/auspowers.com\/cdn\/shop\/files\/71G4BIBRVoL.jpg?v=1725345441"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0B7XHNNFM.jpg?v=1775744928","options":["Title"],"media":[{"alt":"[Australia - AusPower] - TY28 7 Pin 25A Circular Waterproof Connector Screw Crimp Solder-Free Male Female Cable Plug Socket Quick-Disconnect for Outdoor Marine Power Device Panel Mount ","id":30713717260468,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0B7XHNNFM.jpg?v=1775744928"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0B7XHNNFM.jpg?v=1775744928","width":1600},{"alt":"[Australia - AusPower] - TY28 7 Pin 25A Circular Waterproof Connector Screw Crimp Solder-Free Male Female Cable Plug Socket Quick-Disconnect for Outdoor Marine Power Device Panel Mount ","id":30713717293236,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/510dVqsDleL.jpg?v=1725345441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/510dVqsDleL.jpg?v=1725345441","width":1600},{"alt":"[Australia - AusPower] - TY28 7 Pin 25A Circular Waterproof Connector Screw Crimp Solder-Free Male Female Cable Plug Socket Quick-Disconnect for Outdoor Marine Power Device Panel Mount ","id":30713717326004,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51JxoubJLCL.jpg?v=1725345441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51JxoubJLCL.jpg?v=1725345441","width":1600},{"alt":"[Australia - AusPower] - TY28 7 Pin 25A Circular Waterproof Connector Screw Crimp Solder-Free Male Female Cable Plug Socket Quick-Disconnect for Outdoor Marine Power Device Panel Mount ","id":30713717358772,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51G6NOP0GAL.jpg?v=1725345441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51G6NOP0GAL.jpg?v=1725345441","width":1600},{"alt":"[Australia - AusPower] - TY28 7 Pin 25A Circular Waterproof Connector Screw Crimp Solder-Free Male Female Cable Plug Socket Quick-Disconnect for Outdoor Marine Power Device Panel Mount ","id":30713717391540,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71G4BIBRVoL.jpg?v=1725345441"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71G4BIBRVoL.jpg?v=1725345441","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTY28 7 Pin 25A Circular Waterproof Connector Screw Crimp Solder-Free Male Female Cable Plug Socket Quick-Disconnect for Outdoor Marine Power Device\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: The connector can provide a safe and reliable connection in the\nharsh environment . TY28 series connector is ideal for watertight power\nequipment applications, outdoor electric tools or appliances, camper van truck\npower, communications, marine equipment, under water equipment, outdoor led\nlighting, outdoor LED panels, solar energy system, outdoor security cameras,\ntransformer, control box. Specifications: TY28: Model: 2 3 4 5 6 7 9 Pin IP\nRating: IP68 Panel Cutout Diameter: 28.5mm Cable Outer Diameter Range:10-15mm\nCoupling Type: Threaded Coupling Shell material: Thermoplastic Nylon66, Fire\nResistance: V-0 Insert Material: Thermoplastic PA66, max temperature 200?\nContact Material: Pure copper plated gold Wiring way: Free-Solder \/ Screw\nCrimp Mating Cycle: \u0026gt;500 times Temperature Range: -25~+85? Package Includes: 1\nx Plug with male contact 1 x Socket with female contact 1 x Waterproof \/\nDustproof Cap\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTY28 7-pin 25A screw crimp watertight dust-proof bulkhead connector, easy for assembly cable, no need solder\u003c\/li\u003e\n \u003cli\u003eFeatures Waterproof IP68, threaded coupling, quick disconnect. The contact pins of the connector are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance\u003c\/li\u003e\n \u003cli\u003eRear panel mount female socket and cable plug with watertight cap\u003c\/li\u003e\n \u003cli\u003eRated Voltage\/Current AC 380V \/ 25A, Contact resistance 1m, Insulation resistance 2000m. Suitable wire outer diameter range 10-15mm, Wire gauge 4mm2 or 12AWG, Contact Diameter 2.8mm\u003c\/li\u003e\n \u003cli\u003eProtected against solids and liquids, provide a secure and reliable power connection in the harsh environment\u003c\/li\u003e\n \u003c\/ul\u003e"}
