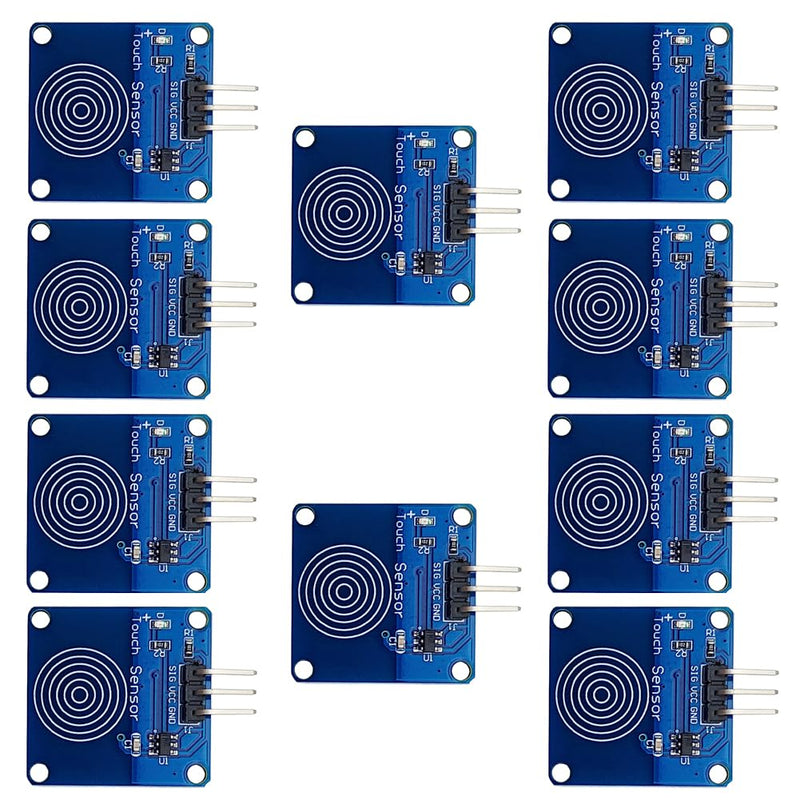

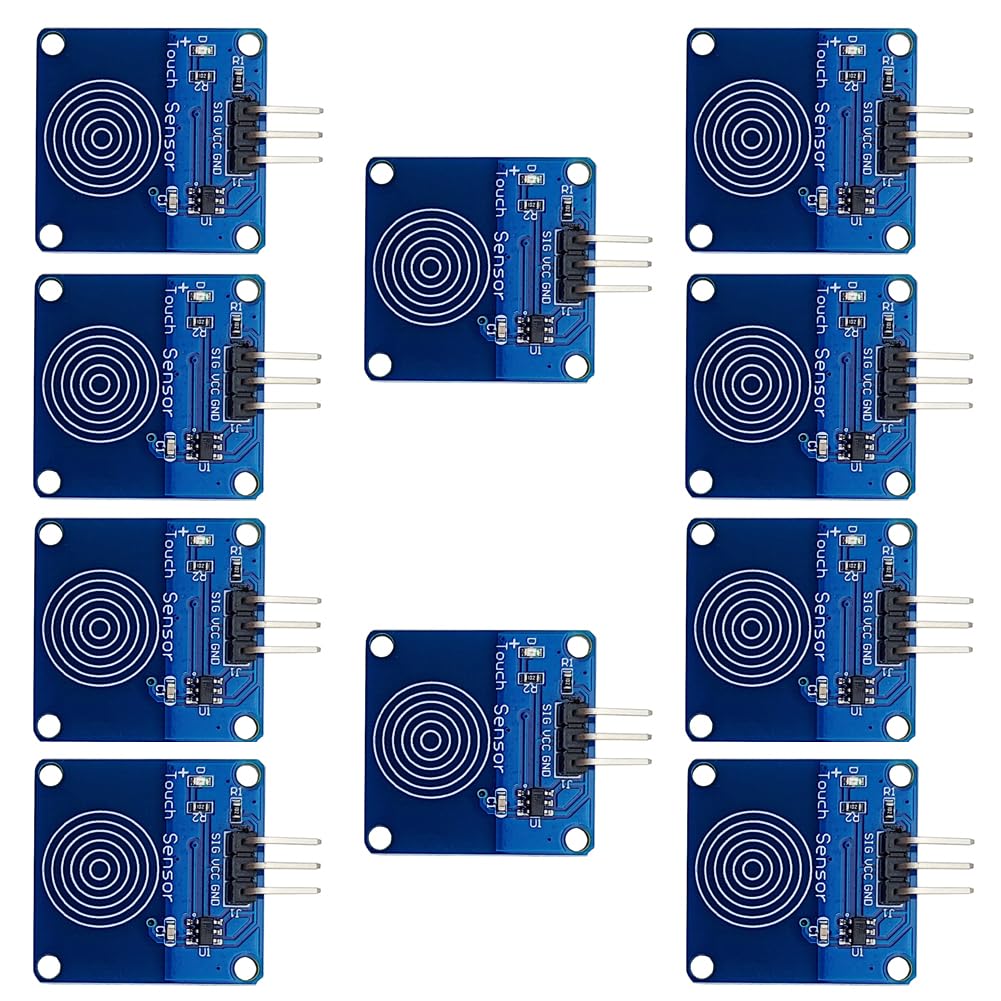

{"id":8034347352244,"title":"TTP223B Digital Touch Sensor 1 Position Capacitive Touch Switch Module DC 2V to 5.5V Compatible Arduino (10 Pack)","handle":"ttp223b-digital-touch-sensor-1-position-capacitive-touch-switch-module-dc-2v-to-5-5v-compatible-arduino-10-pack","description":"\u003ch3\u003eTTP223B Digital Touch Sensor 1 Position Capacitive Touch Switch Module DC 2V to 5.5V Compatible Arduino (10 Pack)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDescription: The module is based on a touch-sensing IC (TTP223B) capacitive\r\ntouch switch module. In the normal state, the module output low, low power\r\nconsumption. When a finger touches the corresponding position, the module\r\noutput high, if not touched for 12 seconds, switch to low-power mode. The\r\nmodule can be installed in such as surface plastic, glass of non-metallic\r\nmaterials. In addition to the thin paper (non-metallic) covering the surface\r\nof the module , as long as the correct location of the touch, you can make\r\nhidden in the walls, desktops and other parts of buttons. The module allows\r\nyou to dispense with the hassle of conventional press-type buttons. Features:\r\nTap type: Initial state is low level, touch is high level, no touch is low\r\nlevel (similar to the function of light touch button) Low power consumption,\r\npower supply is 2 ~ 5.5V DC Positive and negative sides can be used as a touch\r\nsurface, can replace the traditional touch button. Control interface: a total\r\nof 3 pins (GND, VCC, SIG), GND is ground, VCC is the power supply, SIG is the\r\ndigital signal output pin. Power indicator: green LED, power on the correct\r\nthat is lit. Touch area: the internal area of the icon similar to the\r\nfingerprint, triggered by a light touch of the finger. Positioning holes: 4pcs\r\nM2 screw positioning holes, aperture 2.2mm, so that the module is easy to\r\ninstall, to achieve the combination between the modules. Package Included:\r\n10pcs TTP223B Digital Touch Sensor\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eLow power consumption, Power supply is 2 ~ 5.5V DC. Size: 24*24mm, Weight: 2g, Color: Blue. Four M2 screws positioning holes for easy installation.\u003c\/li\u003e\r\n \u003cli\u003ePositive and negative sides can be used as a touch surface, can replace the traditional touch button.\u003c\/li\u003e\r\n \u003cli\u003eControl interface: a total of 3 pins (GND, VCC, SIG), GND is ground, VCC is the power supply, SIG is the digital signal output pin.\u003c\/li\u003e\r\n \u003cli\u003eThe module is based on a touch-sensing IC (TTP223B) capacitive touch switch module. In the normal state, the module output low, low power consumption. When a finger touches the corresponding position, the module output high, if not touched for 12 seconds, switch to low-power mode.\u003c\/li\u003e\r\n \u003cli\u003eThe module can be installed in such as surface plastic, glass of non-metallic materials. In addition to the thin paper (non-metallic) covering the surface of the module , as long as the correct location of the touch , you can make hidden in the walls, desktops and other parts of buttons.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-27T17:02:13+11:00","created_at":"2026-02-27T17:02:09+11:00","vendor":"Haldzemo","type":"Capacitive","tags":["industrial_selected_Nov2025"],"price":8900,"price_min":8900,"price_max":8900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154083901620,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0DFPZZGYR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TTP223B Digital Touch Sensor 1 Position Capacitive Touch Switch Module DC 2V to 5.5V Compatible Arduino (10 Pack)","public_title":null,"options":["Default Title"],"price":8900,"weight":32,"compare_at_price":null,"inventory_management":"shopify","barcode":"3ef09f18-8fd5-46de-ab67-fea85c14603f","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0DFPZZGYR.jpg?v=1775785328","\/\/auspowers.com\/cdn\/shop\/files\/51ewIUflZiL.jpg?v=1772172132","\/\/auspowers.com\/cdn\/shop\/files\/61hFNvW7GSL.jpg?v=1772172132","\/\/auspowers.com\/cdn\/shop\/files\/614-6_jgHLL.jpg?v=1772172132","\/\/auspowers.com\/cdn\/shop\/files\/41d-VTeWTcL.jpg?v=1772172132"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0DFPZZGYR.jpg?v=1775785328","options":["Title"],"media":[{"alt":"[Australia - AusPower] - TTP223B Digital Touch Sensor 1 Position Capacitive Touch Switch Module DC 2V to 5.5V Compatible Arduino (10 Pack) ","id":32720197058740,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DFPZZGYR.jpg?v=1775785328"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DFPZZGYR.jpg?v=1775785328","width":1001},{"alt":"[Australia - AusPower] - TTP223B Digital Touch Sensor 1 Position Capacitive Touch Switch Module DC 2V to 5.5V Compatible Arduino (10 Pack) ","id":32720197091508,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51ewIUflZiL.jpg?v=1772172132"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51ewIUflZiL.jpg?v=1772172132","width":1001},{"alt":"[Australia - AusPower] - TTP223B Digital Touch Sensor 1 Position Capacitive Touch Switch Module DC 2V to 5.5V Compatible Arduino (10 Pack) ","id":32720197124276,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61hFNvW7GSL.jpg?v=1772172132"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61hFNvW7GSL.jpg?v=1772172132","width":1001},{"alt":"[Australia - AusPower] - TTP223B Digital Touch Sensor 1 Position Capacitive Touch Switch Module DC 2V to 5.5V Compatible Arduino (10 Pack) ","id":32720197157044,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/614-6_jgHLL.jpg?v=1772172132"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/614-6_jgHLL.jpg?v=1772172132","width":1001},{"alt":"[Australia - AusPower] - TTP223B Digital Touch Sensor 1 Position Capacitive Touch Switch Module DC 2V to 5.5V Compatible Arduino (10 Pack) ","id":32720197189812,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41d-VTeWTcL.jpg?v=1772172132"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41d-VTeWTcL.jpg?v=1772172132","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTTP223B Digital Touch Sensor 1 Position Capacitive Touch Switch Module DC 2V to 5.5V Compatible Arduino (10 Pack)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDescription: The module is based on a touch-sensing IC (TTP223B) capacitive\r\ntouch switch module. In the normal state, the module output low, low power\r\nconsumption. When a finger touches the corresponding position, the module\r\noutput high, if not touched for 12 seconds, switch to low-power mode. The\r\nmodule can be installed in such as surface plastic, glass of non-metallic\r\nmaterials. In addition to the thin paper (non-metallic) covering the surface\r\nof the module , as long as the correct location of the touch, you can make\r\nhidden in the walls, desktops and other parts of buttons. The module allows\r\nyou to dispense with the hassle of conventional press-type buttons. Features:\r\nTap type: Initial state is low level, touch is high level, no touch is low\r\nlevel (similar to the function of light touch button) Low power consumption,\r\npower supply is 2 ~ 5.5V DC Positive and negative sides can be used as a touch\r\nsurface, can replace the traditional touch button. Control interface: a total\r\nof 3 pins (GND, VCC, SIG), GND is ground, VCC is the power supply, SIG is the\r\ndigital signal output pin. Power indicator: green LED, power on the correct\r\nthat is lit. Touch area: the internal area of the icon similar to the\r\nfingerprint, triggered by a light touch of the finger. Positioning holes: 4pcs\r\nM2 screw positioning holes, aperture 2.2mm, so that the module is easy to\r\ninstall, to achieve the combination between the modules. Package Included:\r\n10pcs TTP223B Digital Touch Sensor\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eLow power consumption, Power supply is 2 ~ 5.5V DC. Size: 24*24mm, Weight: 2g, Color: Blue. Four M2 screws positioning holes for easy installation.\u003c\/li\u003e\r\n \u003cli\u003ePositive and negative sides can be used as a touch surface, can replace the traditional touch button.\u003c\/li\u003e\r\n \u003cli\u003eControl interface: a total of 3 pins (GND, VCC, SIG), GND is ground, VCC is the power supply, SIG is the digital signal output pin.\u003c\/li\u003e\r\n \u003cli\u003eThe module is based on a touch-sensing IC (TTP223B) capacitive touch switch module. In the normal state, the module output low, low power consumption. When a finger touches the corresponding position, the module output high, if not touched for 12 seconds, switch to low-power mode.\u003c\/li\u003e\r\n \u003cli\u003eThe module can be installed in such as surface plastic, glass of non-metallic materials. In addition to the thin paper (non-metallic) covering the surface of the module , as long as the correct location of the touch , you can make hidden in the walls, desktops and other parts of buttons.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
