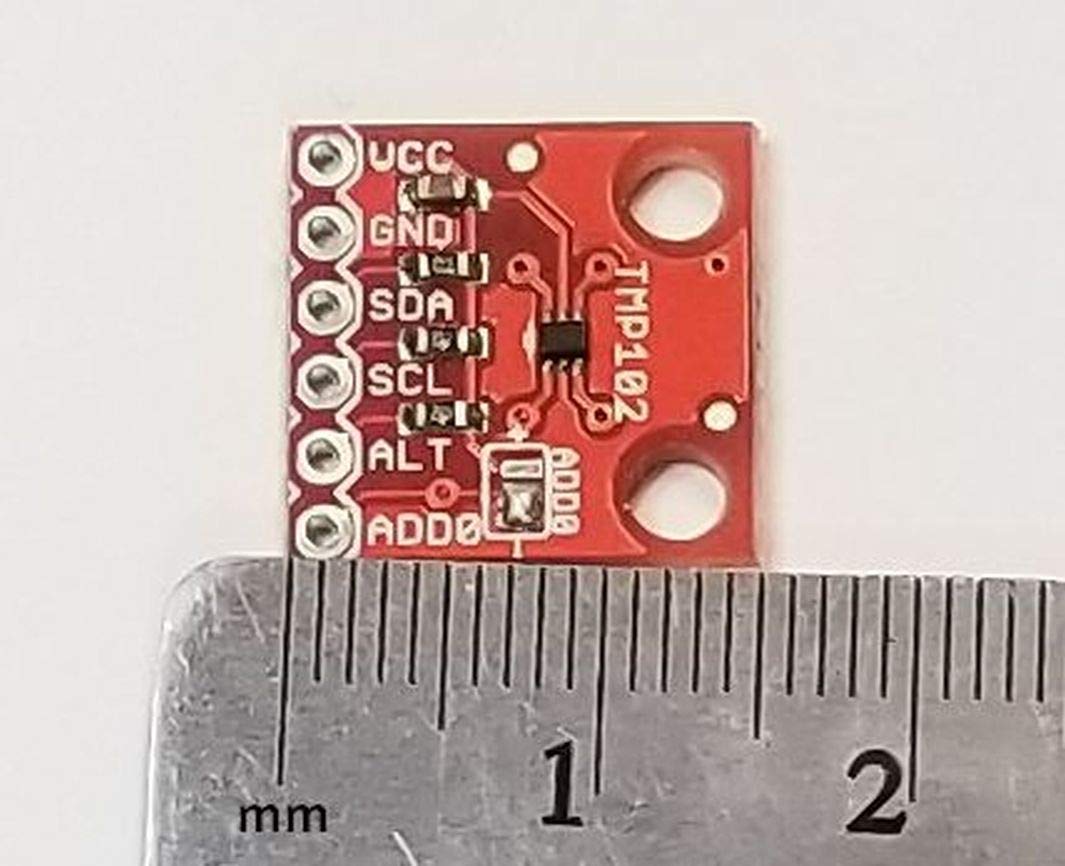

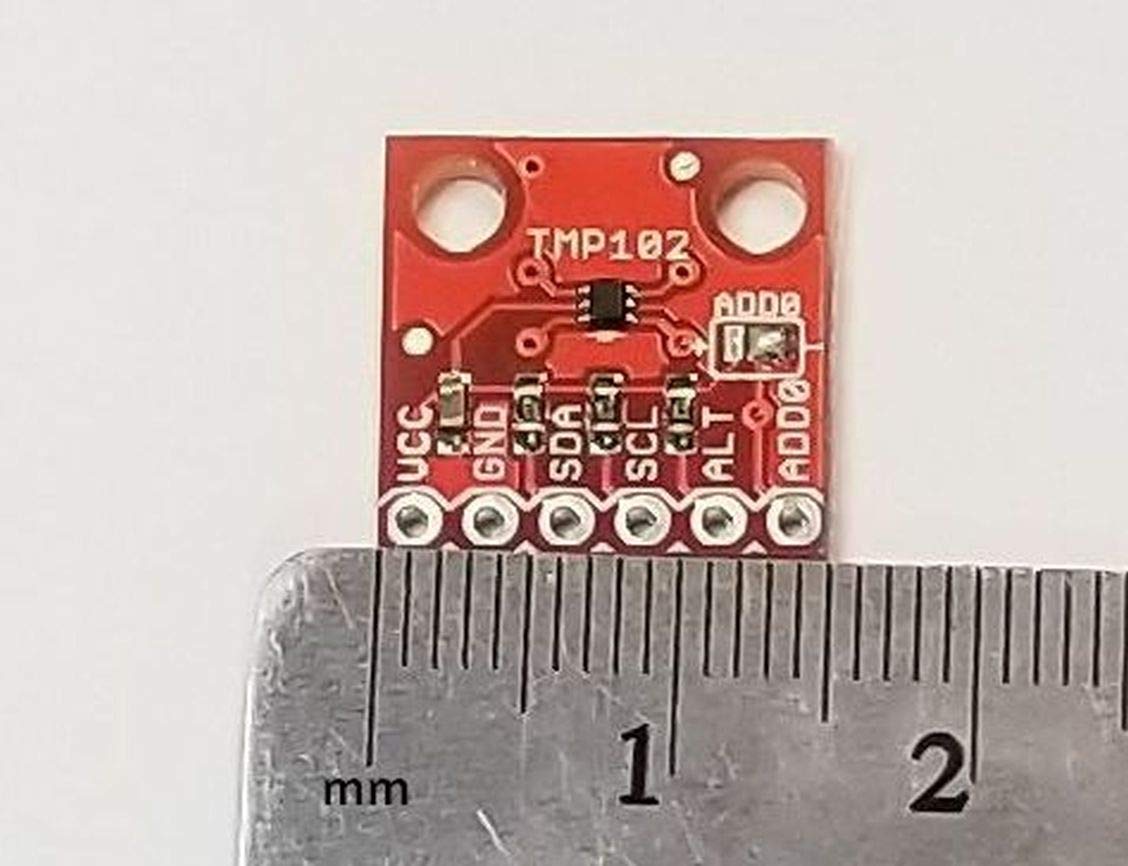

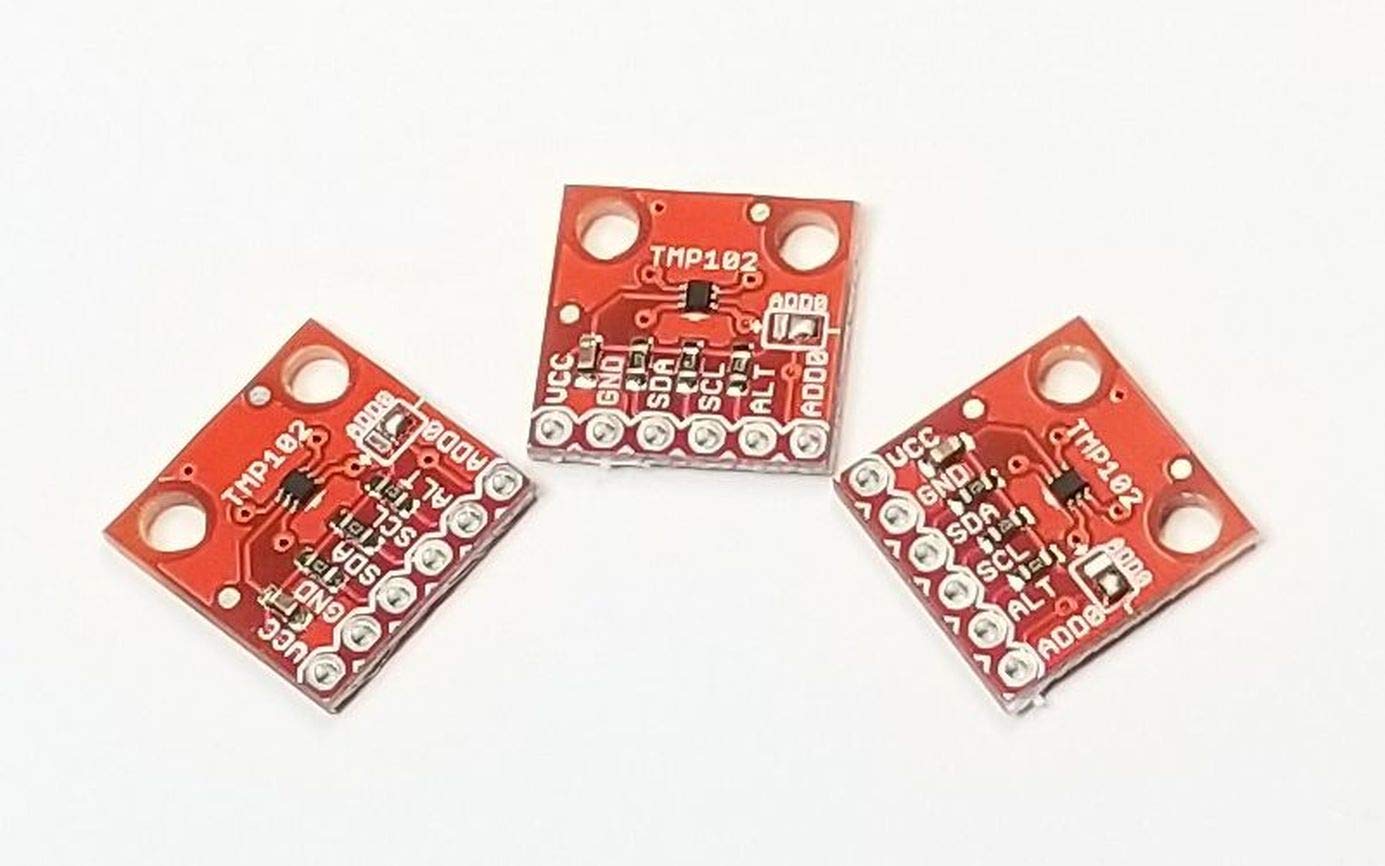

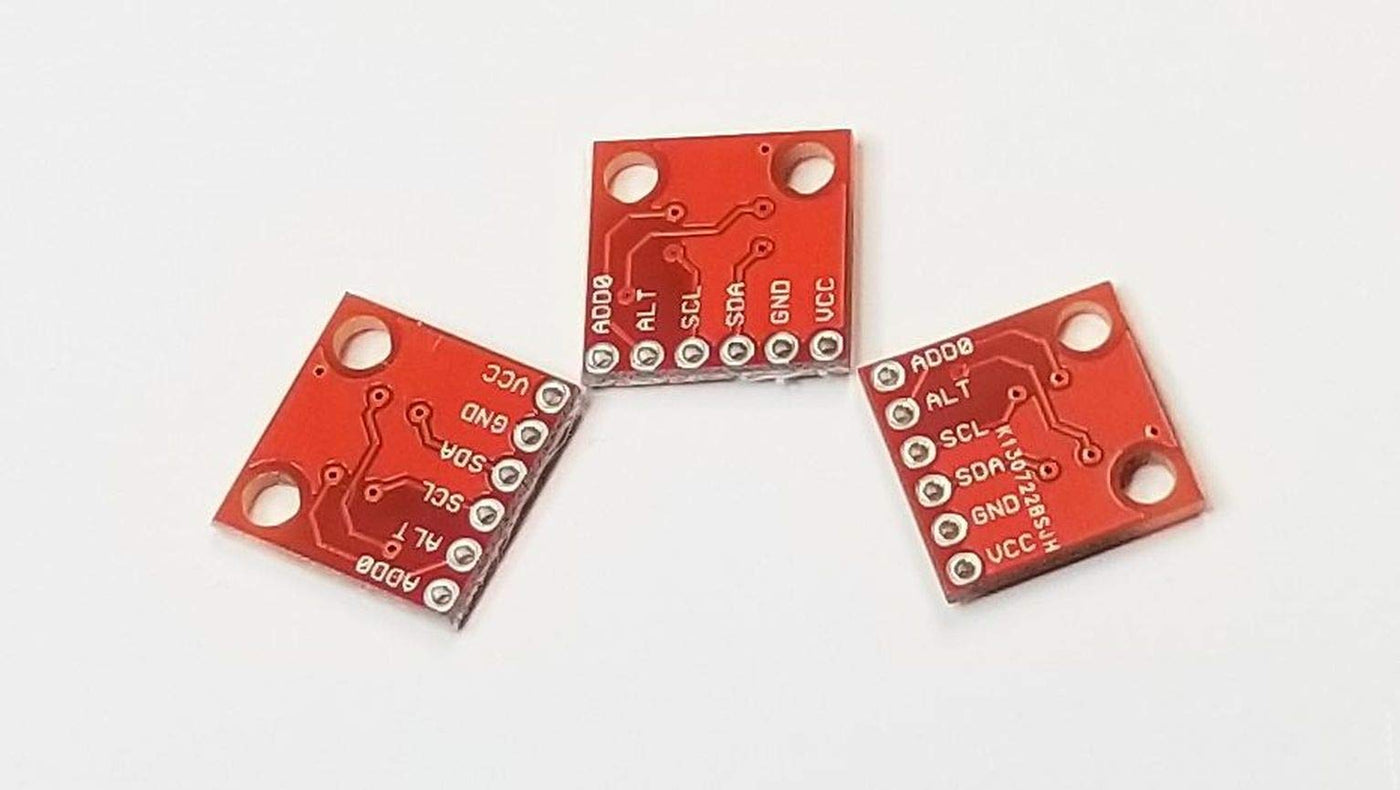

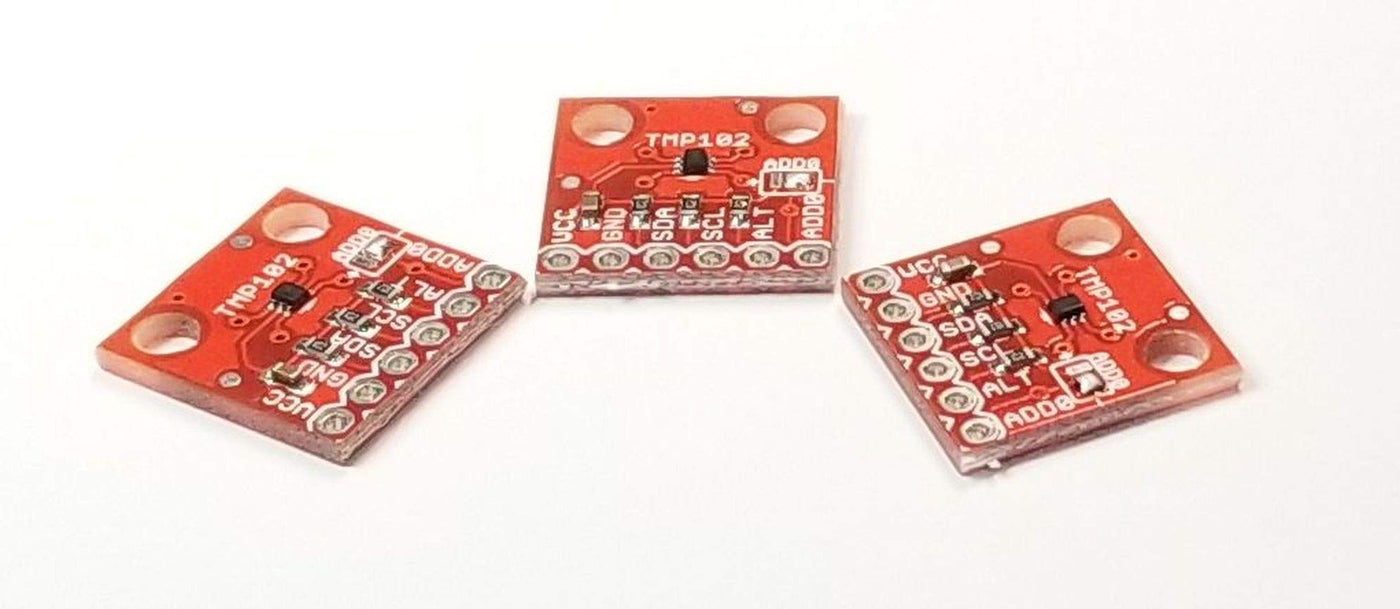

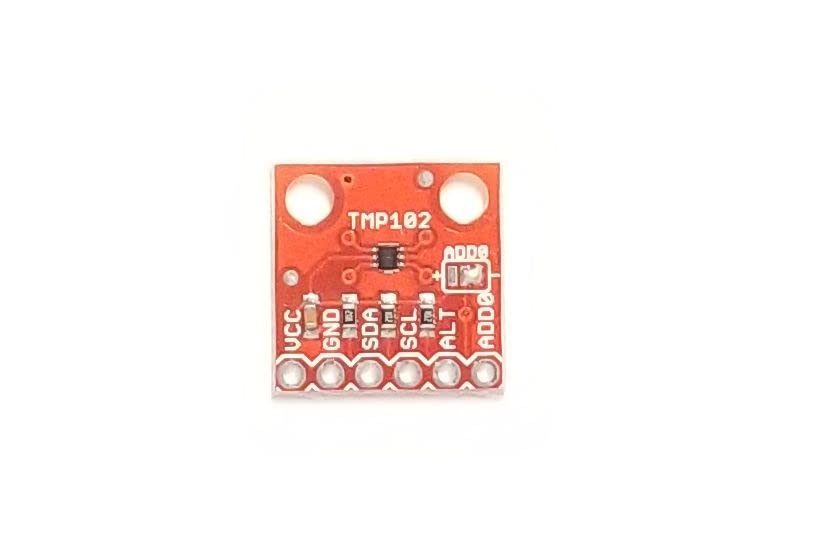

{"id":8034354004148,"title":"Three Pack TMP102 Temperature Sensor Breakout Board","handle":"three-pack-tmp102-temperature-sensor-breakout-board","description":"\u003ch3\u003eThree Pack TMP102 Temperature Sensor Breakout Board\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eTMP102 Temperature Sensor Breakout Board The TMP102 Temperature Sensor chip\r\nfrom T I. It can measure the ambient temperature between -25℃ to +85℃. The\r\ntemperature is measured with an accuracy of ± 2.0℃ across the temperature\r\nrange. The TMP102 is capable of reading temperatures to a resolution of\r\n0.0625°C The chip is a slave I2C device. A host processor will communicate\r\nwith the TMP102 using the standard I2C protocol. The address of the chip is\r\nselectable on the breakout board. There are also two pullup resistors for the\r\ntwo I2C signals. The device is specified to operate over supply voltages from\r\n1.4 to 3.6 V with the maximum quiescent current of 10 µA over the full\r\noperating range. The device is specified for operation over a temperature\r\nrange of –40°C to 125°C. The TMP102 device operates as a slave device only on\r\nthe two-wire bus. Connections to the bus are made through the open-drain I\/O\r\nlines, SDA and SCL. Because these signals are both open drain, the TMP102 can\r\noperate on both +3.3V and +5V Host MCUs. The board routes the +3.3V to power\r\nthe TMP102 and to the pullup resistors for the open drain lines. The TMP102\r\ndevice supports the transmission protocol for both fast (1 kHz to 400 kHz) and\r\nhigh-speed (1 kHz to 2.85 MHz) modes. All data bytes are transmitted MSB\r\nfirst. Hardware Features: - Uses the TMP102 Sensor from T I - 12-bit, 0.0625°C\r\nresolution - Typical temperature accuracy of ±2.0°C - +3.3V powered sensor -\r\nBreakout board provides header connections using 0.1 Inch pitch Three Pack of\r\nthe TMP102 Temperature Sensor Breakout Board This offer is for three TMP102\r\nTemperature Sensor Breakout Boards. Each board is sealed in its own ESD\r\nprotective bag along with a six pin 0.1 Inch steak-pin header. The PCB\r\nincludes red soldermask with white silkscreen printing. Each PCB is 15mm x\r\n15mm.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThree Pack of the TMP102 Temperature Sensor Breakout Board\u003c\/li\u003e\r\n \u003cli\u003e12-bit, 0.0625C resolution\u003c\/li\u003e\r\n \u003cli\u003eTypical temperature accuracy of 2.0C\u003c\/li\u003e\r\n \u003cli\u003e+3.3V powered sensor\u003c\/li\u003e\r\n \u003cli\u003eBreakout board provides header connections using 0.1 Inch pitch\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-27T17:15:14+11:00","created_at":"2026-02-27T17:15:10+11:00","vendor":"Earth People Technology","type":"Temperature Probes \u0026 Sensors","tags":["industrial_selected_Nov2025"],"price":11700,"price_min":11700,"price_max":11700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154097565876,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08KT6C7LC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Three Pack TMP102 Temperature Sensor Breakout Board","public_title":null,"options":["Default Title"],"price":11700,"weight":27,"compare_at_price":null,"inventory_management":"shopify","barcode":"305399519257","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B08KT6C7LC.jpg?v=1775785673","\/\/auspowers.com\/cdn\/shop\/files\/71RjmKCdycL.jpg?v=1772172913","\/\/auspowers.com\/cdn\/shop\/files\/61nSY50vMmL.jpg?v=1772172913","\/\/auspowers.com\/cdn\/shop\/files\/61JDsVmyNXL.jpg?v=1772172913","\/\/auspowers.com\/cdn\/shop\/files\/61XqeI0uVuL.jpg?v=1772172913","\/\/auspowers.com\/cdn\/shop\/files\/61tx-V6_tKL.jpg?v=1772172913","\/\/auspowers.com\/cdn\/shop\/files\/31ccYTq3s7L.jpg?v=1772172913"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B08KT6C7LC.jpg?v=1775785673","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Three Pack TMP102 Temperature Sensor Breakout Board ","id":32720370172084,"position":1,"preview_image":{"aspect_ratio":1.599,"height":866,"width":1385,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B08KT6C7LC.jpg?v=1775785673"},"aspect_ratio":1.599,"height":866,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B08KT6C7LC.jpg?v=1775785673","width":1385},{"alt":"[Australia - AusPower] - Three Pack TMP102 Temperature Sensor Breakout Board ","id":32720370204852,"position":2,"preview_image":{"aspect_ratio":1.859,"height":978,"width":1818,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71RjmKCdycL.jpg?v=1772172913"},"aspect_ratio":1.859,"height":978,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71RjmKCdycL.jpg?v=1772172913","width":1818},{"alt":"[Australia - AusPower] - Three Pack TMP102 Temperature Sensor Breakout Board ","id":32720370237620,"position":3,"preview_image":{"aspect_ratio":2.299,"height":866,"width":1991,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61nSY50vMmL.jpg?v=1772172913"},"aspect_ratio":2.299,"height":866,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61nSY50vMmL.jpg?v=1772172913","width":1991},{"alt":"[Australia - AusPower] - Three Pack TMP102 Temperature Sensor Breakout Board ","id":32720370270388,"position":4,"preview_image":{"aspect_ratio":1.771,"height":866,"width":1534,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61JDsVmyNXL.jpg?v=1772172913"},"aspect_ratio":1.771,"height":866,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61JDsVmyNXL.jpg?v=1772172913","width":1534},{"alt":"[Australia - AusPower] - Three Pack TMP102 Temperature Sensor Breakout Board ","id":32720370303156,"position":5,"preview_image":{"aspect_ratio":1.23,"height":866,"width":1065,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61XqeI0uVuL.jpg?v=1772172913"},"aspect_ratio":1.23,"height":866,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61XqeI0uVuL.jpg?v=1772172913","width":1065},{"alt":"[Australia - AusPower] - Three Pack TMP102 Temperature Sensor Breakout Board ","id":32720370335924,"position":6,"preview_image":{"aspect_ratio":1.303,"height":866,"width":1128,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61tx-V6_tKL.jpg?v=1772172913"},"aspect_ratio":1.303,"height":866,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61tx-V6_tKL.jpg?v=1772172913","width":1128},{"alt":"[Australia - AusPower] - Three Pack TMP102 Temperature Sensor Breakout Board ","id":32720370368692,"position":7,"preview_image":{"aspect_ratio":1.504,"height":544,"width":818,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31ccYTq3s7L.jpg?v=1772172913"},"aspect_ratio":1.504,"height":544,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31ccYTq3s7L.jpg?v=1772172913","width":818}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eThree Pack TMP102 Temperature Sensor Breakout Board\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eTMP102 Temperature Sensor Breakout Board The TMP102 Temperature Sensor chip\r\nfrom T I. It can measure the ambient temperature between -25℃ to +85℃. The\r\ntemperature is measured with an accuracy of ± 2.0℃ across the temperature\r\nrange. The TMP102 is capable of reading temperatures to a resolution of\r\n0.0625°C The chip is a slave I2C device. A host processor will communicate\r\nwith the TMP102 using the standard I2C protocol. The address of the chip is\r\nselectable on the breakout board. There are also two pullup resistors for the\r\ntwo I2C signals. The device is specified to operate over supply voltages from\r\n1.4 to 3.6 V with the maximum quiescent current of 10 µA over the full\r\noperating range. The device is specified for operation over a temperature\r\nrange of –40°C to 125°C. The TMP102 device operates as a slave device only on\r\nthe two-wire bus. Connections to the bus are made through the open-drain I\/O\r\nlines, SDA and SCL. Because these signals are both open drain, the TMP102 can\r\noperate on both +3.3V and +5V Host MCUs. The board routes the +3.3V to power\r\nthe TMP102 and to the pullup resistors for the open drain lines. The TMP102\r\ndevice supports the transmission protocol for both fast (1 kHz to 400 kHz) and\r\nhigh-speed (1 kHz to 2.85 MHz) modes. All data bytes are transmitted MSB\r\nfirst. Hardware Features: - Uses the TMP102 Sensor from T I - 12-bit, 0.0625°C\r\nresolution - Typical temperature accuracy of ±2.0°C - +3.3V powered sensor -\r\nBreakout board provides header connections using 0.1 Inch pitch Three Pack of\r\nthe TMP102 Temperature Sensor Breakout Board This offer is for three TMP102\r\nTemperature Sensor Breakout Boards. Each board is sealed in its own ESD\r\nprotective bag along with a six pin 0.1 Inch steak-pin header. The PCB\r\nincludes red soldermask with white silkscreen printing. Each PCB is 15mm x\r\n15mm.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThree Pack of the TMP102 Temperature Sensor Breakout Board\u003c\/li\u003e\r\n \u003cli\u003e12-bit, 0.0625C resolution\u003c\/li\u003e\r\n \u003cli\u003eTypical temperature accuracy of 2.0C\u003c\/li\u003e\r\n \u003cli\u003e+3.3V powered sensor\u003c\/li\u003e\r\n \u003cli\u003eBreakout board provides header connections using 0.1 Inch pitch\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
