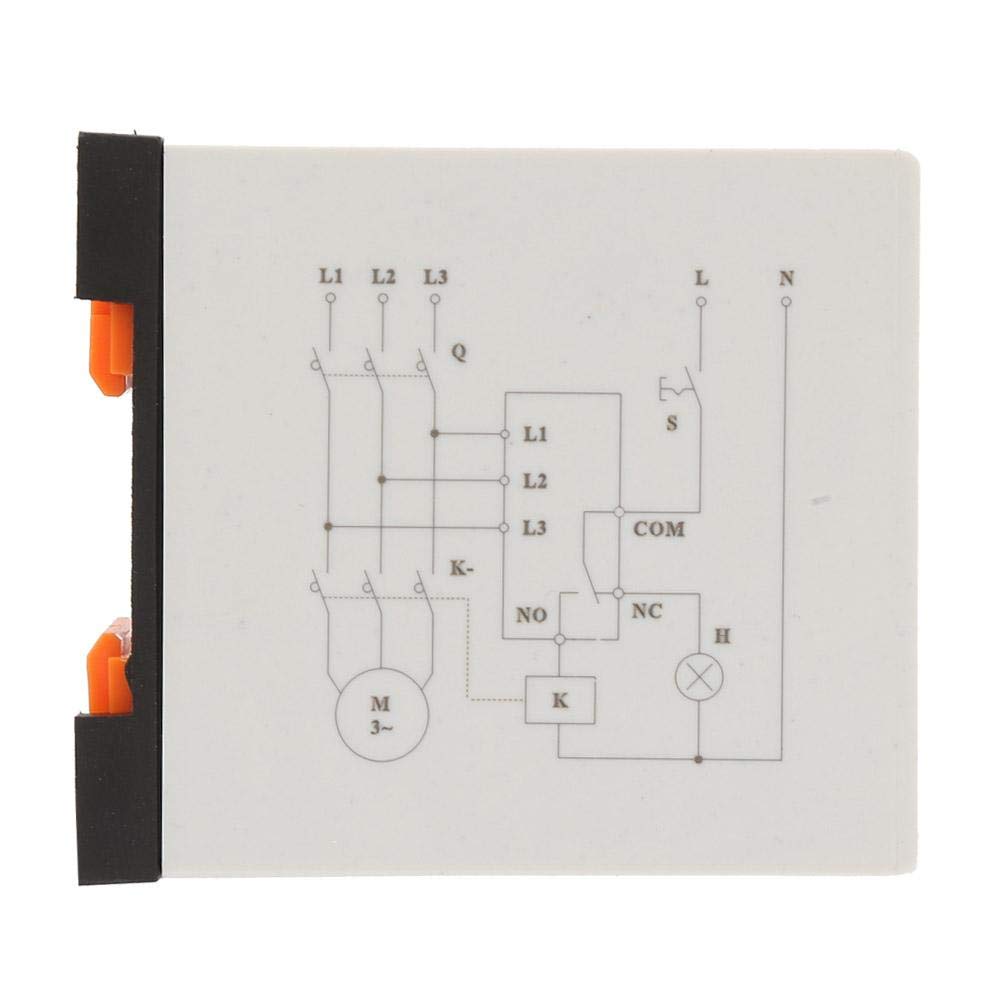

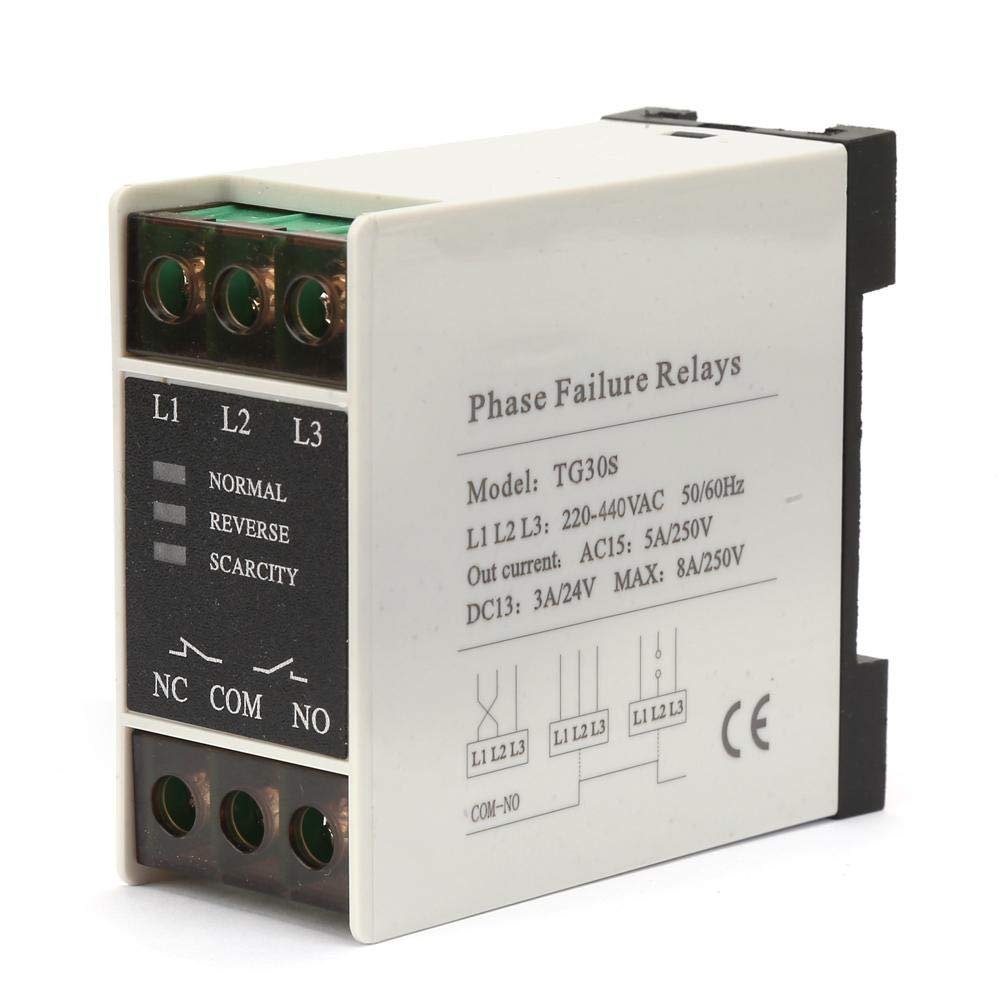

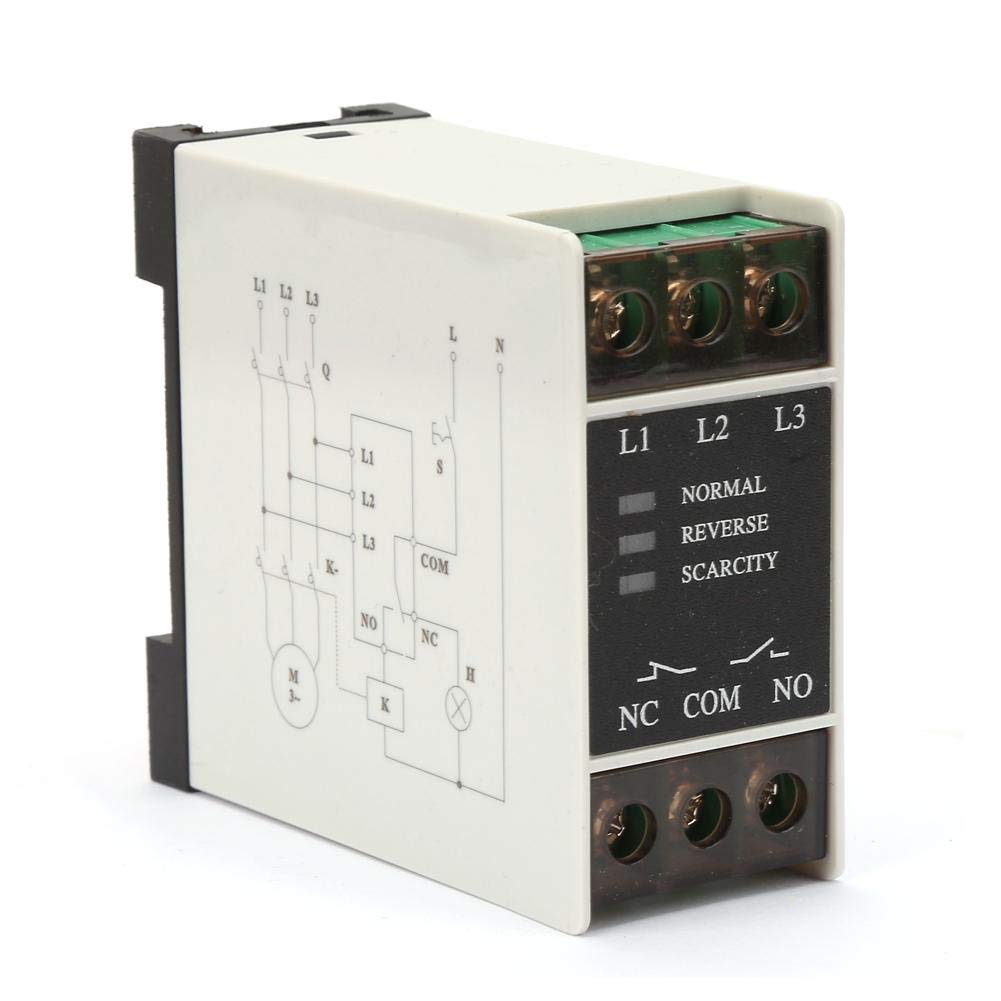

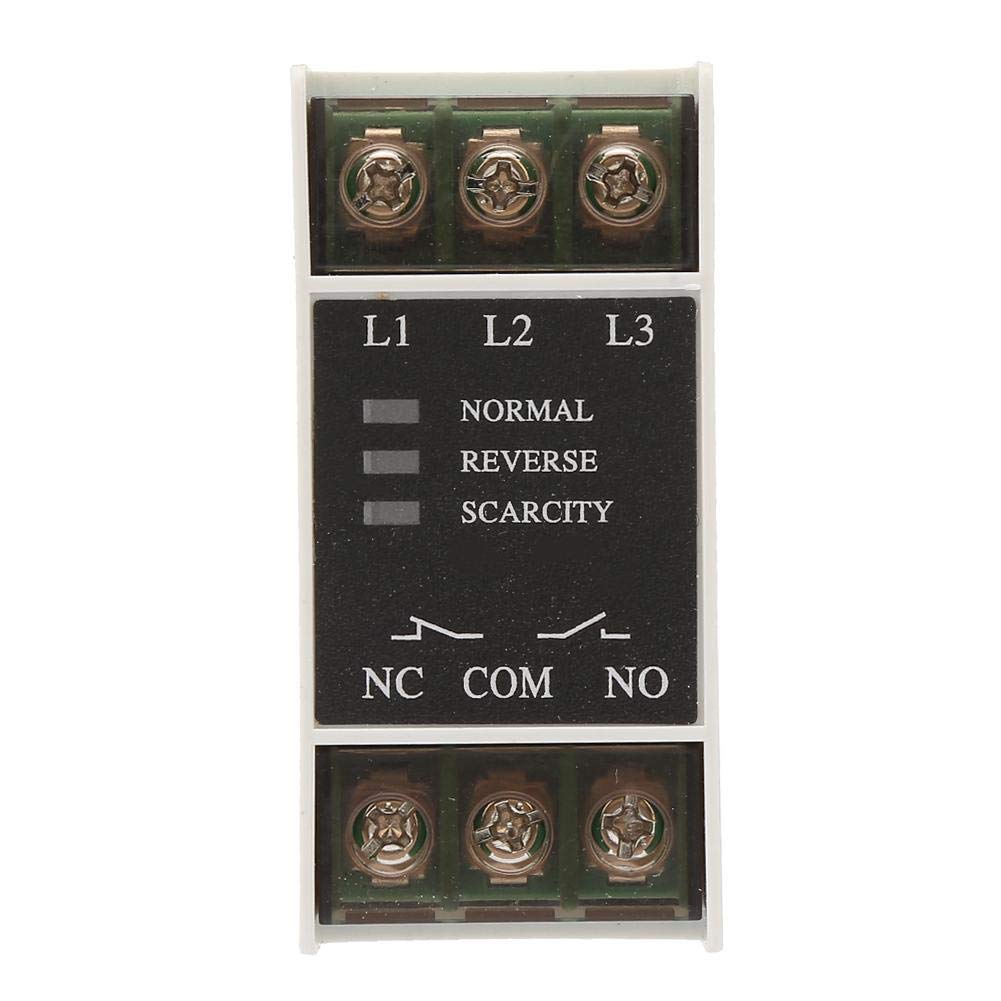

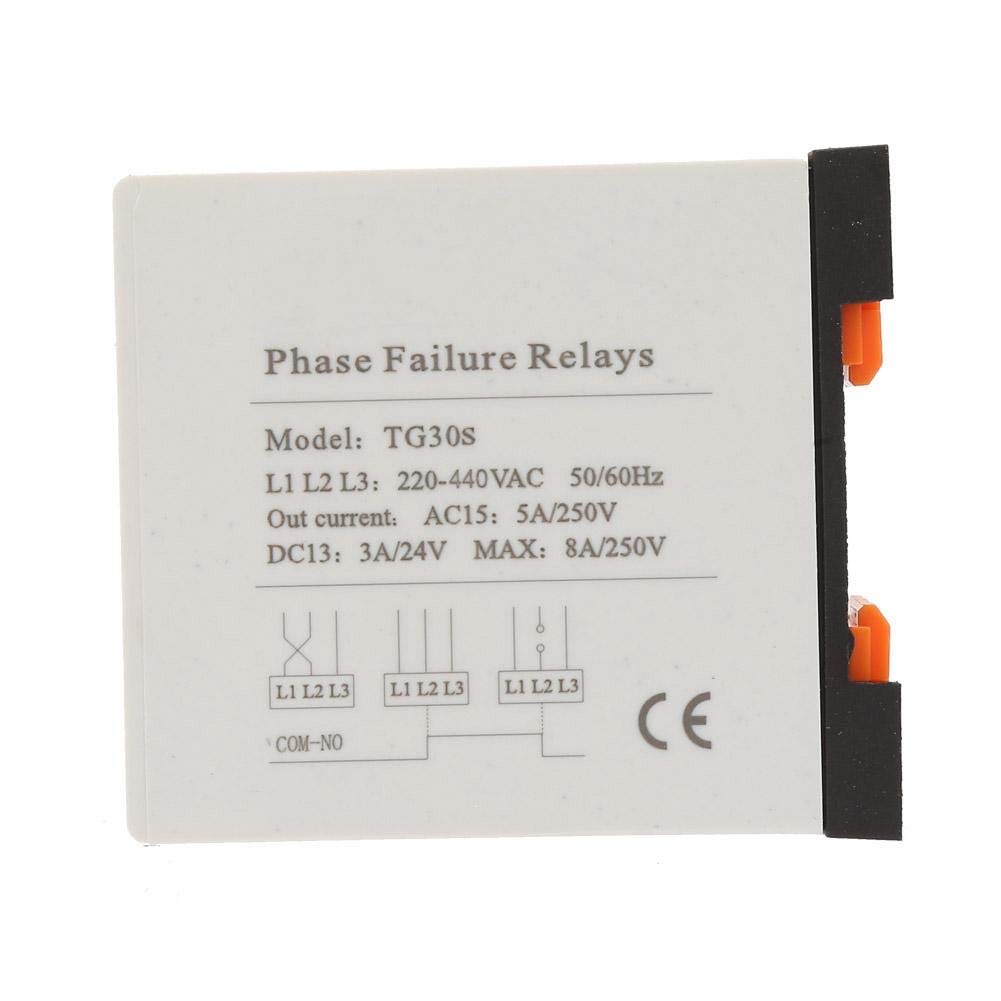

{"id":7170021261492,"title":"TG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay","handle":"tg30s-220-440v-ac-3-phase-sequence-relay-protector-voltage-phase-protective-relay","description":"\u003ch3\u003eTG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Model: TG30S Voltage: 220-440V AC Meet the standard: GB\/T\n14048.1-2000, GB14048.5-2001 eqv IEC60947-1:199 Package list: 1 Phase\nSequence Protector Note: The actual product color may deviate from the photo\ndue to light. There may be a slight deviation in the measurement of product.\nWorking status: 1. L1, L2, L3 three-phase wiring is correct, the monitor green\nlight is on, the relay is closed; if the phase sequence is wrong, the monitor\nyellow light is on, just exchange any two phases of L1, L2, L3 three phases,\nthe monitor will Can recognize the phase sequence and work normally. When the\nprotected device is working normally, the yellow light is on, and when the\nrelay does not pick up, it should be regarded as misconnection of the external\nline phase sequence, and the monitor has the function of preventing\nmisconnection protection; 2. When the L1, L2, and L3 phases are out of phase,\nthe red light is on, the green light is off, and the relay is released; when\nthe voltage is normal, the green light is on and the relay is closed; 3. L1,\nL2, L3 are connected to three-phase AC voltage, NO and COM are normally open\ncontacts; NC and COM are normally closed contacts. Use wire to connect the\nterminal block directly.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDynamic phase loss, static phase loss protection: refers to the phase failure of any phase when the protected device is in the running state or non-operating state. The indicator light is in the form of red light and priority.There is no requirement for motor wiring when used for motor protection.\u003c\/li\u003e\n \u003cli\u003eWrong phase protection: A protection measure to prevent the phase sequence of L1, L2, L3 three-phase AC power supply from being connected incorrectly. Instant action. The indicator light is in the form of yellow light.This product complies with GB\/T 14048.1-2000, GB14048.5-2001 eqv IEC60947-1:1999.\u003c\/li\u003e\n \u003cli\u003eVoltage Unbalance Protection: Refers to a voltage imbalance that will affect the safe operation of the device. When the voltage imbalance rate is higher than 8%. The form of the indicator light is: the lack of phase red light is on, and priority.Three-phase voltage imbalance protection, static phase loss protection, reverse phase protection, lightning protection, and surge resistance.\u003c\/li\u003e\n \u003cli\u003eDelay protection: When there is a fault, the monitor will delay after 1~2 seconds, and the relay will release.\u003c\/li\u003e\n \u003cli\u003eThe protection function of the monitor is not affected by the current of the line or load, the inrush current, the unbalanced current and the nature of the load. Long-term work with full performance and full climate. Power consumption is no more than 2W.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-26T20:06:01+10:00","created_at":"2022-06-26T20:06:10+10:00","vendor":"YWBL-WH","type":"Phase Monitoring Relays","tags":["industrial","sold2026"],"price":14600,"price_min":14600,"price_max":14600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41609571369140,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07SDGQ4ZN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay","public_title":null,"options":["Default Title"],"price":14600,"weight":96,"compare_at_price":null,"inventory_management":null,"barcode":"0746771504551","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07SDGQ4ZN.jpg?v=1656313070","\/\/auspowers.com\/cdn\/shop\/products\/516YxSE3A2L.jpg?v=1656237970","\/\/auspowers.com\/cdn\/shop\/products\/51zQS18xPNL.jpg?v=1656237970","\/\/auspowers.com\/cdn\/shop\/products\/61LQnSllJSL.jpg?v=1656237970","\/\/auspowers.com\/cdn\/shop\/products\/51HJSbOpLXL.jpg?v=1656237970","\/\/auspowers.com\/cdn\/shop\/products\/511UfnxbQKL.jpg?v=1656237970","\/\/auspowers.com\/cdn\/shop\/products\/51WV7-YvPFL.jpg?v=1656237970","\/\/auspowers.com\/cdn\/shop\/products\/61L8PE00XVL.jpg?v=1656237970","\/\/auspowers.com\/cdn\/shop\/products\/61Yq7uEY1xL.jpg?v=1656237970"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07SDGQ4ZN.jpg?v=1656313070","options":["Title"],"media":[{"alt":"[Australia - AusPower] - TG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay ","id":26304944341172,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07SDGQ4ZN.jpg?v=1656313070"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07SDGQ4ZN.jpg?v=1656313070","width":1001},{"alt":"[Australia - AusPower] - TG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay ","id":26295490674868,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/516YxSE3A2L.jpg?v=1656237970"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/516YxSE3A2L.jpg?v=1656237970","width":1001},{"alt":"[Australia - AusPower] - TG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay ","id":26295490707636,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51zQS18xPNL.jpg?v=1656237970"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51zQS18xPNL.jpg?v=1656237970","width":1001},{"alt":"[Australia - AusPower] - TG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay ","id":26295490740404,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61LQnSllJSL.jpg?v=1656237970"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61LQnSllJSL.jpg?v=1656237970","width":1001},{"alt":"[Australia - AusPower] - TG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay ","id":26295490773172,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51HJSbOpLXL.jpg?v=1656237970"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51HJSbOpLXL.jpg?v=1656237970","width":1001},{"alt":"[Australia - AusPower] - TG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay ","id":26295490805940,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/511UfnxbQKL.jpg?v=1656237970"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/511UfnxbQKL.jpg?v=1656237970","width":1001},{"alt":"[Australia - AusPower] - TG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay ","id":26295490838708,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51WV7-YvPFL.jpg?v=1656237970"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51WV7-YvPFL.jpg?v=1656237970","width":1001},{"alt":"[Australia - AusPower] - TG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay ","id":26295490871476,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61L8PE00XVL.jpg?v=1656237970"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61L8PE00XVL.jpg?v=1656237970","width":1001},{"alt":"[Australia - AusPower] - TG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay ","id":26295490904244,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61Yq7uEY1xL.jpg?v=1656237970"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61Yq7uEY1xL.jpg?v=1656237970","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTG30S 220-440V AC 3-Phase Sequence Relay Protector Voltage Phase Protective Relay\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Model: TG30S Voltage: 220-440V AC Meet the standard: GB\/T\n14048.1-2000, GB14048.5-2001 eqv IEC60947-1:199 Package list: 1 Phase\nSequence Protector Note: The actual product color may deviate from the photo\ndue to light. There may be a slight deviation in the measurement of product.\nWorking status: 1. L1, L2, L3 three-phase wiring is correct, the monitor green\nlight is on, the relay is closed; if the phase sequence is wrong, the monitor\nyellow light is on, just exchange any two phases of L1, L2, L3 three phases,\nthe monitor will Can recognize the phase sequence and work normally. When the\nprotected device is working normally, the yellow light is on, and when the\nrelay does not pick up, it should be regarded as misconnection of the external\nline phase sequence, and the monitor has the function of preventing\nmisconnection protection; 2. When the L1, L2, and L3 phases are out of phase,\nthe red light is on, the green light is off, and the relay is released; when\nthe voltage is normal, the green light is on and the relay is closed; 3. L1,\nL2, L3 are connected to three-phase AC voltage, NO and COM are normally open\ncontacts; NC and COM are normally closed contacts. Use wire to connect the\nterminal block directly.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDynamic phase loss, static phase loss protection: refers to the phase failure of any phase when the protected device is in the running state or non-operating state. The indicator light is in the form of red light and priority.There is no requirement for motor wiring when used for motor protection.\u003c\/li\u003e\n \u003cli\u003eWrong phase protection: A protection measure to prevent the phase sequence of L1, L2, L3 three-phase AC power supply from being connected incorrectly. Instant action. The indicator light is in the form of yellow light.This product complies with GB\/T 14048.1-2000, GB14048.5-2001 eqv IEC60947-1:1999.\u003c\/li\u003e\n \u003cli\u003eVoltage Unbalance Protection: Refers to a voltage imbalance that will affect the safe operation of the device. When the voltage imbalance rate is higher than 8%. The form of the indicator light is: the lack of phase red light is on, and priority.Three-phase voltage imbalance protection, static phase loss protection, reverse phase protection, lightning protection, and surge resistance.\u003c\/li\u003e\n \u003cli\u003eDelay protection: When there is a fault, the monitor will delay after 1~2 seconds, and the relay will release.\u003c\/li\u003e\n \u003cli\u003eThe protection function of the monitor is not affected by the current of the line or load, the inrush current, the unbalanced current and the nature of the load. Long-term work with full performance and full climate. Power consumption is no more than 2W.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
