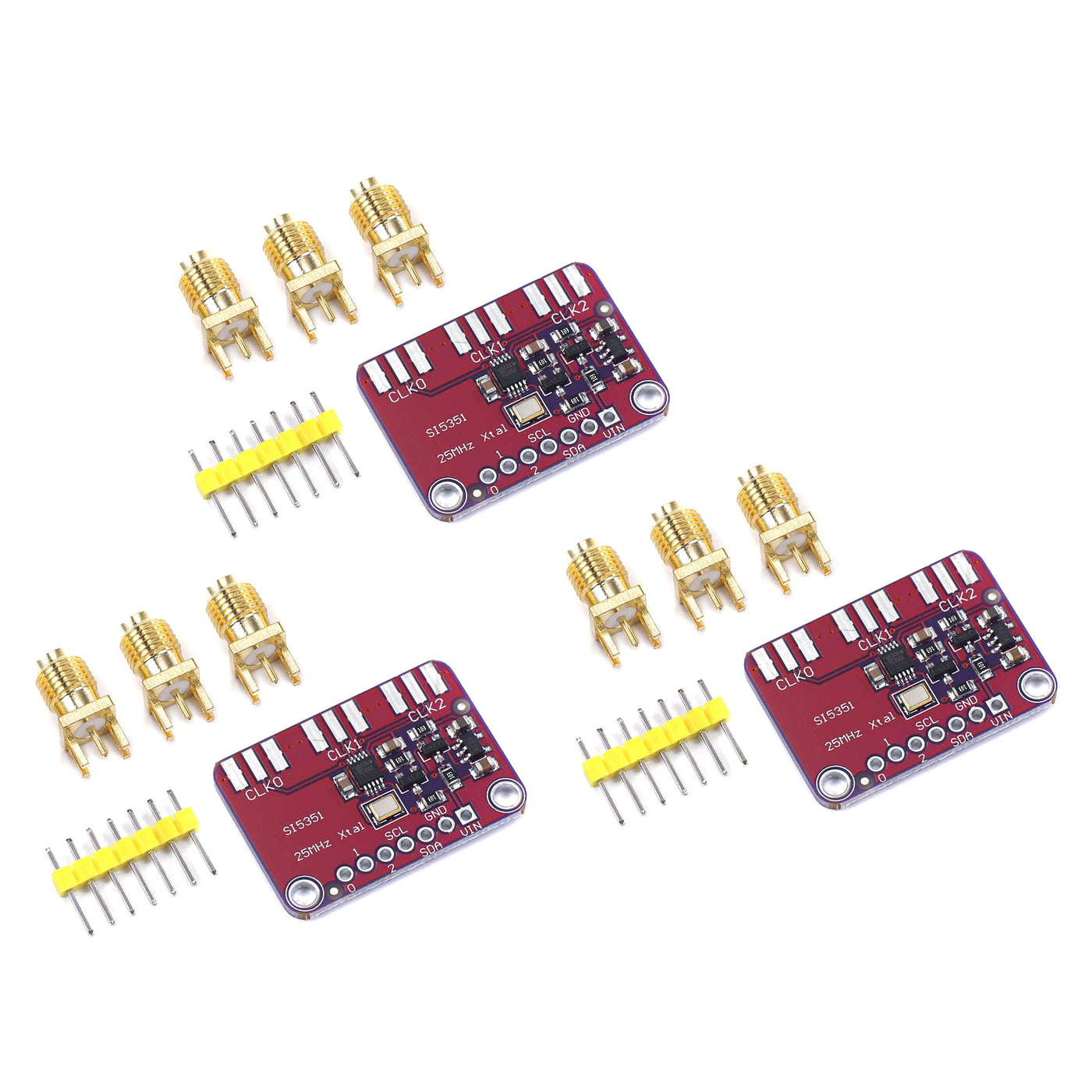

Teyleten Robot Si5351A Si5351 5351 8KHz -160MHz High Frequency Signal Generator Breakout Board DC3.3-5V Square Wave Frequency Generator Board Module I2C for Arduino (3pcs)
Teyleten Robot Si5351A Si5351 5351 8KHz -160MHz High Frequency Signal Generator Breakout Board DC3.3-5V Square Wave Frequency Generator Board Module I2C for Arduino (3pcs)

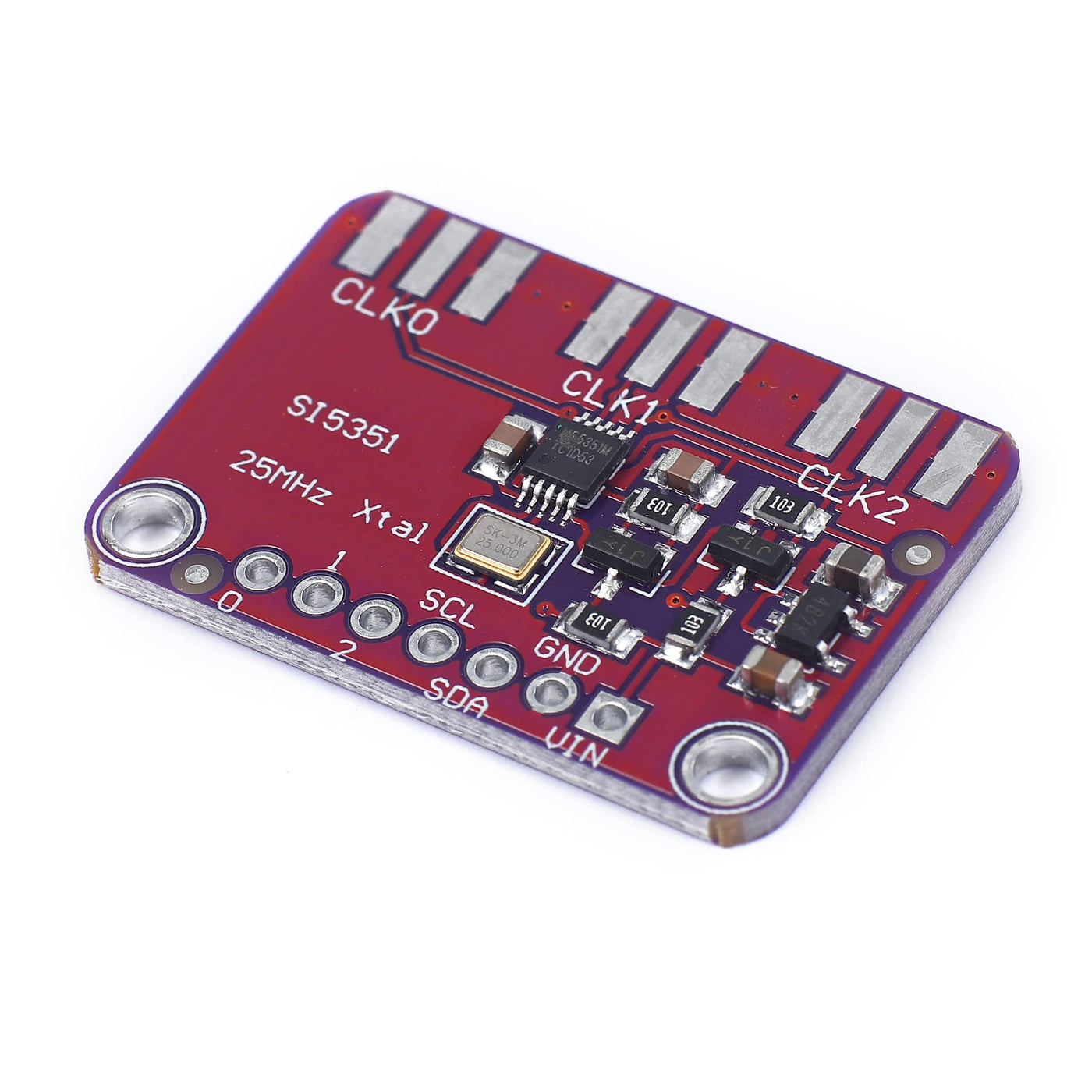

Never hunt around for another crystal again, with the Si5351A clock generator breakout This chip has a precision 25MHz crystal reference and internal PLL and dividers so it can generate just about any frequency, from <8KHz up to 150+ MHz. The Si5351A clock generator is an I2C controller clock generator. It uses the onboard precision clock to drive multiple PLL's and clock dividers using I2C instructions. By setting up the PLL and dividers you can create precise and arbitrary frequencies. There are three independent outputs, and each one can have a different frequency. Outputs are 3Vpp, either through a breadboard-friendly header or, for RF work, an optional SMA connector. We put this handy little chip onto it's own breakout board PCB, with a 3.3V LDO regulator so it can be powered from 3-5VDC. We also put level shifting circuitry on the I2C lines so you can use this chip safely with 3V or 5V logic.
Product Features
- The chip has a precise 25MHz crystal reference and an internal PLL and divider.
- It can generate almost any frequency, from <8KHz to 150+ MHz.
- The Si5351 is an I2C configurable clock generator ideal for replacing crystals, crystal oscillators, VCXOs, phase-locked loops (PLL) and fan-out buffers in cost-sensitive applications.
- It uses an onboard precision clock to drive multiple PLL and clock dividers through I2C instructions. The output is 3Vpp, via a breadboard-fit connector or, for RF work, via the optional SMA connector.
