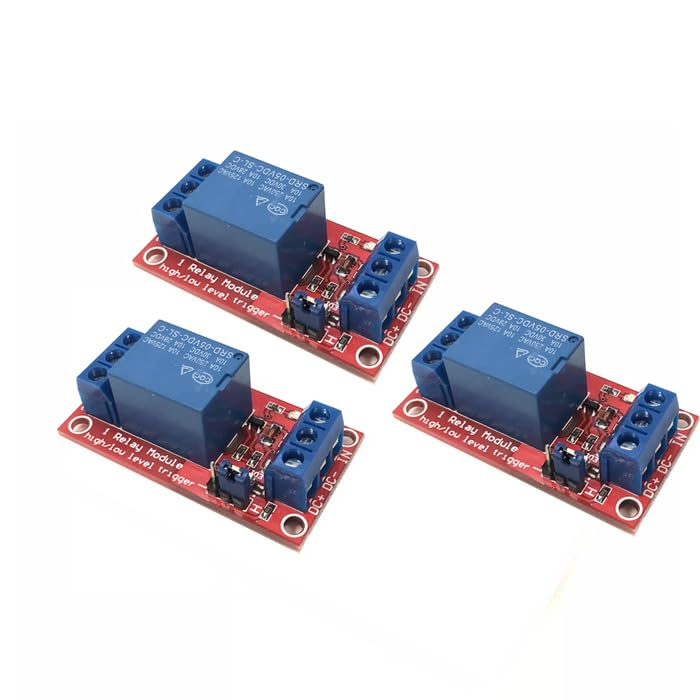

{"id":7976033845428,"title":"Teyleten Robot 1 Channel Relay Module with Optocoupler Isolation Support High and Low Level Trigger Expansion Board 5V 3pcs","handle":"teyleten-robot-1-channel-relay-module-with-optocoupler-isolation-support-high-and-low-level-trigger-expansion-board-5v-3pcs","description":"\u003ch3\u003eTeyleten Robot 1 Channel Relay Module with Optocoupler Isolation Support High and Low Level Trigger Expansion Board 5V 3pcs\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTwo module interface. 1、DC+：Connect the positive pole of the power supply\n(voltage according to the requirements of the relay) 2、DC-: connected to the\nnegative pole of the power supply 3, IN: can be high or low level control\nrelay suction Relay output: 1、NO：Normally open relay interface, the relay is\nsuspended before the relay is engaged, after the relay is engaged, it is\nshorted to COM. 2、COM：relay common interface 3、NC：Normally closed relay\ninterface, shorted to COM before the relay is engaged, suspended after the\nrelay is engaged. High and low level trigger selection terminal: 1. Low level\ntrigger when jumper is shorted to LOW. 2. High level trigger when jumper is\nshorted to HIGH.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe module adopts high quality relay, normally open interface maximum load: AC 250V\/10A, DC 30V\/10A;.\u003c\/li\u003e\n \u003cli\u003eThe use of chip optocoupler isolation, drive ability, stable performance; trigger current 5mA;\u003c\/li\u003e\n \u003cli\u003eThe module can be set through the jumper high level or low level trigger;\u003c\/li\u003e\n \u003cli\u003eFault-tolerant design, even if the control line is broken, the relay will not act;\u003c\/li\u003e\n \u003cli\u003ePower indicator (green), relay status indicator (red)\u003c\/li\u003e\n \u003cli\u003eInterface design humane, all interfaces can be directly connected through the terminal leads, very convenient\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-07-29T02:31:08+10:00","created_at":"2025-07-29T02:31:05+10:00","vendor":"Teyleten Robot","type":"IO Modules","tags":["industrial_best_sellers_Jun2025"],"price":7700,"price_min":7700,"price_max":7700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43995565293748,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0F5HDNTHR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teyleten Robot 1 Channel Relay Module with Optocoupler Isolation Support High and Low Level Trigger Expansion Board 5V 3pcs","public_title":null,"options":["Default Title"],"price":7700,"weight":53,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/5115ksLbCbL.jpg?v=1753720267"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/5115ksLbCbL.jpg?v=1753720267","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Teyleten Robot 1 Channel Relay Module with Optocoupler Isolation Support High and Low Level Trigger Expansion Board 5V 3pcs ","id":31890206687412,"position":1,"preview_image":{"aspect_ratio":1.0,"height":700,"width":700,"src":"\/\/auspowers.com\/cdn\/shop\/files\/5115ksLbCbL.jpg?v=1753720267"},"aspect_ratio":1.0,"height":700,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/5115ksLbCbL.jpg?v=1753720267","width":700}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTeyleten Robot 1 Channel Relay Module with Optocoupler Isolation Support High and Low Level Trigger Expansion Board 5V 3pcs\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTwo module interface. 1、DC+：Connect the positive pole of the power supply\n(voltage according to the requirements of the relay) 2、DC-: connected to the\nnegative pole of the power supply 3, IN: can be high or low level control\nrelay suction Relay output: 1、NO：Normally open relay interface, the relay is\nsuspended before the relay is engaged, after the relay is engaged, it is\nshorted to COM. 2、COM：relay common interface 3、NC：Normally closed relay\ninterface, shorted to COM before the relay is engaged, suspended after the\nrelay is engaged. High and low level trigger selection terminal: 1. Low level\ntrigger when jumper is shorted to LOW. 2. High level trigger when jumper is\nshorted to HIGH.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe module adopts high quality relay, normally open interface maximum load: AC 250V\/10A, DC 30V\/10A;.\u003c\/li\u003e\n \u003cli\u003eThe use of chip optocoupler isolation, drive ability, stable performance; trigger current 5mA;\u003c\/li\u003e\n \u003cli\u003eThe module can be set through the jumper high level or low level trigger;\u003c\/li\u003e\n \u003cli\u003eFault-tolerant design, even if the control line is broken, the relay will not act;\u003c\/li\u003e\n \u003cli\u003ePower indicator (green), relay status indicator (red)\u003c\/li\u003e\n \u003cli\u003eInterface design humane, all interfaces can be directly connected through the terminal leads, very convenient\u003c\/li\u003e\n \u003c\/ul\u003e"}
