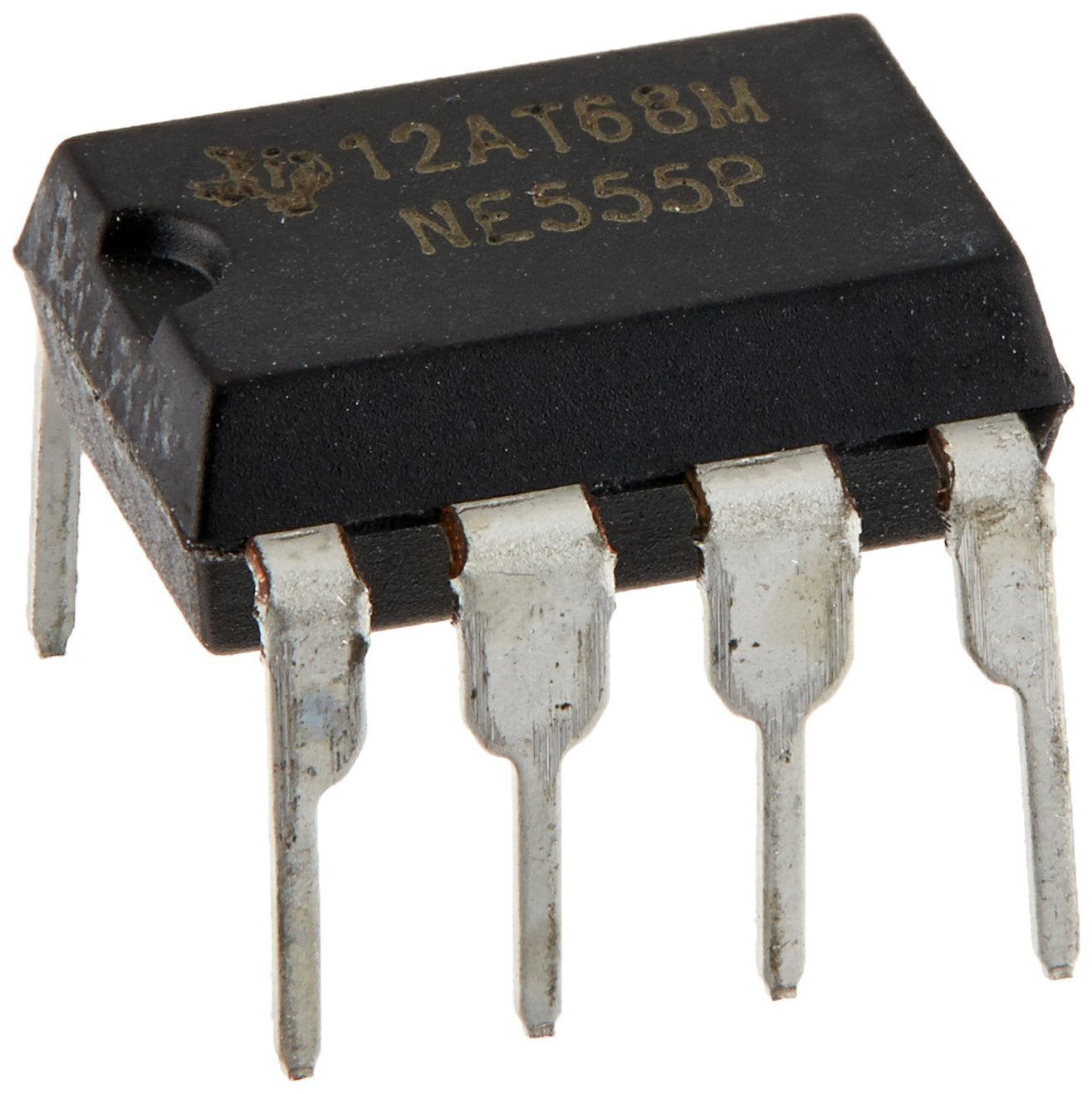

{"id":7358079631540,"title":"Texas Instruments NE555P Single Precision Timer (Pack of 10)","handle":"texas-instruments-ne555p-single-precision-timer-pack-of-10","description":"\u003ch3\u003eTexas Instruments NE555P Single Precision Timer (Pack of 10)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThese devices are precision timing circuits capable of producing accurate time\ndelays or oscillation. In the time-delay or monostable mode of operation, the\ntimed interval is controlled by a single external resistor and capacitor\nnetwork. In the astable mode of operation, the frequency and duty cycle can be\ncontrolled independently with two external resistors and a single external\ncapacitor.The threshold and trigger levels normally are two-thirds and one-\nthird, respectively, of VCC. These levels can be altered by use of the\ncontrol-voltage terminal. When the trigger input falls below the trigger\nlevel, the flip-flop is set, and the output goes high. If the trigger input is\nabove the trigger level and the threshold input is above the threshold level,\nthe flip-flop is reset and the output is low. The reset (RESET) input can\noverride all other inputs and can be used to initiate a new timing cycle. When\nRESET goes low, the flip-flop is reset, and the output goes low. When the\noutput is low, a low-impedance path is provided between discharge (DISCH) and\nground.The output circuit is capable of sinking or sourcing current up to 200\nmA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply,\noutput levels are compatible with TTL inputs.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTiming From Microseconds to Hours\u003c\/li\u003e\n \u003cli\u003eAstable or Monostable Operation\u003c\/li\u003e\n \u003cli\u003eAdjustable Duty Cycle\u003c\/li\u003e\n \u003cli\u003eTTL-Compatible Output Can Sink or Source up to 200 mA\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-02-28T20:13:56+11:00","created_at":"2023-02-28T20:13:58+11:00","vendor":"Texas Instruments","type":"","tags":["industrial_Dec2022"],"price":10500,"price_min":10500,"price_max":10500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42194007294132,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00K243MIQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Texas Instruments NE555P Single Precision Timer (Pack of 10)","public_title":null,"options":["Default Title"],"price":10500,"weight":9,"compare_at_price":null,"inventory_management":null,"barcode":"791102593636","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B00K243MIQ.jpg?v=1677655890"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B00K243MIQ.jpg?v=1677655890","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Texas Instruments NE555P Single Precision Timer (Pack of 10) ","id":28310219325620,"position":1,"preview_image":{"aspect_ratio":0.998,"height":1318,"width":1315,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B00K243MIQ.jpg?v=1677655890"},"aspect_ratio":0.998,"height":1318,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B00K243MIQ.jpg?v=1677655890","width":1315}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTexas Instruments NE555P Single Precision Timer (Pack of 10)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThese devices are precision timing circuits capable of producing accurate time\ndelays or oscillation. In the time-delay or monostable mode of operation, the\ntimed interval is controlled by a single external resistor and capacitor\nnetwork. In the astable mode of operation, the frequency and duty cycle can be\ncontrolled independently with two external resistors and a single external\ncapacitor.The threshold and trigger levels normally are two-thirds and one-\nthird, respectively, of VCC. These levels can be altered by use of the\ncontrol-voltage terminal. When the trigger input falls below the trigger\nlevel, the flip-flop is set, and the output goes high. If the trigger input is\nabove the trigger level and the threshold input is above the threshold level,\nthe flip-flop is reset and the output is low. The reset (RESET) input can\noverride all other inputs and can be used to initiate a new timing cycle. When\nRESET goes low, the flip-flop is reset, and the output goes low. When the\noutput is low, a low-impedance path is provided between discharge (DISCH) and\nground.The output circuit is capable of sinking or sourcing current up to 200\nmA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply,\noutput levels are compatible with TTL inputs.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTiming From Microseconds to Hours\u003c\/li\u003e\n \u003cli\u003eAstable or Monostable Operation\u003c\/li\u003e\n \u003cli\u003eAdjustable Duty Cycle\u003c\/li\u003e\n \u003cli\u003eTTL-Compatible Output Can Sink or Source up to 200 mA\u003c\/li\u003e\n \u003c\/ul\u003e"}
