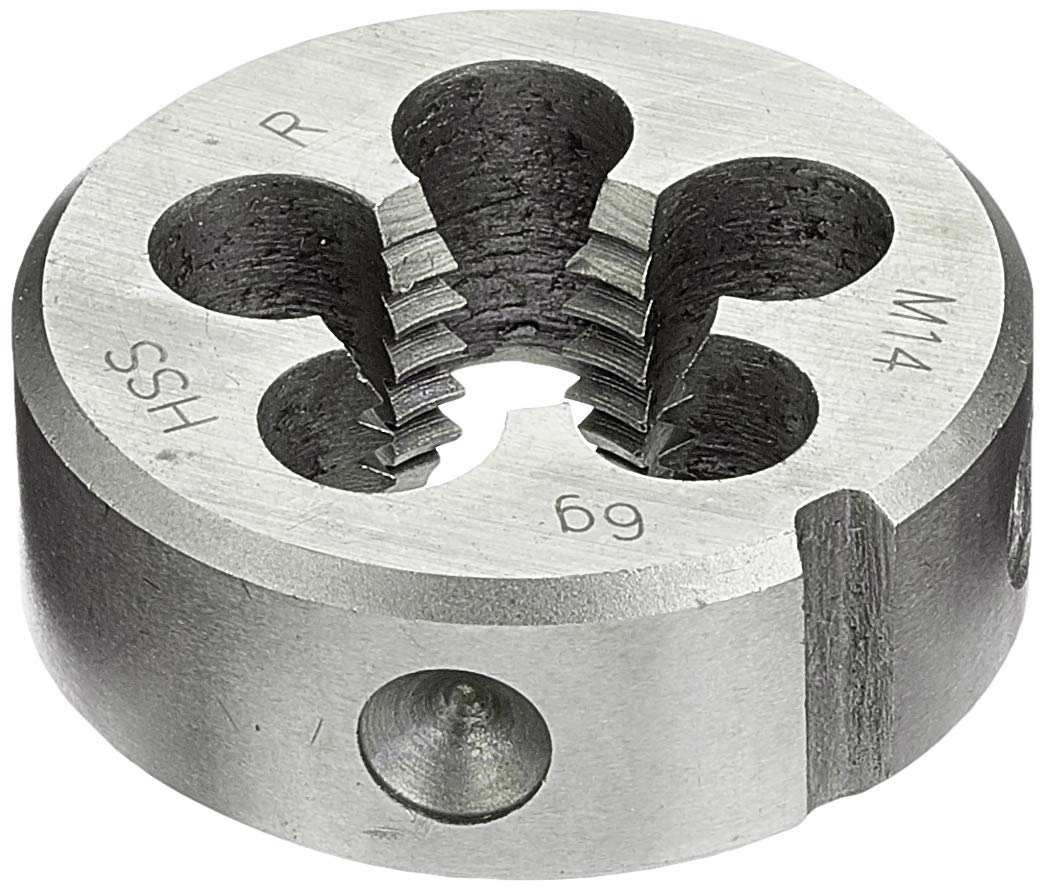

{"id":7992748048564,"title":"Terrax by RUKO Die DIN 22568 Polished M14","handle":"terrax-by-ruko-die-din-22568-polished-m14","description":"\u003ch3\u003eTerrax by RUKO Die DIN 22568 Polished M14\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDie made of high performance high speed steel. For metric external threads\naccording to DIN ISO 13. This robust tool is suitable for all common\nindustrial materials, such as: Unalloyed and low-alloyed steels up to 800\nN\/mm² strength, malleable cast iron and non-ferrous metals. Bolt diameter:\n13.82 mm. To cut an external thread, the workpiece must already have the\nnominal diameter of the desired thread. The workpiece is clamped upwards into\na vice with the side that is to receive the thread. The die is attached and\nturned until the desired thread length is reached. It is recommended to turn\nthe die back briefly in between, so that the chips break, fall out and the\nthreads do not clog. Lubrication with cutting oil is recommended. It reduces\nthe effort required and increases the service life (service life) of the die.\nFeatures: Type: Form B closed, pre-slotted Thread: M 14 metric DIN ISO 13.\nThread pitch: 2.00 mm. Tolerance: ISO 6g. Surface: blank. Right-hand cutting.\nOuter diameter: 38.0 mm. Thickness: 14.0 mm.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMade entirely of high-alloy tool steel HSS.\u003c\/li\u003e\n \u003cli\u003eFor metric thread M 14 x 2.00 mm according to DIN ISO 13\u003c\/li\u003e\n \u003cli\u003eThe thread is cut in one operation.\u003c\/li\u003e\n \u003cli\u003eTo cut an external thread, the workpiece must already have the nominal diameter of the desired thread.\u003c\/li\u003e\n \u003cli\u003eThe die is attached and turned until the desired thread length is reached.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T00:58:45+10:00","created_at":"2025-09-27T00:58:41+10:00","vendor":"RUKO","type":"Taps \u0026 Dies","tags":["industryDE_Sep2025"],"price":11700,"price_min":11700,"price_max":11700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44053646704820,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B003IHVD9Y","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Terrax by RUKO Die DIN 22568 Polished M14","public_title":null,"options":["Default Title"],"price":11700,"weight":80,"compare_at_price":null,"inventory_management":"shopify","barcode":"Terrax","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/71LC0loiCwL.jpg?v=1758899107"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/71LC0loiCwL.jpg?v=1758899107","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Terrax by RUKO Die DIN 22568 Polished M14 ","id":32206224130228,"position":1,"preview_image":{"aspect_ratio":1.175,"height":890,"width":1046,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71LC0loiCwL.jpg?v=1758899107"},"aspect_ratio":1.175,"height":890,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71LC0loiCwL.jpg?v=1758899107","width":1046}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTerrax by RUKO Die DIN 22568 Polished M14\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDie made of high performance high speed steel. For metric external threads\naccording to DIN ISO 13. This robust tool is suitable for all common\nindustrial materials, such as: Unalloyed and low-alloyed steels up to 800\nN\/mm² strength, malleable cast iron and non-ferrous metals. Bolt diameter:\n13.82 mm. To cut an external thread, the workpiece must already have the\nnominal diameter of the desired thread. The workpiece is clamped upwards into\na vice with the side that is to receive the thread. The die is attached and\nturned until the desired thread length is reached. It is recommended to turn\nthe die back briefly in between, so that the chips break, fall out and the\nthreads do not clog. Lubrication with cutting oil is recommended. It reduces\nthe effort required and increases the service life (service life) of the die.\nFeatures: Type: Form B closed, pre-slotted Thread: M 14 metric DIN ISO 13.\nThread pitch: 2.00 mm. Tolerance: ISO 6g. Surface: blank. Right-hand cutting.\nOuter diameter: 38.0 mm. Thickness: 14.0 mm.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMade entirely of high-alloy tool steel HSS.\u003c\/li\u003e\n \u003cli\u003eFor metric thread M 14 x 2.00 mm according to DIN ISO 13\u003c\/li\u003e\n \u003cli\u003eThe thread is cut in one operation.\u003c\/li\u003e\n \u003cli\u003eTo cut an external thread, the workpiece must already have the nominal diameter of the desired thread.\u003c\/li\u003e\n \u003cli\u003eThe die is attached and turned until the desired thread length is reached.\u003c\/li\u003e\n \u003c\/ul\u003e"}
