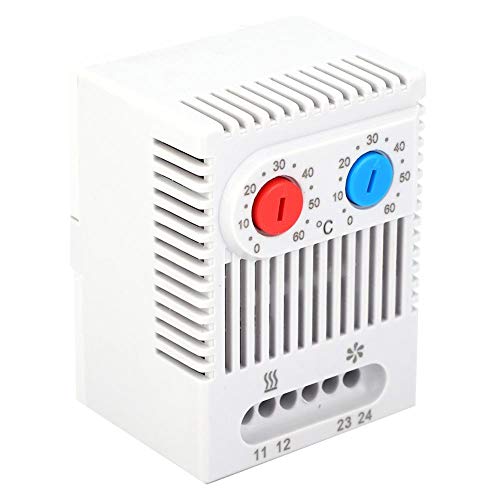

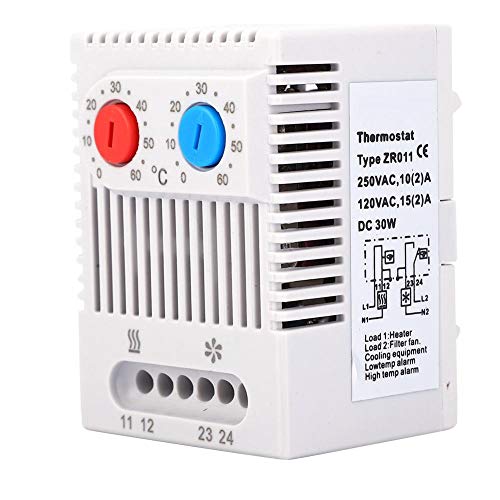

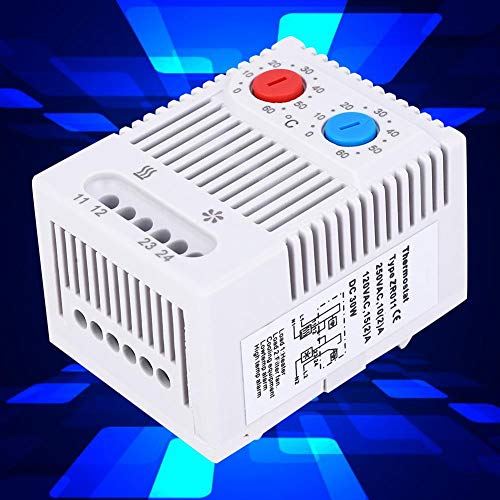

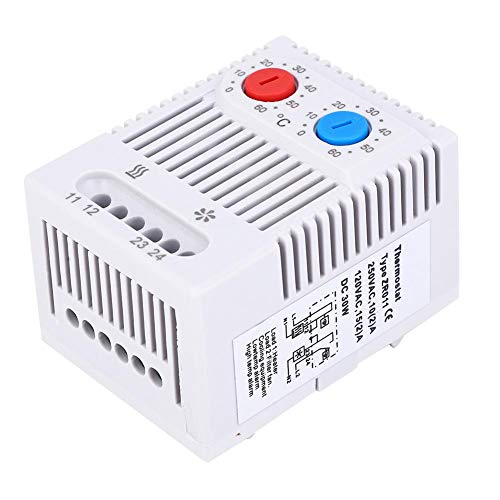

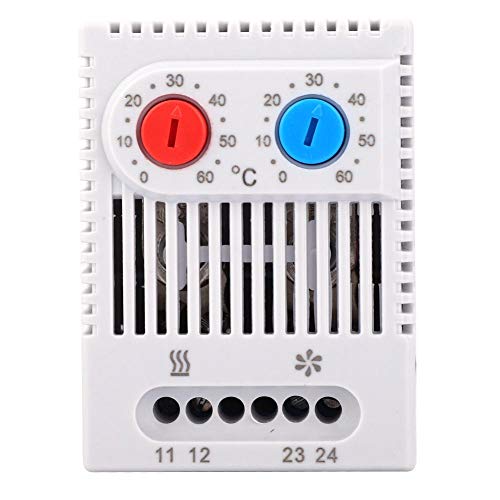

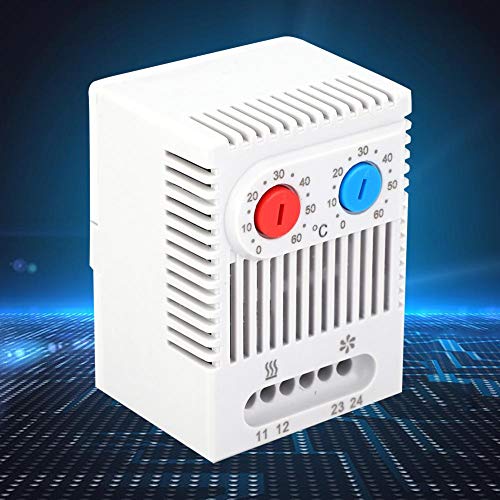

Temperature Controller, PC Temperature Controller Switch Open/Close Supports 12-250V Wide Voltage Input Adjustable Mechanical Thermostat 0-60 ZR011(ZR011)
Temperature Controller, PC Temperature Controller Switch Open/Close Supports 12-250V Wide Voltage Input Adjustable Mechanical Thermostat 0-60 ZR011(ZR011)
Function: 1. Supports 12-250V wide voltage input. 2. Guide rail slot on the back for easy attachment to 35mm rails 3. PC material housing, high-quality heat resistance, high physical and mechanical properties such as impact resistance. 4. Excellent electrical insulation and stretchability 5. The product has stable performance and is chemically resistant with high strength Specification: Element Type: Temperature Controller Temperature control range: 0-60 Switching temperature difference: 7K (± 4). Sensor component: temperature sensitive material Contact type: quick contact Contact resistance: <10 mΩ. Switch large capacity: 250 VAC, 10 (2) A 120 VAC, 15 (2) A DC30W EMC: according to EN 55014-1-2, EN61000-3-2, EN61000-3-3. Wiring: 4-pin terminal block 2.5 mm² cable. Installation method: 35 mm DIN rail. Housing material: plastic UL94 standard V-0 fire protection class. Size: 67 x 50 x 46 mm/2.6 x 2 x 1.8 inches. Weight: 90 g Installation method: Any Operating / storage temperature: -20 to + 80 °C (-40 to + 176 °C). Protection level: IP20. Package list: 1 x temperature controller
Product Features
- Supports 12-250V wide voltage inputs.

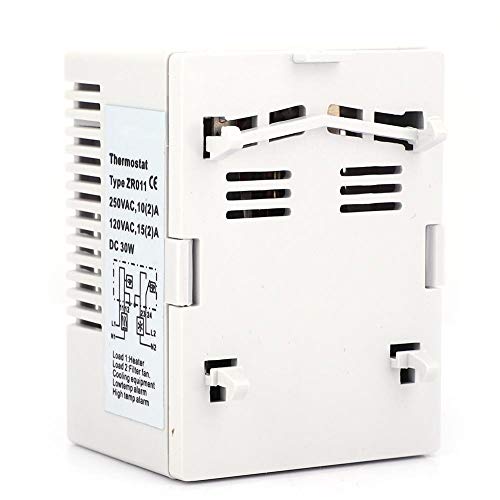

- Guide rail slot on the back for easy attachment to 35mm rails.
- PC material housing, high-quality heat resistance, high physical and mechanical properties such as impact resistance.
- Excellent electrical insulation and stretchability.
- The product has stable performance and is chemically resistant with high strength.
