TCS34725 RGB Light Color Module TCS-34725 Color Sensor Color Recognition Board with IR Filter and White LED Detection Module High Sensitivity for Arduino - 2 Pieces 22.5W
TCS34725 RGB Light Color Module TCS-34725 Color Sensor Color Recognition Board with IR Filter and White LED Detection Module High Sensitivity for Arduino - 2 Pieces
Parameters: Working voltage: 3.3 V ~ 5 V. Working temperature: -30°C to 70°C. Storage temperature: -40°C ~ 85°C. Detection distance: 3 ~ 10mm. Description: 1. Detection of red, green, blue (RGB) and white light with IR cut filter 2. Programmable analog gain and integration time 3. 3,800,000:1 Dynamic Range 4. Very high sensitivity, ideal for operation behind dark glass 5. Maskable interrupt 6. Programmable upper and lower thresholds with persistence filter 7. Power Management 8. Energy-saving 2.5uA sleep state. 9. 65 uA waiting state with programmable waiting state time from 2.4 ms to > 7 seconds. 10. I2C Fast Mode Compatible Interface 11. Data rates up to 400 kbit/s 12. Input voltage level compatible with VDD or 1.8V bus 13. Register set and pin compatible with the TCS3x71 series 14. Small 2mm x 2.4mm Dual Flat No-Lead (FN) Applicable scene: RGB LED backlight control. Color temperature measurement. Ambient light detection to control the display backlight. Liquid and gas analysis Review and classification of product color. Package includes: 2 x TCS34725 RGB Light Color Module 20 x cables
Product Features

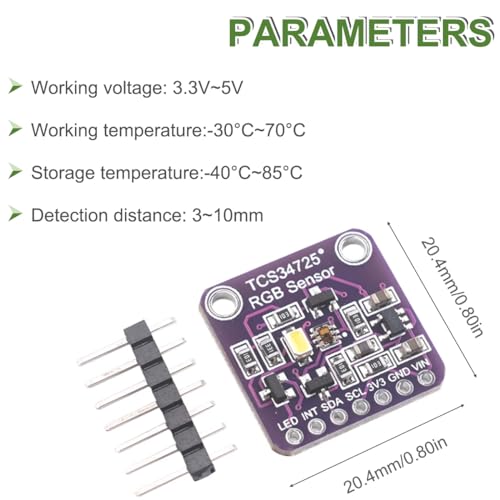

- Parameters: Operating voltage: 3.3V 5V, Operating temperature: -30C to 70C, Storage temperature: -40C to 85C, Detection distance: 3 to 10 mm.
- Ideal solution: The high sensitivity, wide dynamic range and infrared cut filter make the TCS34725 an ideal color-sensitive component solution for varying lighting conditions and materials subject to attenuation.
- Precision: Integrating and locating the color-sensitive photodiode chip with an infrared cut filter significantly reduces the infrared spectrum components of incident light, thus improving color accuracy in color management.
- Functions: Communication interface: IC interface with data rates up to 400 kbps and low power consumption of 2.5uA in sleep mode.

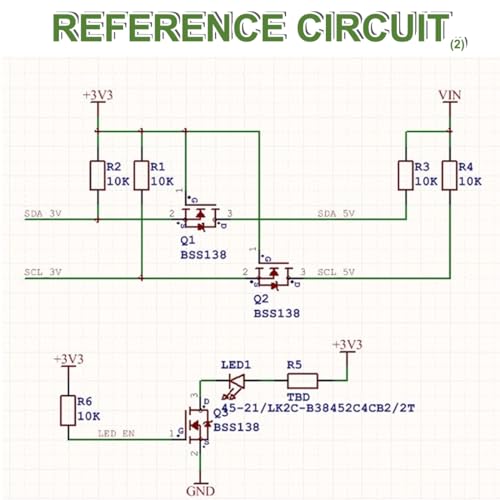

- LED Indicator: The module has an LED that lights up when a signal is high or in the floating state and turns off when a low level signal to allow a clear display of the operating status.

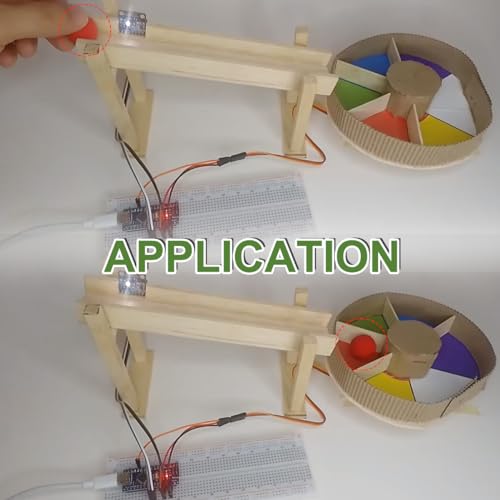

- Applications: The TCS34725 color sensor has a wide range of applications, including RGB LED backlight control, solid-state lighting, healthcare products, industrial process control and medical diagnostic equipment.

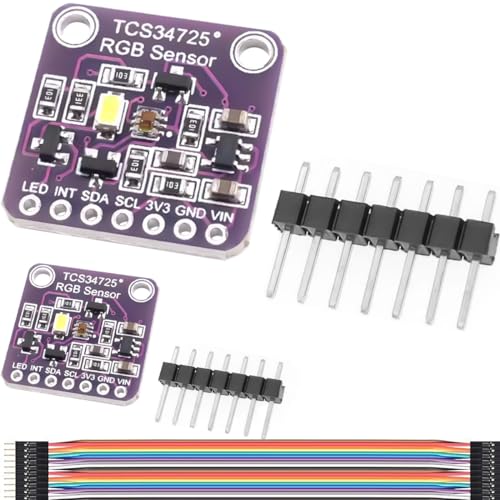

- Package includes: you will receive 2 pieces TCS34725 RGB light color module, 20 pin cable.
