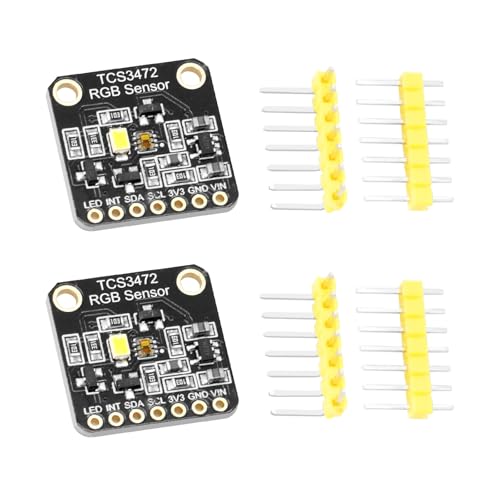

TCS-34725 RGB Light Color Module AYWHP 2 Pieces RGB Light Color Sensor Color Detection Sensor Color Meter Photoelectric Sensor Compatible with Arduino
TCS-34725 RGB Light Color Module AYWHP 2 Pieces RGB Light Color Sensor Color Detection Sensor Color Meter Photoelectric Sensor Compatible with Arduino

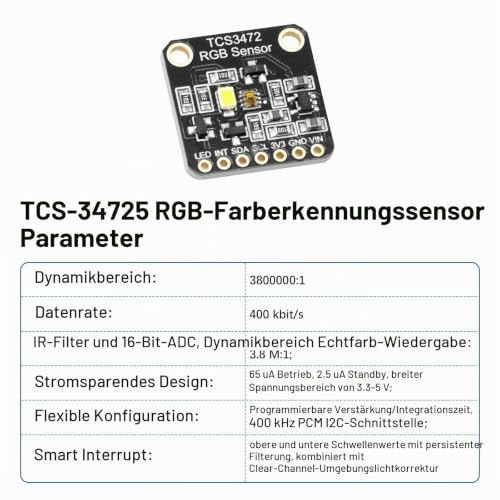

Description: The TCS-34725 RGB Light Color Module is a professional colorimeter that integrates TI's original TCS34725 photodiode array with an IR filter that effectively shields it from infrared interference to enable true color capture close to the human eye. The light sensor module has a built-in 4-channel, 16-bit ADC, which simultaneously delivers red, green and blue brightness values. The light sensor module has a built-in 4-channel 16-bit ADC, which simultaneously delivers red, green and blue brightness values with a dynamic range of up to 3,800,000:1, so that accurate data can be determined even behind darkened glass. The light sensor module transmits data at high speed via a standard PCM I²C to the motherboard, supports serial rates up to 400 kHz and provides programmable analogue gain and integration time to adapt to different lighting environments. Features Features: Detection of red, green, blue (RGB) and white light. 3,800,000:1 dynamic range Compatible with I2C fast mode interface Data transfer rate up to 400 kbit/s Parameters: True color rendering: IR filter and 16 bit ADC, 3.8M:1 dynamic range; Low power consumption: 65µA in operation, 2.5µA in standby, 3.3-5V wide voltage range; Flexible configuration: programmable gain/integration time, 400 kHz PCM I²C interface; Intelligent interruption: upper and lower thresholds with permanent filtering, combined with Clear Channel ambient light correction Detection of red, green, blue (RGB) and white light with IR blocking filters 3,800,000:1 dynamic range TCS-34725 RGB Light Color Module Compatible with I2C Fast Mode Interface TCS-34725 RGB light color module data rate up to 400 kbit/s Specification: Dimensions: 20.5 mm x 20.5mm. Product includes: 2 x TCS-34725 RGB Light Sensor Module
Product Features
- High sensitivity: the TCS-34725 RGB light color module provides digital outputs for red, green and blue (RGB) and clear light sensitivity values.
- Professional color meter: the light sensor module integrates the TCS34725FN photodiode array with IR filters for true color reproduction and a dynamic range of 3.8 M:1.
- Low power consumption: 65 A operating current, 2.5 A standby, 3.3-5 V wide voltage support; light sensor module integrated level shifter, compatible with Arduino/Raspberry Pi.
- High-resolution I2C: 16 bit ADC per channel, light sensor module supports PCM data frame and programmable integration time, up to 400 kHz I2C serial rate to ensure accurate measurement.
- Ambient light correction: TCS-34725 RGB light color module has built-in maskable interrupts, programmable upper and lower threshold for persistent filtering, supports ambient light channels and automatically corrects light changes.
