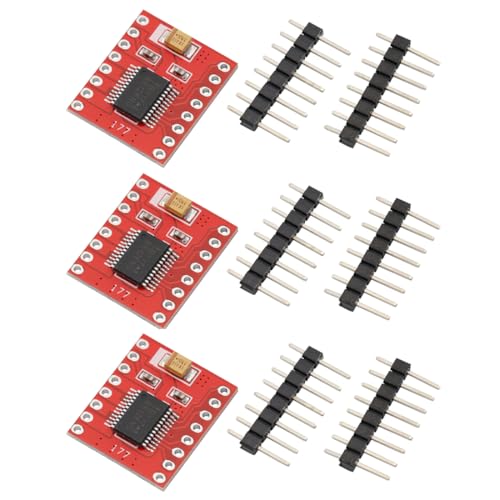

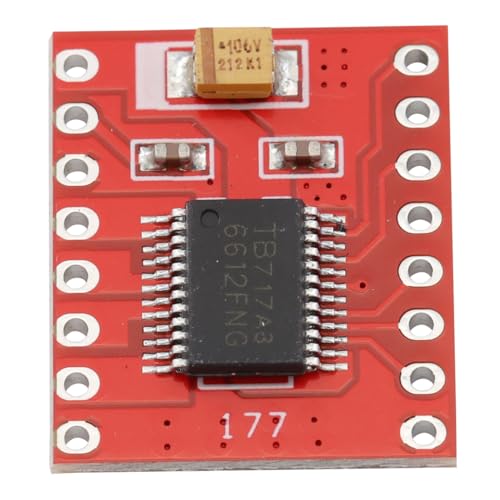

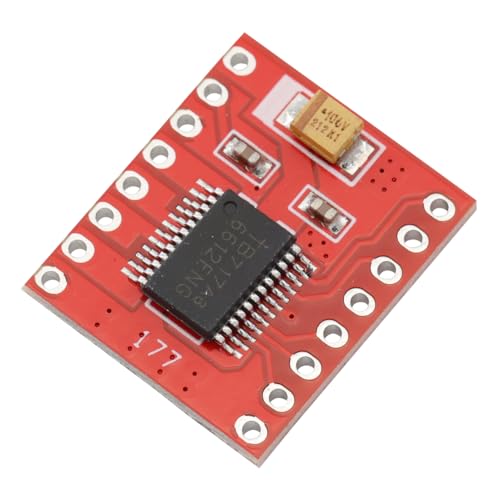

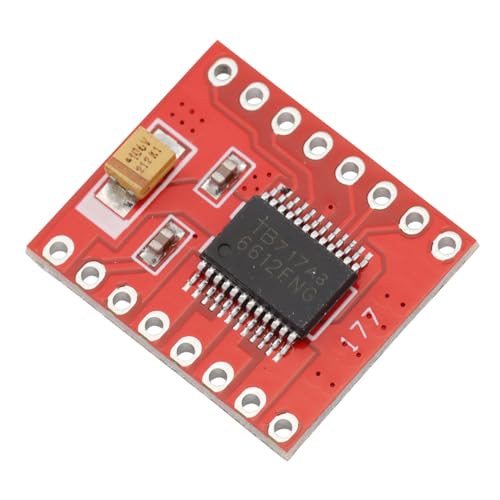

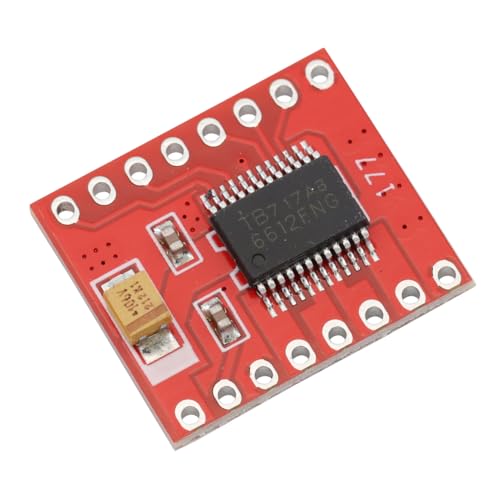

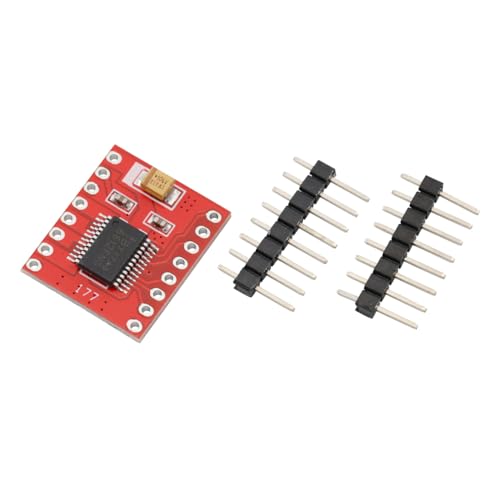

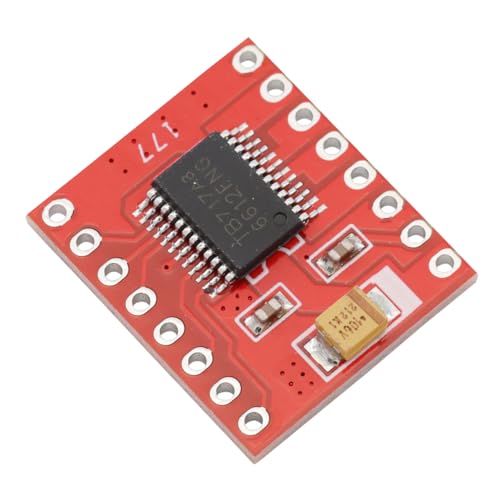

{"id":8115370590388,"title":"TB6612FNG Dual Motor Driver Module Small High Power Microcontroller Self Balancing Drive Module for Cars (Pack of 3)","handle":"tb6612fng-dual-motor-driver-module-small-high-power-microcontroller-self-balancing-drive-module-for-cars-pack-of-3","description":"\u003ch3\u003eTB6612FNG Dual Motor Driver Module Small High Power Microcontroller Self Balancing Drive Module for Cars (Pack of 3)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct description: The TB6612FNG is a dual motor driver that controls up to\ntwo DC motors with a constant current of 1.2A (peak 3.2A). All components are\npre-assembled on the board, and both power lines are equipped with decoupling\ncapacitors. Product features: 1. Compact and lightweight, easy to install. 2.\nTwo input signals (IN1 and IN2) allow you to control four motor modes:\nclockwise rotation, anti-clockwise, short brake and stop. 3. The two motor\noutputs (A and B) can be controlled independently, with the speed of each\nmotor controlled by a PWM input signal with a frequency of up to 100 kHz. 4.\nThe STBY pin must be pulled up to exit standby mode. 5. The logic supply\nvoltage (VCC) can vary between 2.7 and 5.5 VDC, while the motor supply voltage\n(VM) is limited to a maximum of 15 VDC. 6. The rated output current per\nchannel is up to 1.2A (up to 3.2A for short single pulses). 7. Standby control\nfor energy saving. Technical data: Supply voltage: VM = 15V (maximum)\n(recommended for use within 12V); VCC = 2.7-5.5V; Output current: Iout = 1.2A\n(average) \/ 3.2A (peak); Motor control modes: clockwise \/ anti-clockwise\nrotation\/short circuit brake\/stop; 【Pin Description】 All pins on the TB6612FNG\nare designed on 0.1\" pitch headers with input pins on one side and output pins\non the other. Box contents: 3 x TB6612FNG dual motor driver module.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct overview: The TB6612FNG is a double motor driver that controls up to two DC motors with a constant current of 1.2 A (peak current 3.2 A). All components are pre-assembled on the board, and both power lines are equipped with decoupling capacitors.\u003c\/li\u003e\n \u003cli\u003eFunctions: The compact and lightweight device allows easy installation. Two input signals (IN1 and IN2) allow you to control four motor modes: clockwise rotation, anti-clockwise, short brake and stop. Two motor outputs (A and B) can be controlled independently, with the speed of each motor controlled via a PWM input signal with a frequency of up to 100 kHz.\u003c\/li\u003e\n \u003cli\u003eTechnical DataSupply Voltage: VM = 15V (Max) (Recommended within 12V), VCC = 2.7-5.5V; Output Current: Iout = 1.2A (Average) \/ 3.2A (Peak); Motor Control Modes Clock\/Anti-clock\/Short Brake\/Stop.\u003c\/li\u003e\n \u003cli\u003eProtection functions: built-in thermal shut-off circuit and low voltage detection allow for energy-saving sleep mode.\u003c\/li\u003e\n \u003cli\u003ePin Description: All pins of the TB6612FNG are led out on pin headers with 0.1 inch spacing. The pin assignment is arranged so that the input pins are located on one side and the output pins on the other.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T10:42:16+10:00","created_at":"2026-09-02T00:20:30+10:00","vendor":"DEWOTHV","type":"Motor Drivers","tags":["industrial_DE_Aug2026"],"price":11600,"price_min":11600,"price_max":11600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375099375796,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0G2RQJQJW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TB6612FNG Dual Motor Driver Module Small High Power Microcontroller Self Balancing Drive Module for Cars (Pack of 3)","public_title":null,"options":["Default Title"],"price":11600,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"DE-50","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0G2RQJQJW.jpg?v=1788272433","\/\/auspowers.com\/cdn\/shop\/files\/31R5p5SWQ3L.jpg?v=1788272433","\/\/auspowers.com\/cdn\/shop\/files\/41gbXY98NxL.jpg?v=1788272433","\/\/auspowers.com\/cdn\/shop\/files\/41NSU5umvBL.jpg?v=1788272433","\/\/auspowers.com\/cdn\/shop\/files\/418VHoK5KjL.jpg?v=1788272433","\/\/auspowers.com\/cdn\/shop\/files\/41Kov9tCbJL.jpg?v=1788272433","\/\/auspowers.com\/cdn\/shop\/files\/41UUDQsIedL.jpg?v=1788272433"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0G2RQJQJW.jpg?v=1788272433","options":["Title"],"media":[{"alt":null,"id":33273770606772,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0G2RQJQJW.jpg?v=1788272433"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0G2RQJQJW.jpg?v=1788272433","width":500},{"alt":null,"id":33273770639540,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31R5p5SWQ3L.jpg?v=1788272433"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31R5p5SWQ3L.jpg?v=1788272433","width":500},{"alt":null,"id":33273770672308,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41gbXY98NxL.jpg?v=1788272433"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41gbXY98NxL.jpg?v=1788272433","width":500},{"alt":null,"id":33273770705076,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41NSU5umvBL.jpg?v=1788272433"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41NSU5umvBL.jpg?v=1788272433","width":500},{"alt":null,"id":33273770737844,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/418VHoK5KjL.jpg?v=1788272433"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/418VHoK5KjL.jpg?v=1788272433","width":500},{"alt":null,"id":33273770770612,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41Kov9tCbJL.jpg?v=1788272433"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41Kov9tCbJL.jpg?v=1788272433","width":500},{"alt":null,"id":33273770803380,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41UUDQsIedL.jpg?v=1788272433"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41UUDQsIedL.jpg?v=1788272433","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTB6612FNG Dual Motor Driver Module Small High Power Microcontroller Self Balancing Drive Module for Cars (Pack of 3)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct description: The TB6612FNG is a dual motor driver that controls up to\ntwo DC motors with a constant current of 1.2A (peak 3.2A). All components are\npre-assembled on the board, and both power lines are equipped with decoupling\ncapacitors. Product features: 1. Compact and lightweight, easy to install. 2.\nTwo input signals (IN1 and IN2) allow you to control four motor modes:\nclockwise rotation, anti-clockwise, short brake and stop. 3. The two motor\noutputs (A and B) can be controlled independently, with the speed of each\nmotor controlled by a PWM input signal with a frequency of up to 100 kHz. 4.\nThe STBY pin must be pulled up to exit standby mode. 5. The logic supply\nvoltage (VCC) can vary between 2.7 and 5.5 VDC, while the motor supply voltage\n(VM) is limited to a maximum of 15 VDC. 6. The rated output current per\nchannel is up to 1.2A (up to 3.2A for short single pulses). 7. Standby control\nfor energy saving. Technical data: Supply voltage: VM = 15V (maximum)\n(recommended for use within 12V); VCC = 2.7-5.5V; Output current: Iout = 1.2A\n(average) \/ 3.2A (peak); Motor control modes: clockwise \/ anti-clockwise\nrotation\/short circuit brake\/stop; 【Pin Description】 All pins on the TB6612FNG\nare designed on 0.1\" pitch headers with input pins on one side and output pins\non the other. Box contents: 3 x TB6612FNG dual motor driver module.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct overview: The TB6612FNG is a double motor driver that controls up to two DC motors with a constant current of 1.2 A (peak current 3.2 A). All components are pre-assembled on the board, and both power lines are equipped with decoupling capacitors.\u003c\/li\u003e\n \u003cli\u003eFunctions: The compact and lightweight device allows easy installation. Two input signals (IN1 and IN2) allow you to control four motor modes: clockwise rotation, anti-clockwise, short brake and stop. Two motor outputs (A and B) can be controlled independently, with the speed of each motor controlled via a PWM input signal with a frequency of up to 100 kHz.\u003c\/li\u003e\n \u003cli\u003eTechnical DataSupply Voltage: VM = 15V (Max) (Recommended within 12V), VCC = 2.7-5.5V; Output Current: Iout = 1.2A (Average) \/ 3.2A (Peak); Motor Control Modes Clock\/Anti-clock\/Short Brake\/Stop.\u003c\/li\u003e\n \u003cli\u003eProtection functions: built-in thermal shut-off circuit and low voltage detection allow for energy-saving sleep mode.\u003c\/li\u003e\n \u003cli\u003ePin Description: All pins of the TB6612FNG are led out on pin headers with 0.1 inch spacing. The pin assignment is arranged so that the input pins are located on one side and the output pins on the other.\u003c\/li\u003e\n \u003c\/ul\u003e"}
