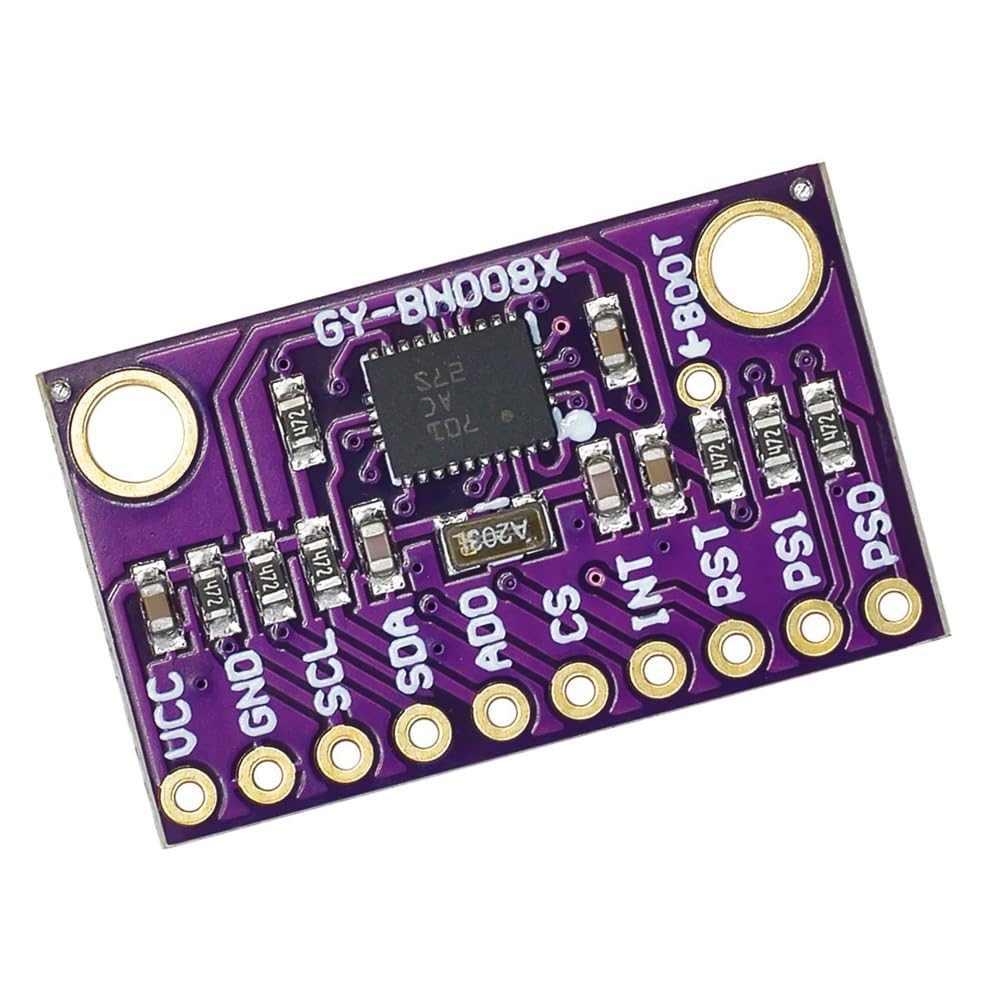

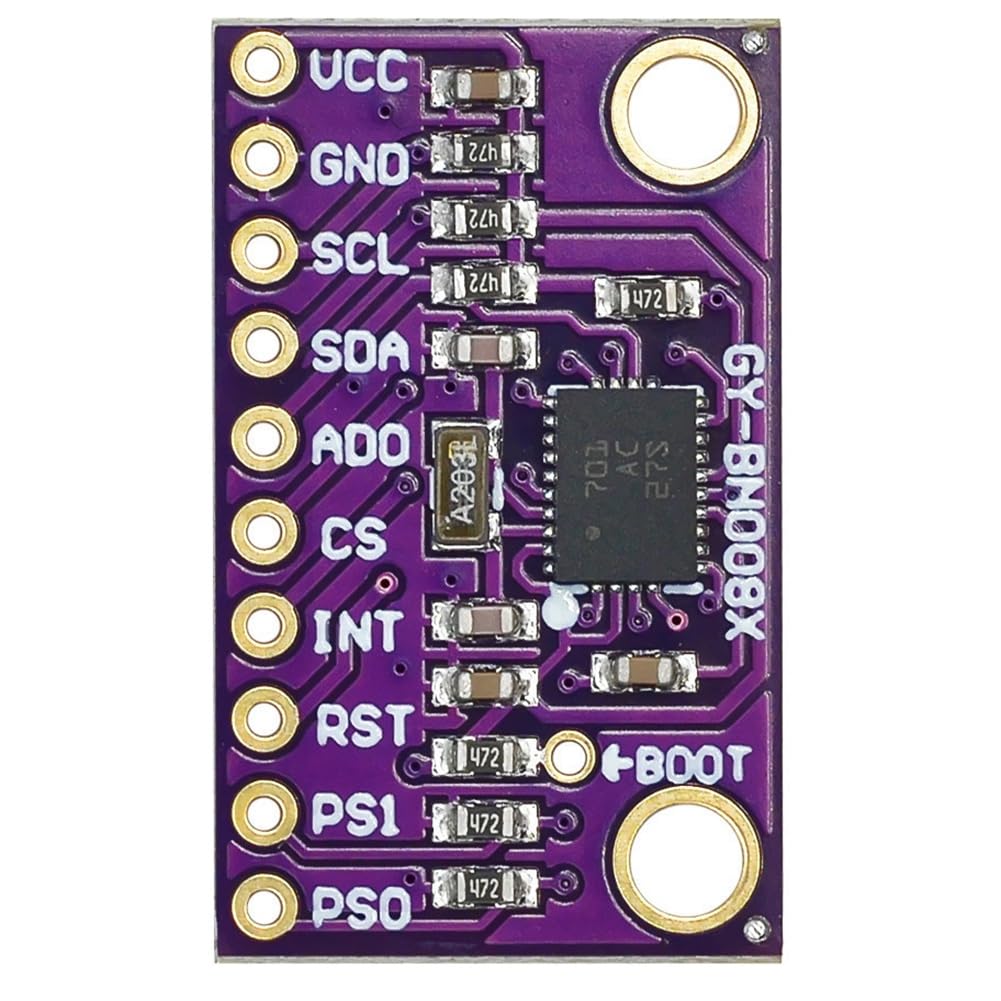

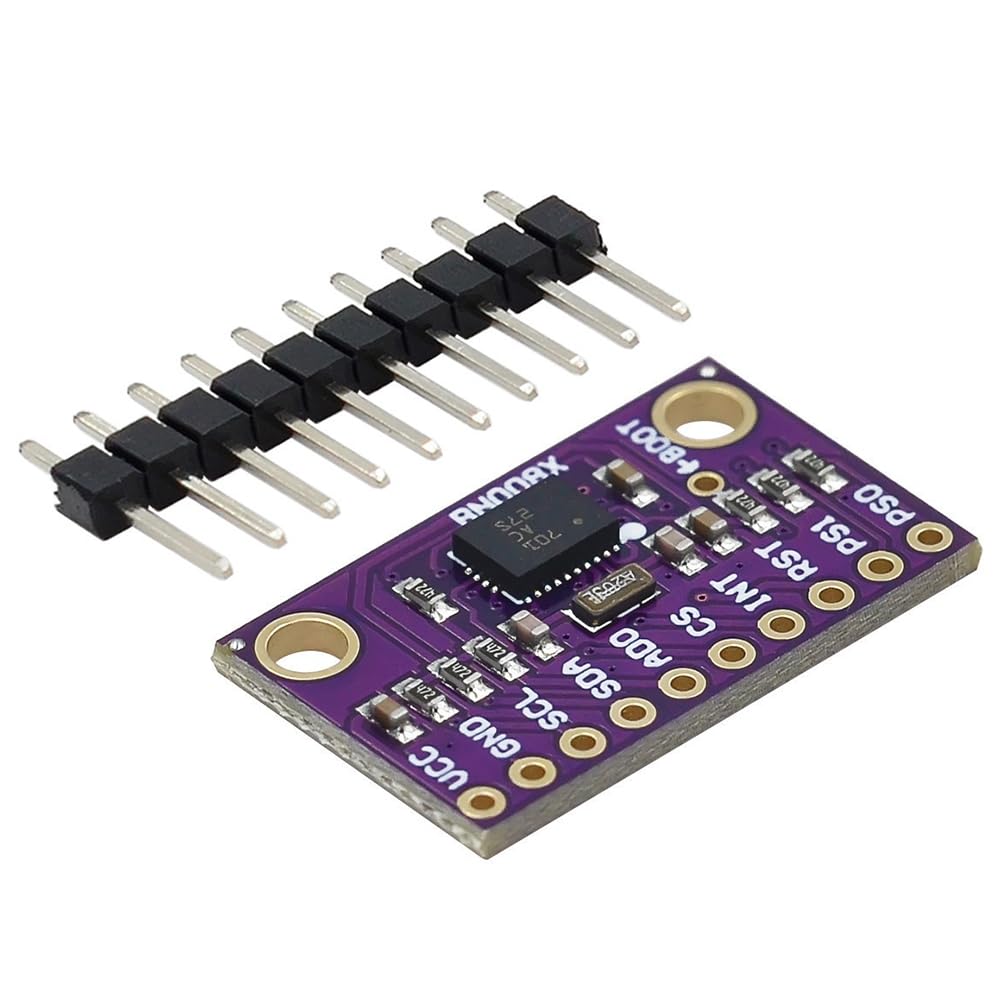

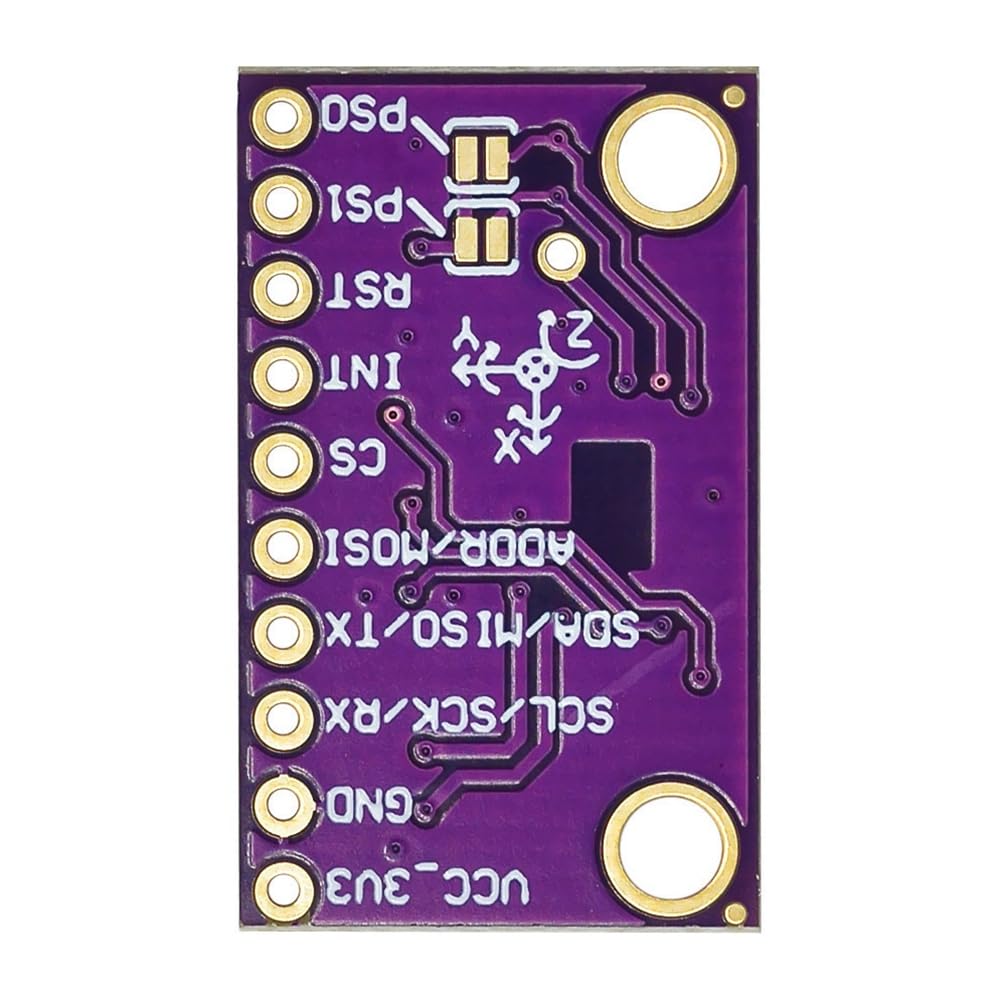

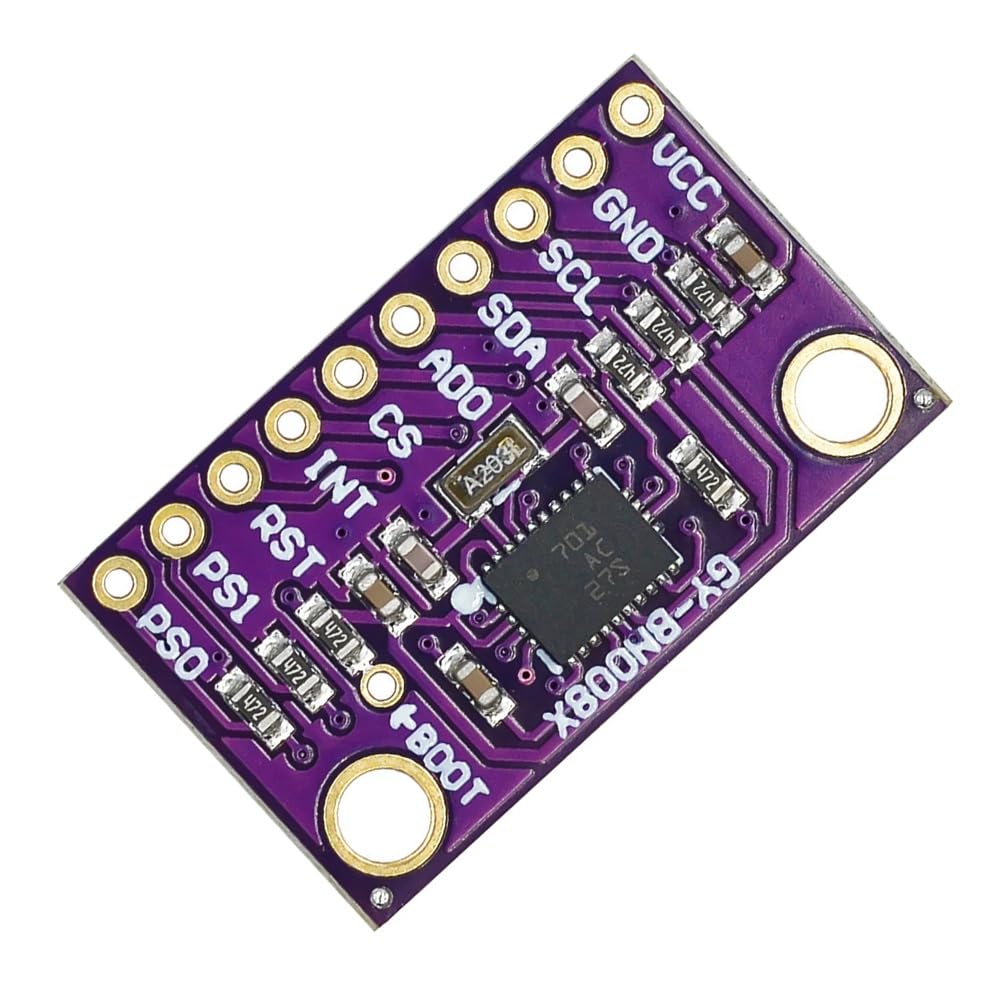

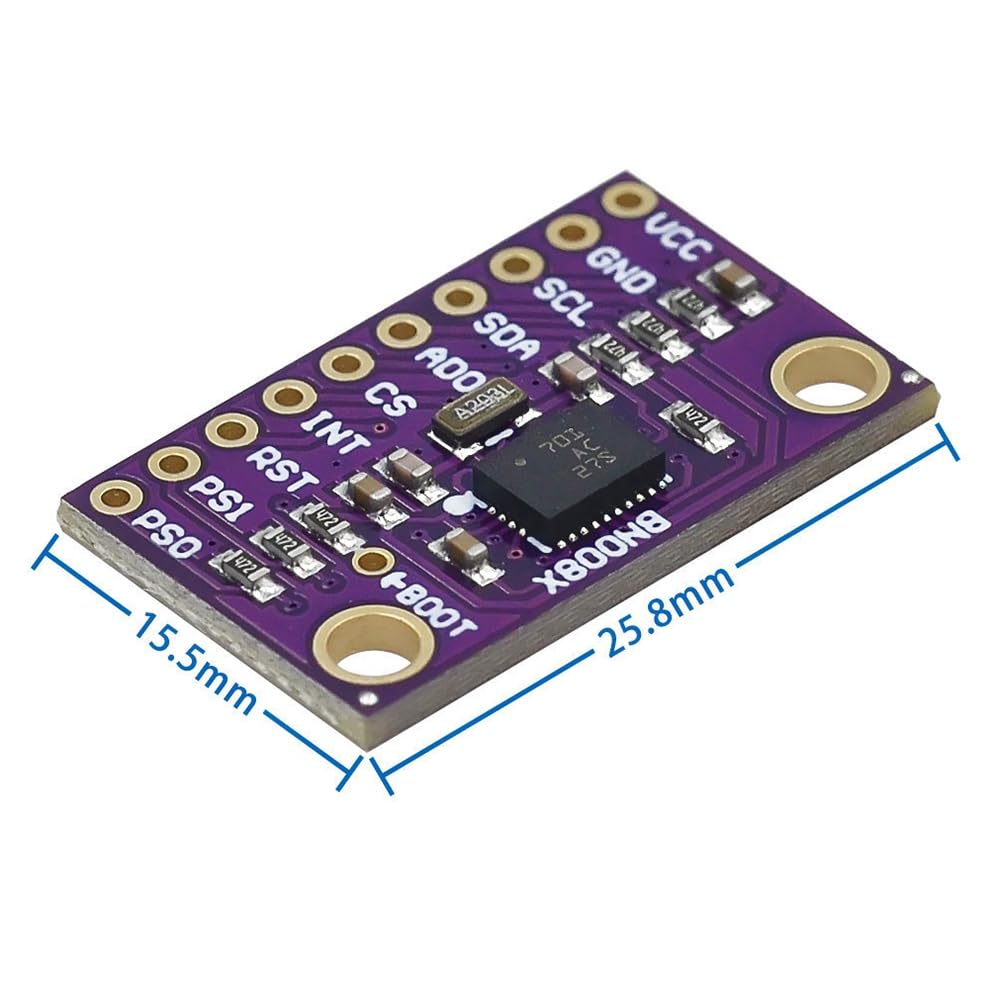

{"id":8115133907124,"title":"SweetSerenade - BNO080 BNO085 BNO086 AR VR IMU Sensor Module AHRS High Precision with Nine Axis 9DOF","handle":"sweetserenade-bno080-bno085-bno086-ar-vr-imu-sensor-module-ahrs-high-precision-with-nine-axis-9dof","description":"\u003ch3\u003eSweetSerenade - BNO080 BNO085 BNO086 AR VR IMU Sensor Module AHRS High Precision with Nine Axis 9DOF\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSweetSerenade Interfaces: BNO080 can communicate through a variety of\ninterfaces. The Qwiic VR IMU has two jumpers that allow the user to select the\ndesired interface. I2C (standard): up to 400 kHz. SPI up to 3 MHz UART 3Mbps\nUART-RVC (Robot Vacuum) 115 200 kbps Performance: Rotation vector Dynamic\nerror 3.5°. Static Error: 2.0° Rotation vector: Dynamic error 2.5°. Static\nerror 1.5°. Cap drift 0.5°\/min. Geomagnetic Rotation Vector Dynamic rotation\nerror 4.5°. Static rotation error 3.0°. Gravity angle error 1.5°. Linear\nAcceleration Accuracy: 0.35m\/s2 G-sensor accuracy 0.\/s2 Gyroscope Accuracy:\n3.1°\/sec Accuracy of the magnetometer 1.4 μT. Color: as picture show Material:\nPC Package includes: 1 x Sensor Module Only the above package, other products\nare not included. Note: Reflection of light and different monitors may cause\nthe color of the item a little different from the reality. The allowed\nmeasurement error is +\/- 1-3 cm.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe VR IMU has a demo processing application to see how the movement of the IMU can handle precise 3D objects using the Quaternion edition of the IMU.\u003c\/li\u003e\n \u003cli\u003eThe IMU VR uses the impressive IMU BNO080. The integrated circuit includes a three-axis accelerometer\/gyroscope\/magnetometer combination that works with ARM M0+ to perform powerful algorithms. The inertial measuring unit (IMU) BNO080 produces precise rotation vector caps, ideal for virtual reality and other cap applications, with a static rotation error of 2 degrees or less.\u003c\/li\u003e\n \u003cli\u003eThe built-in circuit is designed to be implemented in Android phones to manage the virtual reality glasses only with your phone. The sensor is very powerful and the performance is very complex. An I2C based library is included that provides rotation vectors (which most people want to read from IMU) as well as acceleration measurements, gyroscope and magnetometer, pedometer, activity sorter (such as cycling) and calibration.\u003c\/li\u003e\n \u003cli\u003eThis version features 32kHz crystals for improved accuracy and more precise time stamping.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T12:08:48+10:00","created_at":"2026-09-01T22:44:50+10:00","vendor":"SweetSerenade","type":"Acceleration Sensors","tags":["industrial_DE_Aug2026"],"price":18400,"price_min":18400,"price_max":18400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374849192116,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0FHB572JX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SweetSerenade - BNO080 BNO085 BNO086 AR VR IMU Sensor Module AHRS High Precision with Nine Axis 9DOF","public_title":null,"options":["Default Title"],"price":18400,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"500769252","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0FHB572JX.jpg?v=1788266692","\/\/auspowers.com\/cdn\/shop\/files\/616ahwwmRFL.jpg?v=1788266692","\/\/auspowers.com\/cdn\/shop\/files\/61CCRiIjFWL.jpg?v=1788266692","\/\/auspowers.com\/cdn\/shop\/files\/61UKxt9X34L.jpg?v=1788266692","\/\/auspowers.com\/cdn\/shop\/files\/61_XRqzoIAL.jpg?v=1788266692","\/\/auspowers.com\/cdn\/shop\/files\/61Tygkhq05L.jpg?v=1788266692"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0FHB572JX.jpg?v=1788266692","options":["Title"],"media":[{"alt":null,"id":33272302207156,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FHB572JX.jpg?v=1788266692"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FHB572JX.jpg?v=1788266692","width":1001},{"alt":null,"id":33272302239924,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/616ahwwmRFL.jpg?v=1788266692"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/616ahwwmRFL.jpg?v=1788266692","width":1001},{"alt":null,"id":33272302272692,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61CCRiIjFWL.jpg?v=1788266692"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61CCRiIjFWL.jpg?v=1788266692","width":1001},{"alt":null,"id":33272302305460,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61UKxt9X34L.jpg?v=1788266692"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61UKxt9X34L.jpg?v=1788266692","width":1001},{"alt":null,"id":33272302338228,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61_XRqzoIAL.jpg?v=1788266692"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61_XRqzoIAL.jpg?v=1788266692","width":1001},{"alt":null,"id":33272302370996,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Tygkhq05L.jpg?v=1788266692"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Tygkhq05L.jpg?v=1788266692","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSweetSerenade - BNO080 BNO085 BNO086 AR VR IMU Sensor Module AHRS High Precision with Nine Axis 9DOF\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSweetSerenade Interfaces: BNO080 can communicate through a variety of\ninterfaces. The Qwiic VR IMU has two jumpers that allow the user to select the\ndesired interface. I2C (standard): up to 400 kHz. SPI up to 3 MHz UART 3Mbps\nUART-RVC (Robot Vacuum) 115 200 kbps Performance: Rotation vector Dynamic\nerror 3.5°. Static Error: 2.0° Rotation vector: Dynamic error 2.5°. Static\nerror 1.5°. Cap drift 0.5°\/min. Geomagnetic Rotation Vector Dynamic rotation\nerror 4.5°. Static rotation error 3.0°. Gravity angle error 1.5°. Linear\nAcceleration Accuracy: 0.35m\/s2 G-sensor accuracy 0.\/s2 Gyroscope Accuracy:\n3.1°\/sec Accuracy of the magnetometer 1.4 μT. Color: as picture show Material:\nPC Package includes: 1 x Sensor Module Only the above package, other products\nare not included. Note: Reflection of light and different monitors may cause\nthe color of the item a little different from the reality. The allowed\nmeasurement error is +\/- 1-3 cm.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe VR IMU has a demo processing application to see how the movement of the IMU can handle precise 3D objects using the Quaternion edition of the IMU.\u003c\/li\u003e\n \u003cli\u003eThe IMU VR uses the impressive IMU BNO080. The integrated circuit includes a three-axis accelerometer\/gyroscope\/magnetometer combination that works with ARM M0+ to perform powerful algorithms. The inertial measuring unit (IMU) BNO080 produces precise rotation vector caps, ideal for virtual reality and other cap applications, with a static rotation error of 2 degrees or less.\u003c\/li\u003e\n \u003cli\u003eThe built-in circuit is designed to be implemented in Android phones to manage the virtual reality glasses only with your phone. The sensor is very powerful and the performance is very complex. An I2C based library is included that provides rotation vectors (which most people want to read from IMU) as well as acceleration measurements, gyroscope and magnetometer, pedometer, activity sorter (such as cycling) and calibration.\u003c\/li\u003e\n \u003cli\u003eThis version features 32kHz crystals for improved accuracy and more precise time stamping.\u003c\/li\u003e\n \u003c\/ul\u003e"}
