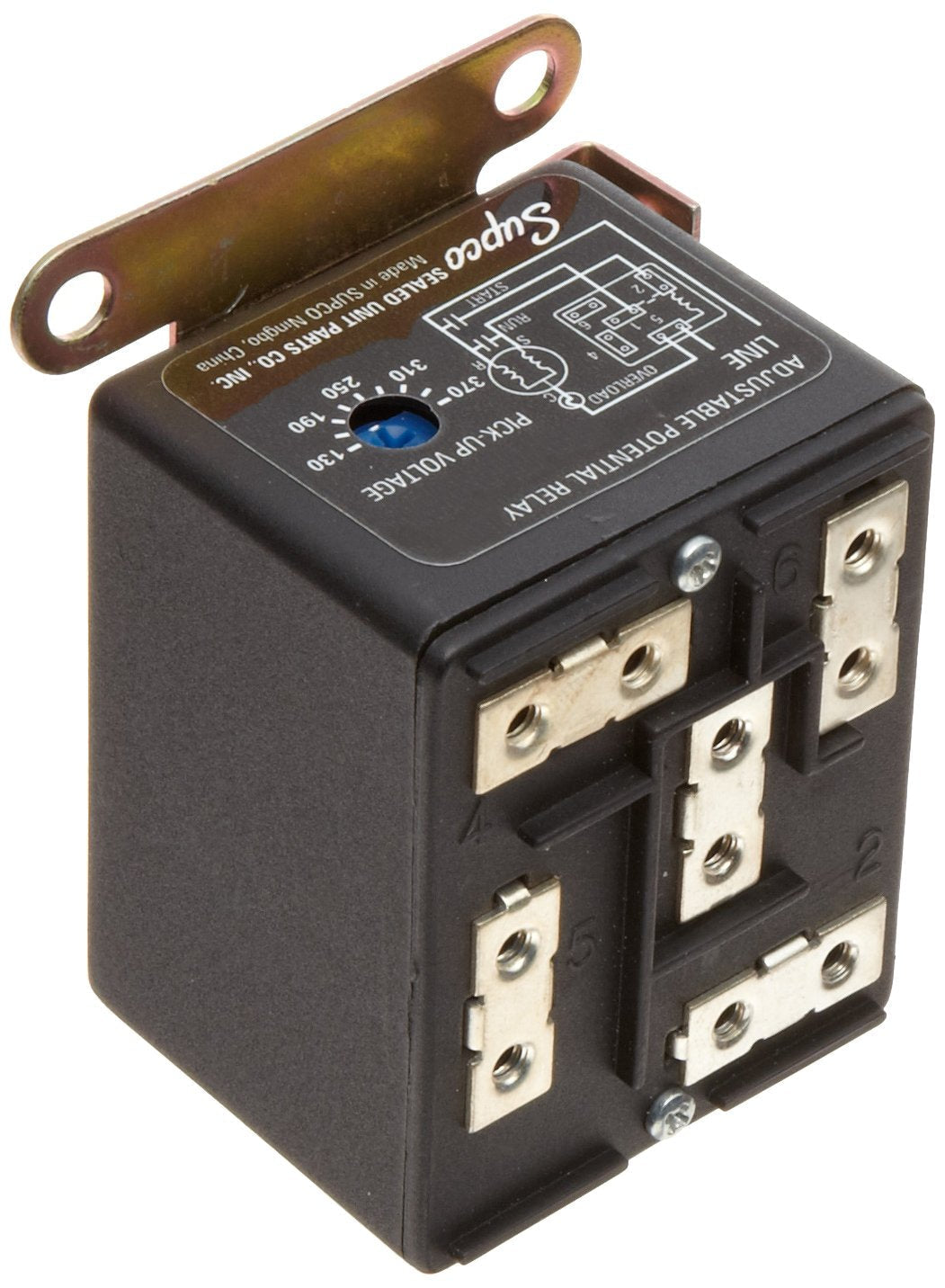

{"id":7169138131124,"title":"Supco APR5 Wire to Wire Adjustable Potential Relay, 30 A Load Current, 110 - 270 VAC Single Phase Operating Voltage","handle":"supco-apr5-wire-to-wire-adjustable-potential-relay-30-a-load-current-110-270-vac-single-phase-operating-voltage","description":"\u003ch3\u003eSupco APR5 Wire to Wire Adjustable Potential Relay, 30 A Load Current, 110 - 270 VAC Single Phase Operating Voltage\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis Supco APR5 wire-to-wire adjustable potential relay is used to start\n1-phase, capacitor-type motors in air conditioning and refrigeration\napplications. It is a replacement part with adjustable settings for wire-to-\nwire replacement of most potential relays with 110 to 270 VAC pickup voltage.\nIt has a safety time-out of 1 to 1.5 sec, at which point the contacts will\nopen if the motor does not start. It has universal, non-positional mounting\nand adapters for screw or push-on terminals. This adjustable potential relay\nreplaces 3- and 5-terminal potential relays and is suitable for use with\nsingle phase motors or air conditioning and refrigeration compressors up to 5\nhp.SpecificationsOperating voltage110-270 VACLoad current30 ampTime setting\nrange0.05 – 100 secOperating temperature-40 to +150 degrees FDimensions1.5 x\n2.25 x 1.75\" (H x W x D)H is height, the vertical distance from the lowest to\nhighest point; W is width, the horizontal distance from left to right; D is\ndepth, the horizontal distance from front to back. Relay switches (also called\nan electrical relay or an electrical relay switch) use a small amount of power\nto control a larger source of power connected to electrical devices such as\ncar motors, computers, and lighting installations. A basic relay switch has a\ncontrol circuit with an electromagnetic coil and a load circuit with contacts\nand a lever. When current flows into the relay switch, it moves through the\ncoil and a magnetic field is created, which causes the lever in the load\ncircuit to move between contacts, either turning the device on or off. In a\nnormally open (NO) relay switch, when power is supplied to the relay, the load\ncircuit is closed and the power source connected to the relay is turned on. In\na normally closed (NC) relay switch, when power is supplied to the relay, the\nload circuit is open and the power source connected to the relay is turned\noff. In other types of relay switches, non-moving parts such as transistors or\nsemiconductors can be used as the control circuit to operate the switching\nmechanism. Relay switches can be controlled with an external switch, such as a\nlight switch, or they can be connected to an automatically switched power\nsource, such as a car ignition. One relay can operate multiple switches, and\nmultiple relays can be operated with a single switch, with each relay\noperating independently from the other relays in the system. Supco\nmanufactures test instruments and replacement parts for heating, ventilation,\nair conditioning, and refrigeration systems. The company, founded in 1945, is\nheadquartered in Allenwood, NJ.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAdjustable potential relay for HVAC\/R\u003c\/li\u003e\n \u003cli\u003eSet pick up voltage\u003c\/li\u003e\n \u003cli\u003eSafety time-out of 1 to 1.5 sec\u003c\/li\u003e\n \u003cli\u003eUniversal, non-positional mounting and adapters for screw or push-on terminals\u003c\/li\u003e\n \u003cli\u003eReplaces 3- and 5-terminal potential relays\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-25T19:24:03+10:00","created_at":"2022-06-25T19:24:05+10:00","vendor":"Supco","type":"Phase Monitoring Relays","tags":["industrial","sold2024"],"price":15800,"price_min":15800,"price_max":15800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41607825490100,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B004XS1ML6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Supco APR5 Wire to Wire Adjustable Potential Relay, 30 A Load Current, 110 - 270 VAC Single Phase Operating Voltage","public_title":null,"options":["Default Title"],"price":15800,"weight":136,"compare_at_price":null,"inventory_management":null,"barcode":"687152010080","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B004XS1ML6.jpg?v=1656226543"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B004XS1ML6.jpg?v=1656226543","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Supco APR5 Wire to Wire Adjustable Potential Relay, 30 A Load Current, 110 - 270 VAC Single Phase Operating Voltage ","id":26293024719028,"position":1,"preview_image":{"aspect_ratio":0.734,"height":1432,"width":1051,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B004XS1ML6.jpg?v=1656226543"},"aspect_ratio":0.734,"height":1432,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B004XS1ML6.jpg?v=1656226543","width":1051}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSupco APR5 Wire to Wire Adjustable Potential Relay, 30 A Load Current, 110 - 270 VAC Single Phase Operating Voltage\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis Supco APR5 wire-to-wire adjustable potential relay is used to start\n1-phase, capacitor-type motors in air conditioning and refrigeration\napplications. It is a replacement part with adjustable settings for wire-to-\nwire replacement of most potential relays with 110 to 270 VAC pickup voltage.\nIt has a safety time-out of 1 to 1.5 sec, at which point the contacts will\nopen if the motor does not start. It has universal, non-positional mounting\nand adapters for screw or push-on terminals. This adjustable potential relay\nreplaces 3- and 5-terminal potential relays and is suitable for use with\nsingle phase motors or air conditioning and refrigeration compressors up to 5\nhp.SpecificationsOperating voltage110-270 VACLoad current30 ampTime setting\nrange0.05 – 100 secOperating temperature-40 to +150 degrees FDimensions1.5 x\n2.25 x 1.75\" (H x W x D)H is height, the vertical distance from the lowest to\nhighest point; W is width, the horizontal distance from left to right; D is\ndepth, the horizontal distance from front to back. Relay switches (also called\nan electrical relay or an electrical relay switch) use a small amount of power\nto control a larger source of power connected to electrical devices such as\ncar motors, computers, and lighting installations. A basic relay switch has a\ncontrol circuit with an electromagnetic coil and a load circuit with contacts\nand a lever. When current flows into the relay switch, it moves through the\ncoil and a magnetic field is created, which causes the lever in the load\ncircuit to move between contacts, either turning the device on or off. In a\nnormally open (NO) relay switch, when power is supplied to the relay, the load\ncircuit is closed and the power source connected to the relay is turned on. In\na normally closed (NC) relay switch, when power is supplied to the relay, the\nload circuit is open and the power source connected to the relay is turned\noff. In other types of relay switches, non-moving parts such as transistors or\nsemiconductors can be used as the control circuit to operate the switching\nmechanism. Relay switches can be controlled with an external switch, such as a\nlight switch, or they can be connected to an automatically switched power\nsource, such as a car ignition. One relay can operate multiple switches, and\nmultiple relays can be operated with a single switch, with each relay\noperating independently from the other relays in the system. Supco\nmanufactures test instruments and replacement parts for heating, ventilation,\nair conditioning, and refrigeration systems. The company, founded in 1945, is\nheadquartered in Allenwood, NJ.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAdjustable potential relay for HVAC\/R\u003c\/li\u003e\n \u003cli\u003eSet pick up voltage\u003c\/li\u003e\n \u003cli\u003eSafety time-out of 1 to 1.5 sec\u003c\/li\u003e\n \u003cli\u003eUniversal, non-positional mounting and adapters for screw or push-on terminals\u003c\/li\u003e\n \u003cli\u003eReplaces 3- and 5-terminal potential relays\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
