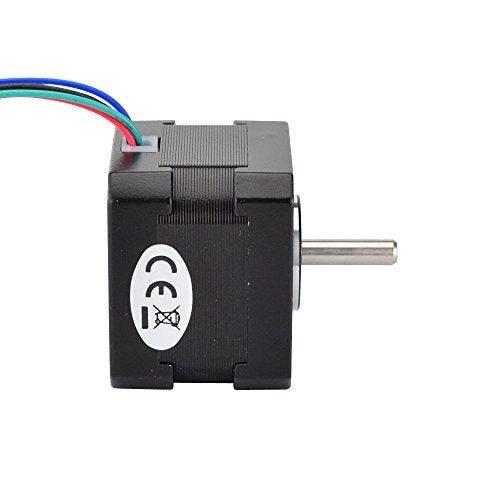

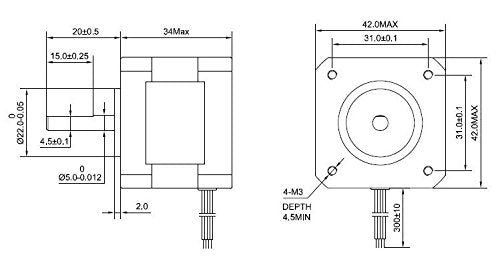

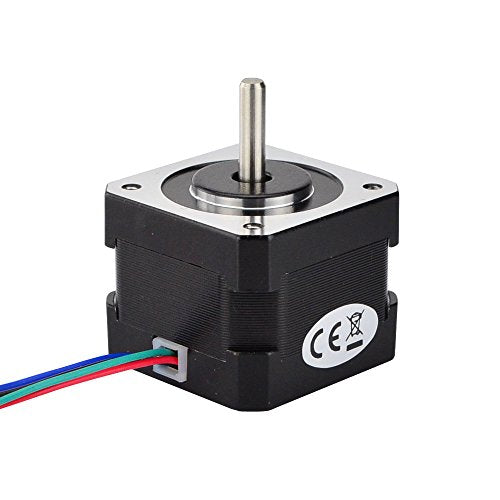

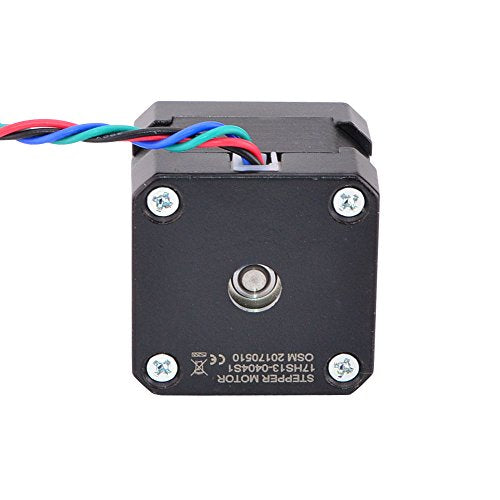

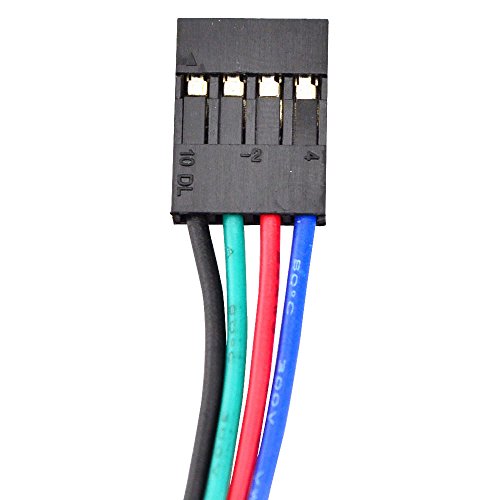

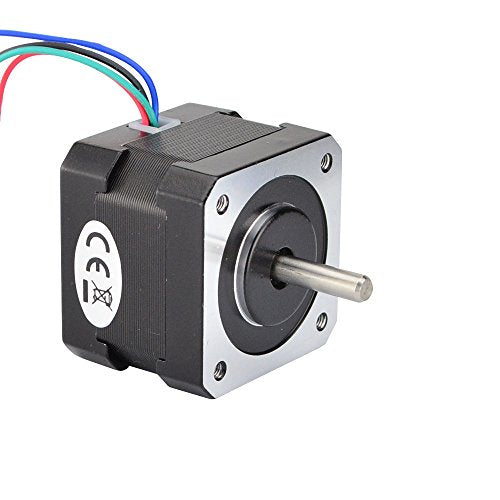

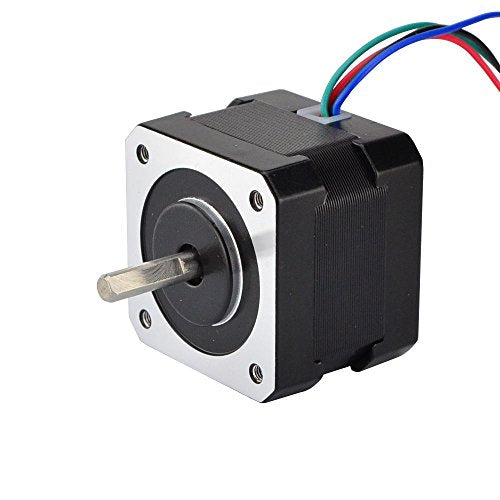

{"id":8115622183092,"title":"STEPPERONLINE Nema17 Stepper Motor 26 Ncm 1.8 deg with 1 m Cable and Connector 12 V 0.4 A for CNC 3D Printers and Robots","handle":"stepperonline-nema17-stepper-motor-26-ncm-1-8-deg-with-1-m-cable-and-connector-12-v-0-4-a-for-cnc-3d-printers-and-robots","description":"\u003ch3\u003eSTEPPERONLINE Nema17 Stepper Motor 26 Ncm 1.8 deg with 1 m Cable and Connector 12 V 0.4 A for CNC 3D Printers and Robots\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe cable length is 1000 mm. This is the most popular Nema 17 model. It has 1.8 degree step angle (200 steps\/rotation). Each phase current is 0.4 A, and the holding torque is 26 Ncm. 100% brand new from \"Stepperonline\" and RoHS and CE certified. Electrical Specification: Manufacturer Part Number: 17HS13-0404S Motor type: Bipolar Step angle: 1.8 deg. Holding torque: 26 Ncm. Rated current\/phase: 0.4 A. Phase resistance: 30 ohms. Inductance: 37mH+\/-20% (1KHz) Physical specification: Frame size: 42 x 42 mm. Body length: 34 mm. Shank diameter: 5 mm. Front shaft length: 20 mm. D-cut length: 15 mm. Number of Leads: 4 Number of leads: 1000 mm. Weight: 230g Connection: Black (A +), Green (A-), Red (B +), Blue (B-) Warning: As a stepper motor, it should be connected to a constant current or chopper driver. If you connect the motor directly to a power supply, the engine will be destroyed. Please pay attention to order four wire coils when connecting to the driver, or it will damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLow cost top selling.\u003c\/li\u003e\n \u003cli\u003e26 Ncm (36.8 oz.in) holding torque.\u003c\/li\u003e\n \u003cli\u003eNEMA 17 Bipolar 42 x 42 x 34 mm 4-wire\u003c\/li\u003e\n \u003cli\u003eRated current 0.4 A and resistance 30 ohms.\u003c\/li\u003e\n \u003cli\u003e1.8 deg. Step angle (200 steps\/rotation).\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:30:49+10:00","created_at":"2026-09-02T20:25:38+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":19800,"price_min":19800,"price_max":19800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375713480884,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B00PNEQ9T4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Nema17 Stepper Motor 26 Ncm 1.8 deg with 1 m Cable and Connector 12 V 0.4 A for CNC 3D Printers and Robots","public_title":null,"options":["Default Title"],"price":19800,"weight":270,"compare_at_price":null,"inventory_management":"shopify","barcode":"701056302451","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B00PNEQ9T4.jpg?v=1788344740","\/\/auspowers.com\/cdn\/shop\/files\/41FHl5dFMTL.jpg?v=1788344740","\/\/auspowers.com\/cdn\/shop\/files\/41_Mq6v-VIL_019c2a3a-042b-423c-b692-a4236cb46c1c.jpg?v=1788344740","\/\/auspowers.com\/cdn\/shop\/files\/41UupPXrGGL.jpg?v=1788344740","\/\/auspowers.com\/cdn\/shop\/files\/41jlVfg9C6L.jpg?v=1788344740","\/\/auspowers.com\/cdn\/shop\/files\/419TViDAPuL.jpg?v=1788344740","\/\/auspowers.com\/cdn\/shop\/files\/41wkDPGWruL_3557bf6e-9b4b-416d-a97e-eaf98c061411.jpg?v=1788344740"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00PNEQ9T4.jpg?v=1788344740","options":["Title"],"media":[{"alt":null,"id":33276706586804,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00PNEQ9T4.jpg?v=1788344740"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00PNEQ9T4.jpg?v=1788344740","width":500},{"alt":null,"id":33276706619572,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41FHl5dFMTL.jpg?v=1788344740"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41FHl5dFMTL.jpg?v=1788344740","width":500},{"alt":null,"id":33276706652340,"position":3,"preview_image":{"aspect_ratio":1.852,"height":270,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41_Mq6v-VIL_019c2a3a-042b-423c-b692-a4236cb46c1c.jpg?v=1788344740"},"aspect_ratio":1.852,"height":270,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41_Mq6v-VIL_019c2a3a-042b-423c-b692-a4236cb46c1c.jpg?v=1788344740","width":500},{"alt":null,"id":33276706685108,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41UupPXrGGL.jpg?v=1788344740"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41UupPXrGGL.jpg?v=1788344740","width":500},{"alt":null,"id":33276706717876,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41jlVfg9C6L.jpg?v=1788344740"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41jlVfg9C6L.jpg?v=1788344740","width":500},{"alt":null,"id":33276706750644,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/419TViDAPuL.jpg?v=1788344740"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/419TViDAPuL.jpg?v=1788344740","width":500},{"alt":null,"id":33276706783412,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41wkDPGWruL_3557bf6e-9b4b-416d-a97e-eaf98c061411.jpg?v=1788344740"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41wkDPGWruL_3557bf6e-9b4b-416d-a97e-eaf98c061411.jpg?v=1788344740","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Nema17 Stepper Motor 26 Ncm 1.8 deg with 1 m Cable and Connector 12 V 0.4 A for CNC 3D Printers and Robots\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe cable length is 1000 mm. This is the most popular Nema 17 model. It has 1.8 degree step angle (200 steps\/rotation). Each phase current is 0.4 A, and the holding torque is 26 Ncm. 100% brand new from \"Stepperonline\" and RoHS and CE certified. Electrical Specification: Manufacturer Part Number: 17HS13-0404S Motor type: Bipolar Step angle: 1.8 deg. Holding torque: 26 Ncm. Rated current\/phase: 0.4 A. Phase resistance: 30 ohms. Inductance: 37mH+\/-20% (1KHz) Physical specification: Frame size: 42 x 42 mm. Body length: 34 mm. Shank diameter: 5 mm. Front shaft length: 20 mm. D-cut length: 15 mm. Number of Leads: 4 Number of leads: 1000 mm. Weight: 230g Connection: Black (A +), Green (A-), Red (B +), Blue (B-) Warning: As a stepper motor, it should be connected to a constant current or chopper driver. If you connect the motor directly to a power supply, the engine will be destroyed. Please pay attention to order four wire coils when connecting to the driver, or it will damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLow cost top selling.\u003c\/li\u003e\n \u003cli\u003e26 Ncm (36.8 oz.in) holding torque.\u003c\/li\u003e\n \u003cli\u003eNEMA 17 Bipolar 42 x 42 x 34 mm 4-wire\u003c\/li\u003e\n \u003cli\u003eRated current 0.4 A and resistance 30 ohms.\u003c\/li\u003e\n \u003cli\u003e1.8 deg. Step angle (200 steps\/rotation).\u003c\/li\u003e\n \u003c\/ul\u003e"}
