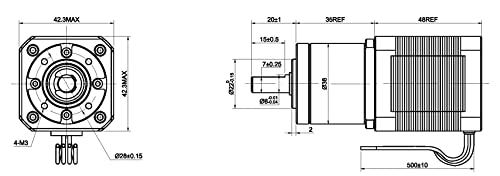

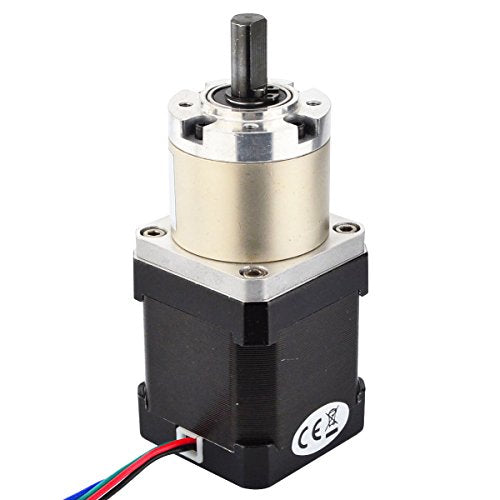

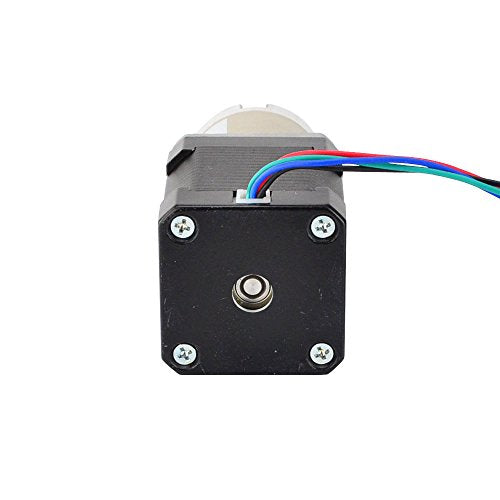

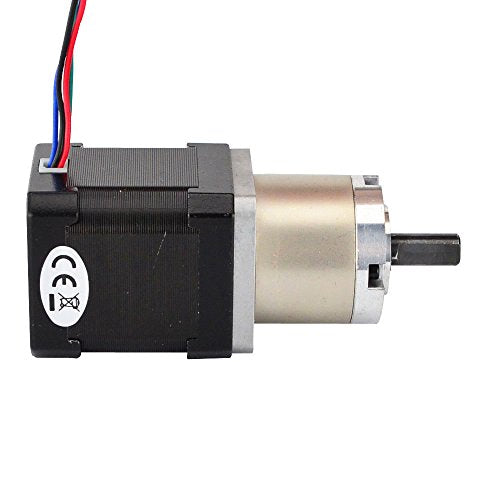

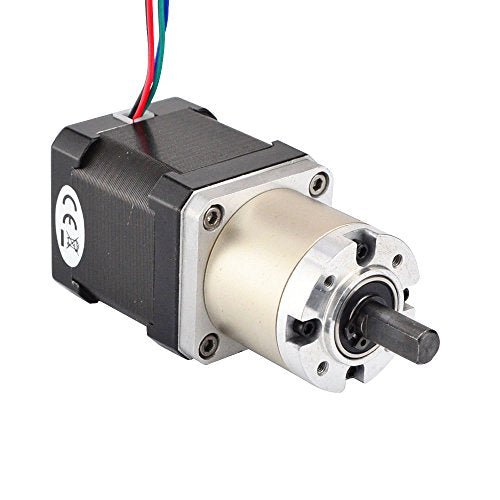

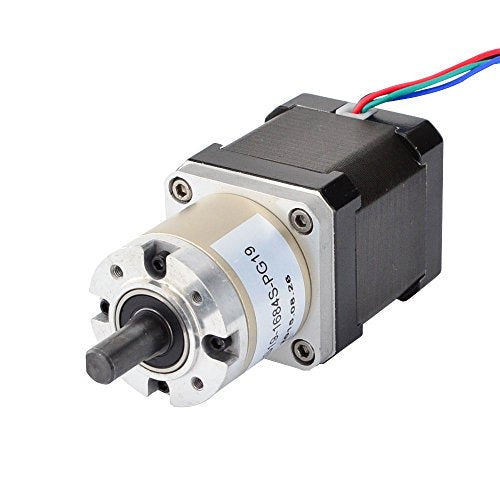

{"id":8115570114740,"title":"STEPPERONLINE Nema17 Gear Stepper Motor 1.68A 19:1 Planetary Gear","handle":"stepperonline-nema17-gear-stepper-motor-1-68a-19-1-planetary-gear","description":"\u003ch3\u003eSTEPPERONLINE Nema17 Gear Stepper Motor 1.68A 19:1 Planetary Gear\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectrical specification: Manufacturer Part Number: 17HS19-1684S-PG19 \nMotor type: bipolar Step angle: 0.094 deg Holding torque without\ntransmission: 44Nm (62.31oz.in) Rated current\/phase: 1.68A Phase\nresistance: 1.65 ohms Voltage: 2.8V Inductance: 2.8mH±20%(1KHz) Gear\nspecification: Transmission type: planets Gear Ratio: 19.19:1 \nEfficiency: 81%. Reverse reaction in idle: \u0026lt;= 1°. Maximum permissible\ntorque: 3Nm (425oz.in) Momentary permitted torque: 5Nm (708oz.in) Maximum\nAxial Wave Load: 50N Maximum radial wave load: 100N Physical specification:\n Frame size: 42 x 42 mm. Body length: 48 mm. Gear length: 35 mm. Shaft\ndiameter: 8 mm. Shaft length: 20 mm. D-cut length: 15 mm. Number of\nleads: 4. Lead rotation: 500 mm. Weight: 560 g. Connection: Black (A +),\nGreen (A-), Red (B +), Blue (B-). Warning: As a stepper motor, it should be\nconnected to a constant current or chopper driver. If you connect the motor\ndirectly to a power supply, the motor will be destroyed. Please pay\nattention to order four wire coils when you connect to the driver, or it will\ndamage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis Nema 17 stepper motor with 48 mm length and 1.68 A rated current, integrated a planetary gear of 19.19: 1 gear ratio\u003c\/li\u003e\n \u003cli\u003eIt is a good solution for applications that require low speed and\/or high torque when space is limited\u003c\/li\u003e\n \u003cli\u003e100% brand new from \"STEPPERONLINE\" and ROHS and CE certified\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:45:47+10:00","created_at":"2026-09-02T20:07:02+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":32900,"price_min":32900,"price_max":32900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375659217076,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B077ZP7NX3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Nema17 Gear Stepper Motor 1.68A 19:1 Planetary Gear","public_title":null,"options":["Default Title"],"price":32900,"weight":604,"compare_at_price":null,"inventory_management":"shopify","barcode":"715776243123","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B077ZP7NX3.jpg?v=1788343625","\/\/auspowers.com\/cdn\/shop\/files\/41BnpMIqhiL.jpg?v=1788343625","\/\/auspowers.com\/cdn\/shop\/files\/41TRKNwv10L.jpg?v=1788343625","\/\/auspowers.com\/cdn\/shop\/files\/41Yc7g1t-WL.jpg?v=1788343625","\/\/auspowers.com\/cdn\/shop\/files\/41naXIP6xGL.jpg?v=1788343625","\/\/auspowers.com\/cdn\/shop\/files\/31XzmMy1rJL.jpg?v=1788343624"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B077ZP7NX3.jpg?v=1788343625","options":["Title"],"media":[{"alt":null,"id":33276379824308,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B077ZP7NX3.jpg?v=1788343625"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B077ZP7NX3.jpg?v=1788343625","width":500},{"alt":null,"id":33276379857076,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41BnpMIqhiL.jpg?v=1788343625"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41BnpMIqhiL.jpg?v=1788343625","width":500},{"alt":null,"id":33276379889844,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41TRKNwv10L.jpg?v=1788343625"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41TRKNwv10L.jpg?v=1788343625","width":500},{"alt":null,"id":33276379922612,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41Yc7g1t-WL.jpg?v=1788343625"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41Yc7g1t-WL.jpg?v=1788343625","width":500},{"alt":null,"id":33276379955380,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41naXIP6xGL.jpg?v=1788343625"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41naXIP6xGL.jpg?v=1788343625","width":500},{"alt":null,"id":33276379988148,"position":6,"preview_image":{"aspect_ratio":2.841,"height":176,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31XzmMy1rJL.jpg?v=1788343624"},"aspect_ratio":2.841,"height":176,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31XzmMy1rJL.jpg?v=1788343624","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Nema17 Gear Stepper Motor 1.68A 19:1 Planetary Gear\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectrical specification: Manufacturer Part Number: 17HS19-1684S-PG19 \nMotor type: bipolar Step angle: 0.094 deg Holding torque without\ntransmission: 44Nm (62.31oz.in) Rated current\/phase: 1.68A Phase\nresistance: 1.65 ohms Voltage: 2.8V Inductance: 2.8mH±20%(1KHz) Gear\nspecification: Transmission type: planets Gear Ratio: 19.19:1 \nEfficiency: 81%. Reverse reaction in idle: \u0026lt;= 1°. Maximum permissible\ntorque: 3Nm (425oz.in) Momentary permitted torque: 5Nm (708oz.in) Maximum\nAxial Wave Load: 50N Maximum radial wave load: 100N Physical specification:\n Frame size: 42 x 42 mm. Body length: 48 mm. Gear length: 35 mm. Shaft\ndiameter: 8 mm. Shaft length: 20 mm. D-cut length: 15 mm. Number of\nleads: 4. Lead rotation: 500 mm. Weight: 560 g. Connection: Black (A +),\nGreen (A-), Red (B +), Blue (B-). Warning: As a stepper motor, it should be\nconnected to a constant current or chopper driver. If you connect the motor\ndirectly to a power supply, the motor will be destroyed. Please pay\nattention to order four wire coils when you connect to the driver, or it will\ndamage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis Nema 17 stepper motor with 48 mm length and 1.68 A rated current, integrated a planetary gear of 19.19: 1 gear ratio\u003c\/li\u003e\n \u003cli\u003eIt is a good solution for applications that require low speed and\/or high torque when space is limited\u003c\/li\u003e\n \u003cli\u003e100% brand new from \"STEPPERONLINE\" and ROHS and CE certified\u003c\/li\u003e\n \u003c\/ul\u003e"}
