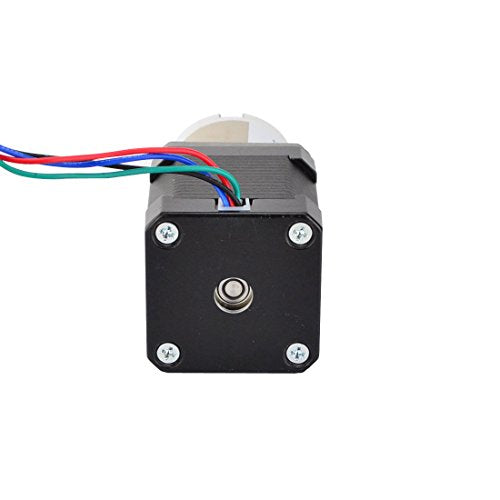

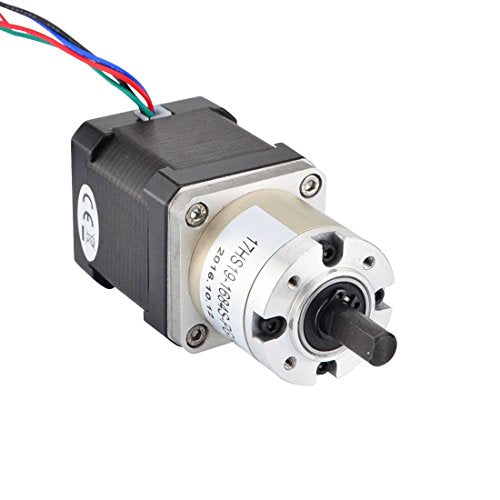

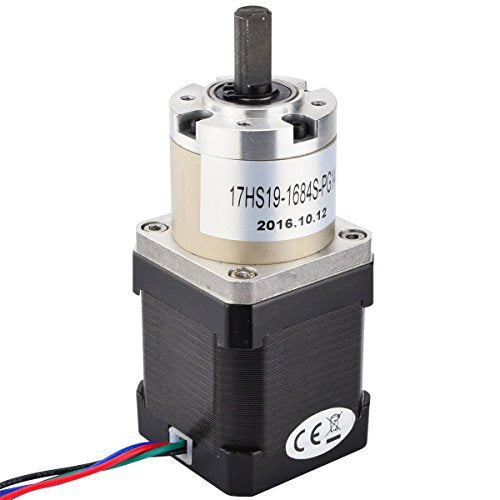

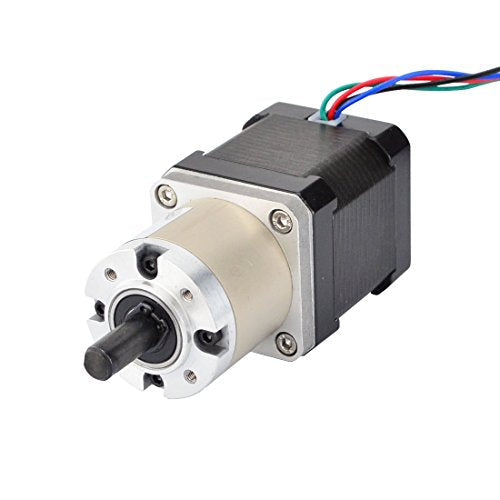

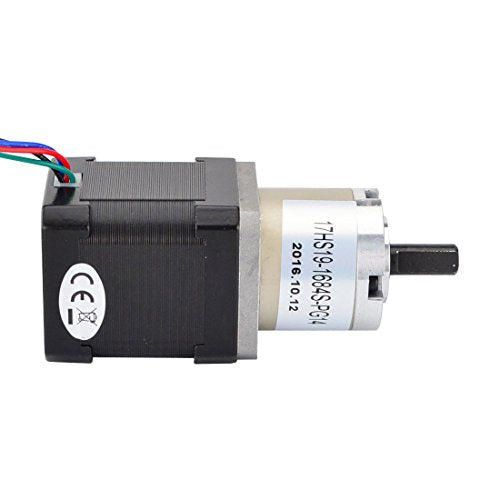

{"id":8115562676404,"title":"STEPPERONLINE Nema 17 Transmission Step Motor 14:1 Planetary Gear 1.68A","handle":"stepperonline-nema-17-transmission-step-motor-14-1-planetary-gear-1-68a","description":"\u003ch3\u003eSTEPPERONLINE Nema 17 Transmission Step Motor 14:1 Planetary Gear 1.68A\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectrical specification: Manufacturer Part Number: 17HS19-1684S-PG14 \nMotor type: bipolar Step angle: 0.131 deg. Holding torque without\ntransmission: 44Nm (62.31oz.in) Rated current\/phase: 1.68A Phase\nresistance: 1.65 ohms Voltage: 2.8V Inductance: 2.8mH±20%(1KHz) Gear\nspecification: Transmission type: planets Gear Ratio: 13.73:1 \nTransmission efficiency: 81%. Reverse reaction in idle: \u0026lt;= 1°. Maximum\npermissible torque: 3Nm (425oz.in) Momentary permitted torque: 5Nm\n(708oz.in) Maximum Axial Wave Load: 50N Maximum radial wave load: 100N\nPhysical specification: Frame size: 42 x 42 mm. Body length: 48 mm. Gear\nlength: 35 mm. Shaft diameter: 8 mm. Shaft length: 20 mm. D-cut length:\n15 mm. Number of leads: 4. Lead rotation: 500 mm. Weight: 560 g.\nConnection: Black (A +), Green (A-), Red (B +), Blue (B-). Warning: As a\nstepper motor, it should be connected to a constant current or chopper driver.\nIf you connect the motor directly to a power supply, the motor will be\ndestroyed. Please pay attention to order four wire coils when you connect to\nthe driver, or it will damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis Nema 17 stepper motor with 48 mm length and 1.68 A rated current, integrated a planetary gear of 13.73: 1 gear ratio\u003c\/li\u003e\n \u003cli\u003eIt is a good solution for applications that require low speed and\/or high torque when space is limited\u003c\/li\u003e\n \u003cli\u003e100% brand new from \"STEPPERONLINE\" and ROHS and CE certified.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:47:56+10:00","created_at":"2026-09-02T20:04:35+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":32900,"price_min":32900,"price_max":32900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375651352756,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B077ZPW7VT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Nema 17 Transmission Step Motor 14:1 Planetary Gear 1.68A","public_title":null,"options":["Default Title"],"price":32900,"weight":606,"compare_at_price":null,"inventory_management":"shopify","barcode":"715776536867","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B077ZPW7VT.jpg?v=1788343477","\/\/auspowers.com\/cdn\/shop\/files\/41P7_qHSOAL.jpg?v=1788343477","\/\/auspowers.com\/cdn\/shop\/files\/41ZK3_p_I2L.jpg?v=1788343477","\/\/auspowers.com\/cdn\/shop\/files\/41TY0kLKOCL.jpg?v=1788343477","\/\/auspowers.com\/cdn\/shop\/files\/319oQpLZZnL.jpg?v=1788343477"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B077ZPW7VT.jpg?v=1788343477","options":["Title"],"media":[{"alt":null,"id":33276330049716,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B077ZPW7VT.jpg?v=1788343477"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B077ZPW7VT.jpg?v=1788343477","width":500},{"alt":null,"id":33276330082484,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41P7_qHSOAL.jpg?v=1788343477"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41P7_qHSOAL.jpg?v=1788343477","width":500},{"alt":null,"id":33276330115252,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41ZK3_p_I2L.jpg?v=1788343477"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41ZK3_p_I2L.jpg?v=1788343477","width":500},{"alt":null,"id":33276330148020,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41TY0kLKOCL.jpg?v=1788343477"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41TY0kLKOCL.jpg?v=1788343477","width":500},{"alt":null,"id":33276330180788,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/319oQpLZZnL.jpg?v=1788343477"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/319oQpLZZnL.jpg?v=1788343477","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Nema 17 Transmission Step Motor 14:1 Planetary Gear 1.68A\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectrical specification: Manufacturer Part Number: 17HS19-1684S-PG14 \nMotor type: bipolar Step angle: 0.131 deg. Holding torque without\ntransmission: 44Nm (62.31oz.in) Rated current\/phase: 1.68A Phase\nresistance: 1.65 ohms Voltage: 2.8V Inductance: 2.8mH±20%(1KHz) Gear\nspecification: Transmission type: planets Gear Ratio: 13.73:1 \nTransmission efficiency: 81%. Reverse reaction in idle: \u0026lt;= 1°. Maximum\npermissible torque: 3Nm (425oz.in) Momentary permitted torque: 5Nm\n(708oz.in) Maximum Axial Wave Load: 50N Maximum radial wave load: 100N\nPhysical specification: Frame size: 42 x 42 mm. Body length: 48 mm. Gear\nlength: 35 mm. Shaft diameter: 8 mm. Shaft length: 20 mm. D-cut length:\n15 mm. Number of leads: 4. Lead rotation: 500 mm. Weight: 560 g.\nConnection: Black (A +), Green (A-), Red (B +), Blue (B-). Warning: As a\nstepper motor, it should be connected to a constant current or chopper driver.\nIf you connect the motor directly to a power supply, the motor will be\ndestroyed. Please pay attention to order four wire coils when you connect to\nthe driver, or it will damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis Nema 17 stepper motor with 48 mm length and 1.68 A rated current, integrated a planetary gear of 13.73: 1 gear ratio\u003c\/li\u003e\n \u003cli\u003eIt is a good solution for applications that require low speed and\/or high torque when space is limited\u003c\/li\u003e\n \u003cli\u003e100% brand new from \"STEPPERONLINE\" and ROHS and CE certified.\u003c\/li\u003e\n \u003c\/ul\u003e"}
