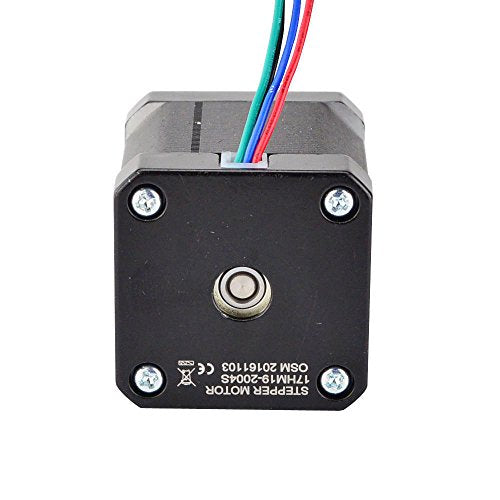

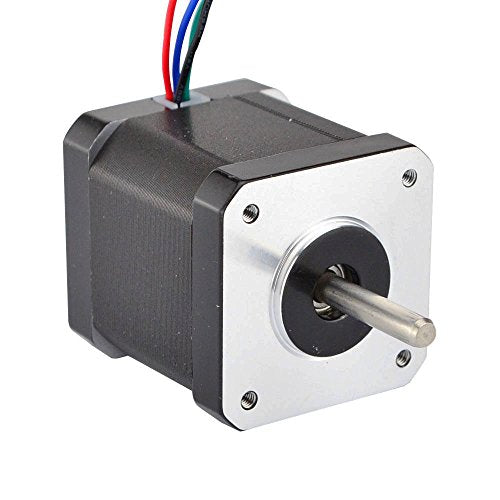

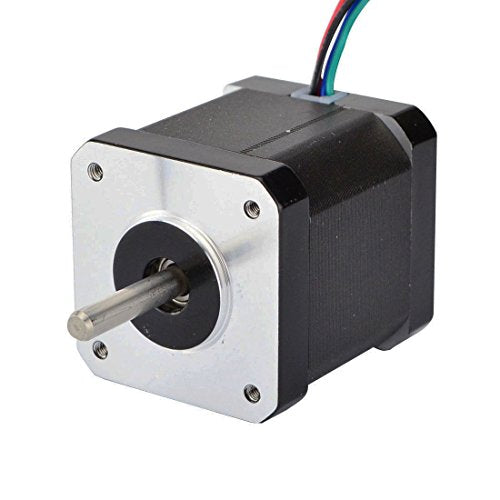

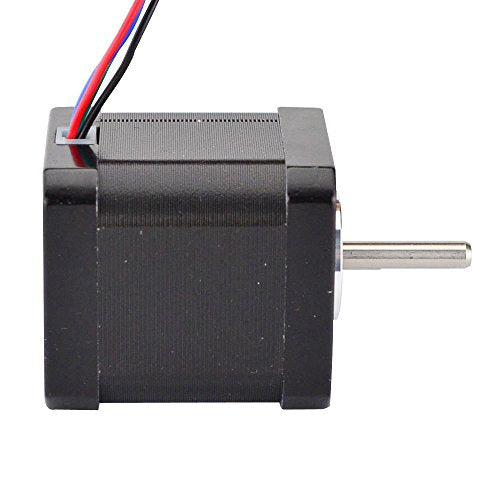

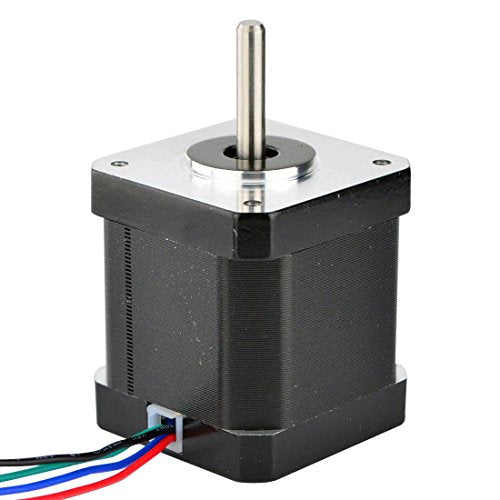

{"id":8115645415604,"title":"STEPPERONLINE Nema 17 Stepper Motor 0.9deg 46Ncm 2A 48mm Length 4-lead Stepping Motor for DIY CNC 3D Printer","handle":"stepperonline-nema-17-stepper-motor-0-9deg-46ncm-2a-48mm-length-4-lead-stepping-motor-for-diy-cnc-3d-printer","description":"\u003ch3\u003eSTEPPERONLINE Nema 17 Stepper Motor 0.9deg 46Ncm 2A 48mm Length 4-lead Stepping Motor for DIY CNC 3D Printer\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis bipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x48mm.\nIt has 4 wires, each phase draws current 2.0A, with holding torque 46Ncm\n(65.1oz.in). Electrical Specification Manufacturer Part Number: 17HM19-2004S\nMotor Type: Bipolar Stepper Step Angle: 0.9 deg Holding Torque:\n46Ncm(65.1oz.in) Rated Current\/phase: 2.0A Voltage: 2.8V Phase Resistance:\n1.4ohms Inductance: 3.0mH ± 20%(1KHz) Physical Specification Frame Size: 42\nx 42mm Body Length: 48mm Shaft Diameter: Φ5mm Shaft Length: 24mm D-cut\nLength: 15mm Number of Leads: 4 Lead Length: 500mm Weight: 370g Connection\nBlack(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect\nto a constant current or chopper drive controller before you test motor.\nConnecting the motor directly to a power supply will destroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eFine Resolution High Torque\u003c\/li\u003e\n \u003cli\u003eNEMA-17 bipolar 48mm 4-wire\u003c\/li\u003e\n \u003cli\u003e0.9 step angle(400 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 2.0A \u0026amp; resistance 1.4ohms\u003c\/li\u003e\n \u003cli\u003e46Ncm(65.1oz.in) holding torque\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:23:59+10:00","created_at":"2026-09-02T20:32:37+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":24400,"price_min":24400,"price_max":24400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375787831476,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B00W9A2L3S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Nema 17 Stepper Motor 0.9deg 46Ncm 2A 48mm Length 4-lead Stepping Motor for DIY CNC 3D Printer","public_title":null,"options":["Default Title"],"price":24400,"weight":431,"compare_at_price":null,"inventory_management":"shopify","barcode":"701056539857","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B00W9A2L3S.jpg?v=1788345159","\/\/auspowers.com\/cdn\/shop\/files\/41uWvIE3B5L.jpg?v=1788345160","\/\/auspowers.com\/cdn\/shop\/files\/41h9JPKHo0L.jpg?v=1788345159","\/\/auspowers.com\/cdn\/shop\/files\/416CXXsb9lL.jpg?v=1788345159","\/\/auspowers.com\/cdn\/shop\/files\/41fPXMLuBJL.jpg?v=1788345159"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00W9A2L3S.jpg?v=1788345159","options":["Title"],"media":[{"alt":null,"id":33276845228212,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00W9A2L3S.jpg?v=1788345159"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00W9A2L3S.jpg?v=1788345159","width":500},{"alt":null,"id":33276845260980,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41uWvIE3B5L.jpg?v=1788345160"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41uWvIE3B5L.jpg?v=1788345160","width":500},{"alt":null,"id":33276845293748,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41h9JPKHo0L.jpg?v=1788345159"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41h9JPKHo0L.jpg?v=1788345159","width":500},{"alt":null,"id":33276845326516,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/416CXXsb9lL.jpg?v=1788345159"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/416CXXsb9lL.jpg?v=1788345159","width":500},{"alt":null,"id":33276845359284,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41fPXMLuBJL.jpg?v=1788345159"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41fPXMLuBJL.jpg?v=1788345159","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Nema 17 Stepper Motor 0.9deg 46Ncm 2A 48mm Length 4-lead Stepping Motor for DIY CNC 3D Printer\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis bipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x48mm.\nIt has 4 wires, each phase draws current 2.0A, with holding torque 46Ncm\n(65.1oz.in). Electrical Specification Manufacturer Part Number: 17HM19-2004S\nMotor Type: Bipolar Stepper Step Angle: 0.9 deg Holding Torque:\n46Ncm(65.1oz.in) Rated Current\/phase: 2.0A Voltage: 2.8V Phase Resistance:\n1.4ohms Inductance: 3.0mH ± 20%(1KHz) Physical Specification Frame Size: 42\nx 42mm Body Length: 48mm Shaft Diameter: Φ5mm Shaft Length: 24mm D-cut\nLength: 15mm Number of Leads: 4 Lead Length: 500mm Weight: 370g Connection\nBlack(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect\nto a constant current or chopper drive controller before you test motor.\nConnecting the motor directly to a power supply will destroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eFine Resolution High Torque\u003c\/li\u003e\n \u003cli\u003eNEMA-17 bipolar 48mm 4-wire\u003c\/li\u003e\n \u003cli\u003e0.9 step angle(400 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 2.0A \u0026amp; resistance 1.4ohms\u003c\/li\u003e\n \u003cli\u003e46Ncm(65.1oz.in) holding torque\u003c\/li\u003e\n \u003c\/ul\u003e"}
